MASINA DE GAURIT CU ACUMULATOR DEWALT DCD701 Type 1
[DCD701 Type 1]
MASINA DE GAURIT CU ACUMULATOR DEWALT DCD701 Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE GAURIT CU ACUMULATOR DEWALT DCD701 Type 1
Click pentru a mari
MASINA DE GAURIT CU ACUMULATOR DEWALT DCD701 Type 1
Click pentru a mari
MASINA DE GAURIT CU ACUMULATOR DEWALT DCD701 Type 1
Click pentru a mari

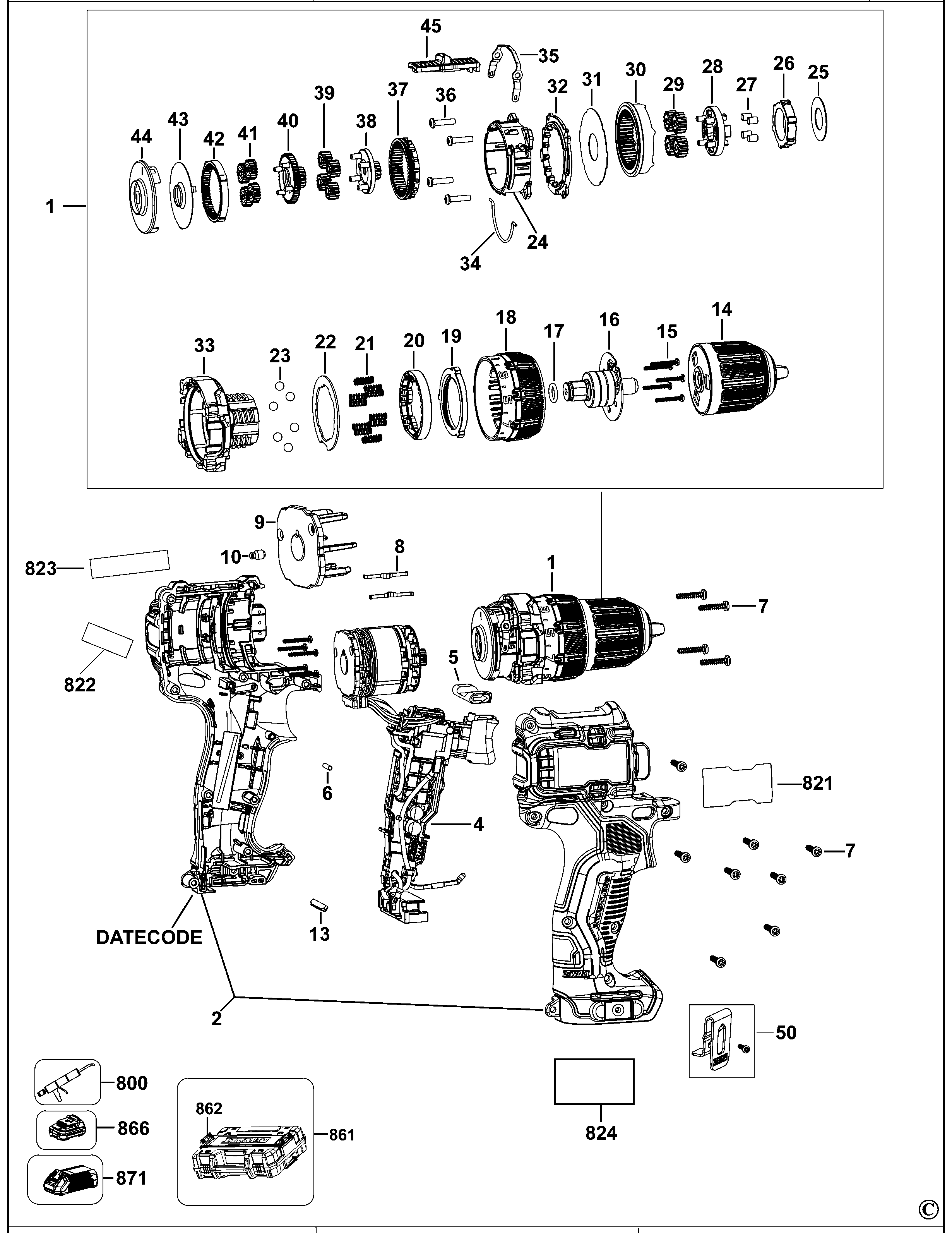

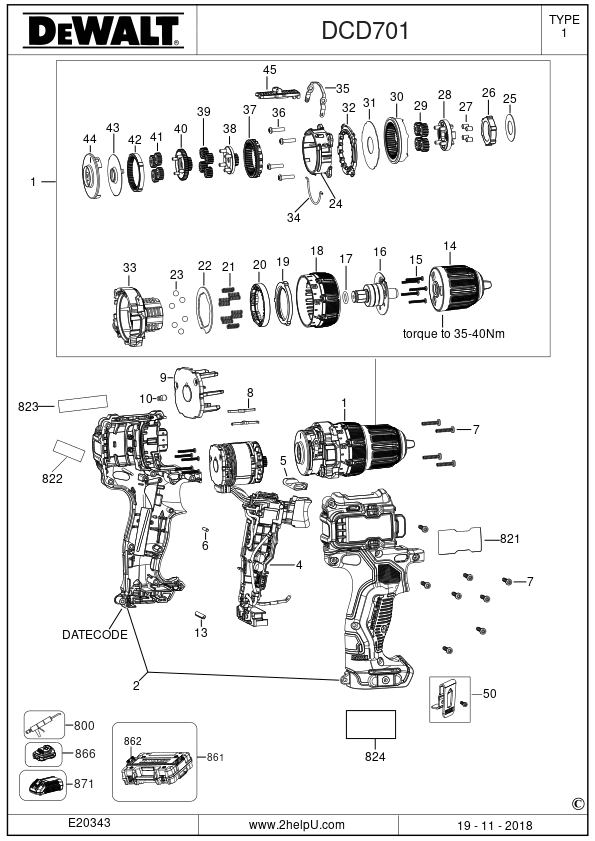

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 TRANSMISSION SA (N681261) 36994 RON
2 1 1 CLAMSHELL SET (N569260) 3268 RON
4 1 1 MOTOR & SWITCH SA (N681272) 57833 RON
5 1 1 ACTUATOR FWD/REV (N399342) 588 RON
6 1 1 ROLL PIN 2.5 X 10.9 (N071836) 558 RON
7 1 12 SCREW (N463678) 588 RON
8 1 2 SPEED SELECTOR DETENT SPRING (N014681) 558 RON
9 1 1 PLASTIC ADAPTOR (N552144) 588 RON
10 1 1 PLUG (N593131) 588 RON
13 1 1 PIN (N660916) 588 RON
14 1 1 CHUCK KEYLESS (N607312) 12361 RON
14 1 1 CHUCK KEYLESS (NA123515) 11337 RON
15 1 5 SCREW (N039795) 558 RON
16 1 1 SPINDLE SA (N681262) 12361 RON
17 1 1 O RING (N638045) 588 RON
18 1 1 COLLAR (N529547) 1772 RON
19 1 1 ADJUSTER TORQUE (N527880) 1318 RON
20 1 1 SPRING (N527879) 588 RON
21 1 12 SPRING (N527878) 588 RON
22 1 1 WASHER (N527877) 588 RON
23 1 1 BALL (N510716) 588 RON
23 1 6 BALL STEEL (386690-00) 558 RON
24 1 1 HOUSING (N531638) 668 RON
25 1 1 WASHER LOCK (N527659) 588 RON
26 1 1 LOCKING RING (N543525) 2182 RON
27 1 4 PIN (N647513) 588 RON
28 1 1 CARRIER SA (N681264) 2556 RON
29 1 4 Gear (N532276) 588 RON
30 1 1 Gear (N531435) 2182 RON
31 1 1 WASHER (N531627) 588 RON
32 1 1 RING (N531634) 114 RON
33 1 1 HOUSING (N527876) 944 RON
34 1 1 WIRE STEEL (N552206) 588 RON
35 1 1 LINK (N551526) 668 RON
36 1 4 SCREW M3 12X13 (N075506) 558 RON
37 1 1 Gear (N531632) 1630 RON
37 1 1 NA839734 - Indisponibil
38 1 1 CARRIER SA (N681265) 2796 RON
39 1 4 Gear (N531633) 588 RON
40 1 1 CARRIER SA (N681266) 1772 RON
41 1 4 Gear (N531637) 588 RON
42 1 1 Gear (N549298) 944 RON
42 1 1 NA839737 - Indisponibil
43 1 1 WASHER (N550764) 668 RON
44 1 1 PLATE (N549069) 944 RON
45 1 1 SELECTOR SA (N702960) 3268 RON
50 1 1 HOOK SA (N702958) 6688 RON
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
821 1 1 RATING PLATE (N650894) 588 RON
822 1 1 LABEL (N658202) 588 RON
823 1 1 BRAND LABEL (N658203) 588 RON
824 1 1 LABEL (N665614) 588 RON
861 1 1 KITBOX (N614791) 25728 RON
862 1 2 H1500082008 - Indisponibil
862 1 1 LATCH (N409477) 114 RON
866 1 1 BATTERY 10.8V-2AH-21.6WH (N394620) 30769 RON
866 1 1 N757624 - Indisponibil
866 1 1 BATTERY 12V-3AH-36WH (N752771) 52855 RON
871 1 1 CHARGER (EURO) (N394633) 3124 RON
871 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
871 1 1 CHARGER 10.8V - 18V (NA010209) 51127 RON
