MASINA DE GAURIT CU ACUMULATOR DEWALT DCD1007N Type 1
[DCD1007N Type 1]
MASINA DE GAURIT CU ACUMULATOR DEWALT DCD1007N Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE GAURIT CU ACUMULATOR DEWALT DCD1007N Type 1
Click pentru a mari
MASINA DE GAURIT CU ACUMULATOR DEWALT DCD1007N Type 1
Click pentru a mari
MASINA DE GAURIT CU ACUMULATOR DEWALT DCD1007N Type 1
Click pentru a mari
MASINA DE GAURIT CU ACUMULATOR DEWALT DCD1007N Type 1
Click pentru a mari

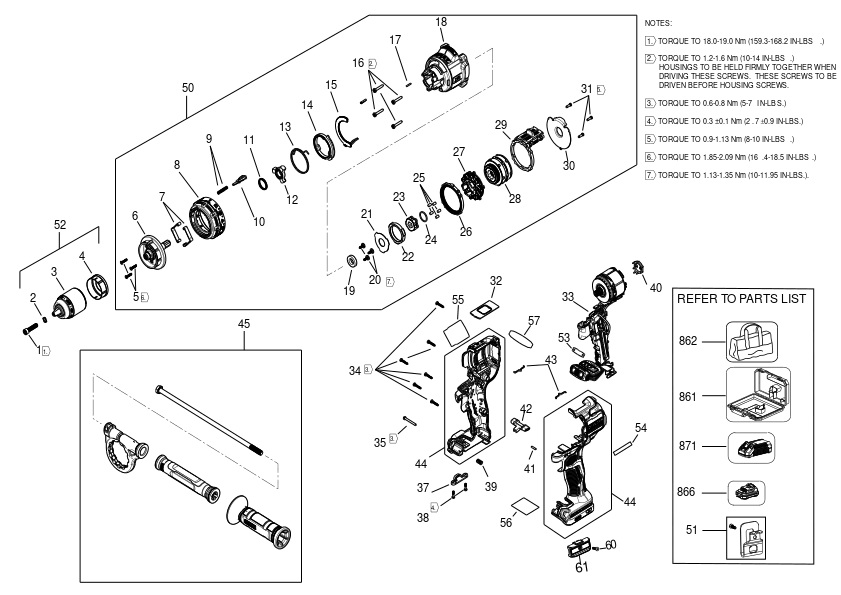

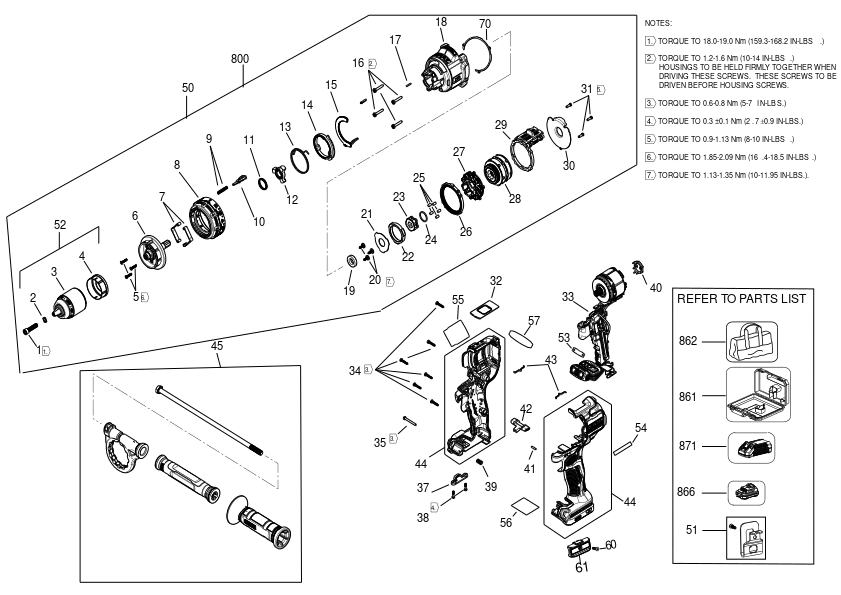

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SCREW (NA568824) 668 RON
2 1 1 WASHER (N568902) 588 RON
3 1 1 CHUCK (N765979) 32327 RON
4 1 1 END CAP (NA412325) 588 RON
5 1 3 SCREW-M3 X 0.5, T10 (NA127592) 588 RON
5 1 3 NA556718 - Indisponibil
6 1 1 SPINDLE SA (NA612313) 15469 RON
7 1 2 DETENT SPRING (N165352) 781 RON
8 1 1 CLUTCH (NA117275) 2556 RON
9 1 2 SPRING (NA068412) 588 RON
10 1 1 PIN (NA151270) 82 RON
11 1 1 SPRING-SPRING, RATCHET SEPARATION (NA473520) 588 RON
12 1 1 RATCHET (NA485646) 1933 RON
13 1 1 SPRING-SPRING, RETURN (NA378595) 588 RON
14 1 1 CAM (NA033307) 3268 RON
15 1 1 PCB (NA029259) 4827 RON
16 1 4 SCREW PLSTC THD FORM M3.5X19 T15 (330019-52) 558 RON
17 1 1 PIN-PIN, 2 X 11.435 (330041-37) 588 RON
18 1 1 GEARCASE (NA166102) 13697 RON
18 1 1 NB434778 - Indisponibil
18 1 1 GEARCASE (NA734406) 11337 RON
19 1 1 BEARING BALL (NA418764) 2796 RON
20 1 3 SCREW (N118088) 558 RON
21 1 1 WASHER (NA381271) 588 RON
22 1 1 LOCKING RING (NA380722) 2556 RON
23 1 1 ANVIL (NA425678) 2796 RON
24 1 1 O RING (N862801) 668 RON
25 1 5 PIN (NA380705) 588 RON
26 1 1 GEAR-OUTPUT RING GEAR (N866170) 2182 RON
27 1 1 Gear (NA612307) 741 RON
28 1 1 GEAR SA (NA612298) 27287 RON
29 1 1 SWITCH SA (NA612290) 5370 RON
29 1 1 SWITCH LEAD SA (NA741291) 4827 RON
30 1 1 NA202421 - Indisponibil
30 1 1 COVER (NA738571) 114 RON
31 1 3 M3 SCREW THREAD FORMING (N281559) 558 RON
32 1 1 N920350 - Indisponibil
32 1 1 SWITCH LEAD SA (NA741291) 4827 RON
33 1 1 MOTOR & SWITCH SA (NA628079) 139195 RON
34 1 6 SCREW PLASTITE (682211-00) 781 RON
35 1 1 SCREW DW941K (330019-39) 558 RON
37 1 1 BLANK COVER AUDIT CHIP (N787996) 588 RON
38 1 2 SCREW (N831593) 588 RON
39 1 1 SPRING COMPRESSION (N929081) 588 RON
40 1 1 RETAINER (NA263935) 588 RON
41 1 1 ROLL PIN 2.5 X 10.9 (N071836) 558 RON
42 1 1 ACTUATOR FWD/REV (N431555) 588 RON
43 1 2 SPEED SELECTOR DETENT SPRING (N014681) 558 RON
44 1 1 HOUSING SA (NA602563) 6688 RON
45 1 1 HANDLE SIDE SA (N779489) 16689 RON
50 1 1 TRANSMISSION SA (NA611679) 139195 RON
51 1 1 HOOK SA (N859056) 1630 RON
52 1 1 CHUCK SA (NA612251) 32327 RON
53 1 1 LABEL-LABEL ANTI ROTATION (NA186385) 588 RON
54 1 1 LABEL (NA186386) 588 RON
55 1 1 RATING LABEL (NA186387) 588 RON
56 1 1 LABEL (NA186388) 588 RON
57 1 1 LABEL (NA334299) 588 RON
60 1 1 BELT HOOK SCREW M3 (N042665) 558 RON
61 1 1 HOLDER SA (N851797) 3954 RON
70 1 1 GASKET (NA724795) 668 RON
800 1 1 GREASE (N017298) 4825 RON
