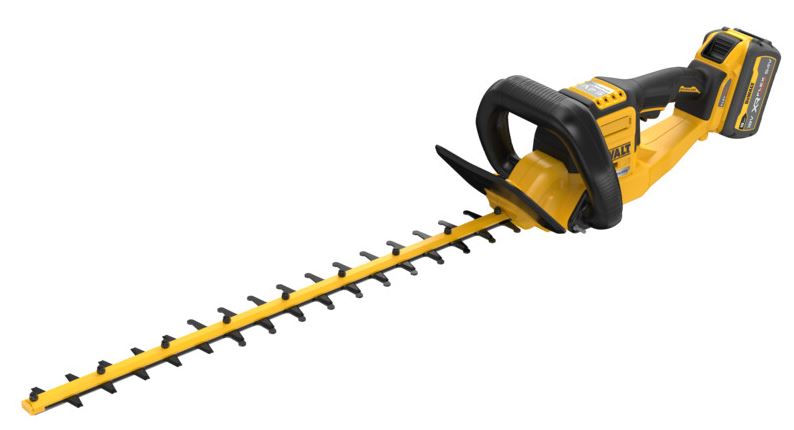

MASINA D ETUNS GARD VIU DEWALT DCMHT573X1 Type 1
[DCMHT573X1 Type 1]
MASINA D ETUNS GARD VIU DEWALT DCMHT573X1 Type 1
Click pentru a mari
Imagini suplimentare
MASINA D ETUNS GARD VIU DEWALT DCMHT573X1 Type 1
Click pentru a mari
MASINA D ETUNS GARD VIU DEWALT DCMHT573X1 Type 1
Click pentru a mari
MASINA D ETUNS GARD VIU DEWALT DCMHT573X1 Type 1
Click pentru a mari
MASINA D ETUNS GARD VIU DEWALT DCMHT573X1 Type 1
Click pentru a mari

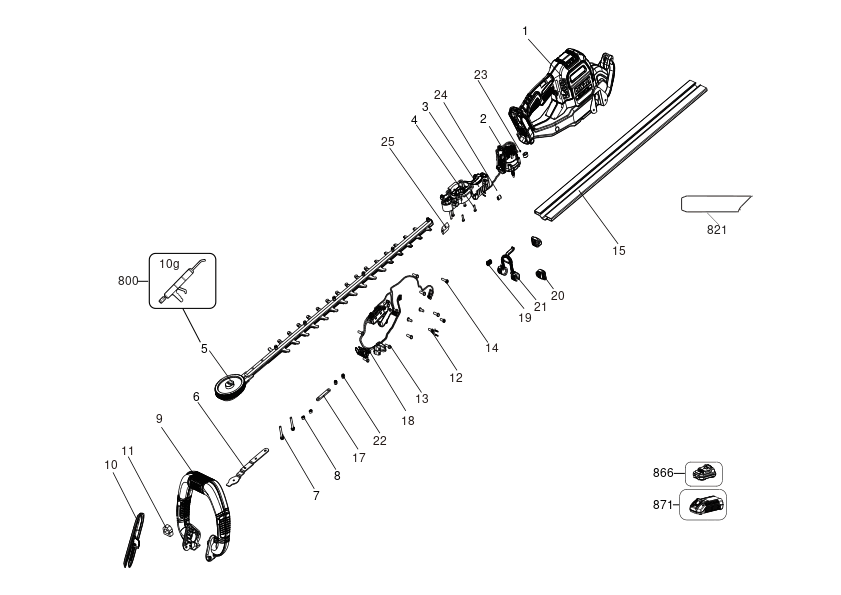

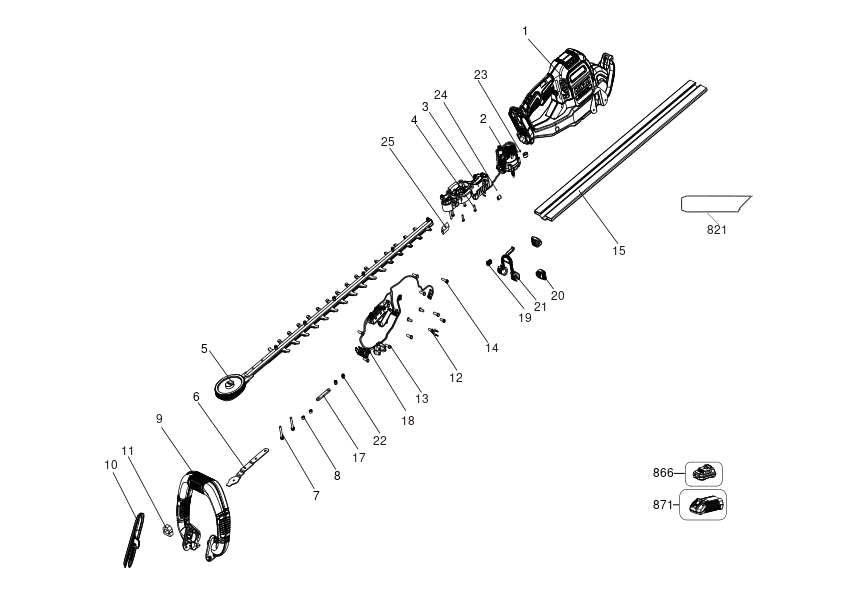

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (N882779) 28836 RON
2 1 1 MOTOR SA (NA678914) 91363 RON
3 1 1 GEARCASE SA (NA553209) 741 RON
4 1 4 SCREW (330019-38) 558 RON
5 1 1 BLADE SA (NA355682) 85494 RON
6 1 1 BLADE SUPPORT SA (NA363668) 1933 RON
7 1 2 SCREW (90628896) 588 RON
8 1 2 SPACER (NA093432) 588 RON
9 1 1 HANDLE SA (NA022097) 12361 RON
10 1 1 GUARD SA (NA106549) 1933 RON
11 1 1 FELT (N692632) 82 RON
12 1 5 screw dw744 (330019-12) 558 RON
13 1 9 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
14 1 1 SCREW (330019-45) 558 RON
15 1 1 SHEATH (NA007333) 3268 RON
17 1 1 PLATE (NA035320) 668 RON
18 1 1 HARNESS (NA020117) 24962 RON
19 1 1 SPRING (NA013845) 588 RON
20 1 1 LUG (90627616) 588 RON
21 1 1 LINK (NA136364) 1318 RON
22 1 2 STOP NUT (330021-06) 558 RON
23 1 1 MAGNETRON (N928626) 5370 RON
24 1 1 MAGNETRON (NA409856) 944 RON
25 1 1 CORE (NA390861) 3268 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
821 1 1 RATING LABEL (NA045989) 588 RON
866 1 1 CHARGER QW (N473860) 73079 RON
871 1 1 CHARGER QW (N473860) 73079 RON
