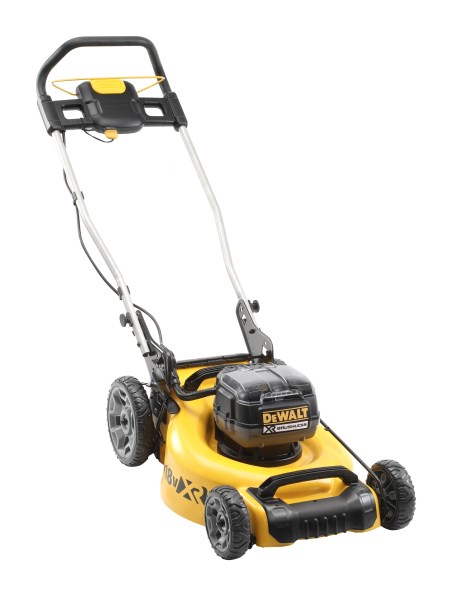

MASINA DE COSIT DEWALT DCMW564 Type 1
[DCMW564 Type 1]
MASINA DE COSIT DEWALT DCMW564 Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE COSIT DEWALT DCMW564 Type 1
Click pentru a mari
MASINA DE COSIT DEWALT DCMW564 Type 1
Click pentru a mari

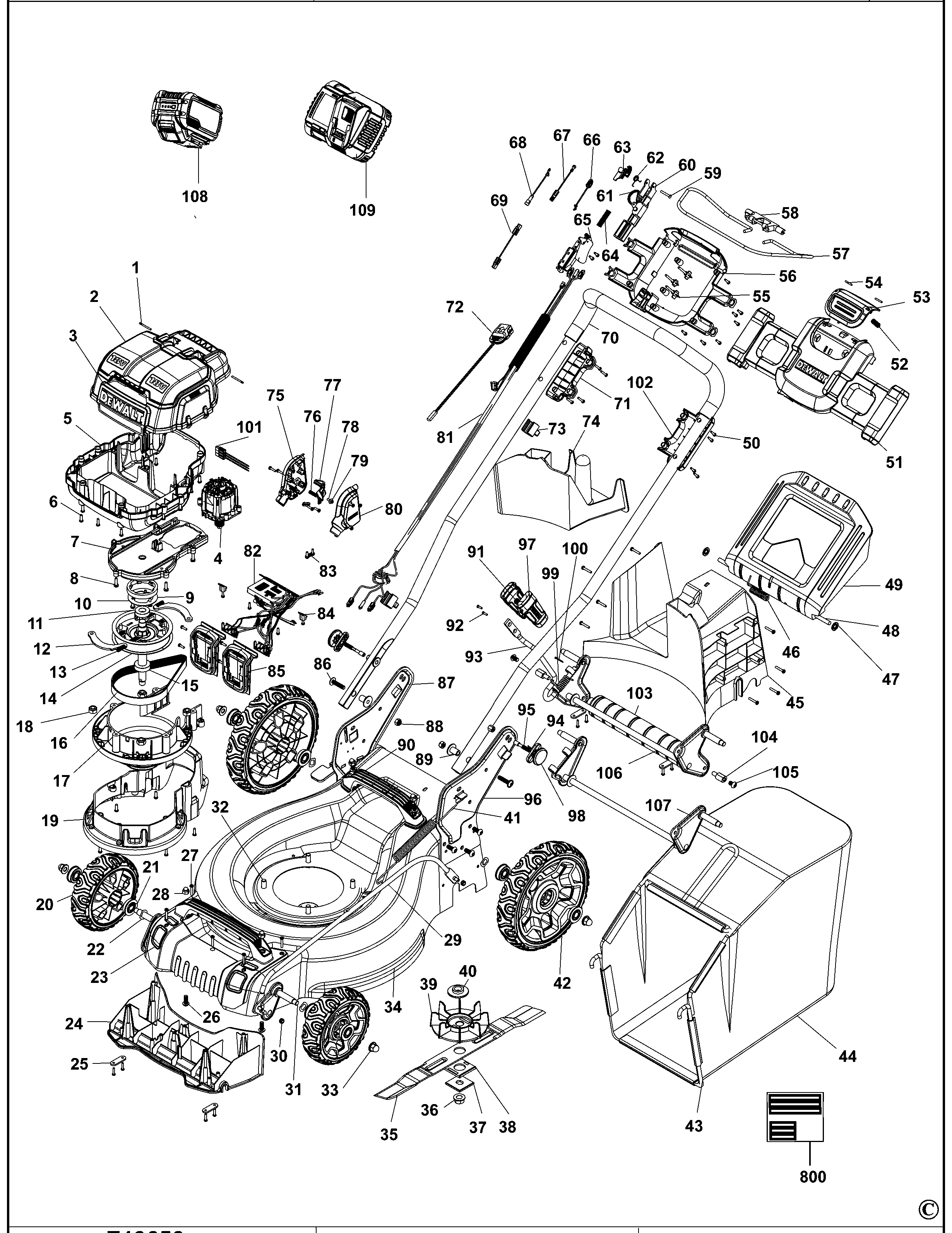

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 PIN (N529964) 944 RON
2 1 1 BATTERY COVER (N538306) 741 RON
3 1 1 HOUSING (N522379) 11337 RON
4 1 1 MOTOR SA (N510589) 46247 RON
5 1 1 BOTTOM HOUSING (N523806) 6688 RON
6 1 21 screw dw744 (330019-12) 558 RON
7 1 1 TRANSMISSION SA (N522496) 9012 RON
8 1 14 Screw Metal (330045-15) 781 RON
9 1 1 BRAKE (90563941) 2796 RON
10 1 1 PLATE (N526051) 82 RON
11 1 1 BEARING BALL CW MFG (605040-25) 2347 RON
12 1 2 PAD (N510600) 1933 RON
13 1 1 SPRING (N554320) 588 RON
14 1 1 DRIVE PULLEY (N510599) 741 RON
15 1 1 BEARING BALL 153209 (330003-12) 2795 RON
15 1 1 BEARING, BALL (330003-15) 3954 RON
16 1 1 BELT (N538640) 6688 RON
17 1 1 BASE (N510603) 9012 RON
18 1 4 NUT M10 (N455283) 588 RON
19 1 1 COVER (N523807) 5370 RON
20 1 1 N585445 - Indisponibil
20 1 1 WHEEL FRONT (N911216) 6688 RON
21 1 8 BEARING (N512118) 2556 RON
21 1 8 BEARING (N658643) 588 RON
22 1 4 WASHER SPECIAL (N514019) 588 RON
23 1 1 COVER (N524354) 3268 RON
24 1 1 INSERT (N510921) 4827 RON
25 1 4 PLATE (N523499) 588 RON
26 1 10 BOLT M8 (N526930) 588 RON
27 1 13 SCREW (330019-14) 558 RON
28 1 4 SCREW (330019-14) 558 RON
29 1 1 CONNECTING ROD (N546988) 5370 RON
30 1 2 LOCK-NUT (N541610) 588 RON
31 1 1 AXLE FRONT (N501688) 741 RON
32 1 4 BOLT (N545139) 668 RON
33 1 4 NUT (N514015) 668 RON
34 1 1 N562755 - Indisponibil
34 1 1 BASE (N599968) 99395 RON
35 1 1 BLADE (N510897) 741 RON
36 1 1 NUT (N538858) 944 RON
37 1 1 SPACER (092715-00) 781 RON
38 1 1 WASHER INSULATING (90541434) 781 RON
39 1 1 FAN (90547431) 3466 RON
40 1 1 680812 - Indisponibil
40 1 1 SPACER (680812-00) 105 RON
41 1 1 SPRING (N528752) 3268 RON
42 1 1 WHEEL (N585446) 16689 RON
42 1 1 WHEEL (N658649) 11337 RON
43 1 1 FRAME (N482446) 741 RON
44 1 1 GRASSBAG (N568960) 13697 RON
45 1 1 INSERT (N501687) 13697 RON
46 1 1 SPRING (N521916) 82 RON
47 1 2 Washer Lock (90574276) 781 RON
48 1 1 ROD (N511391) 2182 RON
49 1 1 DOOR (N482347) 4355 RON
50 1 29 Screw M3.5X16 T15 (330019-03) 558 RON
51 1 1 HOUSING (N510761) 4827 RON
52 1 2 SPRING (N534694) 588 RON
53 1 1 BUTTON (N514408) 1630 RON
54 1 2 PIN (N516878) 588 RON
55 1 1 PIN (N533427) 588 RON
56 1 1 HOUSING (N510762) 3268 RON
57 1 1 SAFETY KEY (N510894) 3268 RON
58 1 1 HANDLE (N516529) 1318 RON
59 1 2 PIN (N535718) 588 RON
60 1 1 CONNECTING ROD (N516531) 114 RON
61 1 1 SWITCH (N516530) 944 RON
62 1 1 SPRING (N531187) 588 RON
63 1 1 CATCH (N529982) 668 RON
64 1 1 SPRING (N534693) 588 RON
65 1 1 SWITCH (N474391) 9012 RON
66 1 1 HARNESS (N529976) 3268 RON
67 1 1 SWITCH (N522815) 2796 RON
68 1 1 WIRE (N529977) 1630 RON
69 1 1 HARNESS (N529978) 5370 RON
70 1 1 N525359 - Indisponibil
70 1 1 HANDLE SA (NA074187) 32327 RON
71 1 1 COVER (N524113) 114 RON
72 1 1 KEY (N529625) 9012 RON
73 1 1 CABLE CLAMP (90560489) 781 RON
74 1 1 PLUG (N511039) 4827 RON
75 1 1 SWITCH (N521164) 944 RON
76 1 1 SPRING (90606558) 588 RON
77 1 1 ACTUATOR (N521166) 668 RON
78 1 16 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
79 1 1 WASHER (90629573) 588 RON
80 1 1 COVER (N521165) 944 RON
81 1 1 HARNESS (N636364) 25728 RON
81 1 1 N563846 - Indisponibil
82 1 1 MODULE (N593669) 96047 RON
82 1 1 N522805 - Indisponibil
83 1 3 CLAMP CORD CORNER (329301-00) 558 RON
84 1 2 MOUNTING BRACKET (N526371) 588 RON
85 1 1 RAIL (N539660) 2182 RON
86 1 2 BOLT (N535212) 668 RON
87 1 1 PLATE SA (N531011) 16689 RON
88 1 2 NUT (N535210) 588 RON
89 1 2 SPACER (N535178) 668 RON
90 1 1 HANDLE (N501719) 2556 RON
91 1 1 GRIP (N535957) 668 RON
92 1 2 SCREW (330019-31) 588 RON
93 1 1 LEVER (N508608) 3954 RON
94 1 1 SPRING (90564730) 558 RON
95 1 1 SPRING COMPRESSION (90101536) 558 RON
96 1 1 PLATE LH (N501685) 9012 RON
97 1 1 GRIP (N535958) 668 RON
98 1 2 90587674 - Indisponibil
98 1 1 KNOB (N642431) 944 RON
99 1 1 SPRING (N510242) 668 RON
100 1 1 PIN (90636552) 588 RON
101 1 1 WIRE (N530551) 741 RON
102 1 1 COVER (N524114) 114 RON
103 1 1 ROLLER (N522588) 3268 RON
104 1 1 PIN (N528290) 1630 RON
105 1 2 N542724 - Indisponibil
105 1 2 BOLT (NA562232) 588 RON
106 1 1 AXLE (N525752) 15469 RON
107 1 1 AXLE (N528039) 9012 RON
108 1 1 BATTERY 18V -5.0AH -90WH (N394624) 104961 RON
108 1 1 N425114 - Indisponibil
109 1 1 N406063 - Indisponibil
109 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
109 1 1 CHARGER CORDED 4A DCB1104 XE MS4272 (NA007574) 35435 RON
800 1 1 N527704 - Indisponibil
808 1 1 SPRING TORSION (N534932) 588 RON
