Top » Piese de schimb » PIESE DEWALT » D271055 Type 1

MASA EXTENSIBILA DEWALT D271055 Type 1
[D271055 Type 1]
MASA EXTENSIBILA DEWALT D271055 Type 1
Click pentru a mari
Imagini suplimentare
MASA EXTENSIBILA DEWALT D271055 Type 1
Click pentru a mari
MASA EXTENSIBILA DEWALT D271055 Type 1
Click pentru a mari

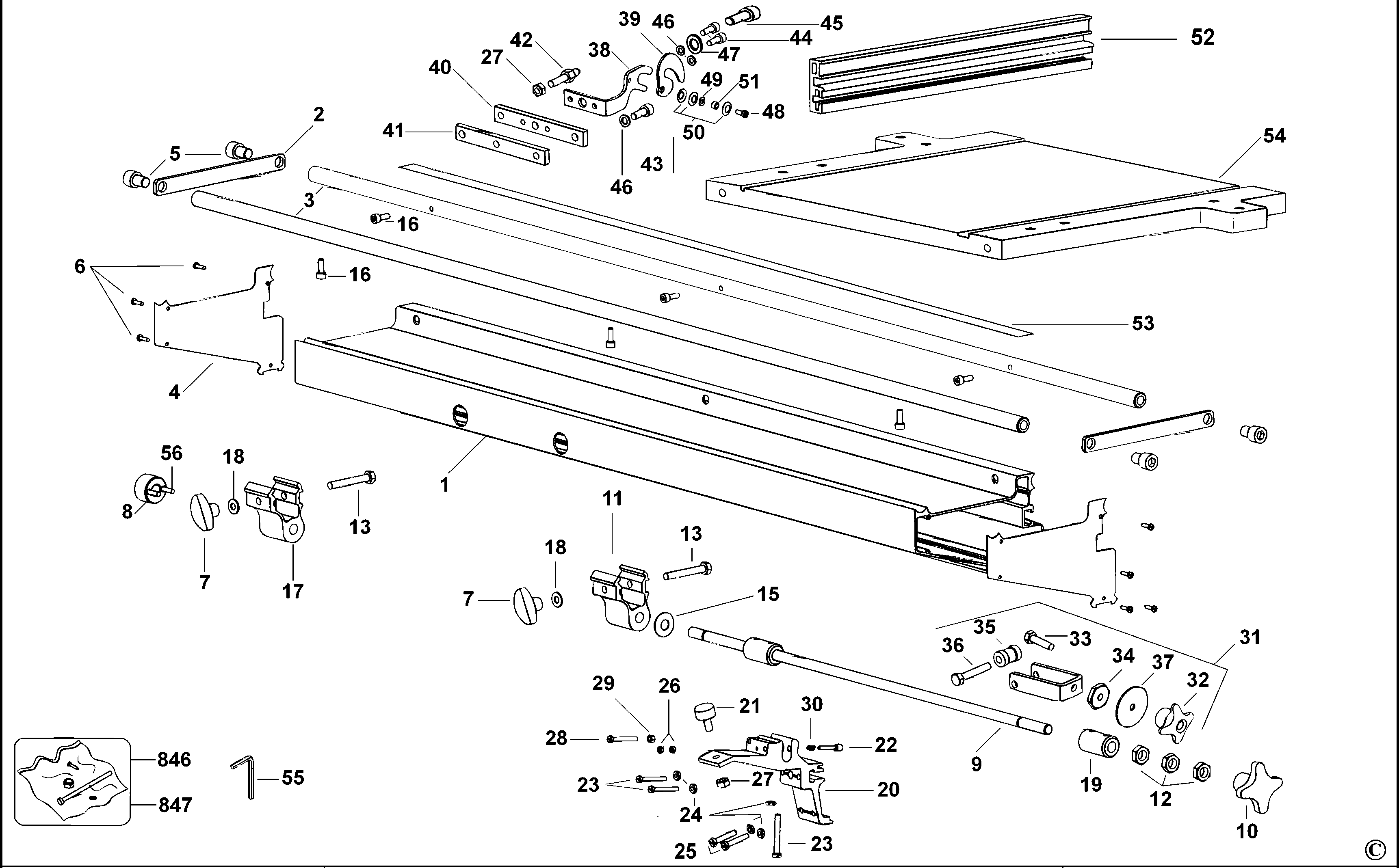

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 EXTRUDED CATCH (942175-00) 271790 RON
2 1 2 CLAMP BAR D.18X188 (941863-00) 2795 RON
3 1 2 SLIDE BAR D.18X1400 (942165-00) 34336 RON
4 1 2 END PLATE (942169-00) 2347 RON
5 1 4 SCREW SOCKET M.12X16 UNI 5931 (860093-12) 1117 RON
6 1 8 SCREW PAN.PHAB 3.9X16 UNI6954 (860084-12) 558 RON
7 1 2 WING NUT M8 (941756-00) 1229 RON
8 1 1 WASHER (942170-00) 9282 RON
9 1 1 D.12 BAR + BUSH + PIN (942159-00) 20467 RON
10 1 1 KNOB (941564-01) 2795 RON
11 1 1 BLOCK (942167-00) 6821 RON
12 1 3 NUT HEX THIN M.12 UNI5589 (860083-17) 558 RON
13 1 2 SCREW HEX M.8X55 UNI 5739 (860085-23) 781 RON
15 1 1 WASHER SPRING CON.12.2X28X1.5 (860074-05) 781 RON
16 1 6 SCREW SOCKET M.6X16 UNI 5931 (860093-03) 558 RON
17 1 1 ZOCCOLO APPOGGIO D.13 (861198-00) 10512 RON
18 1 2 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
19 1 1 BUSHING (862501-01) 6821 RON
20 1 2 BRACKET SLIDE TABLE (626488-00) 3592 RON
21 1 2 RUBBER M.8 (941614-00) 1452 RON
22 1 2 SCREW (942155-00) 4472 RON
23 1 6 SCREW FIL.HD M6X45 UNI6107 ZN (860089-38) 558 RON
24 1 10 NUT M6 (860083-12) 558 RON
25 1 4 FLAT FILL.HD.SCREW M6X30-UNI61 (710720-00) 558 RON
26 1 4 NUT HEX MEAN M.4 UNI5588 ZINC (860083-10) 558 RON
27 1 3 NUT HEX MEAN M.8 UNI5588 ZINC (860083-14) 558 RON
28 1 2 SCREW FIL.HD M.5X35 UNI6107 (860089-11) 558 RON
29 1 2 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
30 1 2 SPRING (942196-00) 1788 RON
31 1 1 SA BRACKET TGS SLIDE TABLE (626541-00) 20467 RON
32 1 1 KNOB (942195-00) 4137 RON
33 1 1 SCREW HEX M.8X30 UNI 5739 (860085-20) 558 RON
34 1 1 NUT (942194-00) 7940 RON
35 1 1 BUSHING (626491-00) 3466 RON
36 1 1 SCREW HEX M.8X45 UNI 5737 (860086-09) 781 RON
37 1 1 WASHER D.8 4X24X2 (941602-00) 558 RON
38 1 1 LINK (942160-00) 2795 RON
39 1 1 LEVER (942173-00) 1117 RON
40 1 1 PLATE (942154-00) 9282 RON
41 1 1 PLATE (942153-00) 7940 RON
42 1 1 SCREW (942156-00) 190 RON
42 1 1 SCREW (942156-01) 3018 RON
43 1 1 SCREW SOCKET M.8X20 UNI 5931 (860093-07) 558 RON
44 1 2 SOCKET HEAD SCREW (760219-00) 558 RON
45 1 1 SCREW SOCKET M.8X25 UNI 5931 (860093-02) 558 RON
46 1 2 WASHER FLAT 8.4X14 UNI6592 ZN (860073-08) 558 RON
47 1 2 WASHER FLAT 6.4X11 UNI6592 ZN (860073-07) 558 RON
48 1 1 SCREW M5X10 (760998-00) 558 RON
49 1 1 WASHER FLAT 5.3X10 UNI 6592 (860073-01) 558 RON
50 1 3 WASHER (942069-00) 781 RON
51 1 1 SPACER (942158-00) 781 RON
52 1 1 FENCE ROD (942180-00) 49771 RON
53 1 1 SCALE (942076-00) 3018 RON
54 1 1 E34970 SENZA IMBALLO (864624-01) 364960 RON
55 1 1 WRENCH HEX 6 UNI 6753 (860098-04) 781 RON
56 1 2 SPRING PIN 5X30 (941576-00) 558 RON
846 1 1 SA BAG TGS SLIDE TABLE (627087-00) 190 RON
847 1 1 BUSTA NYL.2 E34970 (864426-02) 112630 RON
