Top » Piese de schimb » PIESE DEWALT » DE7461 Type 1

MASA DEWALT DE7461 Type 1
[DE7461 Type 1]
MASA DEWALT DE7461 Type 1
Click pentru a mari
Imagini suplimentare
MASA DEWALT DE7461 Type 1
Click pentru a mari
MASA DEWALT DE7461 Type 1
Click pentru a mari

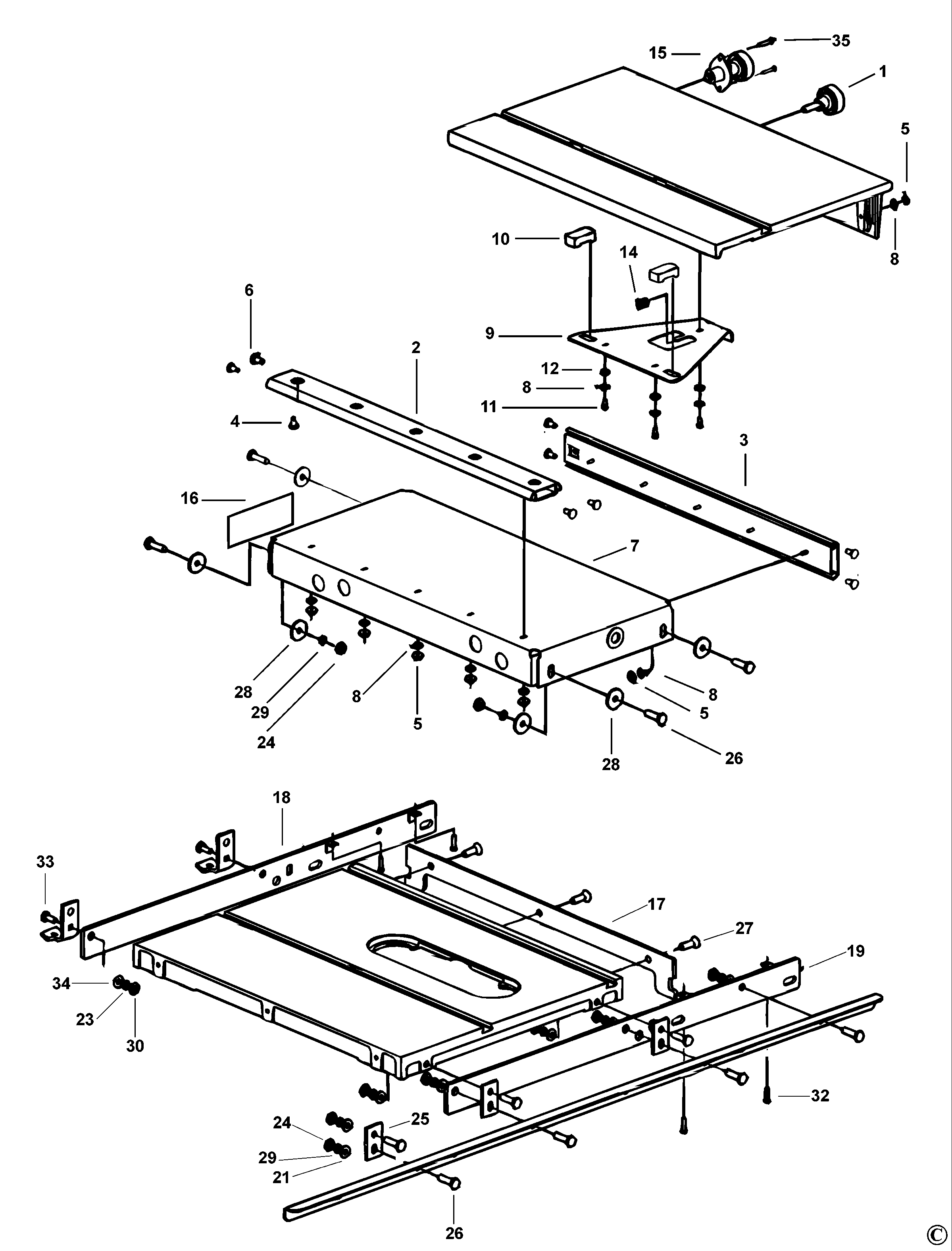

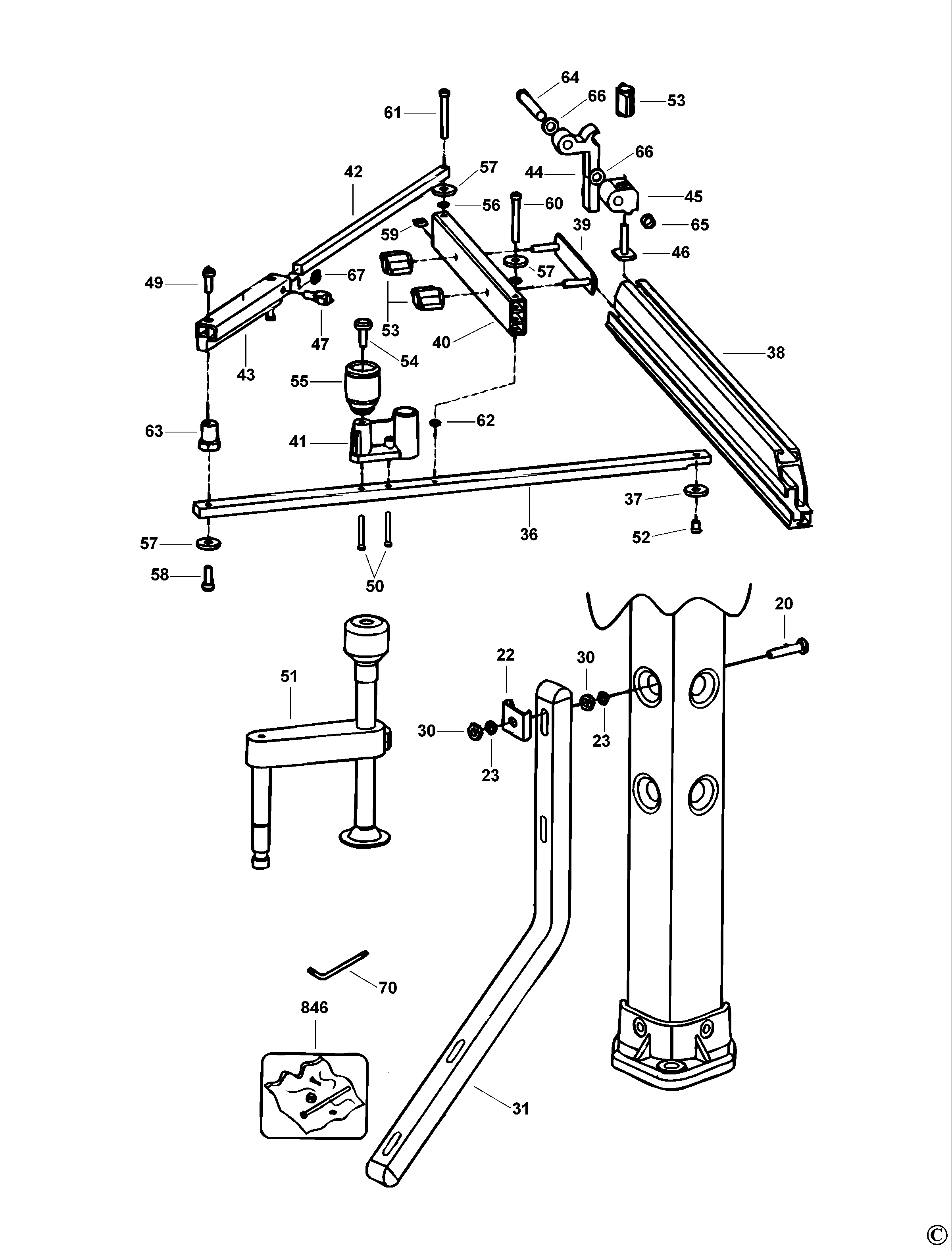

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 KNOB SA (389903-00) 20467 RON
2 1 1 SLIDE (389907-00) 14265 RON
3 1 1 SLIDE (391400-00) 9736 RON
4 1 5 SCREW (153637-03) 781 RON
5 1 15 LOCK NUT (148641-00) 558 RON
6 1 8 PLUG (390616-00) 1788 RON
7 1 1 SUPPORT TABLE (389913-00) 46863 RON
8 1 18 WASHER PLAIN STL 6 X 12 X 1 . (330016-02) 558 RON
9 1 1 PLATE (389905-00) 25164 RON
10 1 2 BLOCK (389906-00) 3018 RON
11 1 3 SCREW.SPECIAL (144949-00) 558 RON
12 1 3 WASHER (449668-00) 558 RON
14 1 1 SPRING (390621-00) 1117 RON
15 1 1 LOCK BUTTON (389910-00) 17335 RON
16 1 1 394178-00 - Indisponibil
17 1 1 BRACKET (389916-00) 3018 RON
18 1 1 TABLE SUPPORT (389915-00) 40599 RON
19 1 1 TABLE SUPPORT (389915-01) 40599 RON
20 1 4 SCREW (98025-55) 1117 RON
21 1 7 WASHER PLAIN STEEL 10 * 20 * 2.0 THICK (330016-04) 558 RON
22 1 4 CLAMP (391044-00) 2124 RON
23 1 10 98197-09 - Indisponibil
23 1 10 Washer Lock (098197-09) 558 RON
24 1 11 NUT (330015-05) 781 RON
25 1 3 BRACKET (389918-00) 1117 RON
26 1 11 BOLT (98026-35) 558 RON
27 1 3 SCREW (98204-30) 781 RON
28 1 8 330016-11 - Indisponibil
29 1 11 WASHER LOCK (98197-07) 588 RON
29 1 11 Washer Lock (098197-07) 558 RON
30 1 10 NUT HEX (330015-03) 558 RON
31 1 2 STAB LEG (390917-00) 17335 RON
32 1 4 SCREW (330045-24) 558 RON
33 1 2 CARRIAGE BOLT (98130-25) 781 RON
34 1 2 WASHER PLAIN. STEEL 8*16*1.6 THICK (330016-03) 558 RON
35 1 2 SCREW (330045-14) 558 RON
36 1 1 MITRE GUIDE (429916-00) 11519 RON
37 1 1 Washer Lock (429916-01) 190 RON
38 1 1 FENCE (429916-02) 45297 RON
39 1 1 CLAMPING BAR (429916-03) 4137 RON
40 1 1 FENCE (429916-04) 3124 RON
41 1 1 CLAMP (429916-05) 6821 RON
42 1 1 BRACE (429916-06) 9282 RON
43 1 1 BRACE (429916-07) 25164 RON
44 1 1 STOP (429916-08) 17335 RON
45 1 1 MOUNT (429916-09) 20467 RON
46 1 1 BOLT (429916-10) 7940 RON
47 1 1 KNOB SA (286303-00) 14315 RON
49 1 1 SCREW (429916-12) 781 RON
50 1 2 SCREW (429916-13) 781 RON
50 1 2 screw dw733 (429711-00) 893 RON
51 1 1 CLAMP SA (153650-04) 42277 RON
52 1 1 SCREW (429916-14) 558 RON
53 1 3 KNOB (147107-08) 893 RON
53 1 3 KNOB (147107-00) 105 RON
54 1 1 SCREW (153414-00) 781 RON
55 1 1 KNOB (153417-00) 3018 RON
56 1 2 WASHER (429916-15) 558 RON
57 1 3 WASHER THURST (429916-16) 558 RON
58 1 1 BOLT (429916-17) 3466 RON
59 1 1 NUT (429916-18) 105 RON
60 1 1 BOLT (429916-19) 7940 RON
61 1 1 BOLT (429916-20) 4137 RON
62 1 1 WASHER (429916-21) 558 RON
63 1 1 ADJ BLOCK (429916-22) 1891 RON
64 1 1 BOLT (429916-23) 781 RON
65 1 1 NUT (429916-24) 558 RON
66 1 2 WASHER (429916-25) 558 RON
67 1 1 NUT (429916-26) 781 RON
70 1 1 TORX 50 WRENCH (152693-01) 190 RON
70 1 1 DRIVER (152693-02) 2124 RON
846 1 1 ACCESSORY KIT (389926-00) 42277 RON
