Top » Piese de schimb » PIESE DEWALT » DE3471 Type 1

MASA DEWALT DE3471 Type 1
[DE3471 Type 1]
MASA DEWALT DE3471 Type 1
Click pentru a mari
Imagini suplimentare
MASA DEWALT DE3471 Type 1
Click pentru a mari
MASA DEWALT DE3471 Type 1
Click pentru a mari

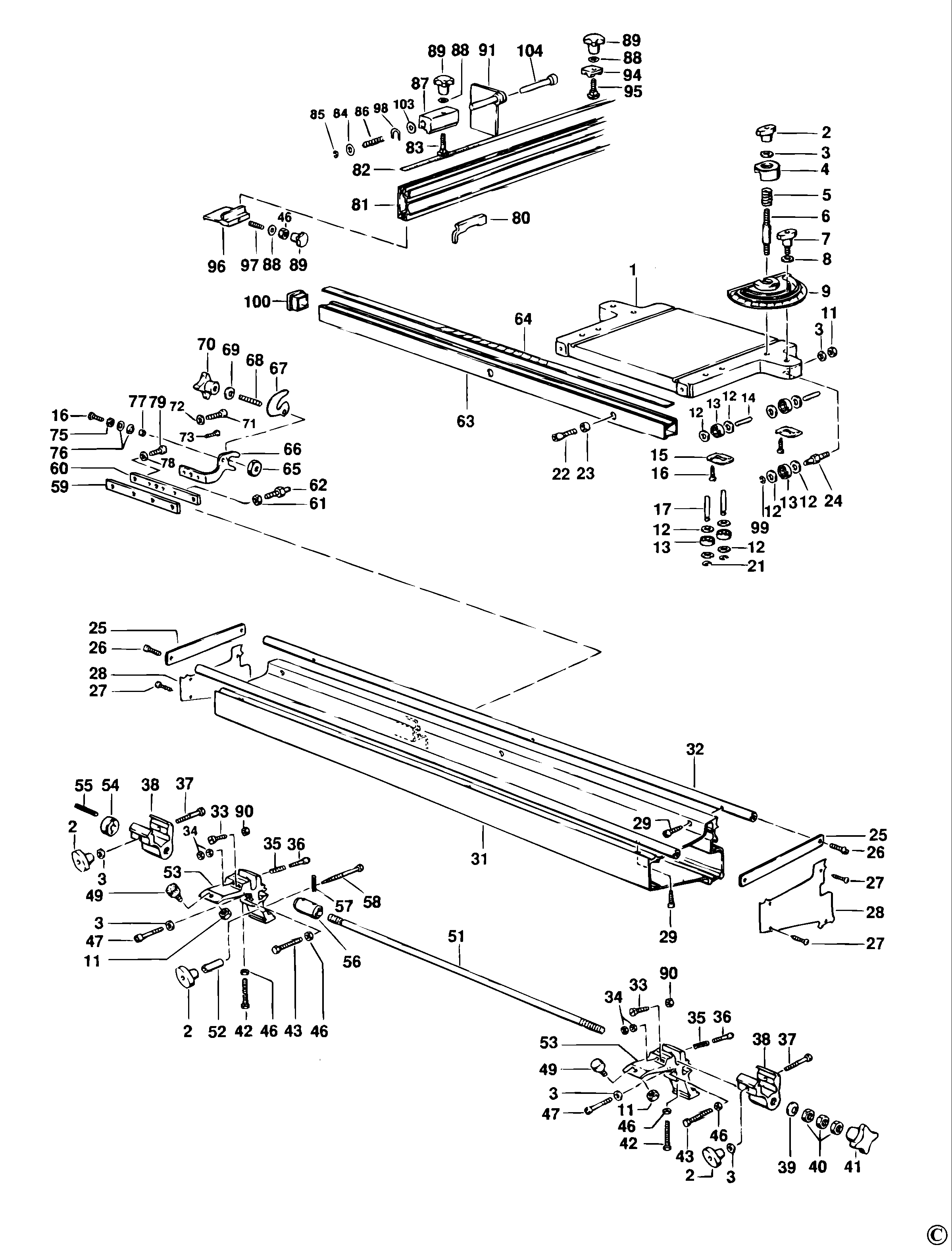

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 TABLE (942179-00) 62298 RON
2 1 4 WING NUT M8 (941756-00) 1229 RON
3 1 6 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
4 1 1 STOP PLATE (941746-00) 4137 RON
5 1 1 SPRING (941759-00) 190 RON
6 1 1 SCREW (942146-00) 5031 RON
7 1 1 WING SCREW M8X30 (760243-00) 4137 RON
8 1 1 WASHER D.8 4X24X2 (941602-00) 558 RON
9 1 1 SCALE HOLDER (941708-00) 6821 RON
11 1 4 NUT HEX THIN M.8 UNI5589 ZINC (860083-15) 558 RON
12 1 20 WASHER (941859-00) 558 RON
13 1 10 BEARING (N110358) 2347 RON
13 1 10 BEARING (330003-05) 3466 RON
14 1 4 DOWEL (941873-00) 893 RON
15 1 4 PLATE (941858-00) 1117 RON
16 1 8 SCREW M5X10 (760998-00) 558 RON
17 1 4 PIN GROOVE B 8X40 DIN 1469 (860649-03) 1117 RON
21 1 6 CIRCLIP (860332-02) 558 RON
22 1 2 SCREW (942161-00) 5591 RON
23 1 2 WASHER (942171-00) 4137 RON
24 1 2 ROLLER (941870-00) 7940 RON
25 1 2 CLAMP BAR D.18X188 (941863-00) 2795 RON
26 1 4 SCREW SOCKET M.12X16 UNI 5931 (860093-12) 1117 RON
27 1 8 SCREW (949896-12) 558 RON
28 1 2 END PLATE (942169-00) 2347 RON
29 1 4 SCREW SOCKET M.6X16 UNI 5931 (860093-03) 558 RON
31 1 1 EXTRUDED CATCH (942175-00) 271790 RON
32 1 2 SLIDE BAR D.18X1400 (942165-00) 34336 RON
33 1 2 SCREW FIL.HD M.5X35 UNI6107 (860089-11) 558 RON
34 1 4 NUT M4 (249232-00) 558 RON
35 1 1 SPRING (942196-00) 1788 RON
36 1 2 SCREW (942155-00) 4472 RON
37 1 2 SCREW HEX M.8X55 UNI 5739 (860085-23) 781 RON
38 1 2 BLOCK (942167-00) 6821 RON
39 1 1 WASHER SPRING CON.12.2X28X1.5 (860074-05) 781 RON
40 1 3 NUT M12 (011822800) 1117 RON
40 1 3 NUT HEX THIN M.12 UNI5589 (860083-17) 558 RON
41 1 1 KNOB (941564-01) 2795 RON
42 1 1 HEX.HD.SCREW M6X50 (941959-00) 558 RON
43 1 2 BOLT (11197) 558 RON
46 1 7 NUT M6 (860083-12) 558 RON
47 1 2 SOCKET HEAD SCREW (860093-21) 781 RON
49 1 2 RUBBER M.8 (941614-00) 1452 RON
51 1 1 D.12 BAR + BUSH + PIN (942159-00) 20467 RON
52 1 1 SLEEVE (942163-00) 2124 RON
53 1 2 HOLDER (942157-00) 28296 RON
54 1 1 WASHER (942170-00) 9282 RON
55 1 2 SPRING PIN 5X30 (941576-00) 558 RON
56 1 1 D.12 BAR + BUSH + PIN (942159-00) 20467 RON
57 1 2 ROLL PIN (330036-08) 558 RON
58 1 1 SCREW HEX M.8X100 UNI 5739 (860085-22) 1117 RON
59 1 1 PLATE (942153-00) 7940 RON
60 1 1 PLATE (942154-00) 9282 RON
61 1 1 NUT HEX MEAN M.8 UNI5588 ZINC (860083-14) 558 RON
62 1 1 SCREW (942156-00) 190 RON
62 1 1 SCREW (942156-01) 3018 RON
63 1 1 SUPPORT TUBE 30X30X980 (862042-00) 3592 RON
64 1 1 SCALE (942076-00) 3018 RON
65 1 1 NUT (942194-00) 7940 RON
66 1 1 LINK (942160-00) 2795 RON
67 1 1 LEVER (942173-00) 1117 RON
68 1 1 STUD (760229-00) 1452 RON
69 1 2 WASHER D.8 4X24X2 (941602-00) 558 RON
70 1 1 KNOB (942195-00) 4137 RON
71 1 1 SCREW SOCKET M.8X25 UNI 5931 (860093-02) 558 RON
72 1 1 WASHER FLAT 8.4X14 UNI6592 ZN (860073-08) 558 RON
73 1 2 SOCKET HEAD SCREW (760219-00) 558 RON
75 1 2 WASHER FLAT 5.3X10 UNI 6592 (860073-01) 558 RON
76 1 1 WASHER (942069-00) 781 RON
77 1 1 SPACER (942158-00) 781 RON
78 1 1 WASHER FLAT 8.4X14 UNI6592 ZN (860073-08) 558 RON
79 1 1 SCREW SOCKET M.8X20 UNI 5931 (860093-07) 558 RON
80 1 1 SLIDING TABLE HOOK (942152-00) 7940 RON
81 1 1 FENCE ROD (942180-00) 49771 RON
82 1 1 SCALE (942079-00) 11519 RON
83 1 1 SCREW (170911609) 6821 RON
83 1 1 BOLT (942188-00) 5031 RON
84 1 1 WASHER FLAT 5.3X10 UNI 6592 (860073-01) 558 RON
85 1 1 WASHER (036820700) 558 RON
86 1 2 SPRING D.6X0 5 (949722-03) 1788 RON
87 1 1 BLOCK (942176-00) 3466 RON
87 1 1 BLOCK (170275702) 5591 RON
88 1 3 WASHER FLAT 6.4X12.5 UNI 6592 (720959-00) 558 RON
89 1 3 HANDLE 730-30 M6 (941536-01) 1788 RON
90 1 2 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
91 1 1 GUIDE PLATE (942149-01) 17335 RON
94 1 2 PLATE (942168-00) 5031 RON
95 1 2 BOLT (862509-90) 4137 RON
96 1 1 PLATE (943496-00) 4472 RON
97 1 1 SCREW SET M.6X20 UNI 5923 (860088-10) 558 RON
98 1 1 CIRCLIP (949728-03) 558 RON
99 1 1 SLEEVE (120820700) 2795 RON
100 1 2 STOP (942144-00) 781 RON
103 1 1 WASHER FLAT 5.3X10 UNI 6592 (860073-01) 558 RON
104 1 1 PIN (36562) 3466 RON
