Top » Piese de schimb » PIESE DEWALT » DA410 Type 1

MASA DEWALT DA410 Type 1
[DA410 Type 1]
MASA DEWALT DA410 Type 1
Click pentru a mari
Imagini suplimentare
MASA DEWALT DA410 Type 1
Click pentru a mari

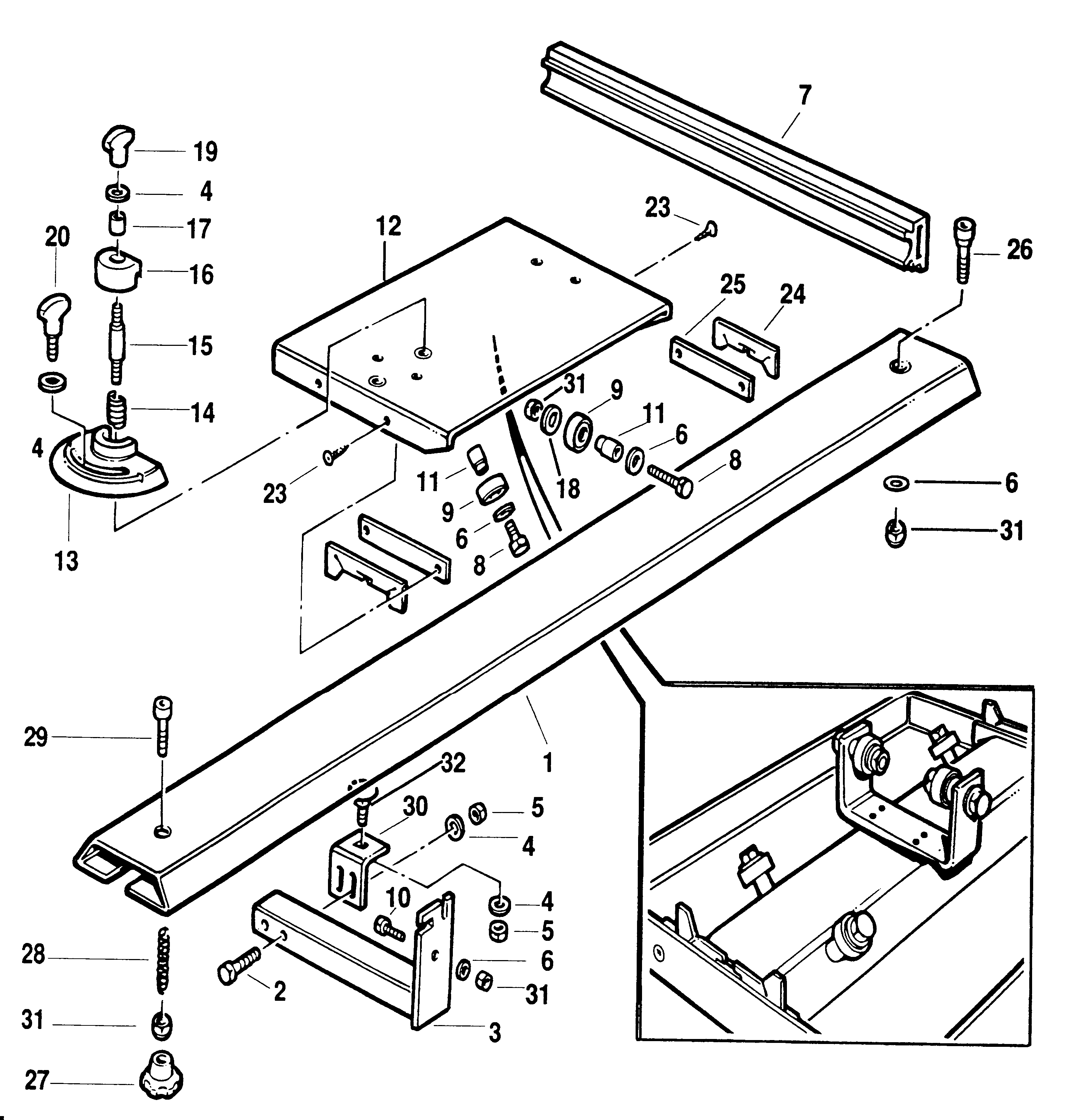

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 S.A. TRAP.GUIDE (946463-00) 117887 RON
2 1 4 SCREW HEX M.8X45 UNI 5737 (860086-09) 781 RON
3 1 2 GUIDE SUPPORT (946466-00) 5591 RON
4 1 8 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
5 1 6 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
6 1 8 WASHER FLAT SPEC. 6.4X16X1.5 (860075-00) 558 RON
7 1 1 MITRE BAR (941843-00) 17335 RON
8 1 6 SCREW HEX M.6X25 UNI 5739 (860085-10) 558 RON
9 1 6 BEARING (N110358) 2347 RON
9 1 6 BEARING (330003-05) 3466 RON
10 1 2 SQUARE HEAD BUTTN SCREW (860301-16) 558 RON
11 1 6 946464-00 - Indisponibil
12 1 1 946465-00 - Indisponibil
13 1 1 SCALE HOLDER (941708-00) 6821 RON
14 1 1 SPRING (941759-00) 190 RON
15 1 1 SCREW (942146-00) 5031 RON
16 1 1 STOP PLATE (941746-00) 4137 RON
17 1 1 BUSHING D.10X16X8 (946475-00) 893 RON
18 1 4 WASHER SPRING CON.D6.2X14X0.9 (860074-02) 558 RON
19 1 1 WING NUT M8 (941756-00) 1229 RON
20 1 1 WING SCREW M8X30 (760243-00) 4137 RON
23 1 4 SCREW (760299-00) 558 RON
24 1 2 946467-00 - Indisponibil
25 1 2 946468-00 - Indisponibil
26 1 1 SCREW HEX M.6X35 UNI5739 ZINC (860085-17) 558 RON
27 1 1 KNOB (946469-00) 781 RON
28 1 1 SPRING PUSHER D9XD1X22 (123255-00) 558 RON
29 1 1 SOCKET HEAD SCREW (949886-02) 558 RON
30 1 2 SQUARE (946470-00) 4137 RON
31 1 2 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
32 1 2 SQUARE HEAD BUTTON SCREW (949891-01) 558 RON
