Top » Piese de schimb » PIESE DEWALT » DCPS660N Type 1

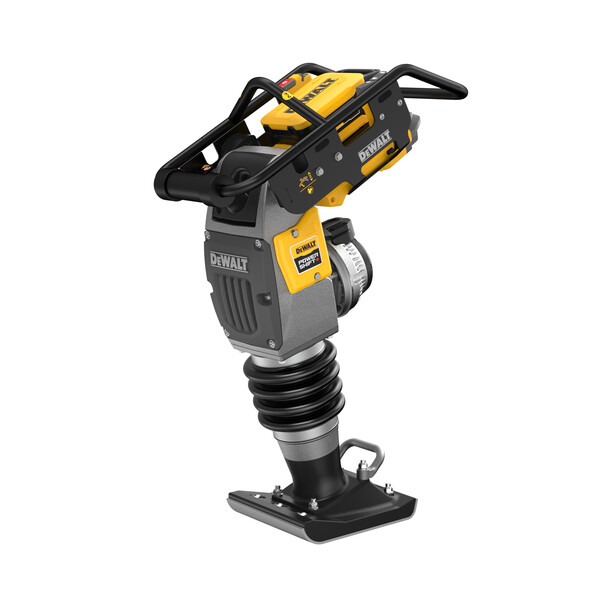

MAI COMPACTOR DEWALT DCPS660N Type 1
[DCPS660N Type 1]
MAI COMPACTOR DEWALT DCPS660N Type 1
Click pentru a mari
Imagini suplimentare
MAI COMPACTOR DEWALT DCPS660N Type 1
Click pentru a mari
MAI COMPACTOR DEWALT DCPS660N Type 1
Click pentru a mari
MAI COMPACTOR DEWALT DCPS660N Type 1
Click pentru a mari
MAI COMPACTOR DEWALT DCPS660N Type 1
Click pentru a mari
MAI COMPACTOR DEWALT DCPS660N Type 1
Click pentru a mari
MAI COMPACTOR DEWALT DCPS660N Type 1
Click pentru a mari
MAI COMPACTOR DEWALT DCPS660N Type 1
Click pentru a mari
MAI COMPACTOR DEWALT DCPS660N Type 1
Click pentru a mari
MAI COMPACTOR DEWALT DCPS660N Type 1
Click pentru a mari

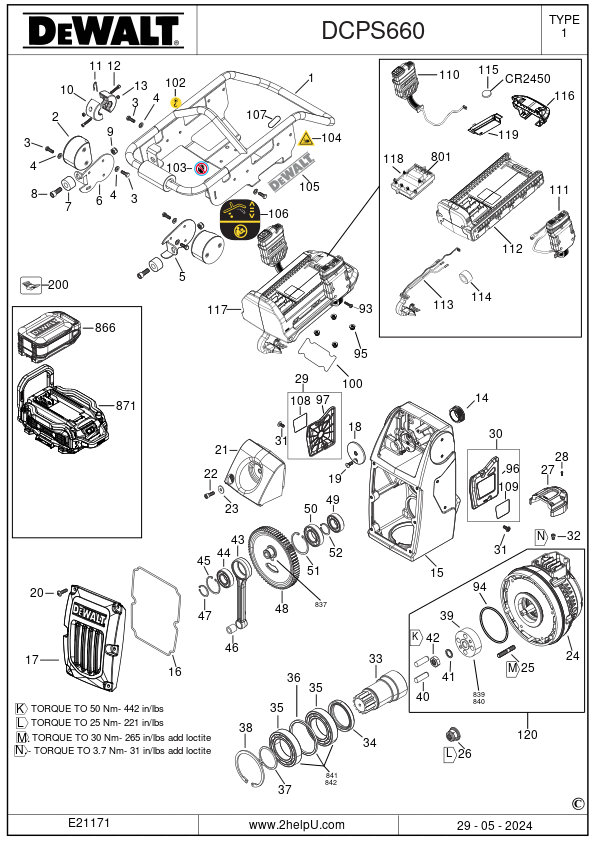

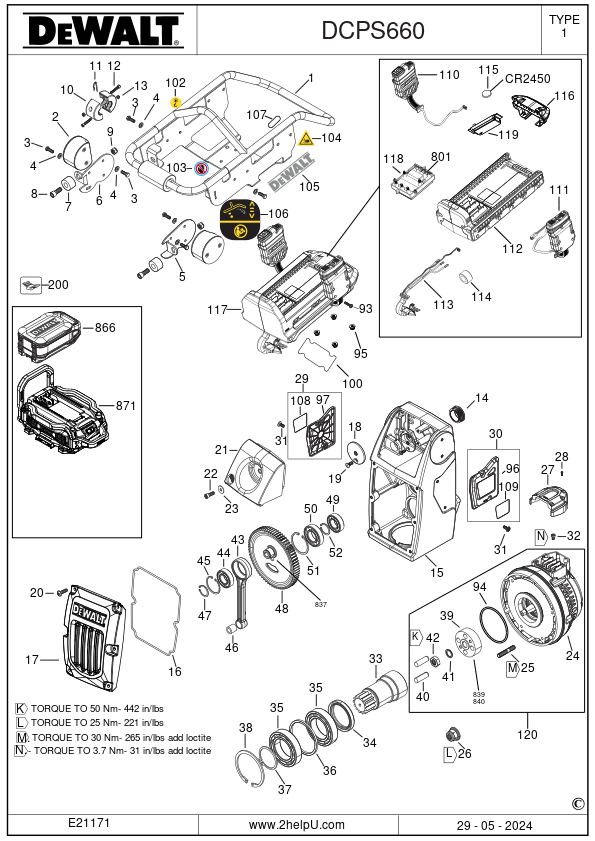

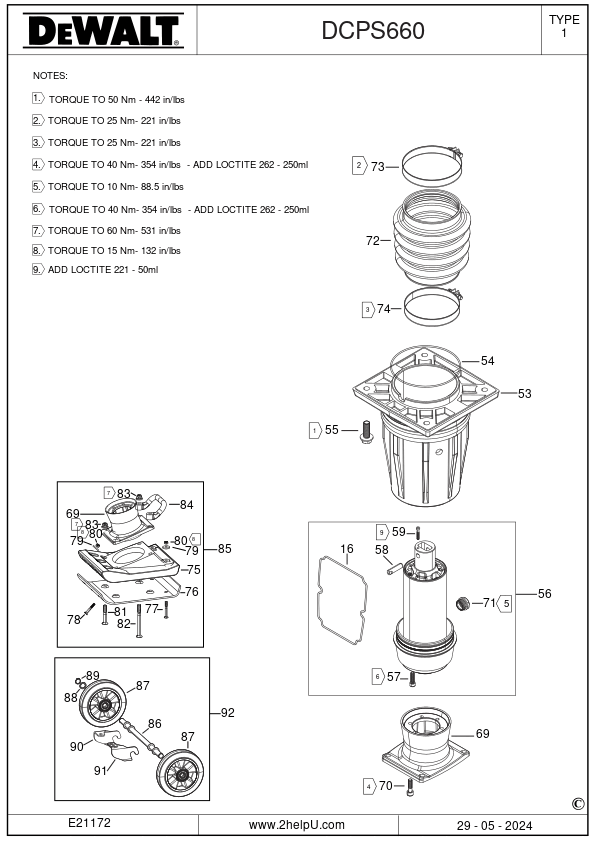

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 FRAME-BLACK (2-06807105) 554044 RON
2 1 2 SPRING SA-BUFFER-SPRING ELEMENT (2-80147231) 228616 RON
3 1 12 SCREW-M8 X 20 HEXHEAD (2-81703066) 3268 RON
4 1 12 WASHER SPRING-CONICAL (2-80167080) 3268 RON
5 1 1 BRACKET LH-LEFT HAND (2-06807121) 57833 RON
6 1 1 BRACKET RH-RIGHT HAND (2-06807120) 57833 RON
7 1 2 BUFFER-STOP (2-06804457) 35435 RON
8 1 2 SCREW-M12 X 30 (2-81305095) 3268 RON
9 1 2 NUT-M12 (2-82201056) 3268 RON
10 1 4 ROLLER (2-06804443) 11337 RON
11 1 2 PIN-RETAINING (2-06804453) 9012 RON
12 1 4 SCREW-M6 X 35 SOCKET HEAD (2-82802035) 3268 RON
13 1 4 NUT-M6 (2-82201021) 3268 RON
14 1 1 PLUG (2-80252570) 6688 RON
15 1 1 GEARBOX (2-06807030) 413389 RON
16 1 1 SEAL (2-06805159) 10241 RON
17 1 1 GEARCASE COVER-FRONT (NA322052) 42426 RON
18 1 1 PLATE-THREADED (2-06805016) 42426 RON
19 1 1 SCREW-M6 X 16 COUNTERSUNK (2-82703043) 3268 RON
20 1 6 SCREW-M8 X 20 (2-83201154) 3268 RON
21 1 1 COVER (2-06807040) 44688 RON
22 1 1 SCREW-M10 X 30 (2-81304099) 3268 RON
23 1 1 WASHER-10.5 X 30 X 2.5 (2-80161090) 3268 RON
24 1 1 MOTOR SA-OR140HD (NA648206) 462423 RON
25 1 4 STUD-M8 X 30 (2-81404120) 3268 RON
26 1 8 NUT-M8 (2-82202008) 3268 RON
27 1 1 COVER-TERMINAL (NA302136) 15469 RON
28 1 6 SCREW (2-06807110) 3268 RON
29 1 1 COVER RH-DEWALT (NA698565) 11337 RON
30 1 1 COVER LH (NA698566) 11337 RON
31 1 4 SCREW-M8 X 20 (2-83201154) 3268 RON
32 1 3 SCREW-M5 X 8 (2-82301000) 3268 RON
33 1 1 PINION GEAR (2-06807117) 67932 RON
34 1 1 RING-SEALING (2-80131270) 48037 RON
35 1 2 BEARING-DIN625-1 (2-80101380) 38463 RON
36 1 1 SPACER-RING (2-06804177) 18568 RON
37 1 1 CIRCLIP-DIN472 (2-80158293) 6688 RON
38 1 1 CIRCLIP-DIN471 (2-80159230) 3268 RON
39 1 1 FLANGE-CLUTCH (2-06807025) 236862 RON
40 1 2 PIN-M6 X 32 (2-80171440) 5370 RON
41 1 1 WASHER (2-80166040) 741 RON
42 1 1 NUT-M12 X 1.5 (2-81903065) 3268 RON
43 1 1 CON ROD (2-06805014) 29222 RON
44 1 1 BEARING (2-80102069) 33797 RON
45 1 1 CIRCLIP-DIN472 (2-80158072) 3268 RON
46 1 1 BUSH (2-06804007) 30769 RON
47 1 1 CIRCLIP-DIN471 (2-80159125) 3268 RON
48 1 1 DRIVER (2-06807118) 263063 RON
49 1 1 BEARING (2-80102069) 33797 RON
50 1 1 BEARING (2-80102085) 24962 RON
51 1 1 CIRCLIP-DIN472 (2-80158102) 5370 RON
52 1 1 CIRCLIP-DIN471 (2-80159150) 5370 RON
53 1 1 HOUSING-GUIDE PIPE (2-06805056) 481793 RON
54 1 1 O RING (2-80135680) 6688 RON
55 1 4 SCREW-M10 X 30 HEXHEAD (2-81776030) 3268 RON
56 1 1 REPAIR KIT (2-AR-060068-003) 634951 RON
57 1 6 SCREW-M8 X 30 HEXHEAD (2-82833030) 3268 RON
58 1 1 BOLT (2-06805138) 46247 RON
59 1 1 SCREW-M5 X 30 SOCKET HEAD (2-83201177) 3268 RON
69 1 1 CASTING-INTERMEDIATE PIECE (2-06805093) 481793 RON
70 1 6 SCREW-M8 X 30 HEXHEAD (2-82833030) 3268 RON
71 1 1 LENS (2-80193250) 48037 RON
72 1 1 BELLOWS (2-06805251) 327869 RON
73 1 1 CLAMP (2-80177842) 78485 RON
74 1 1 CLAMP (2-80177843) 78485 RON
75 1 1 BASEPLATE SA (2-06805005) 29222 RON
76 1 1 BASEPLATE SA (2-06805013) 29222 RON
77 1 2 SCREW-M8 X 70 (2-83204009) 3268 RON
78 1 3 SCREW-M8 X 55 (2-83204007) 3268 RON
79 1 5 WASHER (2-06804135) 6688 RON
80 1 5 NUT-M8 (2-82201030) 3268 RON
81 1 2 SCREW-M12 X 80 (2-83204004) 11337 RON
82 1 2 SCREW (2-83204008) 13697 RON
83 1 4 NUT-M12 (2-82202012) 5370 RON
84 1 1 HANDLE (2-06804459) 60451 RON
85 1 1 BASEPLATE SA (2-06805100) 518270 RON
86 1 1 AXLE (2-06805128) 78485 RON
87 1 2 WHEEL (2-80230150) 214180 RON
88 1 2 WASHER-20 X 28 X 0.5 (2-80163106) 3268 RON
89 1 2 CIRCLIP-DIN471 (2-80159079) 3268 RON
90 1 1 BRACKET (2-06805032) 57833 RON
91 1 1 BRACKET (2-06805033) 52855 RON
92 1 1 AF-O-VRT-0042D-004 - Indisponibil
92 1 1 2-06801101 - Indisponibil
92 1 1 WHEEL KIT-PACKED PART (2-06801327) 425786 RON
93 1 4 SCREW-M6 X 30 (2-83201192) 3268 RON
94 1 1 O RING (NA176766) 4355 RON
95 1 4 NUT-M8 (2-82202008) 3268 RON
96 1 1 PANEL LH (NA389363) 741 RON
97 1 1 PANEL RH-DEWALT (NA389364) 741 RON
100 1 1 NA376147 - Indisponibil
100 1 1 RATING PLATE (2-00210250) 20216 RON
102 1 2 LABEL-LIFTING HOOK (NA454972) 3268 RON
102 1 2 LABEL-LIFTING HOOK (2-00202261) 3268 RON
103 1 2 LABEL-DO NOT TOUCH (NA469249) 3268 RON
103 1 2 LABEL-DO NOT TOUCH (2-00202263) 3268 RON
104 1 2 LABEL-CRUSHING HAND (NA478588) 3268 RON
104 1 2 LABEL-CRUSHING HAND (2-00202262) 3268 RON
105 1 2 BRAND LABEL (NA413958) 3954 RON
105 1 2 BRAND LABEL-DEWALT (2-00201400) 3954 RON
106 1 2 LABEL (NA546088) 3954 RON
106 1 2 LABEL-ADJUST HANDLE (2-00202701) 3954 RON
107 1 4 LABEL (NA413955) 3268 RON
107 1 4 LABEL-REFLECTIVE HANDLE (2-00202700) 3268 RON
108 1 1 BRAND LABEL-RH (NA409942) 82 RON
109 1 1 BRAND LABEL-LH (NA409941) 82 RON
110 1 1 SWITCH SA-0N-OFF (NA698532) 55455 RON
111 1 1 SWITCH SA-MODE (NA698537) 52855 RON
112 1 1 CONTROL MODULE SA-INTERFACE AND MODULE (NA698545) 104961 RON
113 1 1 WIRE HARNESS (NA729887) 30769 RON
114 1 1 RESISTOR (NA722462) 4355 RON
115 1 1 CR2450 - Indisponibil
116 1 1 END CAP SA (NA698547) 9012 RON
117 1 1 CONTROLLER SA-DEWALT (NA736137) 481793 RON
118 1 1 CONTROL MODULE SA-HD MEGA MODULE (NA707257) 249223 RON
119 1 1 MODULE-BLEM (NA707256) 30769 RON
200 1 1 GAUGE-RPM (2-90000030) 24597 RON
801 1 1 NYOGEL 760G (NA218891) 176482 RON
837 1 1 S.T.REMOVAL TOOL (2-00130302) 181060 RON
838 1 1 S.T.REMOVAL TOOL-PIN REMOVAL (2-00130312) 269955 RON
839 1 1 S.T.LOCKING TOOL-CLUTCH PLATE SPANNER (1003990-99) 48464 RON
840 1 1 S.T.PULLER-REMOVE CLUTCH PLATE FROM MOTO (1003991-99) 31855 RON
841 1 1 S.T.BEARING INSERTOR-seal and bearing (2-00130367) 462423 RON
842 1 1 S.T.BEARING INSERTOR (2-00130368) 29222 RON
850 1 1 S.T.SUPPORT PLATE (2-80610006) 538833 RON
866 1 1 000000-04 - Indisponibil
871 1 1 000000-04 - Indisponibil
