Top » Piese de schimb » PIESE DEWALT » DCE074D1R Type 2

LASER ROTATIV DEWALT DCE074D1R Type 2
[DCE074D1R Type 2]
LASER ROTATIV DEWALT DCE074D1R Type 2
Click pentru a mari
Imagini suplimentare
LASER ROTATIV DEWALT DCE074D1R Type 2
Click pentru a mari
LASER ROTATIV DEWALT DCE074D1R Type 2
Click pentru a mari
LASER ROTATIV DEWALT DCE074D1R Type 2
Click pentru a mari

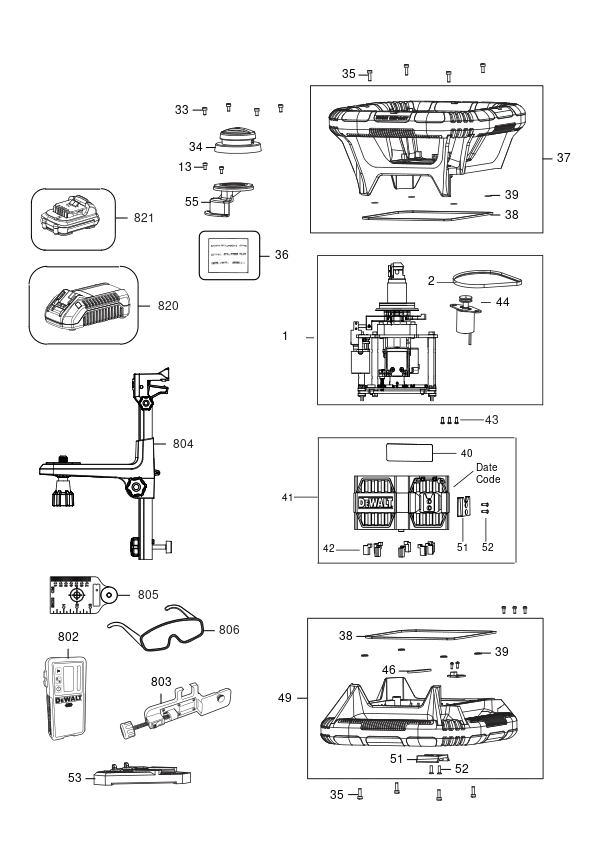

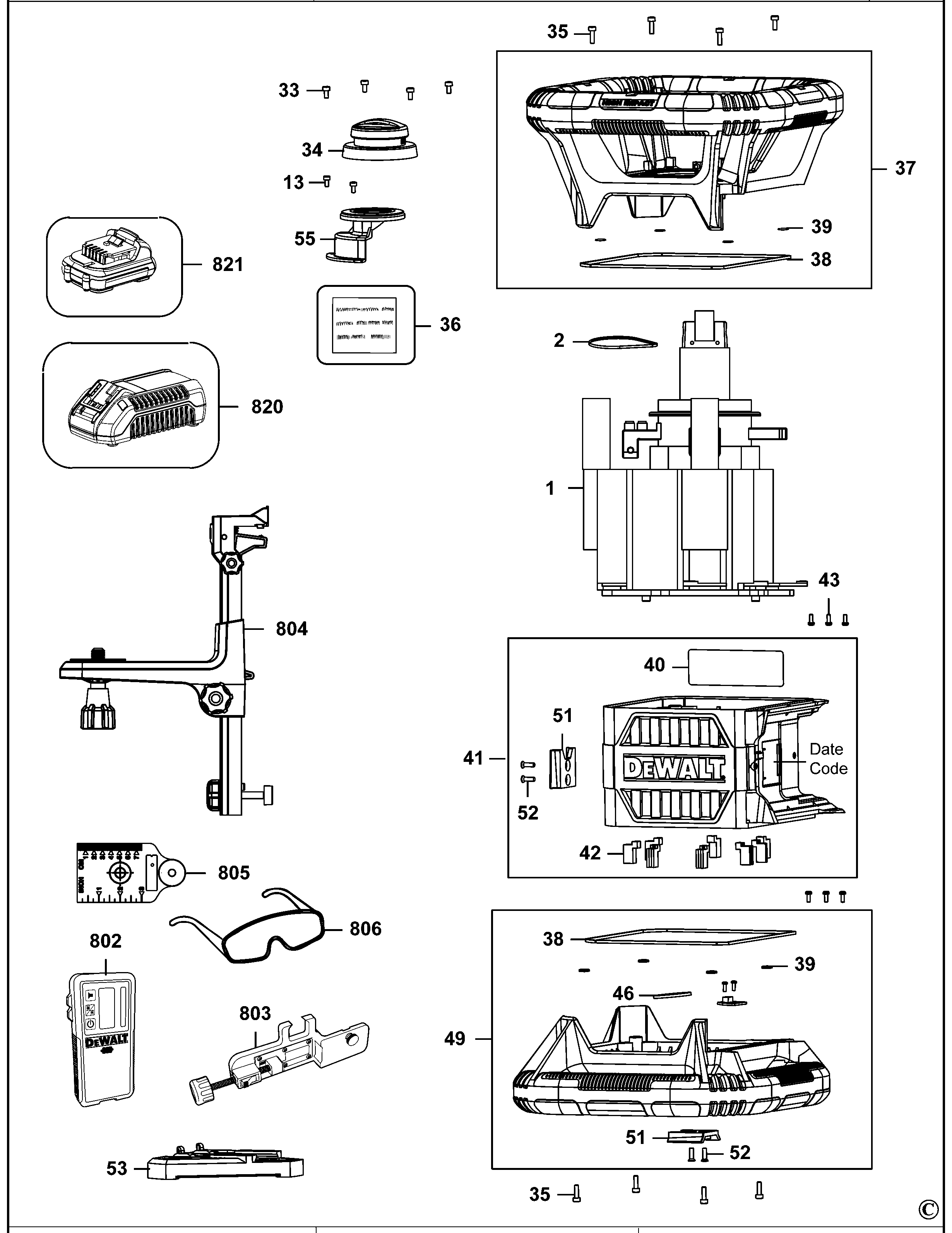

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 LASER HEAD SA (5170055-41) 462423 RON
2 1 1 BELT DRIVE (1004736-66) 1318 RON
13 1 2 1004736-86 - Indisponibil
13 1 2 SCREW-M3x8 CROSS-RECESSED (5140204-55) 588 RON
33 1 4 1004736-68 - Indisponibil
33 1 4 SCREW-M3x6 THD FMG (5140204-57) 588 RON
34 1 1 VIEWING GLASS (1004736-88) 4355 RON
35 1 8 SCREW (1004736-70) 588 RON
36 1 1 WARNING LABEL (1004736-71) 944 RON
37 1 1 HOUSING UPPER (5170055-42) 57833 RON
38 1 2 1004736-73 - Indisponibil
38 1 1 GASKET (5170056-06) 741 RON
39 1 16 RUBBER PAD (1004736-74) 588 RON
39 1 16 RUBBER-MID-SECTION SCREW (5140204-62) 1772 RON
40 1 1 LABEL ELECTRONIC (5170065-77) 13697 RON
41 1 1 5170055-43 - Indisponibil
41 1 1 HOUSING SA (5170068-43) 33797 RON
42 1 8 DAMPER (1004736-78) 944 RON
42 1 8 RUBBER (5140204-67) 4355 RON
43 1 6 SCREW (1004736-79) 588 RON
43 1 6 SCREW-ST2.2x6 THD FMG (5140204-65) 82 RON
44 1 1 MOTOR (5170071-79) 27287 RON
46 1 1 1004736-92 - Indisponibil
46 1 1 BAFFLE-LIGHT (5140204-70) 2796 RON
49 1 1 HOUSING LOWER (5170055-44) 49827 RON
51 1 2 HOLDER (1004736-77) 944 RON
51 1 2 HOLDER (5140204-71) 944 RON
52 1 4 SCREW (1004736-76) 588 RON
53 1 1 ADAPTOR (N528000) 5370 RON
55 1 1 BRACKET SA (1004736-94) 5370 RON
802 1 1 DETECTOR (N482092) 73079 RON
803 1 1 BRACKET SA (N482094) 13697 RON
804 1 1 BRACKET SA (N482521) 51127 RON
805 1 1 TARGET (N528003) 6688 RON
806 1 1 LASER ENHANCEMENT GLASSES (N437437) 2556 RON
820 1 1 N450536 - Indisponibil
820 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
820 1 1 CHARGER 10.8V - 18V (NA010209) 51127 RON
821 1 1 SA DCB183-XJ SERVICE EURO (SERVICE) (N314783) 80865 RON
821 1 1 BATTERY 18V - 2.0AH - 36WH-DCB183-XJ (N546910) 40734 RON
