Top » Piese de schimb » PIESE DEWALT » DCL079 Type 10

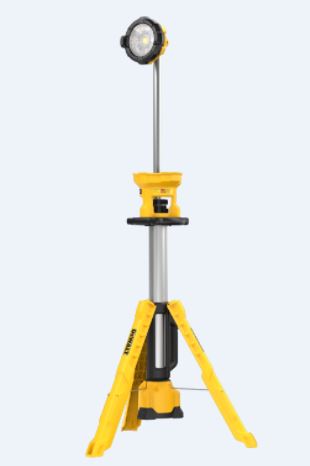

LAMPA DEWALT DCL079 Type 10
[DCL079 Type 10]
LAMPA DEWALT DCL079 Type 10
Click pentru a mari
Imagini suplimentare
LAMPA DEWALT DCL079 Type 10
Click pentru a mari
LAMPA DEWALT DCL079 Type 10
Click pentru a mari

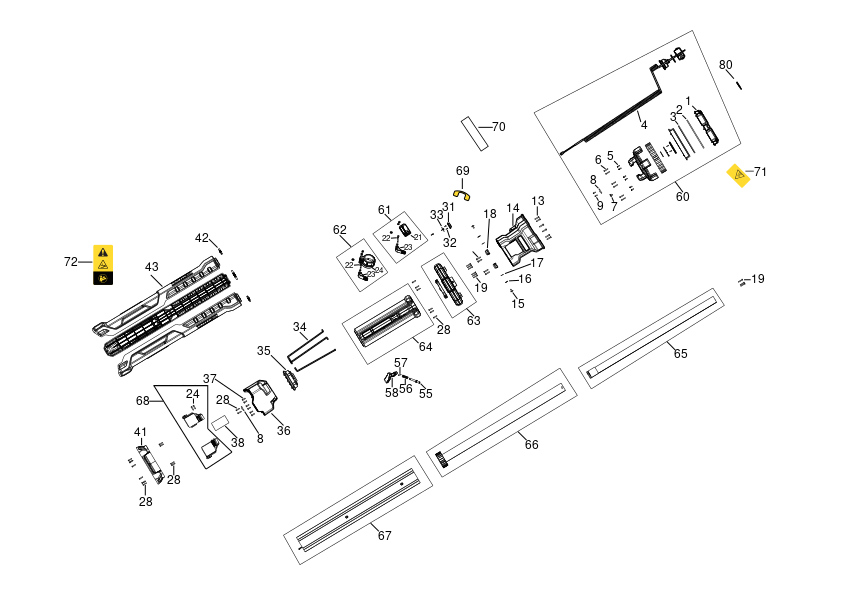

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 COVER (NA647826) 3954 RON
2 1 1 LENS (N504820) 2796 RON
3 1 1 SEAL (N507253) 1630 RON
4 1 1 LEAD SA (N510286) 12361 RON
5 1 6 SCREW (330045-01) 558 RON
6 1 6 SCREW PLSTC THD FORM M3*19 T10 (330019-24) 558 RON
7 1 1 CORD PROTECTOR (N504828) 588 RON
8 1 1 CORD CLAMP (NA647828) 588 RON
9 1 2 SCREW PLASTIC (330019-41) 588 RON
13 1 10 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
14 1 1 SHIELD (NA173763) 10241 RON
15 1 2 SCREW (N507800) 588 RON
16 1 2 WASHER (N504835) 588 RON
17 1 2 WASHER (N504836) 588 RON
18 1 2 HOLDER (N529050) 588 RON
19 1 15 SCREW METAL THD FORM (330045-53) 558 RON
21 1 1 CLAMP (NA647834) 114 RON
22 1 2 PIN (N504851) 114 RON
23 1 2 LEVER (N504850) 82 RON
24 1 1 CLAMP (NA695498) 114 RON
28 1 20 SCREW PLASTIC THD FORM (330019-00) 558 RON
31 1 1 SWITCH COVER (N504843) 668 RON
32 1 2 SCREW (N510973) 588 RON
33 1 1 PCB (NA648078) 1318 RON
34 1 1 LINK (NA121886) 1772 RON
35 1 1 CAP (NA648029) 2796 RON
36 1 1 HOUSING (NA216312) 9012 RON
37 1 6 SCREW (330019-38) 558 RON
38 1 1 CONTROL MODULE SA (NA648082) 27287 RON
41 1 1 HOUSING (NA648030) 5370 RON
42 1 1 PIN (N704562) 944 RON
43 1 3 LEG (N529049) 15469 RON
55 1 1 PIN (N553786) 1630 RON
56 1 1 SPRING (N504845) 588 RON
57 1 1 PIN (N506089) 588 RON
58 1 1 BUTTON RELEASE (N504846) 114 RON
60 1 1 LIGHT (NA792785) 741 RON
61 1 1 CLAMP SA (NA647831) 2556 RON
62 1 1 CLAMP SA (NA647840) 2556 RON
63 1 1 HANDLE SA (NA792807) 11337 RON
64 1 1 COLLAR SA (NA792818) 10241 RON
65 1 1 TUBE ELEVATING SA (NA792834) 12361 RON
66 1 1 TUBE ELEVATING SA (NA792843) 10241 RON
67 1 1 COLUMN SA (N543978) 23244 RON
68 1 1 FOOT SA (NA695606) 3954 RON
69 1 1 LABEL (N508875) 588 RON
71 1 1 WARNING LABEL (N547992) 588 RON
72 1 1 WARNING LABEL (N547991) 588 RON
80 1 1 CLIP (NA289964) 588 RON
