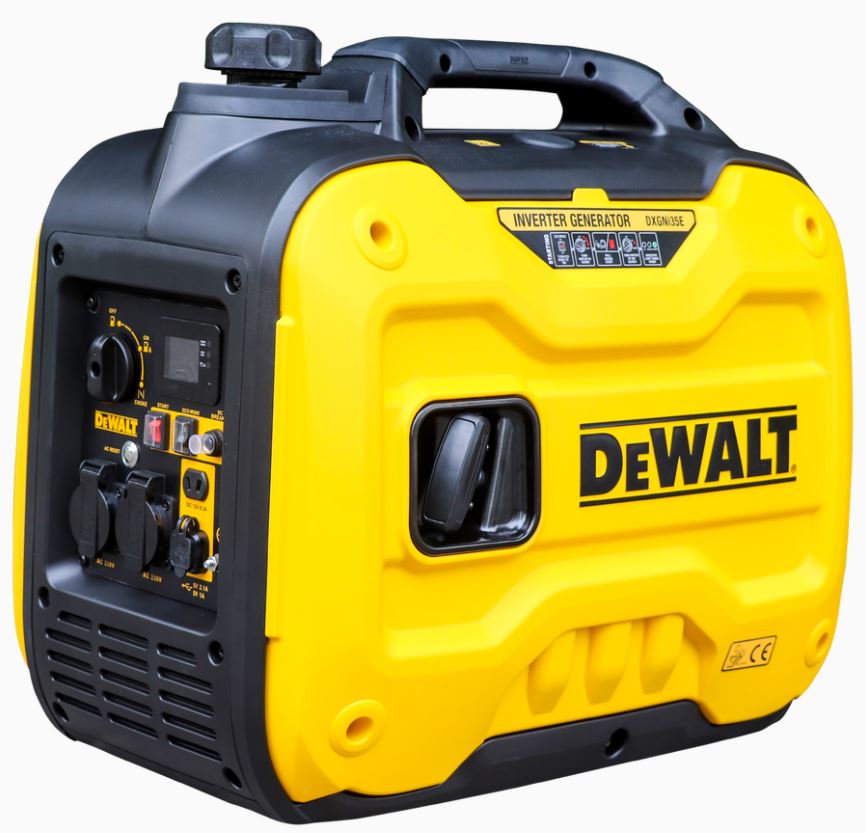

INVERTOR DEWALT DXGNI35E Type 1
[DXGNI35E Type 1]
INVERTOR DEWALT DXGNI35E Type 1
Click pentru a mari
Imagini suplimentare
INVERTOR DEWALT DXGNI35E Type 1
Click pentru a mari
INVERTOR DEWALT DXGNI35E Type 1
Click pentru a mari
INVERTOR DEWALT DXGNI35E Type 1
Click pentru a mari
INVERTOR DEWALT DXGNI35E Type 1
Click pentru a mari

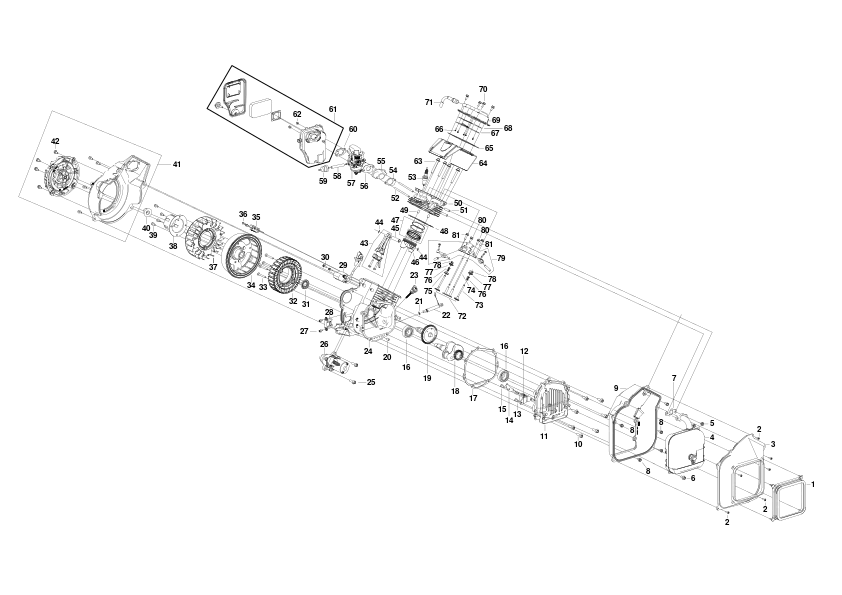

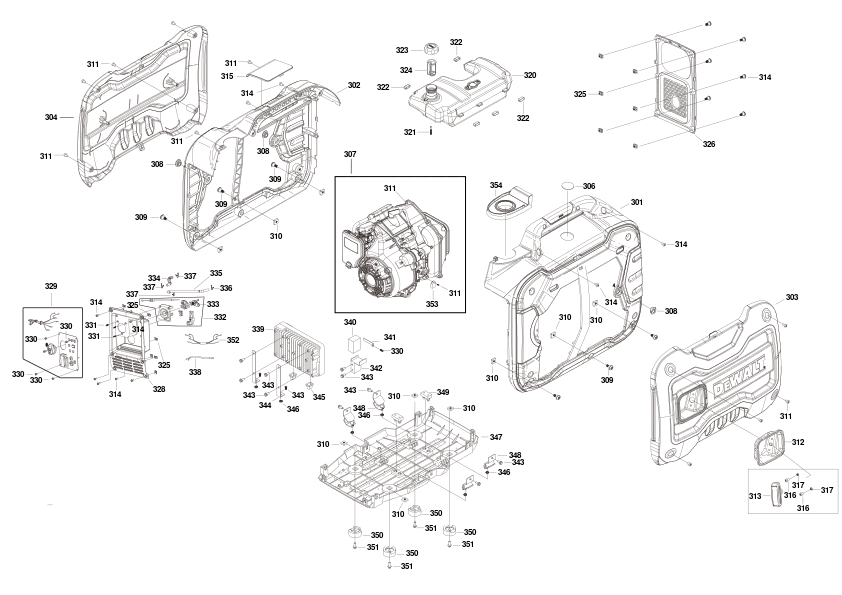

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 COVER (G1826E3001000) 9012 RON
2 1 6 SCREW (G901648016010) 1630 RON
3 1 1 GUIDE (G2811E3001000) 20216 RON
4 1 1 MUFFLER (G1810E3001000) 48037 RON
5 1 2 NUT (G900508000010) 1630 RON
6 1 1 BOLT (G900108016010) 1630 RON
7 1 1 GASKET (G1801E3001000) 3954 RON
8 1 5 BOLT (G900206016010) 1630 RON
9 1 1 MUFFLER (G1803E3001000) 18568 RON
10 1 7 BOLT (G900108025010) 1630 RON
11 1 1 COVER (G1141E3001000) 24962 RON
12 1 1 SENSOR (G1536E3001000) 16689 RON
13 1 2 BOLT (G900106012010) 1630 RON
14 1 1 CLAMP (G3306E3001000) 1630 RON
15 1 1 BOLT (G900106012010) 1630 RON
16 1 1 BEARING (G90546205TM50) 741 RON
17 1 1 GASKET (G1101E3001000) 3954 RON
18 1 1 CRANKSHAFT (G1330E3001000) 30769 RON
19 1 1 CAM (G1420E3001000) 24962 RON
20 1 2 PIN (G905108012000) 1630 RON
21 1 1 WASHER (G9041E0101000) 1630 RON
22 1 1 PIPE (G9063E2101000) 23244 RON
23 1 1 DIPSTICK (G1501E0101I10) 1630 RON
24 1 1 CRANKCASE (G1131E3001000) 57833 RON
25 1 2 BOLT (G900108030010) 1630 RON
26 1 1 STARTER SA (G1580E3002000) 91363 RON
27 1 2 BOLT (G900205012010) 1630 RON
28 1 1 COVER (G1142E3001000) 2182 RON
29 1 1 COIL (G1506E3001000) 30769 RON
30 1 2 BOLT (G900205016010) 1630 RON
31 1 1 SEAL (G9065E0101000) 1630 RON
32 1 1 FIELD (G3293E3002000) 73079 RON
33 1 4 BOLT (G900106045010) 1630 RON
34 1 1 ARMATURE (G3292E3001000) 73079 RON
35 1 1 TRIGGER (G1508E3001000) 11337 RON
36 1 2 BOLT (G900205012010) 1630 RON
37 1 1 FAN (G1935E2102000) 6688 RON
38 1 1 CUP (G2802E2102000) 6688 RON
39 1 4 BOLT (G900106012010) 1630 RON
40 1 1 NUT (G910214000010) 1630 RON
41 1 1 STARTER SA (G2810E3001000) 42426 RON
42 1 1 BOLT (G900106020010) 1630 RON
43 1 1 CONNECTING ROD (G1301E3001000) 12361 RON
44 1 4 CLIP (G1313E1001000) 1630 RON
45 1 1 PIN (G1312E1001000) 1630 RON
46 1 1 PISTON (G1311E3001000) 12361 RON
47 1 1 RING SA (G1320E3001000) 9012 RON
48 1 1 GASKET (G1230E3001000) 4355 RON
49 1 2 PIN (G905108012000) 1630 RON
50 1 1 HEAD (G1214E3002000) 36994 RON
51 1 2 STUD (G910308034010) 1630 RON
52 1 2 STUD (G910308034010) 1630 RON
53 1 1 SPARK PLUG (G1567E0103000) 6688 RON
54 1 1 GASKET (G1702E3001000) 3954 RON
55 1 1 PLATE (G1603E3001000) 3268 RON
56 1 1 GASKET (G1601E0101000) 4355 RON
57 1 1 CARBURETTOR SA (G1610E3003033) 55455 RON
58 1 1 PIPE (G9068E0107000) 1630 RON
59 1 2 FILTER (G1695E1101000) 741 RON
60 1 4 GASKET (G1701E0101000) 1630 RON
61 1 1 FILTER SA (G1710E3003000) 18568 RON
62 1 1 NUT (G900406000011) 1630 RON
63 1 5 GASKET (G910108055010) 1630 RON
64 1 1 DEFLECTOR (G1930E3001000) 12361 RON
65 1 1 GASKET (G1204E3001000) 3954 RON
66 1 1 SCREW (G900908008010) 1630 RON
67 1 4 CHOKE (G1135E3001000) 3954 RON
68 1 1 GASKET (G1134E3001000) 1630 RON
69 1 1 COVER (G1241E3001000) 12361 RON
70 1 4 BOLT (G900106016010) 1630 RON
71 1 1 TUBE (G1703E3001000) 1630 RON
72 1 1 VALVE (G1220E3001000) 13697 RON
73 1 2 TAP (G1481E3001000) 1630 RON
74 1 2 LIFTER (G1470E3001000) 1630 RON
75 1 1 SEAL (G1211E3001000) 1933 RON
76 1 2 SPRING (G1213E3001000) 1630 RON
77 1 2 SEAT (G1212E2802000) 1630 RON
78 1 4 CLAMP (G1209E0101000) 1630 RON
79 1 1 ROCKER (G1430E3001000) 21676 RON
80 1 1 BOLT (G900106016010) 1630 RON
81 1 2 BOLT (G900106020010) 1630 RON
201 1 1 SWITCH (G1521G1405H20) 24962 RON
202 1 1 BUTTON (G3591G1303000) 13697 RON
203 1 1 DISPLAY (G9452G3101000) 67932 RON
204 1 1 SWITCH (G3591G1304000) 3954 RON
205 1 1 DISPLAY (G9452G1302000) 23244 RON
206 1 1 SOCKET (G3573G0105000) 18568 RON
207 1 2 OUTLET (G3573G0106000) 9012 RON
208 1 1 BREAKER (G3595G0101000) 3954 RON
209 1 1 OUTLET (G3573G0101000) 18568 RON
210 1 1 SWITCH (G3591G0106000) 3954 RON
301 1 1 COVER RH (G3234G3601000) 46247 RON
302 1 1 COVER LH (G3229G3601000) 42426 RON
303 1 1 COVER (G3246G3601Y80) 38463 RON
304 1 1 COVER (G3240G3601Y80) 40734 RON
305 1 1 000000-99 - Indisponibil
306 1 1 PLUG (G3621G1405000) 1630 RON
307 1 1 ENGINE (G160IEFVJS002) 385497 RON
308 1 3 RUBBER PAD (G3001G1302000) 1630 RON
309 1 6 BOLT (G9101G1301000) 1630 RON
310 1 10 NUT (G9013G1301010) 1630 RON
311 1 9 SCREW (G900905016040) 1630 RON
312 1 1 PLATE (G3245G3601H20) 9012 RON
313 1 1 HANDLE (G3208G3301000) 3268 RON
314 1 16 BOLT (G9101G1304000) 1630 RON
315 1 1 COVER (G1142G3101000) 3268 RON
316 1 2 SCREW (G900904012040) 1630 RON
317 1 2 NUT (G900404000010) 1630 RON
318 1 4 000000-99 - Indisponibil
319 1 3 000000-99 - Indisponibil
320 1 1 TANK (G1679G3103000) 35435 RON
321 1 1 FILTER (G3214G1301000) 3954 RON
322 1 5 BUSHING (G9069G1301000) 1630 RON
323 1 1 CAP (G1685G3301000) 13697 RON
324 1 1 FILTER (G1696G1301000) 741 RON
325 1 12 NUT (G9014G1301010) 1630 RON
326 1 1 COVER (G3254G3101000) 21676 RON
328 1 1 PANEL (G3590G3101000) 20216 RON
329 1 1 CONTROL PANEL (G3570G3603H20) 188451 RON
330 1 5 SCREW (G901505012040) 1630 RON
331 1 4 SCREW (G901004016010) 1630 RON
332 1 1 SWITCH SA (G1521G1401000) 20216 RON
333 1 1 SWITCH (G3002G1301000) 741 RON
334 1 1 PIPE (G9068G3104000) 1630 RON
335 1 1 PIPE (G9068G3101000) 1630 RON
336 1 1 CLAMP (G9067G0101000) 1630 RON
337 1 3 CLIP (G9067E0101010) 1630 RON
338 1 1 HARNESS (G3290G3107000) 3954 RON
339 1 1 INVERTER (G3305G3101000) 176482 RON
340 1 1 BATTERY (G3110G3101000) 78485 RON
341 1 1 BLOCK (G3640G3101H20) 1630 RON
342 1 1 SUPPORT (G3115G3101H20) 4355 RON
343 1 12 BOLT (G900106012010) 1630 RON
344 1 2 MOUNT (G3216G3101000) 1933 RON
345 1 2 SHEATH (G3043G1401000) 1630 RON
346 1 6 NUT (G900406000010) 1630 RON
347 1 1 BOTTOM PLATE (G3227G3102000) 42426 RON
348 1 4 PAD (G3610G3101000) 10241 RON
349 1 2 DAMPER (G3228G1302000) 3954 RON
350 1 4 DAMPER (G3613G3101000) 2556 RON
351 1 4 BOLT (G900106016010) 1630 RON
352 1 1 HARNESS (G3290G3108000) 20216 RON
353 1 1 REGULATOR (G3120G3501000) 85494 RON
354 1 1 SEAL (G3048G1501000) 6688 RON
