Top » Piese de schimb » PIESE DEWALT » DXGNI20E Type 1

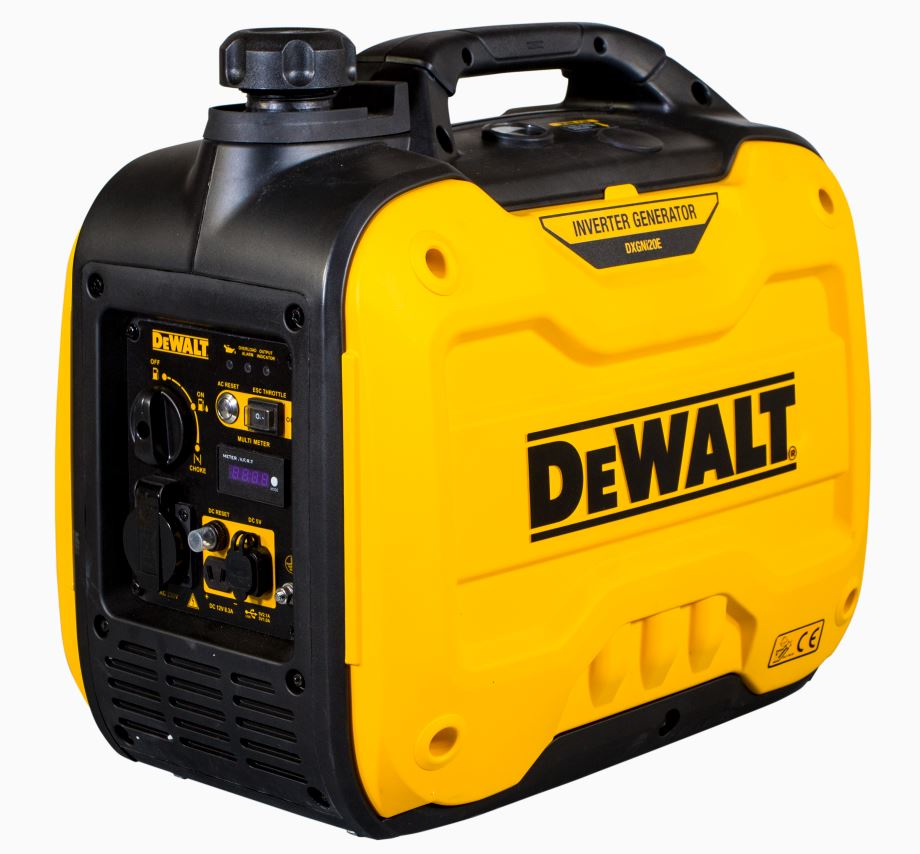

INVERTOR DEWALT DXGNI20E Type 1
[DXGNI20E Type 1]
INVERTOR DEWALT DXGNI20E Type 1
Click pentru a mari
Imagini suplimentare
INVERTOR DEWALT DXGNI20E Type 1
Click pentru a mari
INVERTOR DEWALT DXGNI20E Type 1
Click pentru a mari
INVERTOR DEWALT DXGNI20E Type 1
Click pentru a mari
INVERTOR DEWALT DXGNI20E Type 1
Click pentru a mari

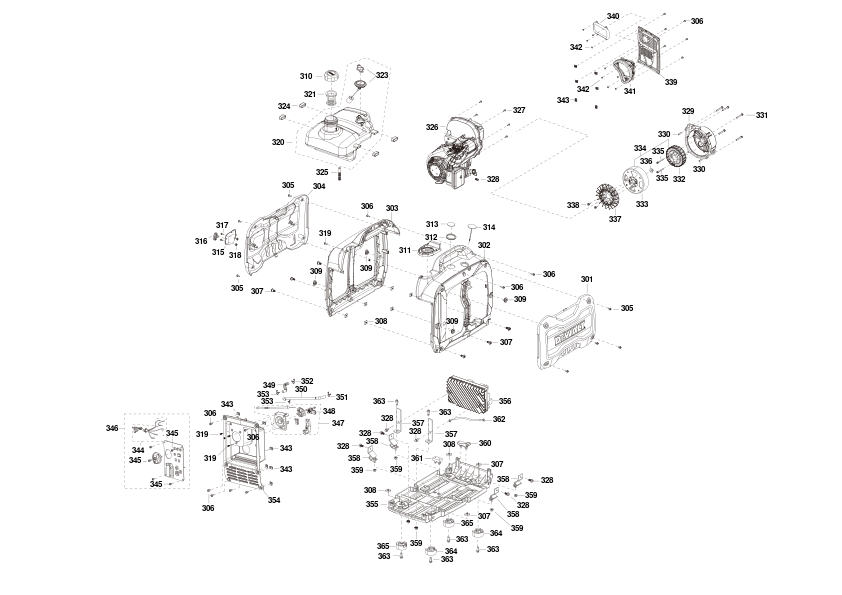

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 BOLT (G900106016010) 1630 RON
2 1 1 CYLINDER HEAD (G1241E2201000) 10241 RON
3 1 1 TUBE (G1703E2201000) 1630 RON
4 1 1 GASKET (G1134E2201000) 3954 RON
5 1 1 GASKET (G1136E2201000) 3954 RON
6 1 3 SCREW (G900908008010) 1630 RON
7 1 1 CLIP (G9076E2201000) 1630 RON
8 1 1 DEFLECTOR (G1251E2201000) 741 RON
9 1 1 GASKET (G1204E2201000) 3954 RON
10 1 4 BOLT (G9109E2201010) 1630 RON
11 1 2 BOLT (G9103E2202010) 1630 RON
12 1 1 SPARK PLUG (G1567E2201000) 6688 RON
13 1 1 HEAD (G1214E2201000) 27287 RON
14 1 1 GASKET (G1230E2201000) 3954 RON
15 1 2 PIN (G905108012000) 1630 RON
16 1 1 RING (G1320E2201000) 9012 RON
17 1 1 PISTON (G1311E2201000) 9012 RON
18 1 2 RING (G1313E2201000) 1630 RON
19 1 1 CONNECTING ROD (G1301E2201000) 12361 RON
20 1 1 PIN (G1312E2201000) 1630 RON
21 1 2 BOLT (G9103E2201010) 1630 RON
22 1 1 GASKET (G1702E2201000) 3954 RON
23 1 1 PLATE (G1603E2201000) 3954 RON
24 1 1 GASKET (G1601E2201000) 3954 RON
25 1 1 CARBURETTOR SA (G1610E2201000) 44688 RON
26 1 1 FILTER (G1696E2201000) 3954 RON
27 1 1 GASKET (G1701E2201000) 3954 RON
28 1 1 FILTER (G1710E2201000) 18568 RON
29 1 2 NUT (G900406000011) 1630 RON
30 1 1 BOLT (G900106020010) 1630 RON
31 1 1 BOLT (G900205020010) 1630 RON
32 1 2 ROCKER (G1430E2201000) 6688 RON
33 1 2 SEAT (G1212E2201000) 1630 RON
34 1 2 SPRING (G1213E2201000) 1630 RON
35 1 1 SEAL (G1211E2201000) 1630 RON
36 1 1 VALVE (G1220E2201000) 13697 RON
37 1 1 SHAFT (G1432E2201000) 1630 RON
38 1 2 LIFTER (G1470E2201000) 1630 RON
39 1 2 TAPPET (G1481E1001000) 1630 RON
40 1 2 BOLT (G900206018010) 1630 RON
41 1 1 SHROUD (G1825E2201000) 15469 RON
42 1 1 STRIP (G1826E2201000) 2182 RON
43 1 1 BOLT (G900206012010) 1630 RON
44 1 1 GASKET (G1801E2201000) 3954 RON
45 1 1 MUFFLER (G1810E2201000) 40734 RON
46 1 2 NUT (G900506000010) 1630 RON
47 1 1 HOUSING (G1819E2202000) 18568 RON
48 1 6 SCREW (G901648016010) 1630 RON
49 1 7 BOLT (G900106020010) 1630 RON
50 1 1 SEAL (G9065E2201000) 3268 RON
51 1 1 COVER (G1141E2201120) 28836 RON
52 1 1 DIPSTICK (G1501E2201I30) 4827 RON
53 1 1 PLATE (G3306E2201000) 1630 RON
54 1 1 BOLT (G900106012010) 1630 RON
55 1 1 SENSOR (G1536E2201000) 9012 RON
56 1 2 BOLT (G900106012010) 1630 RON
57 1 1 BEARING (G905462046000) 9012 RON
58 1 1 GASKET (G1101E2201000) 3954 RON
59 1 2 PIN (G905108012000) 1630 RON
60 1 1 CAMSHAFT (G1420E2204000) 27287 RON
61 1 1 CRANKSHAFT (G1330E2201000) 27287 RON
62 1 1 BEARING (G905462046000) 9012 RON
63 1 1 CRANKCASE (G1131E2201120) 36994 RON
64 1 1 IGNITOR (G1509E2202000) 30769 RON
65 1 1 BOLT (G900106020010) 1630 RON
66 1 1 SEAL (G9065E2201000) 3268 RON
67 1 1 COIL SA (G1506E2201000) 20216 RON
68 1 2 BOLT (G900106020010) 1630 RON
69 1 1 FLYWHEEL (G1351E2202000) 32327 RON
70 1 1 NUT (G910212000010) 1630 RON
71 1 1 STARTER SA (G2810E2205000) 42426 RON
72 1 1 NUT (G9014G1301010) 1630 RON
73 1 4 BOLT (G900106016010) 1630 RON
201 1 1 SWITCH (G1521G1307H20) 24962 RON
202 1 1 BUTTON (G3591G1303000) 13697 RON
203 1 1 INDICATOR (G3578G1304000) 9012 RON
204 1 1 SWITCH (G3591G1304000) 3954 RON
205 1 1 DISPLAY (G9452G1302000) 23244 RON
206 1 1 SOCKET (G3573G0105000) 18568 RON
207 1 1 OUTLET (G3573G0106000) 9012 RON
208 1 1 BREAKER (G3595G0101000) 3954 RON
209 1 1 OUTLET (G3573G0101000) 18568 RON
210 1 1 GROUND (G1522G3401000) 3954 RON
301 1 1 PLATE RH (G3246G3301Y80) 33797 RON
302 1 1 COVER RH (G3234G3301000) 40734 RON
303 1 1 COVER LH (G3229G3301000) 42426 RON
304 1 1 PLATE LH (G3240G3301Y80) 33797 RON
305 1 8 SCREW (G900905016040) 1630 RON
306 1 16 BOLT (G9101G1304000) 1630 RON
307 1 6 BOLT (G9101G1301000) 1630 RON
308 1 10 NUT (G9013G1301010) 1630 RON
309 1 6 RUBBER PAD (G3001G1302000) 1630 RON
310 1 1 CAP (G1685G3301000) 13697 RON
311 1 1 SLEEVE (G3215G1301000) 3954 RON
312 1 1 SHEATH (G3043G1301000) 1630 RON
313 1 1 LENS (G3253G1301000) 2182 RON
314 1 1 SHEATH (G3043G1302000) 1630 RON
315 1 1 COVER (G3245G3301H20) 9012 RON
316 1 1 HANDLE (G3208G3301000) 3268 RON
317 1 2 SCREW (G900904012040) 1630 RON
318 1 2 NUT (G900404000010) 1630 RON
319 1 4 SCREW (G901004016010) 1630 RON
320 1 1 TANK (G1679G1304H20) 44688 RON
321 1 1 FILTER (G1696G1301000) 741 RON
323 1 1 INDICATOR (G3601G1301000) 6688 RON
324 1 4 BUSHING (G9069G1301000) 1630 RON
325 1 1 FILTER (G3214G1301000) 3954 RON
326 1 1 ENGINE (G80IMF00DWT01) 327869 RON
327 1 6 SCREW (G901648016010) 1630 RON
328 1 10 BOLT (G900106012010) 1630 RON
329 1 1 COVER (G3304G1301000) 23244 RON
330 1 2 PIN (G905108012000) 1630 RON
331 1 5 BOLT (G900106030010) 1630 RON
332 1 1 FIELD (G3142G1301000) 49114 RON
333 1 1 ROTOR (G3141G1301000) 46247 RON
334 1 1 FIELD SA (G3143G1301000) 96047 RON
335 1 2 BOLT (G900106030010) 1630 RON
336 1 1 NUT (G900412000010) 1630 RON
337 1 1 IMPELLOR (G1935G1301000) 9012 RON
338 1 2 BOLT (G900106010010) 1630 RON
339 1 1 COVER (G3254G1303000) 15469 RON
340 1 1 SEAL (G1826E2202000) 741 RON
341 1 1 DAMPER (G3261G1301000) 12361 RON
342 1 9 SPRING CLIP (G3262G1301000) 1630 RON
343 1 12 NUT (G9014G1301010) 1630 RON
344 1 1 HARNESS (G3290G1305000) 13697 RON
345 1 4 SCREW (G901505012040) 1630 RON
346 1 1 CONTROL PANEL (G3570G3301H20) 176482 RON
347 1 1 SWITCH SA (G1521G1301000) 20216 RON
348 1 1 SWITCH (G3002G1301000) 741 RON
349 1 1 PIPE (G9068G1301000) 1630 RON
350 1 1 PIPE (G9068G1302000) 3954 RON
351 1 1 CLAMP (G9067G0101000) 1630 RON
352 1 1 CLAMP (G9067G0102000) 1630 RON
353 1 2 CLIP (G9067E0101010) 1630 RON
354 1 1 CLAMP (G3590G1301000) 18568 RON
355 1 1 COVER (G3227G1301000) 36994 RON
356 1 1 INVERTER (G3305G1339000) 161583 RON
357 1 2 MOUNT (G3216G1305000) 2556 RON
358 1 4 PAD (G3610G1301000) 10241 RON
359 1 6 NUT (G900406000010) 1630 RON
360 1 1 DAMPER (G3228G1301000) 4355 RON
361 1 1 DAMPER (G3228G1302000) 3954 RON
362 1 1 WIRE (G1522G1401000) 2182 RON
363 1 6 BOLT (G900106014010) 1630 RON
364 1 2 DAMPER (G3613G1301000) 1933 RON
365 1 2 DAMPER (G3613G1302000) 1772 RON
