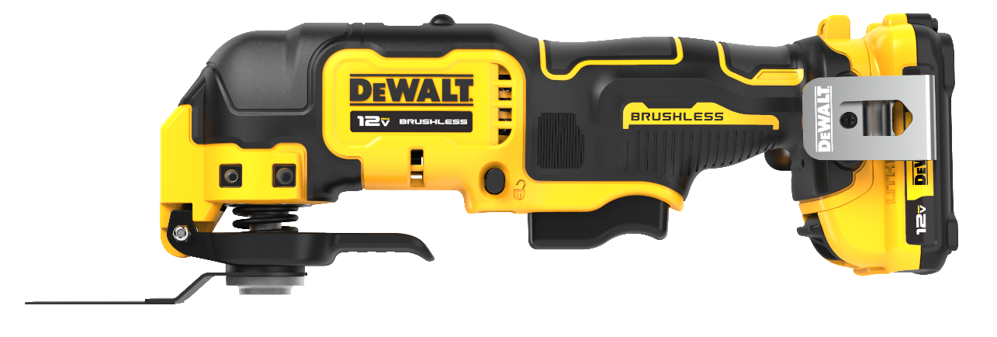

INSTRUMENT DE OSCILATIE DEWALT DCS353D2 Type 1
[DCS353D2 Type 1]

Imagini suplimentare

Click pentru a mari

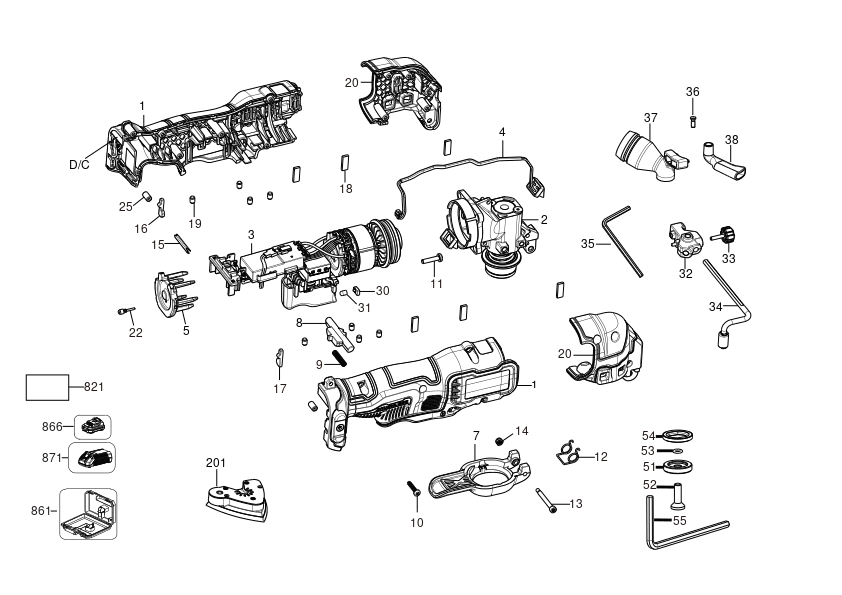

LISTA DE COMPONENTE:

Numar	Versiune	Buc. in schema	Denumire	Pret/buc (Tva inclus)	Cumpara
1	1	1	HOUSING SA (NA027525)	74¹ RON
1	1	1	NB432467	-	Indisponibil
2	1	1	SPINDLE SA (NA049504)	369⁹⁴ RON
3	1	1	MOTOR & SWITCH SA (NA049525)	854⁹⁴ RON
4	1	1	LED KIT (NA004292)	27⁹⁶ RON
5	1	1	ADAPTOR (N804246)	6⁶⁸ RON
7	1	1	CLAMP (NA006403)	27⁹⁶ RON
8	1	1	LOCK BUTTON (N864268)	6⁶⁸ RON
9	1	1	SPRING (N868646)	5⁸⁸ RON
10	1	11	SCREW (N463678)	5⁸⁸ RON
11	1	4	Screw M3.5X16 T15 (330019-03)	5⁵⁸ RON
12	1	1	SPRING (N140357)	5⁵⁸ RON
13	1	1	SCREW (N175484)	5⁵⁸ RON
14	1	1	NUT (N243985)	5⁵⁸ RON
15	1	1	PLATE (NA147989)	5⁸⁸ RON
16	1	1	BUMPER (N845324)	5⁸⁸ RON
17	1	1	BUMPER (N845325)	5⁸⁸ RON
18	1	1	RUBBER (N896431)	5⁸⁸ RON
19	1	8	PLUG (90621610)	5⁸⁸ RON
20	1	1	HEAD SA (NA027526)	32⁶⁸ RON
22	1	1	PLUG (N593131)	5⁸⁸ RON
25	1	2	PIN (N890694)	5⁸⁸ RON
30	1	1	SPRING GUIDE (N907696)	5⁸⁸ RON
31	1	1	DETENT (326467-00)	5⁵⁸ RON
32	1	1	BLOCK SA (N275350)	44⁷² RON
33	1	1	KNOB SA (N278801)	7⁸¹ RON
34	1	1	DEPTH STOP (N275341)	27⁹⁵ RON
35	1	1	HEX KEY (N285879)	11¹⁷ RON
36	1	1	SCREW (N291362)	5⁵⁸ RON
37	1	1	DUST PORT (N277679)	19⁰ RON
38	1	1	DUST PORT (N278060)	8⁹³ RON
51	1	1	OUTER FLANGE (90583886)	9⁴⁴ RON
52	1	1	SCREW (90583887)	5⁸⁸ RON
53	1	1	RING (90583888)	5⁸⁸ RON
54	1	1	FLANGE cod vechi 90583885 (N440293)	21²⁴ RON
55	1	1	WRENCH SPECIAL (90584745)	8⁹³ RON
201	1	1	PLATEN (N271240)	68²¹ RON
821	1	1	NA027458	-	Indisponibil
821	1	1	RATING LABEL (NA638998)	5⁸⁸ RON
861	1	1	KITBOX DWST1-17807 (N279261)	307⁶⁹ RON
866	1	2	BATTERY 10.8V-2AH-21.6WH (N394620)	307⁶⁹ RON
871	1	1	CHARGER (NA373501)	384⁶³ RON
