Top » Piese de schimb » PIESE DEWALT » D21815K Type 2

1/2 HAMMER DRILL DEWALT D21815K Type 2
[D21815K Type 2]
1/2 HAMMER DRILL DEWALT D21815K Type 2
Click pentru a mari
Imagini suplimentare
1/2 HAMMER DRILL DEWALT D21815K Type 2
Click pentru a mari
1/2 HAMMER DRILL DEWALT D21815K Type 2
Click pentru a mari

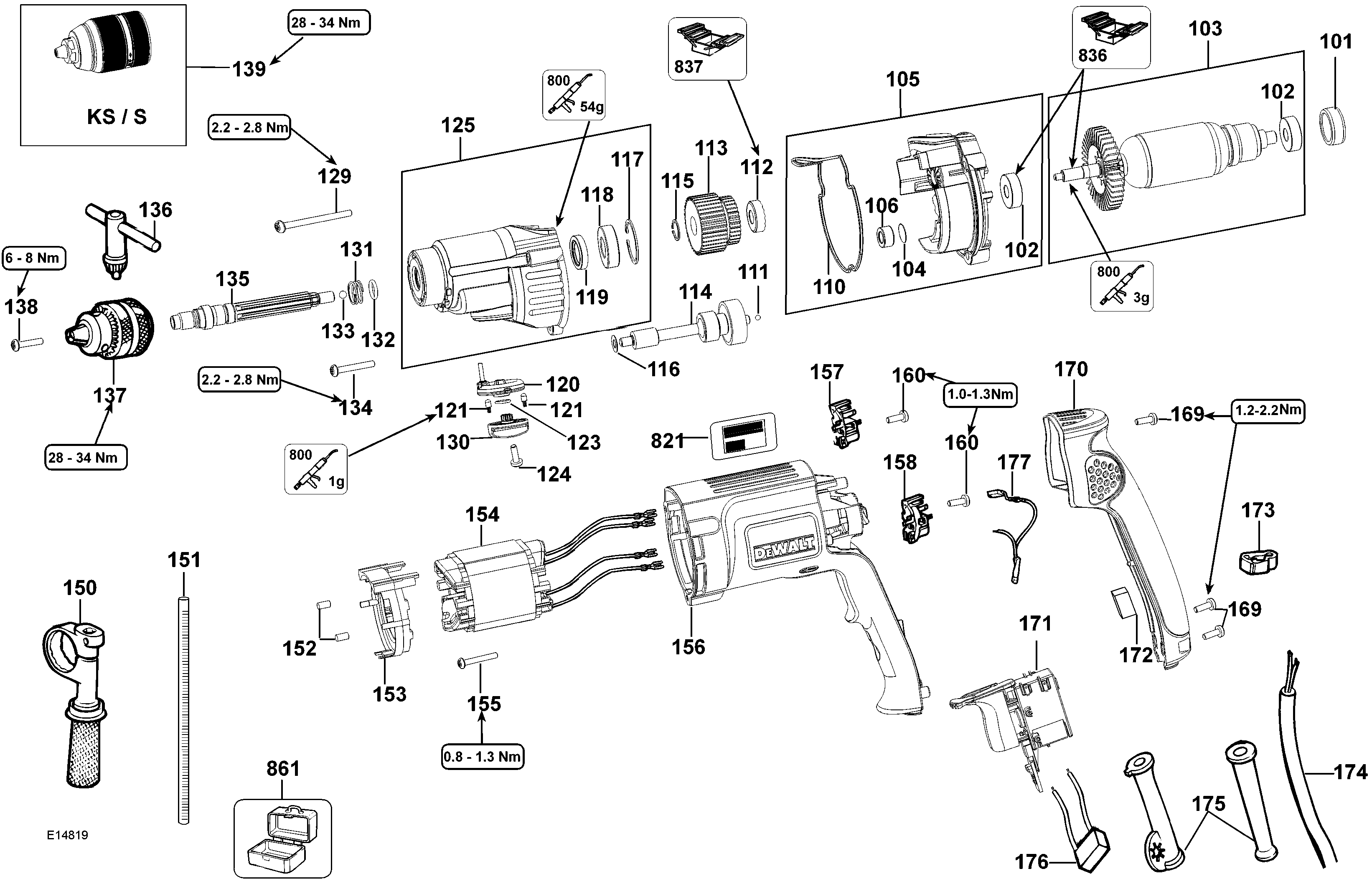

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 RUBBER BOOT (389824-00) 558 RON
102 1 2 330003-04 - Indisponibil
102 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
103 1 1 ARMATURE AND BEARING 230V (SERVICE) (494427-00) 25164 RON
104 1 1 THRUST PLATE (931284) 558 RON
105 1 1 SA GEARCASE (SERVICE) (494623-00) 1891 RON
106 1 1 BEARING NEEDLE (330004-20) 1117 RON
110 1 1 SEAL HOUSING (488148-00) 1117 RON
111 1 1 917725-00 - Indisponibil
112 1 1 MOVING CLUTCH (945706-00) 105 RON
113 1 1 SA BALL CLUTCH (SERVICE) (494625-00) 29862 RON
114 1 1 SA INTERSPINDLE (SERVICE) (494627-00) 25164 RON
115 1 1 CIRCLIP (479369-00) 558 RON
116 1 1 WASHER (492481-00) 558 RON
117 1 1 CIRCLIP (488147-00) 558 RON
118 1 1 BEARING BALL CW MFG (605040-25) 2347 RON
119 1 1 SEAL GREASE (1006305-00) 781 RON
120 1 1 SA SPEED SELECTOR (479859-00) 10512 RON
121 1 2 DETENT (326467-00) 558 RON
123 1 1 323711-34 - Indisponibil
124 1 1 SCREW PLASTIC 3.5*22 (330065-22) 558 RON
125 1 1 A NOSE CASTING (SERVICE) (494629-00) 20467 RON
129 1 2 SCREW PLASTIC THREAD FORM M4 * 57 T20 (330019-30) 558 RON
130 1 1 SPEED KNOB (479865-00) 893 RON
131 1 1 SPRING (931890-00) 558 RON
132 1 1 323711-34 - Indisponibil
133 1 1 BALL (000903-00) 558 RON
133 1 1 903-00 - Indisponibil
134 1 1 SCREW PLASTIC THD FORM M4*38 T20 (330019-16) 558 RON
135 1 1 SA OUTPUT SPINDLE (SERVICE) (494630-00) 14315 RON
136 1 1 CHUCK KEY (330034-08) 781 RON
138 1 1 CHUCK SCREW 1/4 LH (490910-00) 558 RON
139 1 1 CHUCK KEYLESS CHROME FRONT (586200-11) 28296 RON
150 1 1 HANDLE SIDE (939794-02) 5591 RON
151 1 1 DEPTH STOP (580787-00) 893 RON
152 1 2 SMALL RUBBER (949638-02) 558 RON
153 1 1 FAN BAFFLE (176811-00) 781 RON
154 1 1 STATOR PRO SERVIS TYPE 02 230V (SERVICE) (1008468-00) 20467 RON
155 1 2 SCREW (390198-00) 558 RON
156 1 1 CASE FIELD 44MM YELLOW Cd FREE (478814-00) 4472 RON
157 1 1 BRUSH HOLDER (401878-02) 2795 RON
158 1 1 BRUSH HOLDER (401877-02) 2795 RON
160 1 2 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
169 1 3 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
170 1 1 COVER HANDLE (MOULD) (488142-01) 5031 RON
171 1 1 SERVICE SWITCH PACK 230V (SERVICE) (1008532-00) 10512 RON
172 1 1 BUMPER SPONGE (930026-01) 781 RON
173 1 1 CORD CLAMP (402648-00) 781 RON
174 1 1 CORD PWR SPLY EURO (330120-86) 7940 RON
175 1 1 CORD PROTECTOR (401751-00) 1788 RON
176 1 1 "CAPACITOR XY 0.22 uF""" (585292-03) 4137 RON
177 1 2 BRUSH WITH CONNECTOR (403108-14) 4137 RON
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
821 1 1 NAMEPLATE D21815-QS02 (PRINT) (N045137) 781 RON
836 1 1 SERVICE TOOL (559666-99) 18212 RON
837 1 1 SERVICE TOOL (559596-99) 46915 RON
861 1 1 KITBOX 3A DEWALT (MOULD) (577646-01) 14315 RON
