Top » Piese de schimb » PIESE DEWALT » DXGNP65E Type 1

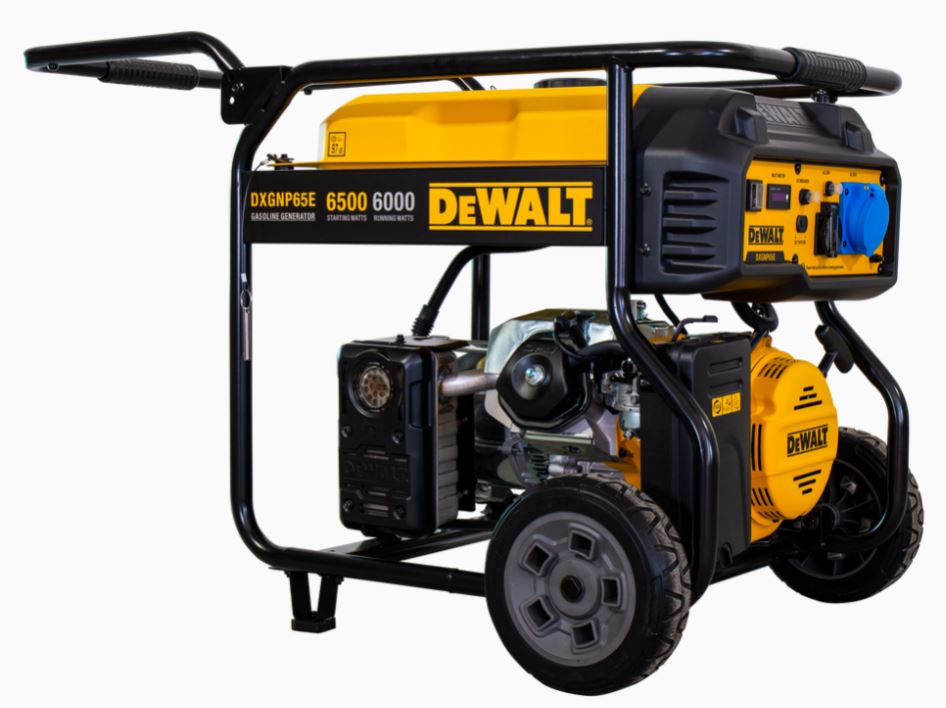

GENERATOR DEWALT DXGNP65E Type 1
[DXGNP65E Type 1]
GENERATOR DEWALT DXGNP65E Type 1
Click pentru a mari
Imagini suplimentare
GENERATOR DEWALT DXGNP65E Type 1
Click pentru a mari
GENERATOR DEWALT DXGNP65E Type 1
Click pentru a mari
GENERATOR DEWALT DXGNP65E Type 1
Click pentru a mari
GENERATOR DEWALT DXGNP65E Type 1
Click pentru a mari

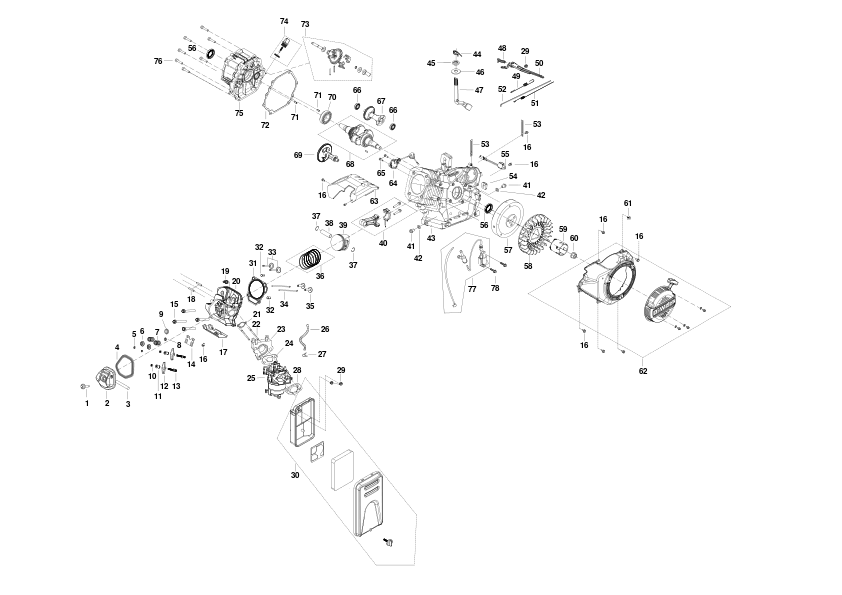

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 BOLT (G1247E0201010) 1933 RON
2 1 1 CYLINDER HEAD (G1241E0201140) 9012 RON
3 1 1 TUBE (G1703E0202000) 1630 RON
4 1 1 GASKET (G1204E0201000) 3954 RON
5 1 4 CLAMP (G1209E0201000) 1630 RON
6 1 2 SEAT (G1212E0201000) 1933 RON
7 1 2 SPRING (G1213E0201000) 1630 RON
8 1 1 SEAL (G1211E0201000) 1933 RON
9 1 1 SEAT (G1208E0201000) 1630 RON
10 1 2 LOCK NUT (G1411E0101000) 1630 RON
11 1 2 NUT (G1410E0101040) 1630 RON
12 1 2 ROCKER (G1431E0201000) 1630 RON
13 1 2 BOLT (G9103E0101040) 1630 RON
14 1 1 PLATE (G1409E0201000) 1630 RON
15 1 4 BOLT (G910110080010) 1630 RON
16 1 10 BOLT (G900106012040) 1630 RON
17 1 1 DEFLECTOR (G1930E0201010) 1772 RON
18 1 2 BOLT (G910308040040) 1630 RON
19 1 1 SPARK PLUG (G1567E0103000) 6688 RON
20 1 1 HEAD (G1214E0201000) 42426 RON
21 1 1 GASKET (G1702E0201000) 3954 RON
22 1 2 BOLT (G9103E0202040) 1630 RON
23 1 1 PLATE (G1603E0201000) 2556 RON
24 1 1 GASKET (G1601E0201000) 3954 RON
25 1 1 CARBURETTOR SA (G1610E0206033) 48037 RON
26 1 1 TUBE (G9068E0103000) 1630 RON
27 1 1 CLIP (G9067E0101010) 1630 RON
28 1 1 GASKET (G1701E0201000) 3954 RON
29 1 3 NUT (G900406000040) 1630 RON
30 1 1 FILTER (G1710E0202000) 24962 RON
31 1 1 GASKET (G1230E0201000) 5370 RON
32 1 2 PIN (G905112020000) 1630 RON
33 1 1 VALVE (G1220E0201000) 18568 RON
34 1 2 LIFTER (G1470E0201000) 1630 RON
35 1 2 TAPPET (G1481E0201000) 1630 RON
36 1 1 RING (G1320E0202000) 12361 RON
37 1 2 CLIP (G1313E0201000) 1630 RON
38 1 1 PIN (G1312E0201000) 2556 RON
39 1 1 PISTON (G1311E0202000) 27287 RON
40 1 1 CONNECTING ROD (G1301E0201000) 20216 RON
41 1 2 BOLT (G910112015040) 1630 RON
42 1 2 WASHER (G9041E0201010) 1630 RON
43 1 1 CRANKCASE (G1131E0202000) 104961 RON
44 1 1 PIN (G9052E0201010) 1630 RON
45 1 1 SEAL (G9065E0202000) 1630 RON
46 1 1 WASHER (G9041E0202000) 1630 RON
47 1 1 ADJUSTER (G1607E0201000) 1630 RON
48 1 1 BOLT (G910106021010) 1630 RON
49 1 1 SPRING (G1606E0202000) 1630 RON
50 1 1 BRACKET (G1608E0201010) 2796 RON
51 1 1 SPRING (G1604E0201030) 1630 RON
52 1 1 ROD (G1605E0201010) 1630 RON
53 1 2 CLIP (G9070E0201000) 1630 RON
54 1 1 RUBBER BOOT (G1936E0201000) 1630 RON
55 1 1 PROTECTOR (G1526E0101000) 3268 RON
56 1 2 SEAL (G9065E0201000) 1933 RON
57 1 1 FLYWHEEL (G1351E0201000) 48037 RON
58 1 1 IMPELLOR (G1935E0202000) 6688 RON
59 1 1 COVER (G2802E0201000) 5370 RON
60 1 1 NUT (G910216000010) 1630 RON
61 1 1 CLIP (G9066E0201000) 1630 RON
62 1 1 STARTER SA (G2810E0250Y82) 48037 RON
63 1 1 THROTTLE CONTROL (G1668E0208010) 12361 RON
64 1 1 SENSOR (G1536E0201000) 9012 RON
65 1 2 BOLT (G90010601404S) 1630 RON
66 1 2 BEARING (G905462026000) 3954 RON
67 1 1 SHAFT (G1340E0201000) 24962 RON
68 1 1 CRANKSHAFT (G1330E0202000) 48037 RON
69 1 1 CAMSHAFT (G1420E0202000) 27287 RON
70 1 1 BEARING (G905462076000) 12361 RON
71 1 2 PIN (G905108012000) 1630 RON
72 1 1 GASKET (G1101E0201000) 6688 RON
73 1 1 GEAR SA (G1660E0201000) 6688 RON
74 1 1 DIPSTICK (G1501E0202H20) 1933 RON
75 1 1 COVER (G1141E0203000) 35435 RON
76 1 7 BOLT (G900108040040) 1630 RON
77 1 1 COIL SA (G1506E0202000) 32327 RON
78 1 2 BOLT (G900106028010) 1630 RON

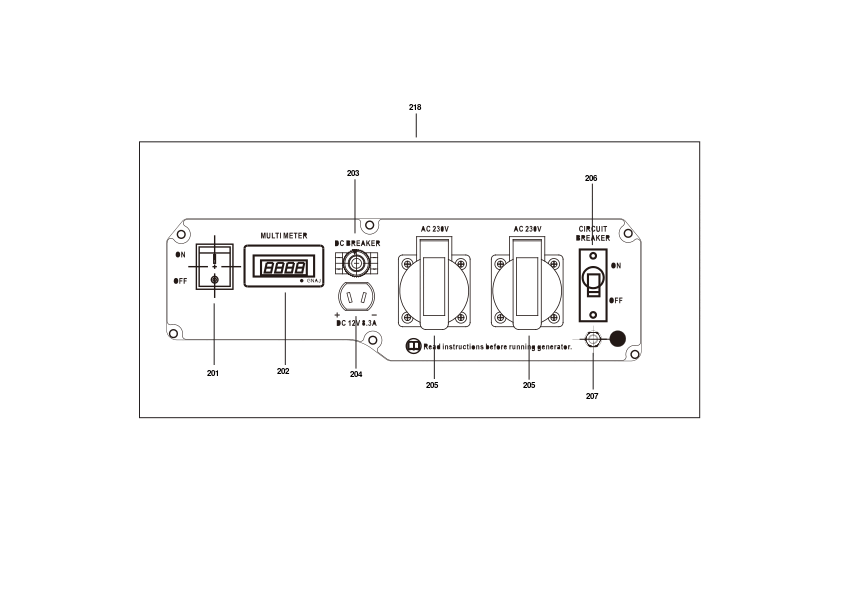

201 1 1 SWITCH (G3591G0103000) 3954 RON
202 1 1 DISPLAY (G9452G1302000) 23244 RON
203 1 1 BREAKER (G3595G0101000) 3954 RON
204 1 1 OUTLET (G3573G0106000) 9012 RON
205 1 2 OUTLET (G3573G0101000) 18568 RON
206 1 1 CIRCUIT BREAKER (G3594G3501000) 21676 RON
207 1 1 GROUND (G1522G3401000) 3954 RON
218 1 1 CONTROL PANEL (G3570G3401H20) 176482 RON
301 1 1 FUEL TANK (G1679G3501Y80) 48037 RON
302 1 1 CAP (G1685G3401000) 11337 RON
303 1 1 FILTER (G1696G0101000) 1630 RON
304 1 1 GASKET (G1801E0201000) 3954 RON
305 1 1 MUFFLER (G1810G0711000) 63720 RON
306 1 4 SLEEVE (G3001G0101000) 1630 RON
307 1 1 TAP (G3002G0101000) 6688 RON
308 1 1 SUPPORT (G3012G0202010) 1630 RON
309 1 1 SUPPORT (G3021G0201000) 35435 RON
310 1 1 COVER (G3022G0201Y8S) 9012 RON
311 1 1 BLOCK (G3023G0201010) 1630 RON
312 1 1 VOLTAGE REGULATOR (G3060G020100S) 60451 RON
313 1 1 BOLT (G900110045040) 1630 RON
314 1 1 SHIELD (G1934G0601000) 4827 RON
315 1 4 BOLT (G900106014040) 1630 RON
316 1 1 ALTERNATOR (G3130G020200S) 462423 RON
317 1 1 DEFLECTOR (G3304G0201010) 3268 RON
319 1 1 PANEL (G3590G3501000) 21676 RON
320 1 1 GAUGE (G3601G3401000) 6688 RON
321 1 4 DAMPER (G3610G0201000) 4827 RON
322 1 2 DAMPER (G3613G0501000) 1630 RON
323 1 2 BRACKET (G3614G0601H20) 3268 RON
324 1 2 PIN (G3615G0301000) 741 RON
325 1 1 FRAME (G3616G3502H20) 96047 RON
326 1 1 HANDLE SA (G3618G3501H20) 18568 RON
327 1 2 SLEEVE (G3619G3501000) 15469 RON
328 1 2 BOLT (G3631G3501000) 9012 RON
329 1 2 WHEELS (G3633G3501000) 24962 RON
330 1 2 NUT (G363508000040) 1630 RON
331 1 2 PLUG (G3621G0601000) 1630 RON
332 1 1 ENGINE (G420MF00DWT01) 425786 RON
333 1 1 BOLT (G900205010040) 1630 RON
334 1 2 BOLT (G900205012040) 1630 RON
335 1 7 BOLT (G900205016010) 1630 RON
336 1 4 BOLT (G900106012040) 1630 RON
337 1 2 BOLT (G900106016040) 1630 RON
338 1 4 BOLT (G900106025040) 1630 RON
339 1 4 BOLT (G900108016040) 1630 RON
340 1 2 BOLT (G900108050040) 1630 RON
341 1 2 NUT (G900406000041) 1630 RON
342 1 8 NUT (G900408000041) 1630 RON
343 1 5 NUT (G900410000041) 1630 RON
344 1 2 NUT (G900412000041) 1630 RON
345 1 2 NUT (G900508000010) 1630 RON
346 1 4 WASHER (G904106000040) 1630 RON
347 1 2 WASHER (G9041G1403040) 1630 RON
348 1 1 WASHER (G9041G0701010) 1630 RON
349 1 1 CLIP (G9067E0101010) 1630 RON
350 1 4 LINER (G9069G0101010) 1630 RON
351 1 1 BAND (G9072G0201000) 1630 RON
352 1 4 BOLT (G910106190010) 1630 RON
353 1 1 BOLT (G910110275010) 4827 RON
354 1 2 BUFFER (G3228G3401000) 1630 RON
355 1 4 SCREW (G900904025010) 1630 RON
356 1 6 SCREW (G900905012040) 1630 RON
357 1 1 BRUSH SA (G3307G0201000) 741 RON
