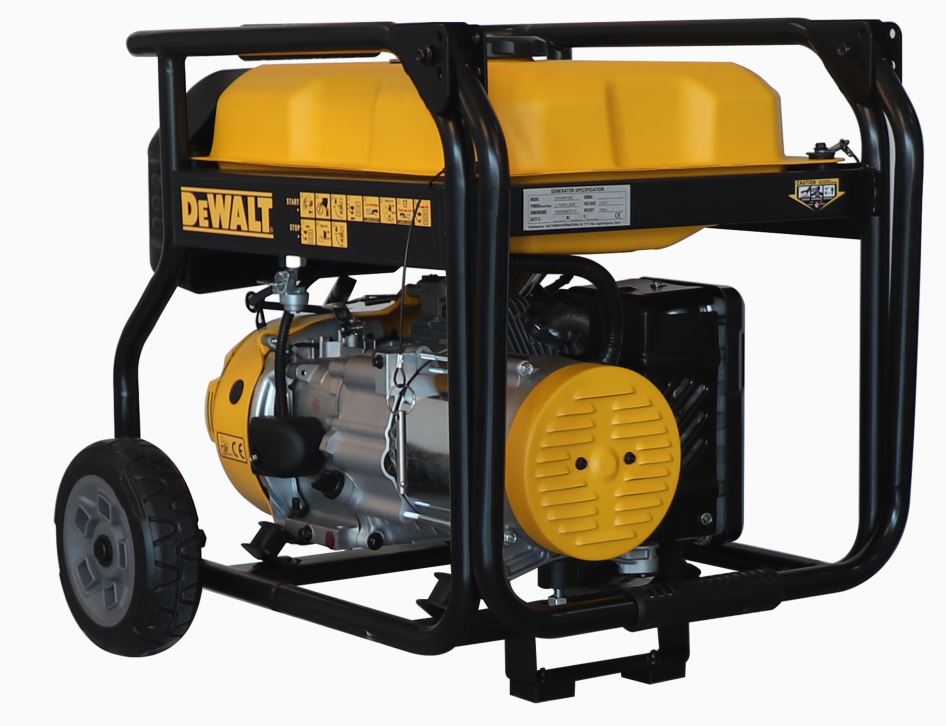

GENERATOR DEWALT DXGNP30E Type 1
[DXGNP30E Type 1]
GENERATOR DEWALT DXGNP30E Type 1
Click pentru a mari
Imagini suplimentare
GENERATOR DEWALT DXGNP30E Type 1
Click pentru a mari
GENERATOR DEWALT DXGNP30E Type 1
Click pentru a mari
GENERATOR DEWALT DXGNP30E Type 1
Click pentru a mari
GENERATOR DEWALT DXGNP30E Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 6 BOLT (G90010601404S) 1630 RON
2 1 1 CYLINDER HEAD (G1241E0101140) 6688 RON
3 1 1 GASKET (G1204E0102000) 3954 RON
4 1 4 BOLT (G91010806001S) 1630 RON
5 1 1 HEAD (G1214E0101000) 33797 RON
6 1 2 BOLT (G90030609604S) 1630 RON
7 1 2 PIN (G905110014000) 1630 RON
8 1 1 GASKET (G1230E0102000) 6688 RON
9 1 1 SPARK PLUG (G1567E0103000) 6688 RON
10 1 2 BOLT (G91030803404S) 1630 RON
11 1 4 CLAMP (G1209E0101000) 1630 RON
12 1 2 SEAT (G1212E0101000) 1630 RON
13 1 2 SPRING (G1213E0101000) 1630 RON
14 1 1 SEAL (G1211E0101000) 1933 RON
15 1 1 VALVE (G1220E0101000) 11337 RON
16 1 2 LOCK NUT (G1411E0101000) 1630 RON
17 1 2 NUT (G1410E0101040) 1630 RON
18 1 2 ROCKER (G1431E0101000) 1630 RON
19 1 2 BOLT (G9103E0101040) 1630 RON
20 1 1 PLATE (G1409E0101000) 1630 RON
21 1 2 LIFTER (G1470E0101000) 1630 RON
22 1 2 TAPPET (G1481E0101000) 1630 RON
23 1 1 GASKET (G1702E0101000) 3954 RON
24 1 1 PLATE (G1603E0101000) 3954 RON
25 1 1 GASKET (G1601E0101000) 4355 RON
26 1 1 CARBURETTOR SA (G1610E0109033) 24962 RON
27 1 1 TUBE (G9068E0103000) 1630 RON
28 1 1 CLIP (G9067E010101S) 1630 RON
29 1 1 TUBE (G1703E0102000) 1630 RON
30 1 1 GASKET (G1701E0102000) 3954 RON
31 1 1 FILTER (G1710E0102000) 18568 RON
32 1 3 NUT (G900406000040) 1630 RON
33 1 1 CONNECTING ROD (G1301E0101000) 11337 RON
34 1 1 RING (G1320E0102000) 9012 RON
35 1 2 CLIP (G1313E0101000) 1630 RON
36 1 1 PISTON (G1311E0301001) 13697 RON
37 1 1 PIN (G1312E0101000) 2182 RON
38 1 1 CRANKCASE (G1131E0102000) 49114 RON
39 1 2 BOLT (G91011001504S) 1630 RON
40 1 2 WASHER (G9041E0101000) 1630 RON
41 1 2 SEAL (G9065E0101000) 1630 RON
42 1 1 COIL SA (G1506E0102000) 33797 RON
43 1 2 BOLT (G90010602504S) 1630 RON
44 1 1 FLYWHEEL (G1351E0101000) 23244 RON
45 1 1 IMPELLOR (G1935E0101000) 741 RON
46 1 1 COVER (G2802E0101000) 4355 RON
47 1 1 NUT (G91021400001S) 1630 RON
48 1 1 STARTER SA (G2810E0136Y81) 44688 RON
49 1 1 ADJUSTER (G1607E0101000) 1630 RON
50 1 1 WASHER (G9041E0102000) 1630 RON
51 1 1 PIN (G9052E010100S) 1630 RON
52 1 1 GEAR SA (G1660E0101000) 3268 RON
53 1 2 BEARING (G905462056000) 18568 RON
54 1 1 SENSOR (G1536E0101000) 20216 RON
55 1 1 CRANKSHAFT (G1330E0106000) 28836 RON
56 1 1 CAMSHAFT (G1420E0101000) 24962 RON
57 1 2 PIN (G905108012000) 1630 RON
58 1 1 GASKET (G1101E0103000) 3954 RON
59 1 1 DIPSTICK (G1501E0101H20) 4827 RON
60 1 1 COVER (G1141E0102000) 35435 RON
61 1 6 BOLT (G90010803204S) 1630 RON
62 1 8 BOLT (G90010601004S) 1630 RON
63 1 1 THROTTLE CONTROL (G1668E0301010) 2796 RON
64 1 1 BRACKET (G1608E0101010) 1772 RON
65 1 1 BOLT (G91010602101S) 1630 RON
66 1 1 SPRING (G1606E0109000) 1630 RON
67 1 1 ROD (G1605E0102010) 1630 RON
68 1 1 SPRING (G1604E0101000) 1630 RON
69 1 1 DEFLECTOR (G1930E0101010) 2796 RON
70 1 1 SHIELD (G1934E0105010) 3268 RON
71 1 1 BOLT (G90010602004S) 1630 RON
72 1 1 CLIP (G9070E0201000) 1630 RON
73 1 1 PROTECTOR (G1526E0101000) 3268 RON
74 1 1 BOLT (G2801E0801010) 1630 RON
75 1 1 COVER (G2813E2101000) 3268 RON

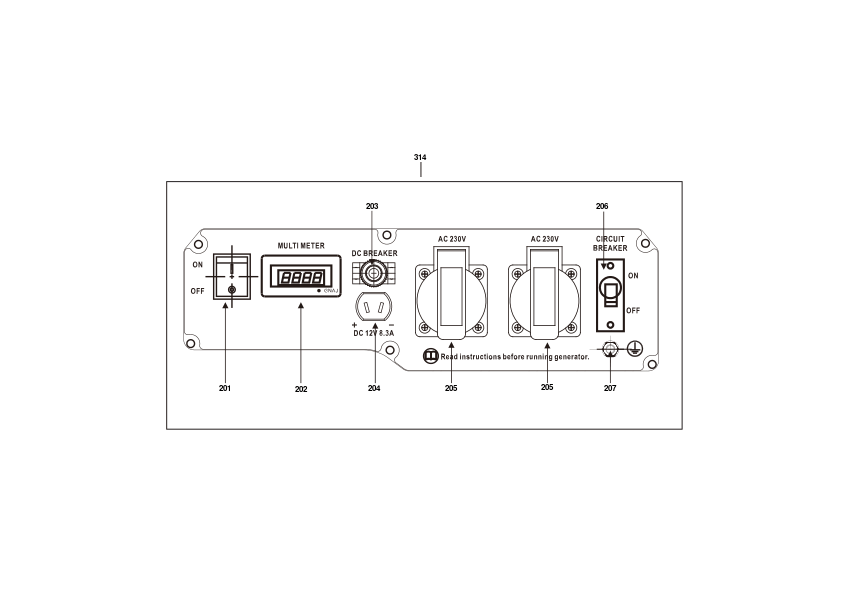

201 1 1 SWITCH (G3591G0103000) 3954 RON
202 1 1 DISPLAY (G9452G1302000) 23244 RON
203 1 1 BREAKER (G3595G0101000) 3954 RON
204 1 1 OUTLET (G3573G0106000) 9012 RON
205 1 2 OUTLET (G3573G0101000) 18568 RON
206 1 1 CIRCUIT BREAKER (G3594G3401000) 21676 RON
207 1 1 GROUND (G1522G3401000) 3954 RON

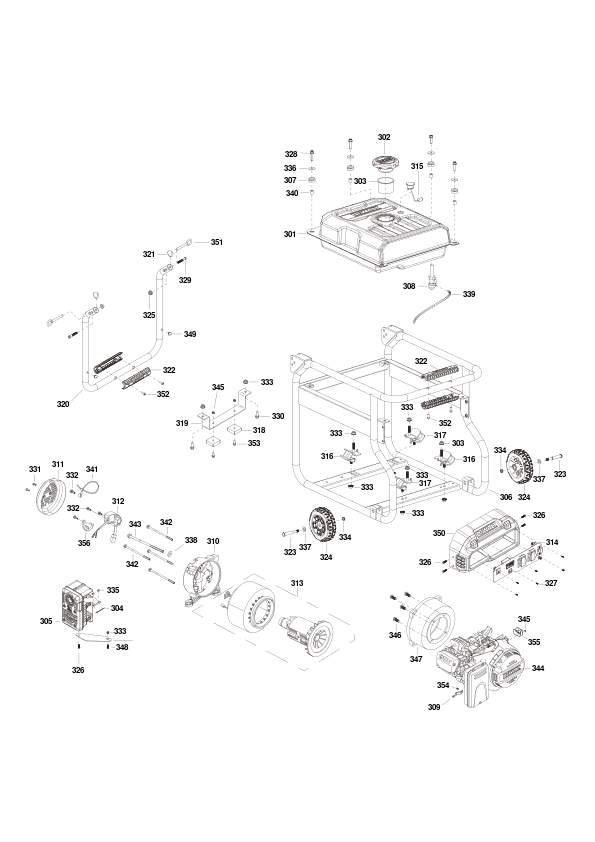

301 1 1 FUEL TANK (G1679G3401Y80) 49827 RON
302 1 1 CAP (G1685G3401000) 11337 RON
303 1 1 FILTER (G1696G0101000) 1630 RON
304 1 1 GASKET (G1801E0101000) 3954 RON
305 1 1 MUFFLER (G1810G340100S) 46247 RON
306 1 1 FRAME (G3616G3401H20) 67932 RON
307 1 4 SLEEVE (G3001G0101000) 1630 RON
308 1 1 TAP (G3002G0101000) 6688 RON
309 1 1 SUPPORT (G3012G0101010) 1630 RON
310 1 1 SUPPORT (G3021G0101000) 24962 RON
311 1 1 COVER (G3022G0101Y8S) 741 RON
312 1 1 VOLTAGE REGULATOR (G3060G010100S) 60451 RON
313 1 1 ALTERNATOR (G3130G050200S) 277356 RON
314 1 1 CONTROL PANEL (G3570G3408H20) 176482 RON
315 1 1 GAUGE (G3601G3401000) 6688 RON
316 1 2 DAMPER (G3610G0101000) 9012 RON
317 1 2 DAMPER (G3611G0101000) 4355 RON
318 1 2 DAMPER (G3613G0501000) 1630 RON
319 1 1 BRACKET (G3614G0501H20) 9012 RON
320 1 1 HANDLE SA (G3618G3401H20) 23244 RON
321 1 2 PLUG (G3621G0501000) 1630 RON
322 1 2 SLEEVE (G3619G3401000) 13697 RON
323 1 2 BOLT (G3631G3401000) 9012 RON
324 1 2 WHEEL FRONT (G3633G3401000) 24962 RON
325 1 2 NUT (G363508000040) 1630 RON
326 1 4 BOLT (G900106014040) 1630 RON
327 1 6 SCREW (G900905012040) 1630 RON
328 1 4 BOLT (G900106025040) 1630 RON
329 1 2 BOLT (G900108045040) 1630 RON
330 1 2 BOLT (G900108016040) 1630 RON
331 1 2 BOLT (G900205012040) 1630 RON
332 1 7 BOLT (G900205016010) 1630 RON
333 1 11 NUT (G900408000041) 1630 RON
334 1 2 NUT (G900412000041) 1630 RON
335 1 2 NUT (G900508000010) 1630 RON
336 1 5 WASHER (G904106000040) 1630 RON
337 1 2 WASHER (G9041G1403040) 1630 RON
338 1 1 WASHER (G904108000010) 1630 RON
339 1 1 CLIP (G9067E0101010) 1630 RON
340 1 4 LINER (G9069G0101010) 1630 RON
341 1 2 BAND (G9072G0101000) 1630 RON
342 1 4 BOLT (G910106135010) 1630 RON
343 1 1 BOLT (G910108220010) 2182 RON
344 1 1 ENGINE (G210MF00DWT01) 277356 RON
345 1 3 NUT (G900406000041) 1630 RON
346 1 4 BOLT (G900108030010) 1630 RON
347 1 1 COVER (G3025G1001000) 40734 RON
348 1 1 BOLT (G900108035040) 1630 RON
349 1 2 BUFFER (G3228G3401000) 1630 RON
350 1 1 PANEL (G3590G3401000) 27287 RON
351 1 2 PIN (G3615G0301000) 741 RON
352 1 4 SCREW (G900904016010) 1630 RON
353 1 2 BOLT (G900106016040) 1630 RON
354 1 1 BOLT (G900106012040) 1630 RON
355 1 1 SHIELD (G1934G0501000) 2182 RON
356 1 1 BRUSH SA (G3307G0101000) 4827 RON
