Top » Piese de schimb » PIESE DEWALT » DCD777P1 Type 1

GAURIRE/INSURUBARE DEWALT DCD777P1 Type 1
[DCD777P1 Type 1]
GAURIRE/INSURUBARE DEWALT DCD777P1 Type 1
Click pentru a mari
Imagini suplimentare
GAURIRE/INSURUBARE DEWALT DCD777P1 Type 1
Click pentru a mari
GAURIRE/INSURUBARE DEWALT DCD777P1 Type 1
Click pentru a mari

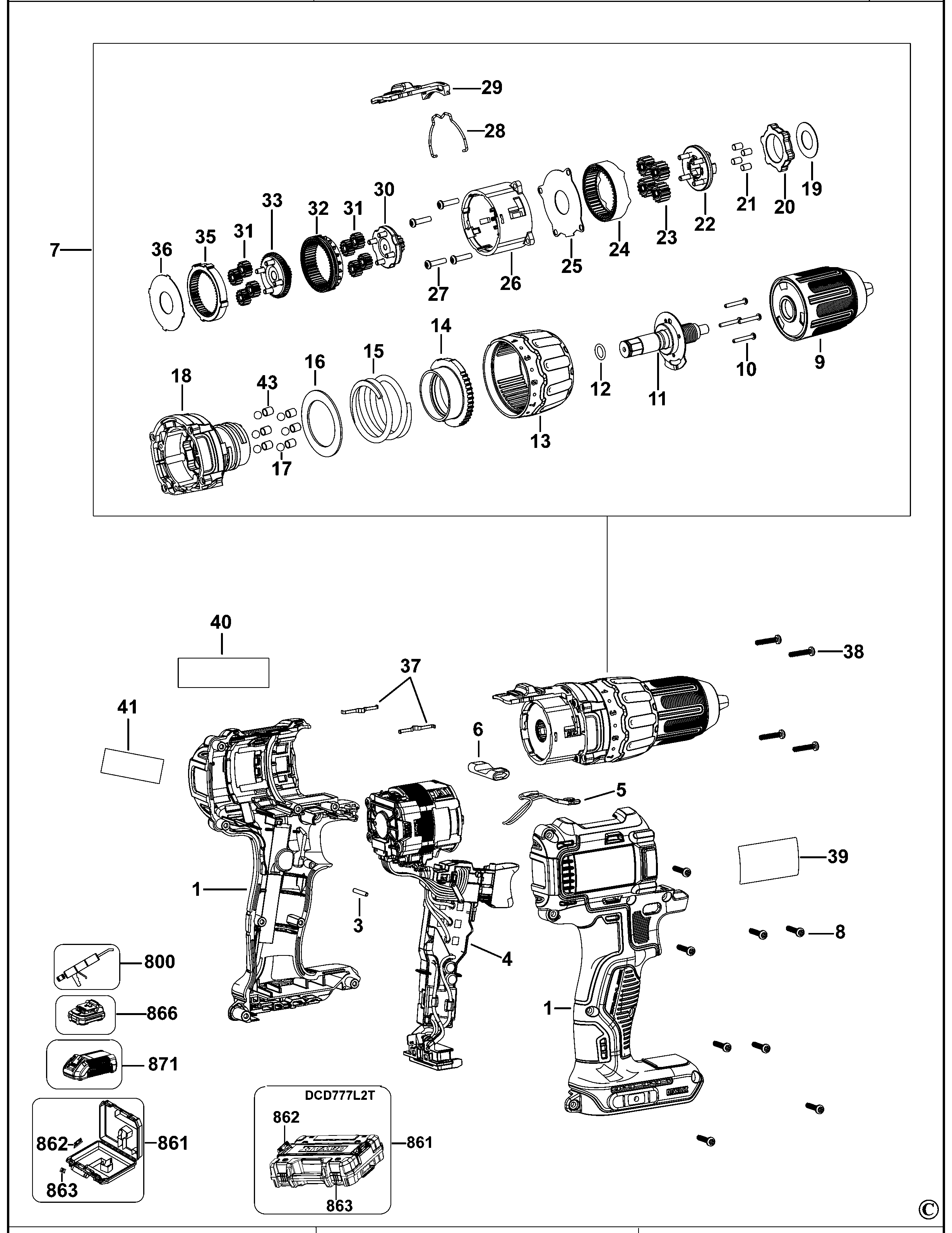

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CLAMSHELL SET (N459083) 5370 RON
3 1 1 ROLL PIN 2.5 X 10.9 (N071836) 558 RON
4 1 1 N493868 - Indisponibil
4 1 1 MOTOR AND SWITCH SA (NA148830) 52855 RON
5 1 1 LED (N459095) 1933 RON
6 1 1 ACTUATOR FWD/REV (N399342) 588 RON
7 1 1 GEARBOX SA (N472976) 27287 RON
8 1 12 SCREW (N463678) 588 RON
9 1 1 WEIDA SG13 CHUCK cod vechi N230360 (N472497) 14315 RON
9 1 1 CHUCK (N647226) 9012 RON
10 1 4 SCREW (N039795) 558 RON
11 1 1 SPINDLE SA (N495304) 741 RON
12 1 1 O RING (N475306) 588 RON
13 1 1 COLLAR (N459098) 1772 RON
14 1 1 NUT (N459099) 668 RON
15 1 1 SPRING (N459442) 668 RON
16 1 1 WASHER (N459455) 588 RON
17 1 1 BALL (N510716) 588 RON
17 1 6 BALL STEEL (386690-00) 558 RON
18 1 1 CLUTCH HOUSING KIT (N463692) 2556 RON
19 1 1 WASHER (N459467) 588 RON
20 1 1 N455056 - Indisponibil
20 1 1 RING (NA160702) 1772 RON
21 1 4 PIN (N456078) 588 RON
22 1 1 N495305 - Indisponibil
22 1 1 CARRIER SA (NA409897) 2556 RON
23 1 4 Gear (N459597) 588 RON
24 1 1 N459268 - Indisponibil
24 1 1 Gear (N858732) 82 RON
25 1 1 PLATE (N459449) 588 RON
26 1 1 GEARCASE (N459094) 82 RON
27 1 4 SCREW M3 12X13 (N075506) 558 RON
28 1 1 WIRE STEEL (N459273) 588 RON
29 1 1 SELECTOR (N459102) 588 RON
30 1 1 CARRIER SA (N495306) 2182 RON
31 1 8 GEAR (N215916) 558 RON
32 1 1 N462062 - Indisponibil
32 1 1 Gear (N858736) 114 RON
33 1 1 CARRIER SA (N495307) 1933 RON
35 1 1 N463849 - Indisponibil
35 1 1 Gear (N858735) 82 RON
36 1 1 PLATE (N225458) 558 RON
37 1 2 SPEED SELECTOR DETENT SPRING (N014681) 558 RON
38 1 4 SCREW (N474504) 588 RON
39 1 1 RATING PLATE (N491258) 588 RON
40 1 1 BRAND LABEL (N492026) 588 RON
41 1 1 LABEL (N298039) 558 RON
43 1 6 PIN (N482398) 588 RON
800 1 1 GREASE (286436-00) 70239 RON
861 1 1 KITBOX (N526408) 32327 RON
861 1 1 EU TSATK RIB KITBOX 5S2P (N442425) 32327 RON
861 1 1 EU TSTAK RIB KITBOX 5S1P (N442424) 32327 RON
862 1 1 LATCH (N409477) 114 RON
863 1 2 LATCH (P910190) 3466 RON
866 1 1 BATTERY 18V -5.0AH -90WH (N394624) 104961 RON
871 1 1 N450536 - Indisponibil
871 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
871 1 1 CHARGER 10.8V - 18V (NA010209) 51127 RON
