Top » Piese de schimb » PIESE DEWALT » DCD709M1 Type 1

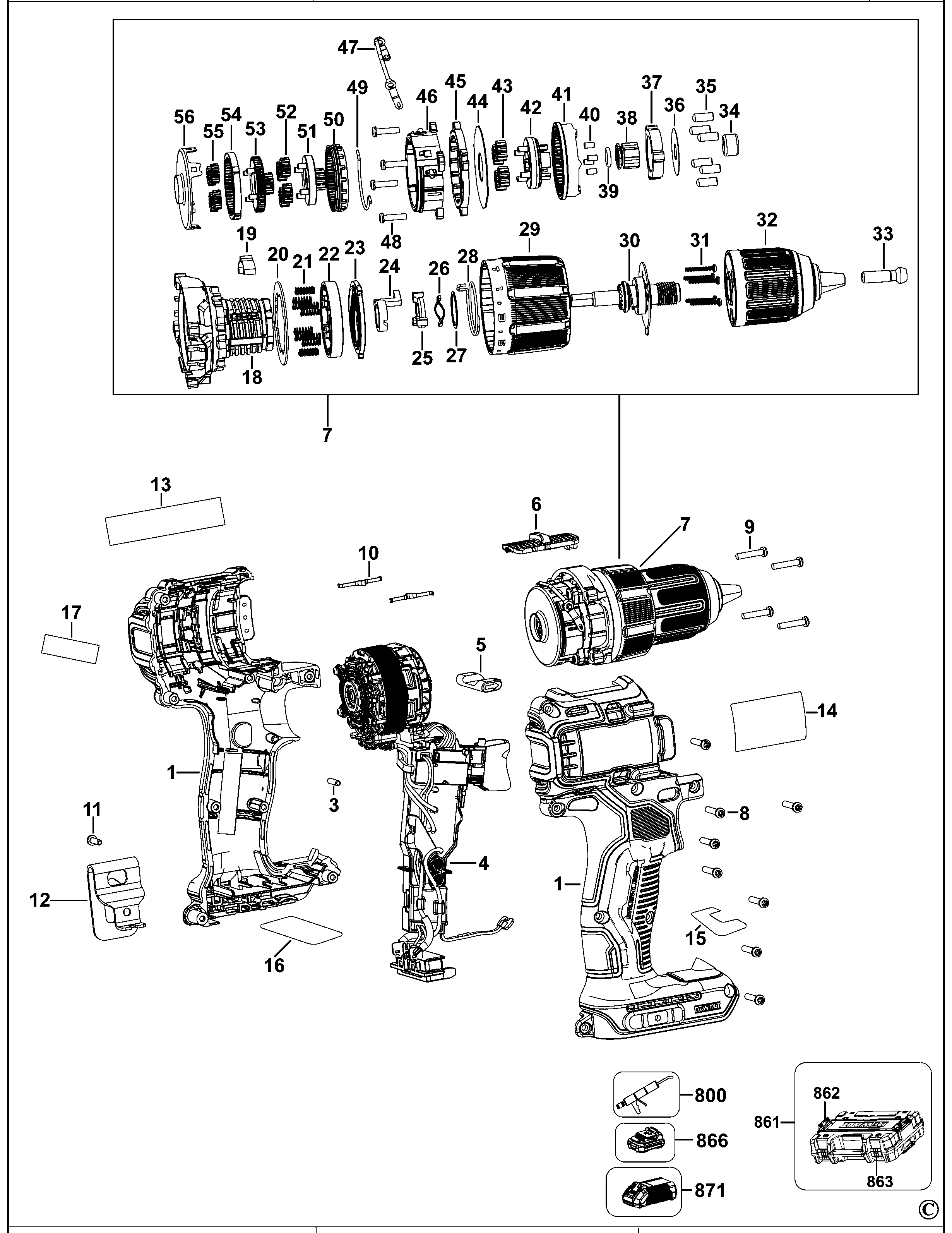

GAURIRE/INSURUBARE DEWALT DCD709M1 Type 1
[DCD709M1 Type 1]
GAURIRE/INSURUBARE DEWALT DCD709M1 Type 1
Click pentru a mari
Imagini suplimentare
GAURIRE/INSURUBARE DEWALT DCD709M1 Type 1
Click pentru a mari
GAURIRE/INSURUBARE DEWALT DCD709M1 Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (N637986) 4355 RON
3 1 1 ROLL PIN 2.5 X 10.9 (N071836) 558 RON
4 1 1 MOTOR AND SWITCH SA (N696820) 57833 RON
5 1 1 ACTUATOR FWD/REV (N399342) 588 RON
6 1 1 SELECTOR SA (N696450) 3268 RON
7 1 1 TRANSMISSION SA (N702455) 23244 RON
8 1 8 SCREW (N463678) 588 RON
9 1 4 SCREW (N474504) 588 RON
10 1 2 SPEED SELECTOR DETENT SPRING (N014681) 558 RON
11 1 1 BELT HOOK SCREW M3 (N042665) 558 RON
12 1 1 BELT HOOK (N086039) 1788 RON
13 1 1 BRAND LABEL (N616498) 588 RON
14 1 1 RATING PLATE (N614903) 588 RON
16 1 1 LABEL (N592684) 588 RON
17 1 1 LABEL (N618507) 588 RON
18 1 1 CLUTCH HOUSING KIT (N696825) 3954 RON
19 1 1 SPRING (N602515) 588 RON
20 1 1 WASHER (N544404) 588 RON
21 1 1 SPRING (N527878) 588 RON
21 1 12 SPRING (NA028712) 588 RON
22 1 1 HOLDER (N647198) 588 RON
23 1 1 NUT CLUTCH (N543649) 114 RON
24 1 1 MIDWAY RAMP RATCHET (N598613) 2182 RON
25 1 1 MIDWAY LOWER RATCHET (N598614) 1772 RON
26 1 1 MD HDD WAVE WASHER (N618571) 588 RON
27 1 1 BALL BEARING WASHER (N613395) 588 RON
28 1 1 MD-HDD TORSION SPRING (N616763) 588 RON
29 1 1 MD HDD CLUTCH COLLAR (N618143) 1933 RON
30 1 1 SPINDLE SA (N696446) 741 RON
31 1 5 SCREW (N039795) 558 RON
32 1 1 CHUCK KEYLESS Jacobs 4000 Series - Non-C (N196034) 1891 RON
32 1 1 NB473095 - Indisponibil
33 1 1 SCREW FOR CHUCK (N092854) 781 RON
34 1 1 BEARING, NEEDLE (330004-27) 944 RON
35 1 6 PIN (N645931) 588 RON
36 1 1 SPINDLE LOCK WASHER (N090435) 558 RON
37 1 1 LOCKING RING (N022985) 2795 RON
38 1 1 ANVIL MIDWAY (N645930) 2182 RON
39 1 1 O RING (N560646) 588 RON
40 1 4 LOCK PIN 2.98X 5.5 MM (N507193) 588 RON
41 1 1 3RD RING GEAR (N551385) 1772 RON
42 1 1 CARRIER SA (N696448) 2796 RON
43 1 1 3RD PLANET (N543018) 588 RON
44 1 1 WASHER (N548368) 588 RON
45 1 1 STOP RING (N543943) 1630 RON
46 1 1 TRANSMISSION HOUSING (N544134) 944 RON
47 1 1 N541904 - Indisponibil
47 1 1 SHIFT LINKAGE (NA145823) 82 RON
48 1 4 SCREW M3 12X13 (N075506) 558 RON
49 1 1 RG HOLD WIRE (N542091) 588 RON
50 1 1 2ND RING GEAR (N541279) 1772 RON
50 1 1 NA896304 - Indisponibil
51 1 1 CARRIER SA (N678083) 6688 RON
52 1 4 2ND PLANET (N541277) 588 RON
53 1 1 CARRIER SA (N678084) 5370 RON
54 1 1 1ST RING GEAR (N541276) 944 RON
54 1 1 NA839724 - Indisponibil
55 1 4 1ST PLANET (N541274) 588 RON
56 1 1 N551410 - Indisponibil
56 1 1 BACK PLATE (NA160740) 944 RON
800 1 1 GREASE (286436-00) 70239 RON
861 1 1 KITBOX (N526408) 32327 RON
861 1 1 EU TSTAK RIB KITBOX 5S1P (N442424) 32327 RON
862 1 2 H1500082008 - Indisponibil
862 1 1 LATCH (N409477) 114 RON
863 1 2 LATCH (P910190) 3466 RON
866 1 1 SA ZODIAC BATTERY 18V 4AH (SERVICE) (N195933) 78740 RON
866 1 1 BATTERY 18V - 4.0AH - 72WH-DCB182-XJ (NA365540) 10889 RON
871 1 1 N450536 - Indisponibil
871 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
871 1 1 CHARGER 10.8V - 18V (NA010209) 51127 RON
