Top » Piese de schimb » PIESE DEWALT » DWE627 Type 1

FREZA VERTICALA DEWALT DWE627 Type 1
[DWE627 Type 1]
FREZA VERTICALA DEWALT DWE627 Type 1
Click pentru a mari
Imagini suplimentare
FREZA VERTICALA DEWALT DWE627 Type 1
Click pentru a mari
FREZA VERTICALA DEWALT DWE627 Type 1
Click pentru a mari
FREZA VERTICALA DEWALT DWE627 Type 1
Click pentru a mari
FREZA VERTICALA DEWALT DWE627 Type 1
Click pentru a mari
FREZA VERTICALA DEWALT DWE627 Type 1
Click pentru a mari

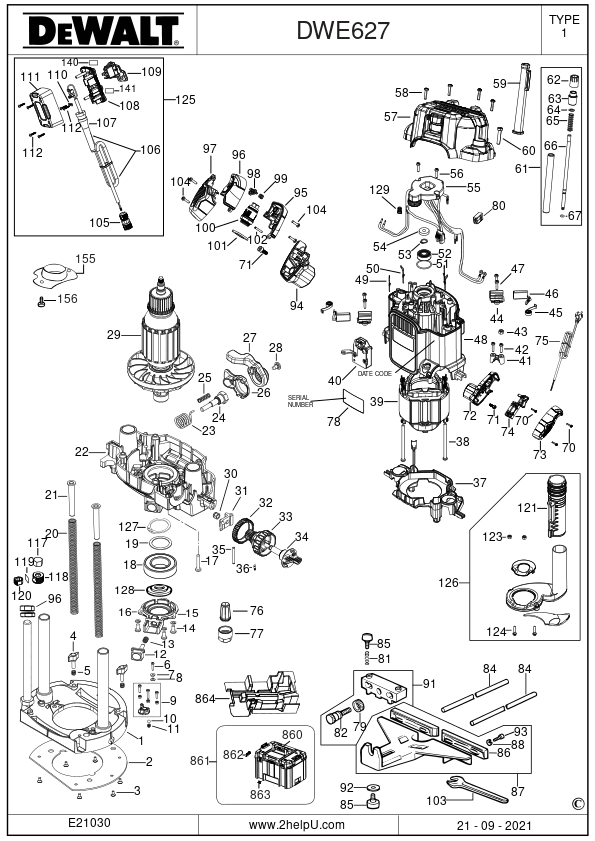

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 BASE SA (NA089130) 57833 RON
2 1 1 PLATE SLIDE (328645-00) 7940 RON
3 1 6 SCREW M4X8 (249412-11) 558 RON
3 1 6 SCREW M4X8 UNI8113 (860205-04) 558 RON
4 1 2 SCREW WING M6*17 BLACK (326573-01) 781 RON
5 1 2 SPRING (868082-00) 558 RON
6 1 1 SCREW (330045-07) 558 RON
7 1 1 SLEEVE (329836-00) 781 RON
8 1 1 WASHER SPRING MBR100 TYPE 2 (385946-00) 558 RON
9 1 1 SA HEIGHT STOP REVOLVING - SERVICE (NA126965) 10241 RON
10 1 1 BALL 8 MM (720664-00) 558 RON
11 1 1 SPRING (868082-00) 558 RON
12 1 1 SA BUTTON (942930-00) 1452 RON
13 1 1 SPRING (942904-00) 558 RON
14 1 3 SCREW (N745981) 588 RON
15 1 3 "WASHER D.4 3""" (932839-00) 558 RON
16 1 1 COVER (942900-03) 4137 RON
17 1 1 SCREW (330019-14) 558 RON
18 1 1 BEARING 60052RZTN9/C3VT162 (868132-03) 11519 RON
19 1 1 SPACER RING D31.6 S 1 3 (868127-02) 781 RON
20 1 2 SPRING (NA098733) 668 RON
21 1 2 RIVET (868566-01) 558 RON
22 1 1 CARRIER SA (NA126957) 51127 RON
23 1 1 SPRING (NA041400) 2796 RON
24 1 1 BOLT (NA041399) 3954 RON
25 1 1 SPRING (N844363) 82 RON
26 1 1 LEVER LOCK (N786603) 668 RON
27 1 1 LEVER LOCK (NA041372) 944 RON
28 1 1 SCREW (NA099546) 944 RON
29 1 1 ARMATURE SA (NA089132) 78485 RON
30 1 1 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
31 1 1 CLAMP (N783360) 3268 RON
32 1 1 SCALE (N860141) 944 RON
32 1 1 ADJUSTER SA-TYPE 2 PARTS KIT (NA1014723) 16689 RON
33 1 1 ADJUSTER (N860110) 944 RON
33 1 1 ADJUSTER SA-TYPE 2 PARTS KIT (NA1014723) 16689 RON
34 1 1 CLAMPWHEEL (N860112) 2556 RON
34 1 1 ADJUSTER SA-TYPE 2 PARTS KIT (NA1014723) 16689 RON
35 1 1 PIN (N898610) 588 RON
36 1 1 DETENT (N043924) 588 RON
37 1 1 BAFFLE SA (NA089138) 13697 RON
38 1 2 SCREW (330019-33) 558 RON
39 1 1 FIELD SA (NA089134) 30769 RON
40 1 1 GACC MODULE (N920121) 36994 RON
41 1 1 CORD CLAMP (N763638) 588 RON
42 1 2 Screw M3.5X16 T15 (330019-03) 558 RON
43 1 2 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
44 1 2 BRUSHBOX SA (N794824) 2182 RON
45 1 2 BRUSH SPRING (NA025131) 82 RON
46 1 1 BRUSH PAIR (NA089136) 13697 RON
47 1 4 Screw M3.5X16 T15 (330019-03) 558 RON
48 1 1 FIELDCASE (N890516) 21676 RON
49 1 2 CONNECTOR (477075-00) 588 RON
50 1 2 CONNECTOR (N767883) 588 RON
51 1 1 O RING (N411414) 588 RON
52 1 1 BEARING BALL cod vechi: 330003-36 BEARING 6000 T1XDDW (577745-00) 3018 RON
53 1 1 CIRCLIP (N863546) 588 RON
54 1 1 POLE PIECE (868141-00) 3466 RON
55 1 1 SA MODULE, FULL FEAT, DWE627 - SERVICE (NA127546) 27287 RON
56 1 2 Screw M3.5X16 T15 (330019-03) 558 RON
57 1 1 END CAP (N890155) 6688 RON
58 1 4 Screw M3.5X16 T15 (330019-03) 558 RON
59 1 1 SLEEVE D.12 (942277-00) 2347 RON
60 1 1 RD.HD.SCREW M.5X25 (949701-12) 558 RON
61 1 1 ADJUSTER DEPTH (NA126964) 25728 RON
62 1 1 KNOB (326264-00) 588 RON
63 1 1 WHEEL SCALE (326265-00) 1117 RON
64 1 1 O-RING WASHER 6 .1 STEEL (321118) Indisponibil Indisponibil
65 1 1 SPRING 9-33.49 - 33 . 4 (323395-14) 558 RON
66 1 1 ROD SA (NA081911) 3954 RON
67 1 1 O RING (SPINDLE LOCK) (750831) 558 RON
68 1 1 HANDLE COVER (N890813) 3268 RON
69 1 1 HANDLE LH (N890812) 4355 RON
70 1 5 Screw M3.5X16 T15 (330019-03) 558 RON
71 1 2 SCREW (N895116) 82 RON
72 1 1 HANDLE RH (N771122) 4355 RON
73 1 1 HANDLE COVER (N771134) 3268 RON
74 1 1 SWITCH (N873760) 12361 RON
75 1 1 CORDSET (N880149) 20216 RON
76 1 1 E40106 COLLET MM.12 (868116-00) 17335 RON
77 1 1 NUT (942893-01) 3018 RON
78 1 1 RATING PLATE (N901262) 1630 RON
79 1 1 INDEX ADJ (942918-00) 893 RON
80 1 2 CONNECTOR (N590957) 1318 RON
81 1 5 SPRING (868082-00) 558 RON
82 1 1 SCREW (942917-00) 7940 RON
84 1 2 ROD GUIDE (326966-00) 3466 RON
85 1 5 SCREW WING M6*17 BLACK (326573-01) 781 RON
86 1 2 FENCE (942915-00) 5591 RON
87 1 1 SIDE FENCE MOF 177 (948581-01) 17335 RON
88 1 4 WASHER FLAT 5.3X10 UNI 6592 (860073-01) 558 RON
89 1 2 SCREW PLSTC THD FORM M4X25 T20 (330065-09) 558 RON
91 1 1 SA SIDE GUIDE REGULATION (948582-01) 17335 RON
92 1 1 WASHER (249221-00) 558 RON
93 1 5 SCREW (943023-00) 558 RON
94 1 1 HANDLE (N764323) 2796 RON
95 1 1 HANDLE (N802832) 2182 RON
96 1 2 NUT HEX THIN M.12 UNI5589 (860083-17) 558 RON
96 1 1 HANDLE (N802834) 2182 RON
97 1 1 HANDLE (N771110) 2182 RON
98 1 1 LOCK KNOB (N812430) 588 RON
99 1 1 SPRING (868082-00) 558 RON
100 1 1 CONNECTOR (N774171) 13697 RON
101 1 1 MOUNT (N792112) 588 RON
102 1 1 PIN (NA101793) 588 RON
103 1 1 KEY SE 22 DIN 894 (868111-00) 2795 RON
104 1 4 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
105 1 1 CONNECTOR (N774136) 13697 RON
106 1 1 CORDSET (N872143) 20216 RON
107 1 1 CORD PROTECTOR (770236) 558 RON
108 1 1 HOUSING (N829820) 2556 RON
109 1 1 SWITCH (N608508) 24962 RON
110 1 1 CLAMP CORD CORNER (329301-00) 558 RON
111 1 1 SWITCHBOX (N829743) 3954 RON
112 1 4 SCREW (330065-08) 558 RON
117 1 1 NUT -M 12 HRECES DIN 91 (868150-00) 1452 RON
118 1 1 ADJUSTER (942910-00) 190 RON
119 1 1 SPRING LEAF (942912-00) 781 RON
120 1 1 NUT (942911-00) 190 RON
121 1 1 DUST PORT (N780084) 3954 RON
123 1 2 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
124 1 2 SCREW M5 (869076-00) 558 RON
125 1 1 SA REMOTE SWITCH BOX DWE627 - SERVICE (NA126958) 55455 RON
126 1 2 DUST PORT (N887234) 15469 RON
127 1 1 RETAINING RING D.25 (941541-00) 558 RON
128 1 1 LOCK NUT (N436230) 3954 RON
129 1 1 SPRING DW743N (869246-00) 781 RON
140 1 1 BRAND LABEL (N907115) 114 RON
141 1 1 LABEL (632109-00) 781 RON
150 1 1 SPONGE (650855-00) 781 RON
155 1 1 SLEEVE GUIDE 30 (249098-00) 6821 RON
156 1 2 SCREW M5X10 (249412-20) 558 RON
161 1 1 ADJUSTER SA-TYPE 2 PARTS KIT (NA1014723) 16689 RON
836 1 1 S.T.RELEASE TOOL (1003989-99) 42346 RON
860 1 1 HANDLE (H1400198008) 2347 RON
860 1 1 H1400196008 - Indisponibil
861 1 1 KITBOX (N445186) 39318 RON
862 1 1 LATCH (N409477) 114 RON
863 1 2 LATCH (P910190) 3466 RON
864 1 1 N906808 - Indisponibil
864 1 1 PLASTIC INSERT (NA076398) 23244 RON
