Top » Piese de schimb » PIESE DEWALT » DW625 Type 4

FREZA VERTICALA DEWALT DW625 Type 4
[DW625 Type 4]
FREZA VERTICALA DEWALT DW625 Type 4
Click pentru a mari
Imagini suplimentare
FREZA VERTICALA DEWALT DW625 Type 4
Click pentru a mari
FREZA VERTICALA DEWALT DW625 Type 4
Click pentru a mari

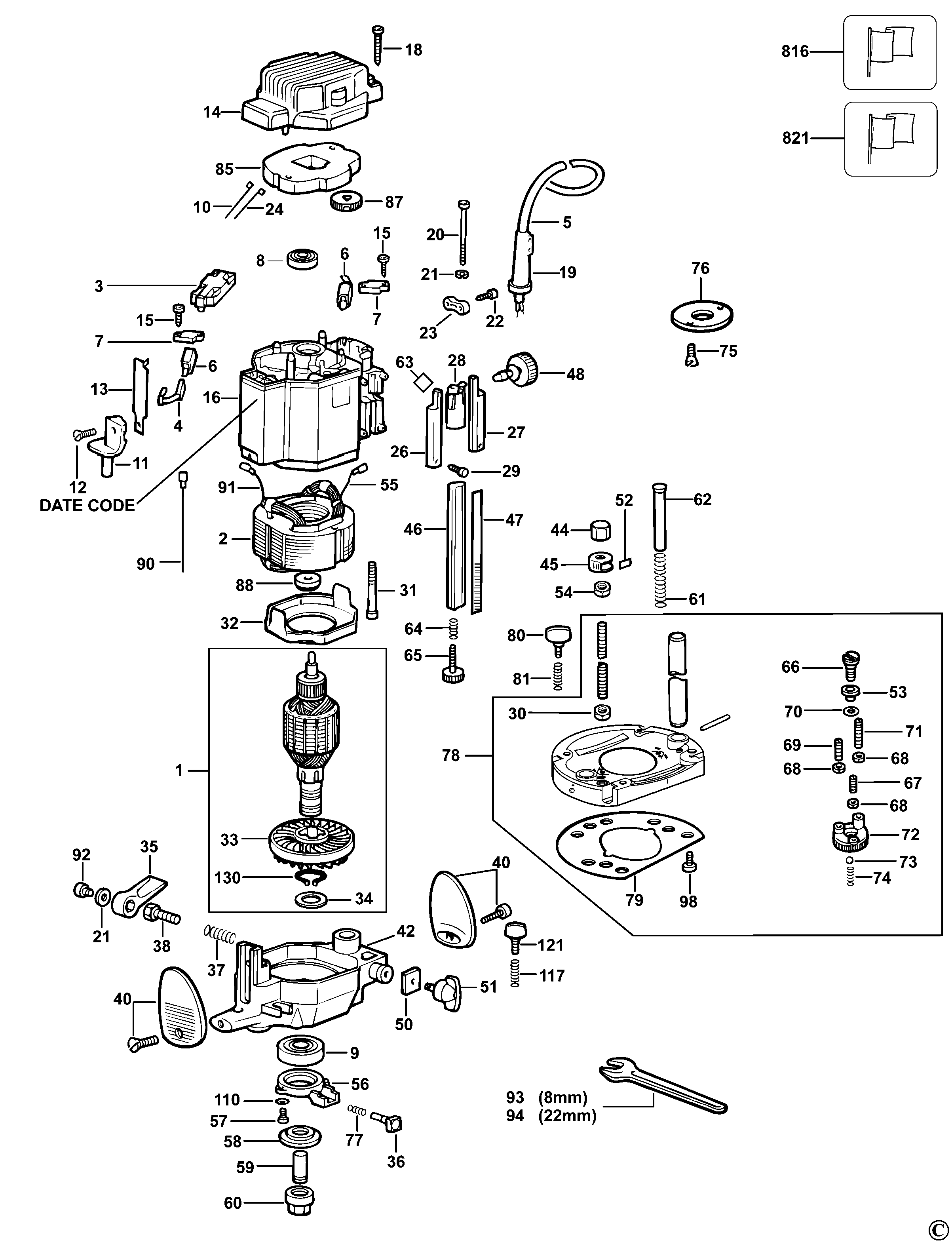

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
3 1 1 SWITCH 1262.0901-00 (868128-00) 20467 RON
4 1 2 BRUSH 120V (940146-01) 5591 RON
6 1 1 BRUSH HOLDER 220V (761202-00) 3466 RON
7 1 1 COVER (N348019) 6821 RON
8 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
9 1 1 BEARING 60052RZTN9/C3VT162 (868132-03) 11519 RON
10 1 1 LEAD RED 9OMM (868129-04) 781 RON
11 1 1 LEVER SWITCH USA (868145-00) 190 RON
12 1 1 SCREW M4X6 F DIN965 (249412-10) 558 RON
13 1 1 SLOT SWITCH (868123-00) 2124 RON
14 1 2 MOTOR PLATE (761203-00) 781 RON
15 1 1 SCREW CTSKPHAB 3.9X13 UNI6956 (860428-04) 558 RON
16 1 1 MOTOR HOUSING YELLOW DW625 (N410361) 15469 RON
18 1 4 SCREW M4X25 CBPH WN1441 (249220-00) 781 RON
19 1 1 SLEEVE D.12 (942277-00) 2347 RON
20 1 4 SCREW M5X68 CPH SN21330 (249424-24) 781 RON
21 1 5 WASHER (930248-00) 558 RON
22 1 2 SCREW PAN.PHAB 3.5X13 UNI6954 (860084-04) 558 RON
23 1 1 CORDSET CLAMP (248611-00) 893 RON
24 1 1 WIRE, BLUE USA (868129-10) 668 RON
26 1 1 HOLDER LENS SXMOF177 (248395-00) 1117 RON
27 1 1 HOLDER LENS DXMOF177 (248394-00) 893 RON
28 1 1 LENS (868124-01) 190 RON
29 1 4 SCREW CTSKPHAB 3.9X13 UNI6956 (860428-04) 558 RON
30 1 1 NUT HEX MEAN M.12 UNI 5588 ZIN (761225-02) 558 RON
31 1 2 SCREW T48X60 (248934-00) 781 RON
32 1 1 FAN BAFFLE DW625 (N388121) 2556 RON
33 1 1 VENTILATOR (N388100) 3268 RON
34 1 1 SPACER RING D31.6 S 1 3 (868127-02) 781 RON
35 1 1 LOCK LEVER (942906-00) 3466 RON
36 1 1 SA BUTTON (942930-00) 1452 RON
37 1 1 SPRING CPRSN (942909-00) 558 RON
38 1 1 SCREW (868204-00) 2795 RON
40 1 1 KIT HANDLES DW625 SERVICE (869355-00) 6821 RON
42 1 1 LOWER HOUSING (942898-00) 5484 RON
44 1 1 NUT -M 12 HRECES DIN 91 (868150-00) 1452 RON
45 1 1 ADJUSTER (942910-00) 190 RON
46 1 1 WHEEL ADJUSTABLE (868122-00) 5031 RON
47 1 1 SCALE USA DW (248339-00) 781 RON
48 1 1 ROLLER REGULATOR 177 (761243-05) 5591 RON
50 1 1 PLATE (868119-00) 1229 RON
51 1 1 NUT CLAMP M10 177T4 (939840-05) 2795 RON
52 1 2 SPRING LEAF (942912-00) 781 RON
53 1 1 SLEEVE (329836-00) 781 RON
54 1 1 NUT (942911-00) 190 RON
55 1 1 SA LEAD WIRE AWG16 L.95 YELLOW (N426130) 944 RON
56 1 1 COVER (942900-03) 4137 RON
57 1 3 SCREW (249424-02) 558 RON
58 1 1 LOCK NUT (N436230) 3954 RON
58 1 1 RING NUT (942901-00) 4137 RON
59 1 1 COLLET 6 35MM- 1/4 dia (868149-00) 14315 RON
60 1 1 NUT (942893-01) 3018 RON
61 1 2 SPRING 290X13 5X1 5 (868115-00) 1117 RON
62 1 2 RIVET (868566-01) 558 RON
63 1 1 LENS (868124-01) 190 RON
64 1 1 SPRING 10X24X1 2 (868113-00) 558 RON
65 1 1 SCREW M 6X 24 CMOL SPECI (868125-00) 190 RON
66 1 1 SCREW M4X20 (860094-10) 558 RON
66 1 1 SCREW.TEMP (330045-05) 558 RON
67 1 1 SCREW M5X18 UNI-ISO4766 (942931-02) 558 RON
68 1 3 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
69 1 1 SCREW M5X22 UNI-ISO4766 (942931-01) 558 RON
70 1 1 SPRING CONICAL (327012-00) 558 RON
71 1 1 SCREW (942931-00) 558 RON
72 1 1 TURRET (N547463) 2182 RON
72 1 1 TURRET (326662-00) 2347 RON
73 1 1 BALL 8 MM (720664-00) 558 RON
74 1 1 SPRING (868082-00) 558 RON
75 1 2 SCREW M5X10 (249412-20) 558 RON
76 1 1 SUPPORTO GUIDA (868151-00) 10512 RON
77 1 1 SPRING (942904-00) 558 RON
78 1 1 SA BASE ROUTER+EXTR. POL. (329820-49) 57488 RON
79 1 1 PLATE SLIDE (328645-00) 7940 RON
80 1 1 SCREW WING M6*17 BLACK (326573-01) 781 RON
81 1 1 SPRING (868082-00) 558 RON
87 1 1 ROLLER DW625 (249067-01) 190 RON
88 1 1 POLE PIECE (868141-00) 3466 RON
90 1 1 WIRE RED USA (868129-08) 781 RON
90 1 1 000000-00 - Indisponibil
91 1 1 WIRE RED USA (868129-07) 781 RON
92 1 1 SCREW (943023-00) 558 RON
93 1 1 KEY 8MM (868148-00) 2124 RON
94 1 1 KEY SE 22 DIN 894 (868111-00) 2795 RON
98 1 6 SCREW M4X8 (249412-11) 558 RON
98 1 6 SCREW M4X8 UNI8113 (860205-04) 558 RON
110 1 3 "WASHER D.4 3""" (932839-00) 558 RON
117 1 3 SPRING (868082-00) 558 RON
121 1 3 SCREW WING M6*17 BLACK (326573-01) 781 RON
130 1 1 RETAINING RING D.25 (941541-00) 558 RON
