Top » Piese de schimb » PIESE DEWALT » DW613 Type 1

FREZA VERTICALA DEWALT DW613 Type 1
[DW613 Type 1]
FREZA VERTICALA DEWALT DW613 Type 1
Click pentru a mari
Imagini suplimentare
FREZA VERTICALA DEWALT DW613 Type 1
Click pentru a mari

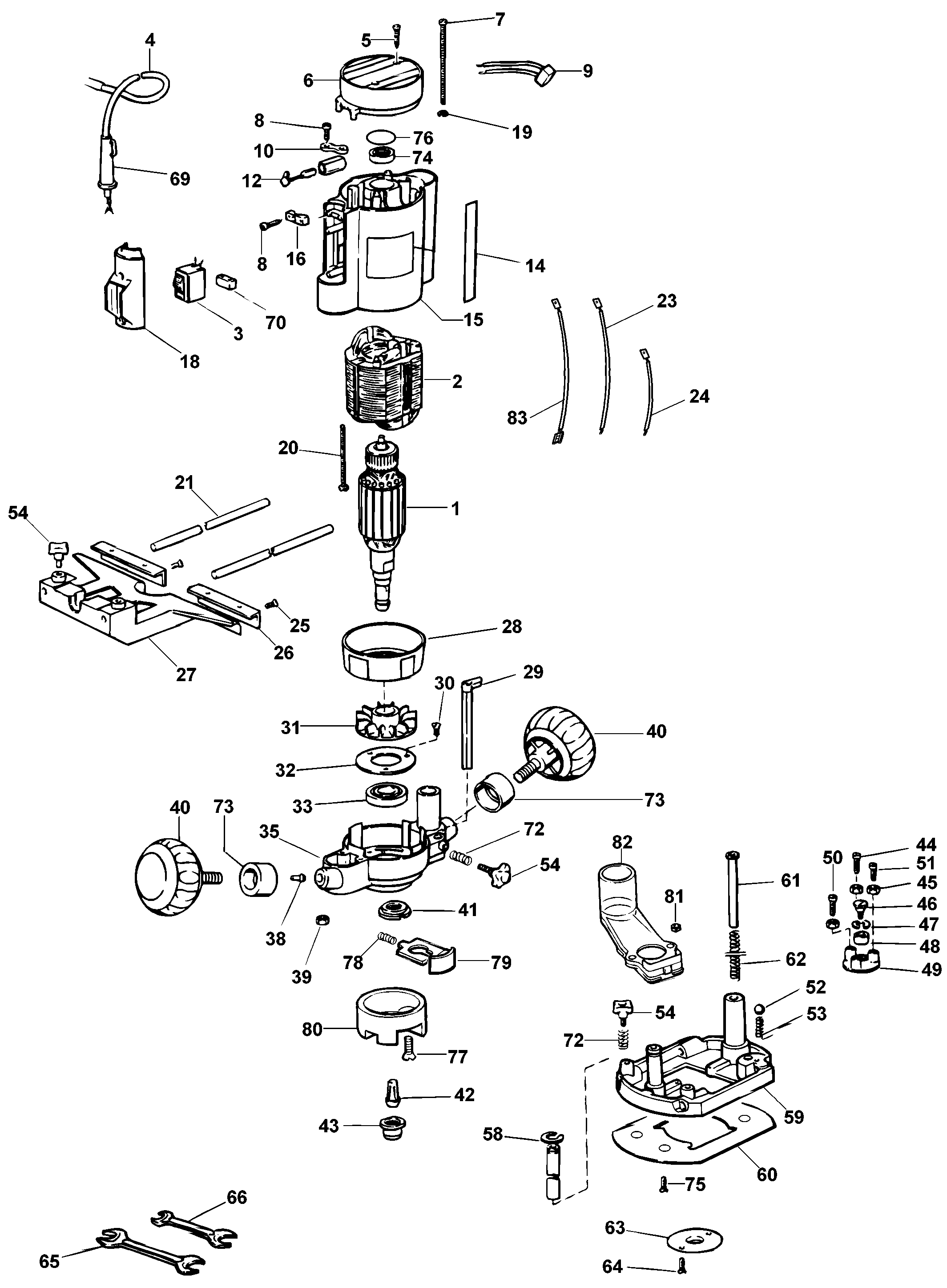

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE 220V DW609 (868389-00) 70239 RON
2 1 1 FIELD 115V (943070-00) 23598 RON
2 1 1 S/A STATOR 115V DW 615 (868628-03) 26730 RON
3 1 1 SWITCH SK9A62 BLACK (760952-00) 9282 RON
4 1 1 000000-00 - Indisponibil
5 1 1 000000-00 - Indisponibil
6 1 1 179120201 - Indisponibil
7 1 4 179910344 - Indisponibil
8 1 1 000000-00 - Indisponibil
9 1 1 CAPACITOR (320842-03) 1229 RON
10 1 2 PLATE (868069-00) 558 RON
12 1 2 BRUSH 230V SA (247533-11) 4137 RON
14 1 1 249240-01 - Indisponibil
15 1 1 HOUSING (248966-03) 20467 RON
16 1 1 CABLE COVER (576118-00) 558 RON
18 1 1 248532-01 - Indisponibil
19 1 6 WASHER DW636 (093820600) 558 RON
20 1 2 868528-00 - Indisponibil
21 1 1 GUIDE (868080-00) 190 RON
23 1 1 BLU WIRE (868530-07) 558 RON
24 1 1 179164503 - Indisponibil
25 1 4 SCREW M4X8 UNI8113 (860205-04) 558 RON
26 1 2 STOP GUIDE CHEER (249090-00) 1452 RON
27 1 1 GUIDE (868079-00) 20467 RON
28 1 1 000000-00 - Indisponibil
29 1 1 DEPTH GAUGE DW615 (868523-01) 3466 RON
30 1 1 000000-00 - Indisponibil
31 1 1 DW615 FAN (943054-00) 2795 RON
32 1 1 PLATE BEARING (868047-00) 2347 RON
33 1 1 BEARING (868768-16) 3466 RON
33 1 1 BEARING (949719-07) 5591 RON
33 1 1 BEARING (868768-03) 4472 RON
35 1 1 248967-01 - Indisponibil
38 1 1 179123500 - Indisponibil
39 1 4 NUT M4 (249232-00) 558 RON
40 1 2 HANDLE BUSH (249118-00) 4137 RON
41 1 1 RING (868052-00) 2347 RON
42 1 1 000000-00 - Indisponibil
43 1 1 943040-00 - Indisponibil
43 1 1 Collet & Nut SA (326286-01) 15993 RON
44 1 1 SCREW M5X22 UNI-ISO4766 (942931-01) 558 RON
45 1 3 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
46 1 1 SCREW M6X9 (249432-00) 1229 RON
47 1 1 WASHER SPRING CURV.A8 UNI8840 (860658-01) 558 RON
48 1 1 WASHER (868092-00) 558 RON
49 1 1 REGOLATION TURRET (720674-01) 3466 RON
50 1 1 SCREW M5X40 UNI-ISO4766 (868109-00) 558 RON
51 1 1 SCREW M5X18 UNI-ISO4766 (942931-02) 558 RON
52 1 1 BALL 8 MM (720664-00) 558 RON
53 1 1 SPRING (868082-00) 558 RON
54 1 5 NUT (025922908) 1229 RON
54 1 5 720711-00 - Indisponibil
58 1 1 CIRCLIP (949728-03) 558 RON
59 1 1 PLATE (096103400) 49771 RON
59 1 1 S/A BASE 096103400 (868613-00) 4825 RON
60 1 1 BASE PLATE DW615 (943042-00) 4472 RON
61 1 1 RIVET (868527-00) 1229 RON
61 1 1 RIVET (868566-00) 558 RON
62 1 1 SPRING (248953-00) 781 RON
63 1 1 BUSHING GUIDE 17X (249014-01) 5031 RON
64 1 2 SCREW (249412-22) 558 RON
65 1 1 FIXED WRENCH 13X17 (941580-00) 3018 RON
66 1 1 WRENCH 8X13 (031351300) 3018 RON
66 1 1 SPANNER (868078-00) 3018 RON
69 1 1 CORD PROTECTOR (868520-00) 781 RON
70 1 1 000000-00 - Indisponibil
72 1 3 SPRING (868082-00) 558 RON
73 1 2 BUSH (249108-00) 781 RON
74 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
74 1 1 BEARING (330003-05) 3466 RON
75 1 4 SCREW (248084-10) 190 RON
76 1 1 SEAL (030971003) 781 RON
77 1 4 249444-02 - Indisponibil
78 1 1 SPRING D.6-0 75 (943051-00) 558 RON
79 1 1 S/A STOP DW615 (943114-00) 4137 RON
80 1 1 COVER (943057-00) 3466 RON
81 1 2 NUT M5 UNI5588 (249232-10) 558 RON
82 1 1 SUCTION PIPE (945304-01) 5031 RON
83 1 1 179164502 - Indisponibil
