Top » Piese de schimb » PIESE DEWALT » DCW620NT Type 1

FREZA VERTICALA DEWALT DCW620NT Type 1
[DCW620NT Type 1]
FREZA VERTICALA DEWALT DCW620NT Type 1
Click pentru a mari
Imagini suplimentare
FREZA VERTICALA DEWALT DCW620NT Type 1
Click pentru a mari
FREZA VERTICALA DEWALT DCW620NT Type 1
Click pentru a mari
FREZA VERTICALA DEWALT DCW620NT Type 1
Click pentru a mari
FREZA VERTICALA DEWALT DCW620NT Type 1
Click pentru a mari
FREZA VERTICALA DEWALT DCW620NT Type 1
Click pentru a mari

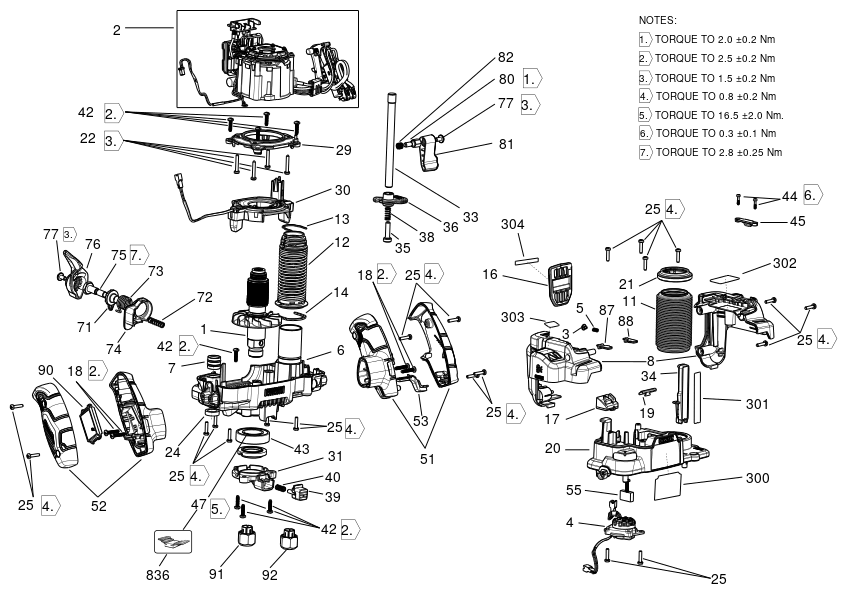

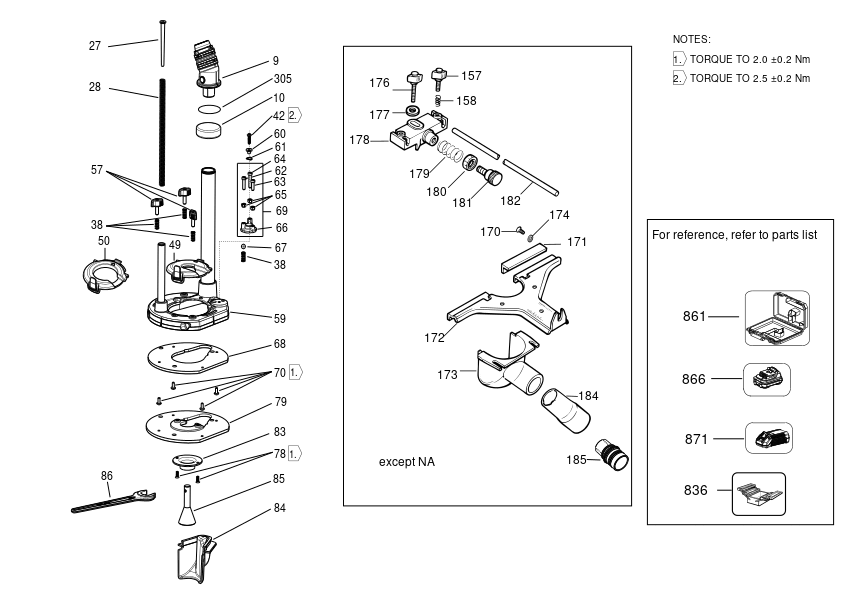

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE SA (NA600045) 40734 RON
2 1 1 MOTOR & SWITCH SA (NA517096) 188451 RON
3 1 1 SPRING GUIDE (N091479) 558 RON
4 1 1 SPEED REGULATOR (NA599986) 15469 RON
5 1 1 TERMINAL BLOCK SPRING (N461735) 588 RON
6 1 1 CARRIER SA (NA597970) 40734 RON
7 1 1 GUIDE BUSH (NA611429) 6688 RON
8 1 1 END CAP SA (NA598021) 6688 RON
9 1 1 DUST PORT (NA611430) 741 RON
10 1 1 CAP (608922-00) 668 RON
11 1 1 BELLOWS (NA296004) 2796 RON
12 1 1 SPRING SA (NA611431) 741 RON
13 1 1 CIRCLIP (NA324720) 588 RON
14 1 1 CLIP (NA313724) 588 RON
16 1 1 CAP (NA246313) 668 RON
17 1 1 OVERLOAD PROTECTOR (NA599987) 741 RON
18 1 4 SCREW (330045-07) 558 RON
19 1 1 STRIKE PLATE (N467560) 588 RON
20 1 1 HOUSING (NA599988) 6688 RON
21 1 1 FIXED BLOCK (NA388258) 588 RON
22 1 4 SCREW (330019-05) 558 RON
24 1 1 RING (NA317335) 668 RON
25 1 20 SCREW PLASTIC THREAD FORM M3.5*16 T15 (330019-66) 558 RON
27 1 1 SPRING GUIDE (NA172859) 668 RON
28 1 1 SPRING (NA316281) 944 RON
29 1 1 ADAPTOR SA (NA611432) 6688 RON
30 1 1 BAFFLE (NA599989) 12361 RON
31 1 1 COVER (NA269216) 3954 RON
33 1 1 DEPTH ROD (608589-00) 2182 RON
33 1 1 NA286394 - Indisponibil
34 1 1 SCALE (NA297113) 668 RON
35 1 1 SCREW (NA278869) 668 RON
36 1 1 INDICATOR (NA345495) 588 RON
38 1 5 SPRING (609118-00) 558 RON
39 1 1 BUTTON SA (NA269224) 114 RON
40 1 1 SPRING COMPRESSION (NA269959) 588 RON
42 1 9 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
43 1 1 BEARING BALL (NA360718) 3954 RON
44 1 2 SCREW (N831593) 588 RON
45 1 1 BLANK COVER AUDIT CHIP (N787996) 588 RON
47 1 1 NUT (NA367642) 3268 RON
49 1 1 CAP SA (NA598713) 3268 RON
50 1 1 CAP SA (NA598714) 3268 RON
51 1 1 HANDLE SA RH (NA598717) 4827 RON
52 1 1 HANDLE SA LH (NA598718) 4827 RON
53 1 1 HANDLE & CAP SA (NA180348) 668 RON
55 1 1 Pad DW831 (620051-00) 558 RON
57 1 3 SCREW SPECIAL (NA387874) 114 RON
59 1 1 BASE SA (NA600046) 39318 RON
60 1 1 SLEEVE (NA477281) 944 RON
61 1 1 WASHER SPRING MBR100 TYPE 2 (385946-00) 558 RON
62 1 1 SCREW (N888159) 588 RON
63 1 1 SCREW (N888160) 588 RON
64 1 1 SCREW (N888161) 588 RON
65 1 3 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
66 1 1 TURRET (NA367355) 2796 RON
67 1 1 BALL 8 MM (720664-00) 558 RON
68 1 1 BASEPLATE (NA599990) 5370 RON
69 1 1 TURRET (NA611433) 5370 RON
70 1 4 "SCREW PAN HEAD M4 * 10""" (324007-10) 558 RON
71 1 1 LOCK SA (NA396442) 588 RON
72 1 1 SPRING (NA266568) 588 RON
73 1 1 SPRING TORSION (NA351061) 588 RON
74 1 1 LEVER LOCK (NA346122) 668 RON
75 1 1 LOCK SCREW (NA226672) 2556 RON
76 1 1 LOCK (NA351349) 668 RON
77 1 2 SCREW (NA423603) 588 RON
78 1 2 SCREW (N736205) 588 RON
79 1 1 BASEPLATE (NA599991) 5370 RON
80 1 1 SCREW (NA296576) 1772 RON
81 1 1 LEVER LOCK (NA298820) 668 RON
82 1 1 SPRING (NA319746) 588 RON
83 1 1 SLEEVE (249014-03) 2556 RON
84 1 1 COLLECTOR (NA411552) 1318 RON
84 1 1 COLLECTOR (NB106437) 1318 RON
85 1 1 CONE (NA412803) 4827 RON
86 1 1 KEY SE 22 DIN 894 (868111-00) 2795 RON
87 1 1 INSERT (N728012) 588 RON
88 1 1 INSERT (N728013) 588 RON
90 1 1 MODULE (NA602350) 16689 RON
91 1 1 CHUCK SA (NA613027) 12361 RON
92 1 1 CHUCK SA (NA613029) 12361 RON

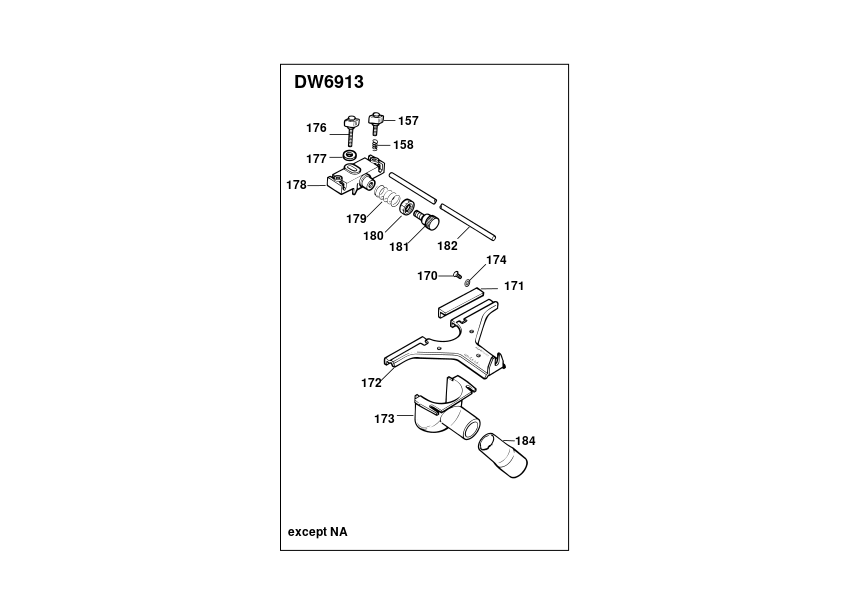

157 1 2 SCREW WING M6*17 BLACK (326573-01) 781 RON
158 1 2 SPRING (868082-00) 558 RON
170 1 4 SCREW TAPTITE M4 * 12 (324006-00) 558 RON
171 1 2 SLIDE (328788-00) 2347 RON
172 1 1 GUIDE FENCE (328784-00) 4472 RON
173 1 1 CAP DUST (328786-00) 2795 RON
174 1 4 WASHER PLAIN (330016-01) 558 RON
176 1 1 SCREW WING M6*33 BLACK (326573-02) 781 RON
177 1 2 WASHER PLAIN STL 6 X 12 X 1 . (330016-02) 558 RON
178 1 1 BRIDGE (328785-00) 10512 RON
179 1 1 SPRING CPRSN 16.5/1 (323395-21) 105 RON
180 1 1 INDEX ADJ (942918-00) 893 RON
181 1 1 SCREW ADJUST W SCALE (326239-00) 3466 RON
182 1 2 GUIDE (868080-00) 190 RON
184 1 1 ADAPTOR (328592-00) 893 RON
185 1 1 ADAPTER 35MM TO 35MM W/ STANDARD (N070902) 3466 RON
300 1 1 RATING LABEL (NA323066) 588 RON
301 1 1 LABEL (NA563439) 588 RON
302 1 1 LABEL (NA323073) 588 RON
303 1 1 LABEL (NA323071) 588 RON
304 1 1 IDENTITY LABEL (NA563433) 588 RON
305 1 1 LABEL (NA323072) 588 RON
836 1 1 SERVICE TOOL (559550-99) 21347 RON
836 1 1 S.T.RELEASE TOOL (1003989-99) 42346 RON
861 1 1 KITBOX (NA485191) 36994 RON
