Top » Piese de schimb » PIESE DEWALT » DCW604 Type 1

FREZA VERTICALA DEWALT DCW604 Type 1
[DCW604 Type 1]
FREZA VERTICALA DEWALT DCW604 Type 1
Click pentru a mari
Imagini suplimentare
FREZA VERTICALA DEWALT DCW604 Type 1
Click pentru a mari
FREZA VERTICALA DEWALT DCW604 Type 1
Click pentru a mari
FREZA VERTICALA DEWALT DCW604 Type 1
Click pentru a mari
FREZA VERTICALA DEWALT DCW604 Type 1
Click pentru a mari

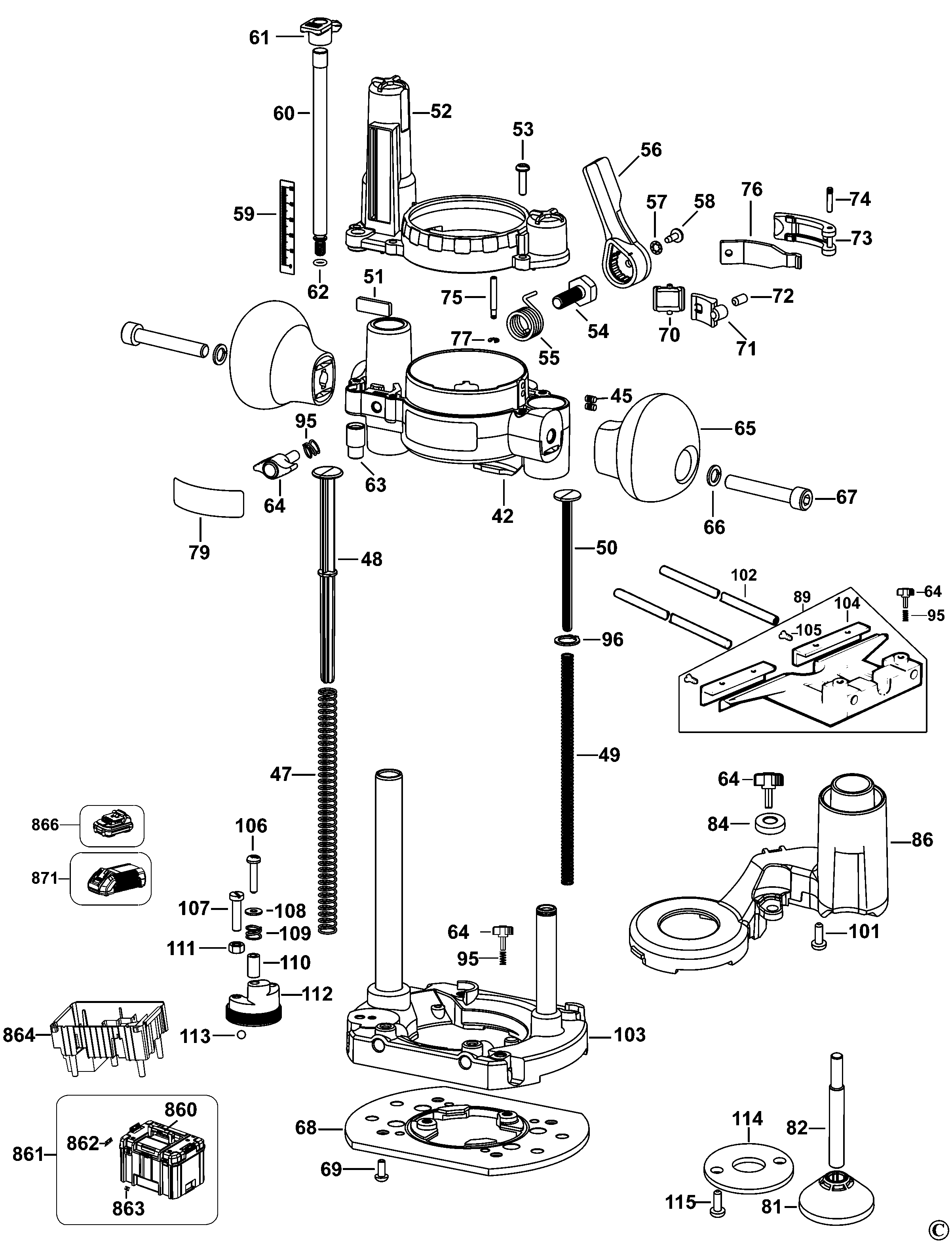

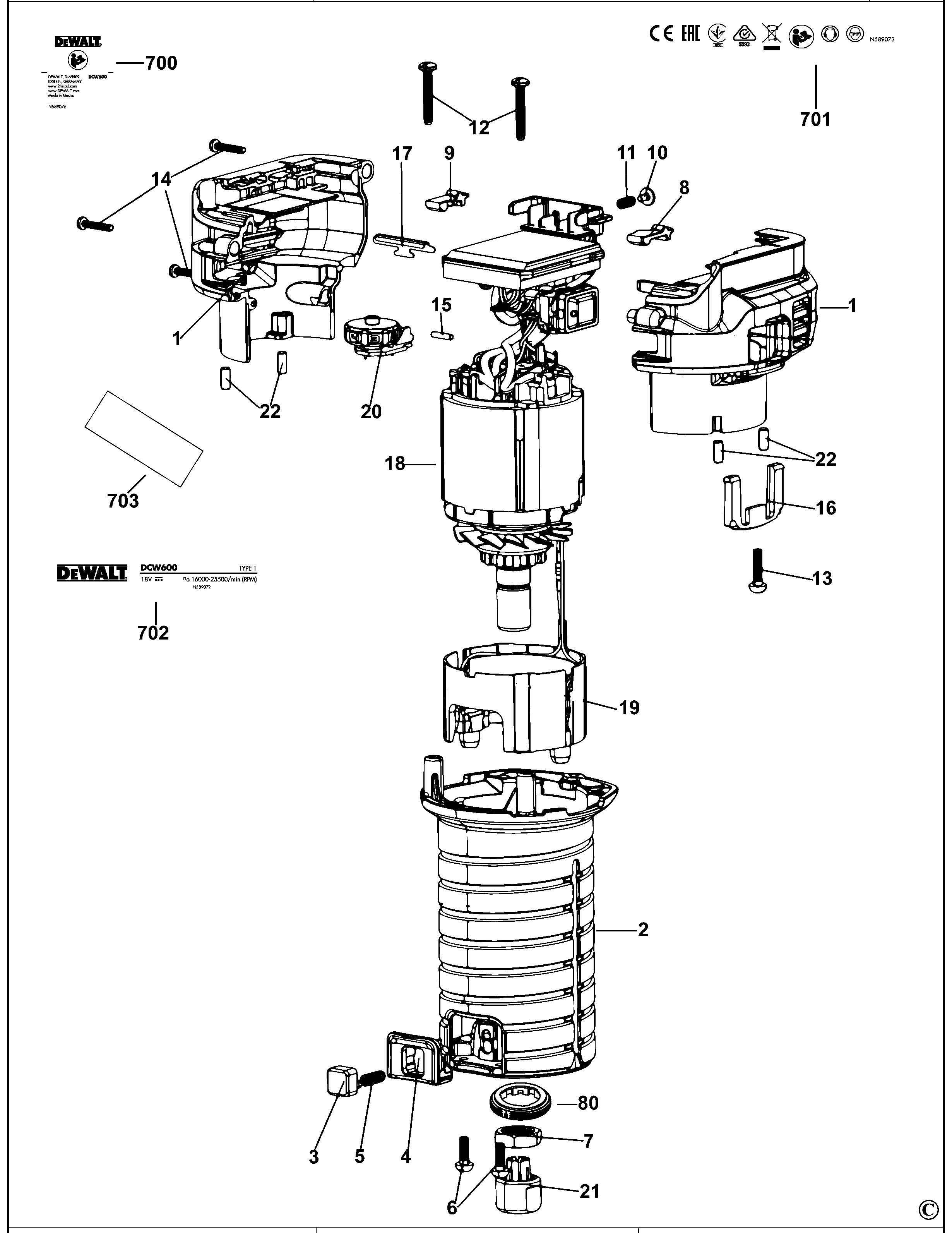

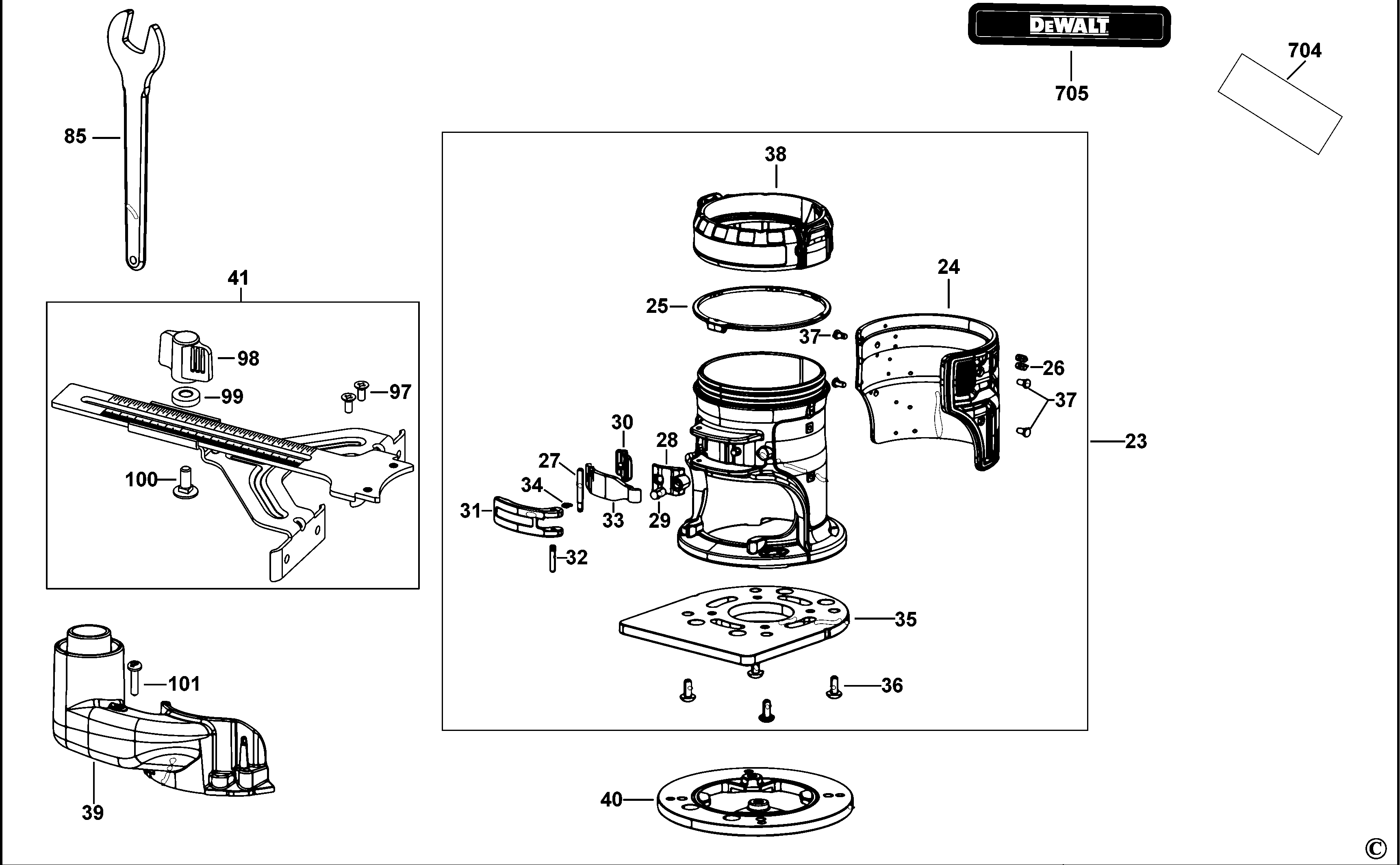

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (N567094) 3954 RON
2 1 1 HOUSING MOTOR (N661051) 20216 RON
3 1 1 LOCK BUTTON (N038183) 781 RON
4 1 1 INSERT (A26131) 781 RON
5 1 1 SPRING (A23489) 558 RON
6 1 2 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
7 1 1 NUT (A25248) 190 RON
8 1 1 BUMPER (N239160) 558 RON
8 1 1 BUMPER (N728008) 588 RON
9 1 1 BUMPER (N239159) 558 RON
9 1 1 BUMPER (N728006) 588 RON
10 1 1 MOUNT TERM BLOCK SPRING (MOULD) (N122099) 558 RON
11 1 1 TERMINAL BLOCK SPRING (N461735) 588 RON
12 1 2 SCREW METAL THD FRM M4X25 T20 (330045-08) 558 RON
13 1 1 SCREW (330065-07) 558 RON
14 1 3 SCREW PLASTITE (682211-00) 781 RON
15 1 1 ROLL PIN 2.5 X 10.9 (N071836) 558 RON
16 1 1 CLIP (N569455) 588 RON
17 1 1 STRIKE PLATE (N467560) 588 RON
18 1 1 N740030 - Indisponibil
18 1 1 MOTOR SA (NA186171) 148269 RON
19 1 1 LED LIGHT (N580684) 10241 RON
20 1 1 WHEEL SPEED (N550971) 5370 RON
21 1 1 Collet & Nut SA (326286-00) 15993 RON
22 1 4 PIN (N703257) 588 RON
23 1 1 N566363 - Indisponibil
23 1 1 HOUSING SA (N742993) 67932 RON
24 1 1 COVER (N591239) 2796 RON
25 1 1 SCALE (A23587) 114 RON
26 1 2 PIN (N042079) 558 RON
27 1 1 PIN (A24452) 781 RON
28 1 1 ADJUSTER (A24764) 2347 RON
29 1 1 SCREW (330022-18) 668 RON
30 1 1 PAD (A24767) 1229 RON
31 1 1 CLAMPING BAR (A24771) 2347 RON
32 1 1 PIN (A24770) 781 RON
33 1 1 SPRING (A27362) 190 RON
34 1 1 RETAINER (N028373) 558 RON
35 1 1 BASEPLATE (A27941) 2795 RON
36 1 4 SCREW (N029178) 558 RON
37 1 4 PIN (N587924) 588 RON
38 1 1 ADJUSTER HEIGHT (N693104) 12361 RON
39 1 1 ADAPTOR (A28678SV) 20467 RON
40 1 1 BASE SA (N092764) 3466 RON
41 1 1 GUIDE SA (N026733) 6821 RON
42 1 1 CARRIER SA (N095608) 17335 RON
45 1 2 PIN (N042079) 558 RON
47 1 1 SPRING (N037001) 893 RON
48 1 1 GUIDE (N034346) 781 RON
49 1 1 SPRING (A29112) 781 RON
50 1 1 GUIDE (A29651) 558 RON
51 1 1 PLATE (N027873) 781 RON
52 1 1 COVER (N029880) 2124 RON
53 1 5 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
54 1 1 BOLT (N029497) 2347 RON
55 1 1 SPRING (N029508) 781 RON
56 1 1 LEVER (N027646) 893 RON
57 1 1 WASHER SPECIAL (608298-00) 558 RON
58 1 1 "SCREW PAN HEAD M4 * 10""" (324007-10) 558 RON
59 1 1 SCALE (N032095) 558 RON
60 1 1 ROD (A28031) 1452 RON
61 1 1 ADJUSTER (N031168) 558 RON
62 1 1 O RING (N027984) 558 RON
63 1 1 ADJUSTER (N027987) 190 RON
64 1 6 SCREW (608930-00) 781 RON
65 1 2 KNOB (397560-00) 190 RON
66 1 2 Washer Lock (098197-09) 558 RON
67 1 2 SCREW (607395-00) 781 RON
68 1 1 BASEPLATE (N029742) 3466 RON
69 1 4 SCREW (N029178) 558 RON
70 1 1 PAD (A24767) 1229 RON
71 1 1 ADJUSTER (A24764) 2347 RON
72 1 1 SCREW (330022-18) 668 RON
73 1 1 CLAMPING BAR (A24771) 2347 RON
74 1 1 PIN (A24770) 781 RON
75 1 1 PIN (A24452) 781 RON
76 1 1 SPRING (A27362) 190 RON
77 1 1 RETAINER (N028373) 558 RON
79 1 1 BRAND LABEL (N029502) 105 RON
80 1 1 NUT LH (A25250) 893 RON
81 1 1 CONE (A27315) 781 RON
82 1 1 PIN (A27316) 190 RON
84 1 1 WASHER (N028927) 558 RON
85 1 1 WRENCH SPECIAL (A27895) 2795 RON
86 1 1 ADAPTOR (A29660) 4137 RON
89 1 1 GUIDE DW615 (948651-00) 25164 RON
95 1 6 SPRING (609118-00) 558 RON
96 1 1 SNAP RING (684179) 558 RON
97 1 2 SCREW 4 * 10 (945121-00) 558 RON
98 1 1 KNOB (147107-00) 105 RON
99 1 1 WASHER (N028927) 558 RON
100 1 1 SCREW (931405-00) 558 RON
101 1 1 THUMBSCREW (A27335) 1117 RON
101 1 3 SCREW (330065-08) 558 RON
102 1 2 GUIDE (868080-00) 190 RON
103 1 1 BASE SA (N095607) 14315 RON
104 1 2 STOP GUIDE CHEER (249090-00) 1452 RON
105 1 4 SCREW M4X8 UNI8113 (860205-04) 558 RON
105 1 4 NA618000 - Indisponibil
106 1 1 SCREW (330045-07) 558 RON
107 1 1 SCREW (608928-00) 558 RON
108 1 1 WASHER (653599-00) 558 RON
109 1 1 SPRING (652834-00) 558 RON
110 1 1 SPACER (652835-00) 558 RON
111 1 1 NUT (330015-04) 558 RON
112 1 1 TURRET (326976-01) 2347 RON
113 1 1 BALL (652836-00) 558 RON
114 1 1 BUSHING GUIDE 17X (249014-01) 5031 RON
115 1 2 SCREW 4 * 10 (945121-00) 558 RON
700 1 1 WARNING LABEL (N589075) 588 RON
701 1 1 N589073 - Indisponibil
701 1 1 WARNING LABEL (NA119557) 82 RON
702 1 1 RATING PLATE (N589072) 588 RON
703 1 1 BRAND LABEL (N589077) 588 RON
704 1 1 LABEL (N589078) 588 RON
705 1 1 IDENTITY LABEL (A28466) 558 RON
860 1 1 HANDLE (H1400198008) 2347 RON
860 1 1 H1400196008 - Indisponibil
861 1 1 KITBOX (N445186) 39318 RON
862 1 1 LATCH (N409477) 114 RON
862 1 2 LATCH (H1500082520) 1117 RON
863 1 2 LATCH (P910190) 3466 RON
864 1 1 KITBOX TRAY FOR DCW604 (N593656) 741 RON
866 1 1 BATTERY 18V -5.0AH -90WH (N394624) 104961 RON
871 1 1 N450536 - Indisponibil
871 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
871 1 1 CHARGER 10.8V - 18V (NA010209) 51127 RON
