Top » Piese de schimb » PIESE DEWALT » DCW600N Type 2

FREZA VERTICALA DEWALT DCW600N Type 2
[DCW600N Type 2]
FREZA VERTICALA DEWALT DCW600N Type 2
Click pentru a mari
Imagini suplimentare
FREZA VERTICALA DEWALT DCW600N Type 2
Click pentru a mari
FREZA VERTICALA DEWALT DCW600N Type 2
Click pentru a mari
FREZA VERTICALA DEWALT DCW600N Type 2
Click pentru a mari

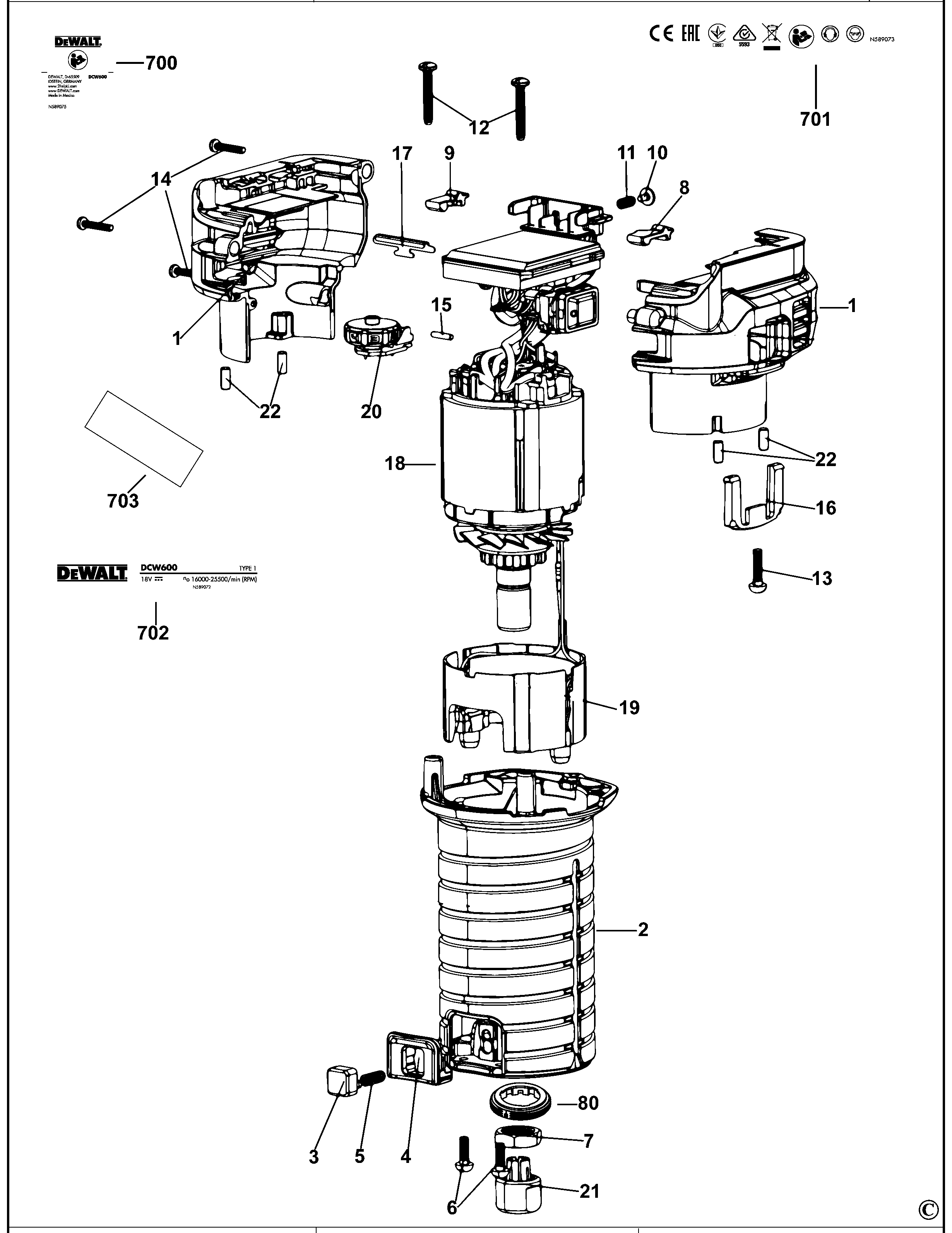

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (N567094) 3954 RON
2 1 1 HOUSING MOTOR (N661051) 20216 RON
3 1 1 LOCK BUTTON (N038183) 781 RON
4 1 1 INSERT (A26131) 781 RON
5 1 1 SPRING (A23489) 558 RON
6 1 2 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
7 1 1 NUT (A25248) 190 RON
8 1 1 BUMPER (N728008) 588 RON
9 1 1 BUMPER (N728006) 588 RON
10 1 1 MOUNT TERM BLOCK SPRING (MOULD) (N122099) 558 RON
11 1 1 TERMINAL BLOCK SPRING (N461735) 588 RON
12 1 2 SCREW METAL THD FRM M4X25 T20 (330045-08) 558 RON
13 1 1 SCREW (330065-07) 558 RON
14 1 3 SCREW PLASTITE (682211-00) 781 RON
15 1 1 ROLL PIN 2.5 X 10.9 (N071836) 558 RON
16 1 1 CLIP (N569455) 588 RON
17 1 1 STRIKE PLATE (N467560) 588 RON
18 1 1 MOTOR SA (NA186171) 148269 RON
19 1 1 LED LIGHT (N580684) 10241 RON
20 1 1 WHEEL SPEED (N550971) 5370 RON
21 1 1 COLLET (A28462SV) 23244 RON
21 1 1 COLLET ASSEMBLY (N693118) 21676 RON
22 1 4 PIN (N703257) 588 RON
23 1 1 HOUSING SA (N742993) 67932 RON
24 1 1 COVER (N591239) 2796 RON
25 1 1 SCALE (A23587) 114 RON
26 1 2 PIN (N042079) 558 RON
27 1 1 PIN (A24452) 781 RON
28 1 1 ADJUSTER (A24764) 2347 RON
29 1 1 SCREW (330022-18) 668 RON
30 1 1 PAD (A24767) 1229 RON
31 1 1 CLAMPING BAR (A24771) 2347 RON
32 1 1 PIN (A24770) 781 RON
33 1 1 SPRING (A27362) 190 RON
34 1 1 RETAINER (N028373) 558 RON
35 1 1 BASEPLATE (A27941) 2795 RON
36 1 4 SCREW (N029178) 558 RON
37 1 4 PIN (N587924) 588 RON
38 1 1 ADJUSTER HEIGHT (N693104) 12361 RON
39 1 1 ADAPTOR (A28678SV) 20467 RON
40 1 1 BASE SA (N092764) 3466 RON
41 1 1 GUIDE SA (N026733) 6821 RON
67 1 2 SCREW 4 * 10 (945121-00) 558 RON
80 1 1 NUT LH (A25250) 893 RON
85 1 1 WRENCH SPECIAL (A27895) 2795 RON
98 1 1 KNOB (147107-00) 105 RON
99 1 1 WASHER (N028927) 558 RON
100 1 1 SCREW (931405-00) 558 RON
700 1 1 WARNING LABEL (N589075) 588 RON
701 1 1 WARNING LABEL (NA119557) 82 RON
702 1 1 RATING PLATE (NA119329) 82 RON
703 1 1 BRAND LABEL (N589077) 588 RON
704 1 1 LABEL (N589078) 588 RON
705 1 1 IDENTITY LABEL (A28466) 558 RON
