Top » Piese de schimb » PIESE DEWALT » DW670 Type 1 - EU

FREZA UNIMANUALA DEWALT DW670 Type 1 - EU
[DW670 Type 1 - EU]
FREZA UNIMANUALA DEWALT DW670 Type 1 - EU
Click pentru a mari
Imagini suplimentare
FREZA UNIMANUALA DEWALT DW670 Type 1 - EU
Click pentru a mari
FREZA UNIMANUALA DEWALT DW670 Type 1 - EU
Click pentru a mari

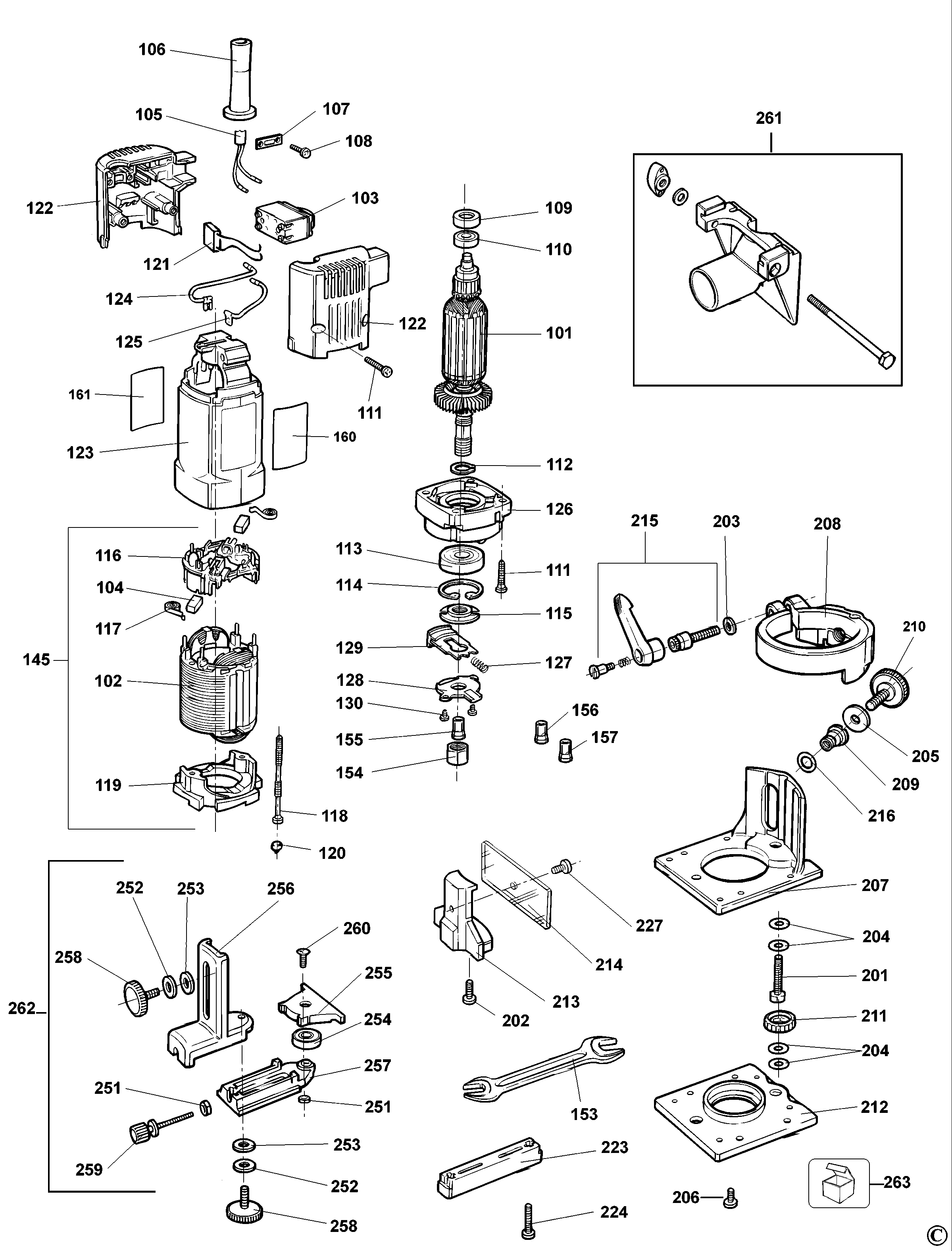

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 ARMATURE V.230 DW670 (868630-00) 57488 RON
101 1 1 ARMATURE 120V (949740-04) 45297 RON
101 1 1 ARMATURE (949740-02) 45297 RON
102 1 1 STATOR V.230 DW670 (868629-02) 32770 RON
102 1 1 FELD 120V (949847-12) 22144 RON
102 1 1 FIELD (949847-10) 22144 RON
103 1 1 SWITCH SK9A62 BLACK (760952-00) 9282 RON
103 1 1 SWITCH MARQUARDT 0045 (N566709) 27287 RON
104 1 2 BRUSH (930760) 781 RON
104 1 2 BRUSH 230V *BK17* (930760-00) 781 RON
105 1 1 CORD PWR SPLY EURO (330120-86) 7940 RON
105 1 1 CABLE H05RN-F 2X1 (330048-11) 6821 RON
105 1 1 CORD PWR SPLY EURO (330080-39) 14315 RON
106 1 1 "PROTECTOR D.8 2""" (949835-01) 893 RON
107 1 1 CORD CLAMP (930103) 558 RON
107 1 1 CORD CLAMP (930103-00) 190 RON
108 1 2 930276 - Indisponibil
109 1 1 CUP (930029-00) 558 RON
110 1 1 BEARING (330003-34) 3466 RON
111 1 6 "SCREW 4 2X25""" (930079-00) 558 RON
111 1 6 SCREW (930079-01) 558 RON
112 1 1 RING SPRING SHAFT D15 UNI7435 (930098-00) 558 RON
112 1 1 CIRCLIPS (930098) 558 RON
113 1 1 BEARING (868768-02) 5031 RON
113 1 1 BEARING (402241-00) 6821 RON
114 1 1 CIRCLIP (931398) 781 RON
115 1 1 LOCK NUT (944484-00) 893 RON
115 1 1 LOCK NUT (944484) 1117 RON
116 1 1 BRUSH HOLDER (930746-00) 11519 RON
117 1 2 BRUSH SPRING (930090-00) 558 RON
118 1 2 SCREW 4X70-TCR (930077-00) 558 RON
119 1 1 BAFFLE DW670 (943173-00) 1117 RON
119 1 1 BAFFLE (943173) 1117 RON
120 1 2 CAP (933657-00) 558 RON
120 1 2 CAP (933657) 558 RON
121 1 1 "CAPACITOR 0 22""" (949877-01) 1117 RON
122 1 1 "HANDLE DW670""" (943172-02) 3466 RON
123 1 1 FIELDCASE (943169-05) 4137 RON
123 1 1 DW670 HOUSING (943169-02) 3466 RON
124 1 1 BLACK LEAD M.102 (949801-11) 781 RON
125 1 1 LEAD (949801-10) 781 RON
126 1 1 HOUSING (943178-00) 10512 RON
126 1 1 PLATE (943178-01) 9282 RON
126 1 1 HOUSING LOWER (944856-00) 2795 RON
127 1 1 SPRING D.6-0,75 (N406641) 588 RON
127 1 1 SPRING D.6-0 75 (943051-00) 558 RON
128 1 1 COVER (944386-00) 893 RON
128 1 1 COVER (944386) 893 RON
129 1 1 BUTTON SA (947048-00) 190 RON
130 1 2 SCREW (930251-01) 558 RON
130 1 2 930224 - Indisponibil
130 1 2 SCREW M4X10 (930224-01) 558 RON
145 1 1 STATOR V.230 DW670 (868629-00) 39145 RON
145 1 1 FELD (943203-04) 29862 RON
145 1 1 FIELD (943203-00) 25164 RON
153 1 1 WRENCH 17/19 (945393-00) 2795 RON
154 1 1 NUT M.15X1 (943270-00) 3466 RON
154 1 1 COLLET NUT (943270) 3018 RON
155 1 1 "COLLET D.6 35""" (943269-01) 3018 RON
156 1 1 COLLET. D6 (943269-00) 3018 RON
157 1 1 COLLET D8 (943269-02) 3018 RON
160 1 1 946144-00 - Indisponibil
201 1 1 SCREW HEX M.6X30 UNI 5739 ZN (860085-26) 558 RON
202 1 1 SCREW (930770) 558 RON
202 1 1 SCREW M4X15 UNI7687 (930770-00) 558 RON
203 1 1 WASHER (930925) 781 RON
204 1 3 WASHER (932892-00) 558 RON
204 1 3 WASHER (932892) 558 RON
205 1 1 WASHER (942555-00) 558 RON
205 1 1 WASHER DEB 6X18X1 7 (861983-01) 781 RON
205 1 1 WASHER (933168) 558 RON
205 1 1 942555 - Indisponibil
206 1 5 SCREW (943022-00) 558 RON
206 1 5 SCREW (949894-12) 558 RON
207 1 1 FIXED BASE (947922-00) 12861 RON
208 1 1 SUPPORT DW670 (947923-00) 10512 RON
209 1 1 FIXED BUSH (401759-00) 2124 RON
209 1 1 BUSH (947924-00) 2347 RON
210 1 1 SCREW M6 (947925-00) 2795 RON
211 1 1 THUMBSCREW (947926-00) 893 RON
212 1 1 BASEPLATE (947927-00) 3466 RON
213 1 1 BRACKET (868996-00) 3018 RON
213 1 1 BRACKET (947935-00) 3018 RON
214 1 1 GUARD (947938-02) 1117 RON
214 1 1 GUARD (947938-01) 105 RON
214 1 1 S/A PROTEZIONE N.T.TRIMMER (868950-00) 2347 RON
214 1 1 GUARD (947938-00) 893 RON
214 1 1 S/A PROTEZIONE N.T.TRIMMER (868950-01) 5591 RON
215 1 1 949723-02 - Indisponibil
216 1 1 "WASHER 14X10X0 2""" (949876-18) 781 RON
223 1 2 SKID (401029-00) 1452 RON
224 1 2 SCREW M4X20 (860094-10) 558 RON
224 1 2 SCREW.TEMP (330045-05) 558 RON
227 1 1 SCREW PAN PH/TT M.4X8 UNI8112 (860094-02) 558 RON
227 1 1 SCREW 4 * 10 (945121-00) 558 RON
227 1 1 RIVETTO FASTPOINT 0209.AA01 XS (868995-00) 558 RON
251 1 2 NUT (930226) 558 RON
251 1 2 NUT HEX MEAN M.4 UNI5588 ZINC (860083-10) 558 RON
252 1 2 WASHER (931407) 781 RON
252 1 2 WASHER (931407-00) 558 RON
253 1 2 WASHER SPRING D.6 (937545-00) 558 RON
253 1 2 937545 - Indisponibil
254 1 1 BEARING (330003-34) 3466 RON
255 1 1 GUIDE FENCE (946292-00) 893 RON
256 1 1 BRACKET (947936-00) 3018 RON
257 1 1 SUPPORT (947937-00) 3466 RON
258 1 2 SCREW M5 (947939-00) 1788 RON
259 1 1 SCREW M4 (947940-00) 190 RON
260 1 1 SCREW M.4X12 (949889-01) 558 RON
261 1 1 DUST EXTRACTOR (401365-00) 5591 RON
262 1 1 COPY FOLLOWER (947934-00) 1891 RON
263 1 1 FIXED BASE (947889-01) 45297 RON
