Top » Piese de schimb » PIESE DEWALT » DCMPS640N Type 1

FOARFECA DE GRADINA DEWALT DCMPS640N Type 1
[DCMPS640N Type 1]
FOARFECA DE GRADINA DEWALT DCMPS640N Type 1
Click pentru a mari
Imagini suplimentare
FOARFECA DE GRADINA DEWALT DCMPS640N Type 1
Click pentru a mari
FOARFECA DE GRADINA DEWALT DCMPS640N Type 1
Click pentru a mari
FOARFECA DE GRADINA DEWALT DCMPS640N Type 1
Click pentru a mari
FOARFECA DE GRADINA DEWALT DCMPS640N Type 1
Click pentru a mari
FOARFECA DE GRADINA DEWALT DCMPS640N Type 1
Click pentru a mari
FOARFECA DE GRADINA DEWALT DCMPS640N Type 1
Click pentru a mari
FOARFECA DE GRADINA DEWALT DCMPS640N Type 1
Click pentru a mari

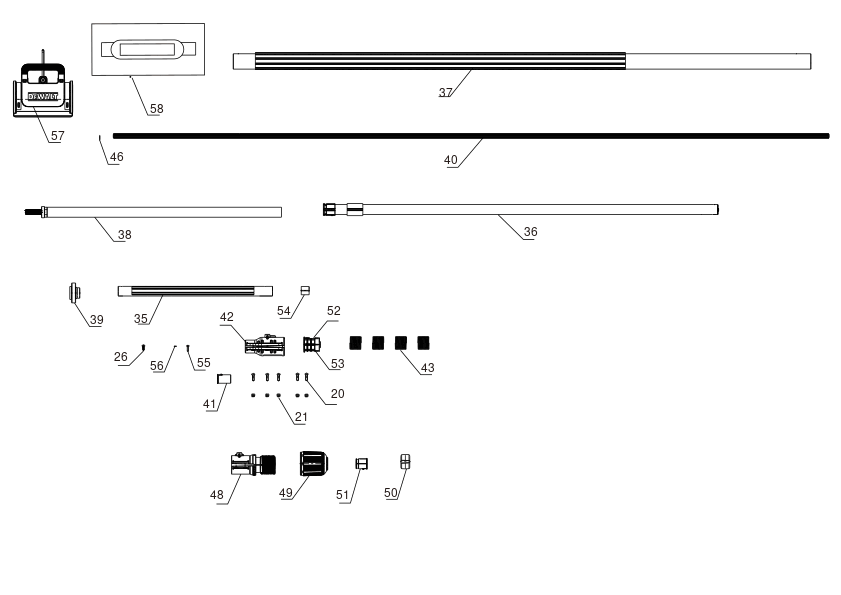

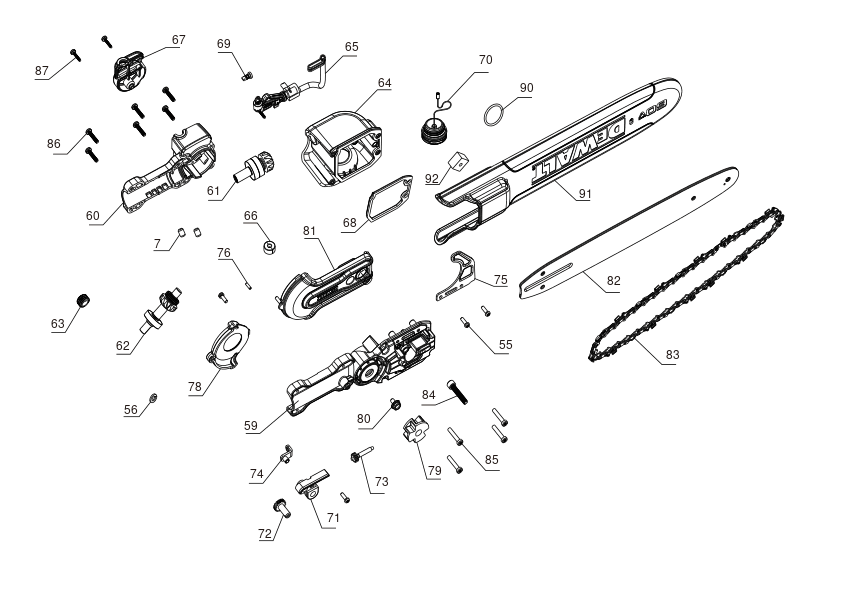

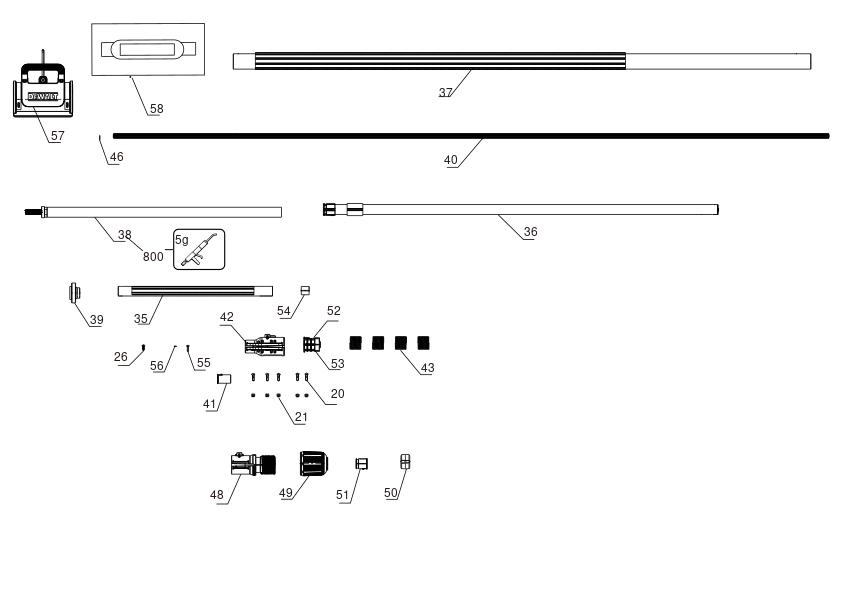

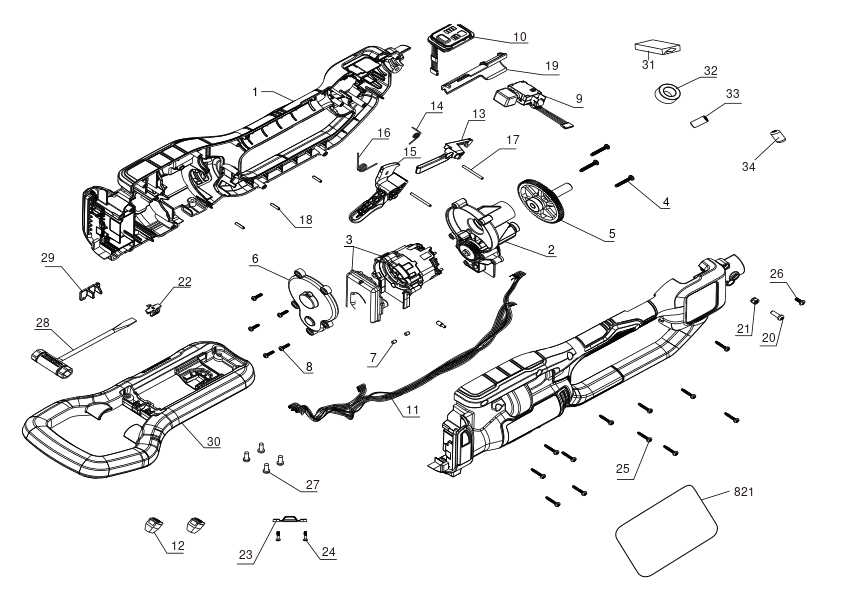

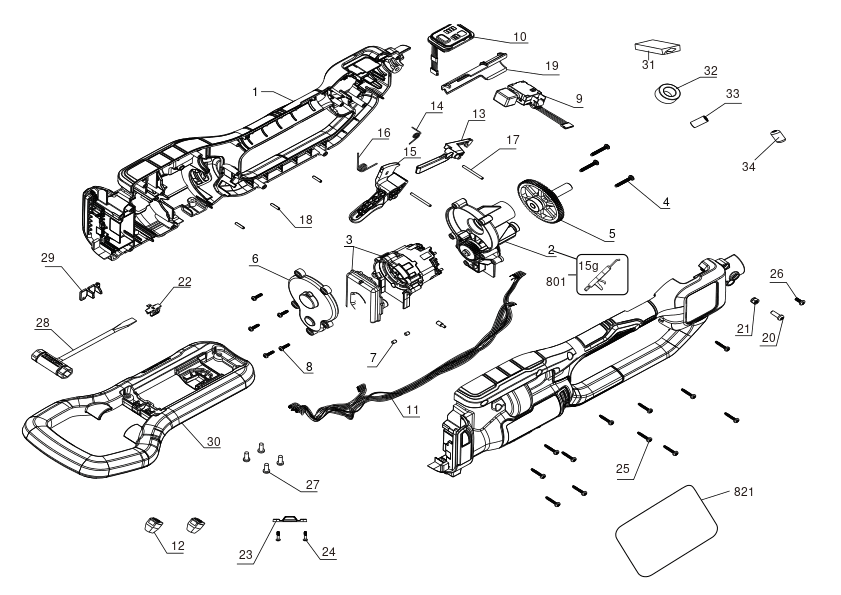

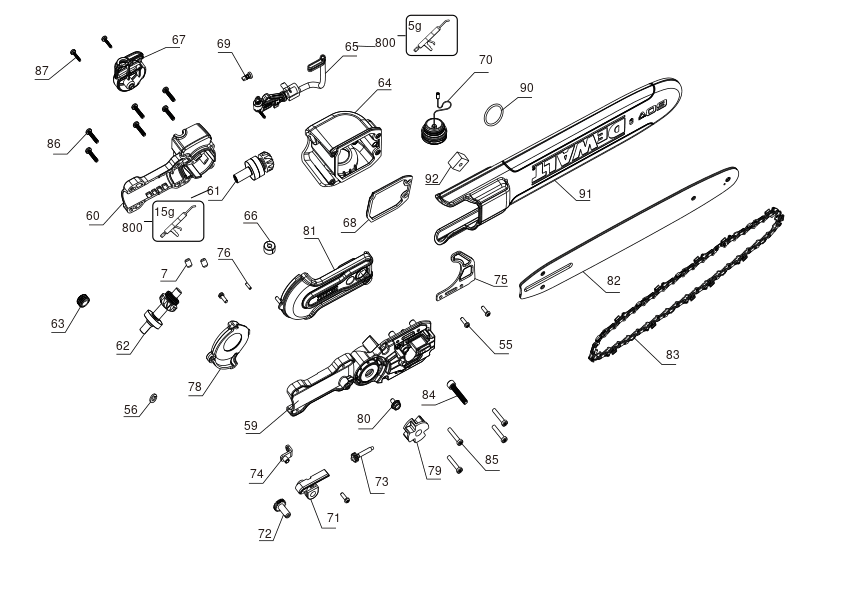

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (NA741141) 38463 RON
2 1 1 ROTOR SA (NA708380) 35435 RON
2 1 1 NB282229 - Indisponibil
3 1 1 MOTOR SA (NA989504) 67932 RON
4 1 3 SCREW METAL THD FRM M4X25 T20 (330045-08) 558 RON
5 1 1 OUTPUT SHAFT SA (NA708382) 12361 RON
6 1 1 COVER (NA350517) 6688 RON
7 1 4 PLUG (90621610) 588 RON
8 1 5 SCREW-METAL FORM THD M3.5 X 12 T15 (NA130331) 588 RON
9 1 1 WIRE HARNESS (NA879472) 25728 RON
10 1 1 CONTROL MODULE SA (NA387918) 28836 RON
11 1 1 WIRE HARNESS (NA370683) 9012 RON
12 1 2 CONNECTOR (650974-00) 668 RON
13 1 1 ACTUATOR (NA394723) 3268 RON
14 1 1 SPRING (NA407958) 588 RON
15 1 1 TRIGGER (NA394722) 4827 RON
16 1 1 SPRING (NA415713) 588 RON
17 1 2 PIN (NA415973) 588 RON
18 1 3 PIN (NA553947) 588 RON
19 1 1 SLEEVE (NA413464) 944 RON
20 1 6 SCREW M5 X 16.5 TORX/SLOTTED (571056-02) 781 RON
21 1 6 STOP NUT (330021-06) 558 RON
22 1 1 SPRING (NA542896) 588 RON
23 1 1 BLANK COVER AUDIT CHIP (N787996) 588 RON
24 1 2 SCREW (N831593) 588 RON
25 1 12 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
26 1 2 SCEW PLSTC THD FORM M4X10 T20 (330065-05) 558 RON
27 1 4 screw dw744 (330019-12) 558 RON
28 1 1 WRENCH (NA209088) 3268 RON
29 1 1 COVER (NA610929) 82 RON
30 1 1 CAGE (NA573103) 6688 RON
31 1 2 CORE (NA390861) 3268 RON
32 1 1 MAGNETRON (N928626) 5370 RON
33 1 1 CORE (NA708233) 1630 RON
34 1 1 WASHER (90623337) 3268 RON
35 1 1 SLEEVE SA (NA569799) 5370 RON
36 1 1 SHAFT SA (NA341790) 48037 RON
37 1 1 POLE PIECE SA (NA569800) 24962 RON
38 1 1 OUTPUT SHAFT SA (NA706373) 10241 RON
39 1 1 BEARING SA (NA706384) 4827 RON
40 1 1 SHAFT (NA341789) 10241 RON
41 1 1 BUSHING (NA352715) 944 RON
42 1 1 ADAPTOR (NA639264) 12361 RON
43 1 4 SPRING (NA350324) 114 RON
45 1 5 STOP NUT (330021-06) 558 RON
46 1 1 CLIP (NA421322) 588 RON
48 1 1 COLLAR (NA335721) 3954 RON
49 1 1 COLLAR (NA335720) 3268 RON
50 1 1 CLAMP (NA351511) 944 RON
51 1 1 BUSHING (NA511273) 944 RON
52 1 1 BEARING HOLDER (NA613676) 944 RON
53 1 1 BEARING HOLDER (NA613677) 944 RON
54 1 1 SPACER (NA645571) 668 RON
55 1 6 SCREW (NA659315) 588 RON
56 1 4 WASHER SPRING (569639-00) 588 RON
57 1 1 CLAMP SA (NA494784) 5370 RON
58 1 1 STRAP (N502343) 4355 RON
59 1 1 GEARCASE SA (NA546363) 28836 RON
60 1 1 GEARCASE COVER (NA546358) 23244 RON
61 1 1 GEAR & SHAFT (NA708372) 10241 RON
62 1 1 OUTPUT SHAFT SA (NA708377) 10241 RON
63 1 1 Gear (NA676203) 2182 RON
64 1 1 TANK (NA401115) 2796 RON
65 1 1 PUMP SA (NA347674) 15469 RON
66 1 1 SEAL (NA531308) 588 RON
67 1 1 COVER (NA415691) 114 RON
68 1 1 GASKET (NA357240) 668 RON
69 1 1 VALVE (90618295) 588 RON
70 1 1 CAP SA (NA500688) 3954 RON
71 1 1 CARRIER SA (NA389867) 944 RON
72 1 1 KNOB (NA389861) 3268 RON
73 1 1 SCREW (NA389863) 2796 RON
74 1 1 LINK (NA389864) 2182 RON
75 1 1 HOOK (NA413462) 3268 RON
76 1 1 PIN (NA639436) 588 RON
78 1 1 GUARD (NA512295) 944 RON
79 1 1 SPROCKET (NA265339) 2556 RON
80 1 1 SCREW (NA642144) 588 RON
81 1 1 COVER SA (NA708378) 10241 RON
82 1 1 BAR (NA373392) 16689 RON
83 1 1 CHAIN (NA291648) 16689 RON
84 1 1 SCREW (N629425) 588 RON
85 1 4 SCREW (330019-14) 558 RON
86 1 6 SCREW-STAINLESS SCREW PANHEAD M4X20 (NA265307) 588 RON
87 1 3 SCREW METAL THD FORM (330045-53) 558 RON
88 1 5 SCREW (NA659315) 588 RON
90 1 1 O RING (N439121) 588 RON
91 1 1 SHEATH (NA708099) 3268 RON
92 1 1 FOAM (NA648848) 588 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
801 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
821 1 1 RATING LABEL (NA613803) 588 RON
