Top » Piese de schimb » PIESE DEWALT » DCMPS635N Type 1

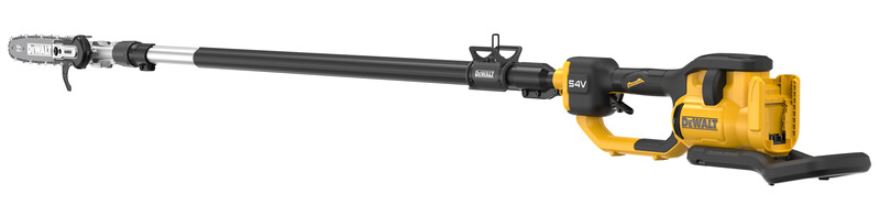

FOARFECA DE GRADINA DEWALT DCMPS635N Type 1
[DCMPS635N Type 1]
FOARFECA DE GRADINA DEWALT DCMPS635N Type 1
Click pentru a mari
Imagini suplimentare
FOARFECA DE GRADINA DEWALT DCMPS635N Type 1
Click pentru a mari
FOARFECA DE GRADINA DEWALT DCMPS635N Type 1
Click pentru a mari
FOARFECA DE GRADINA DEWALT DCMPS635N Type 1
Click pentru a mari
FOARFECA DE GRADINA DEWALT DCMPS635N Type 1
Click pentru a mari

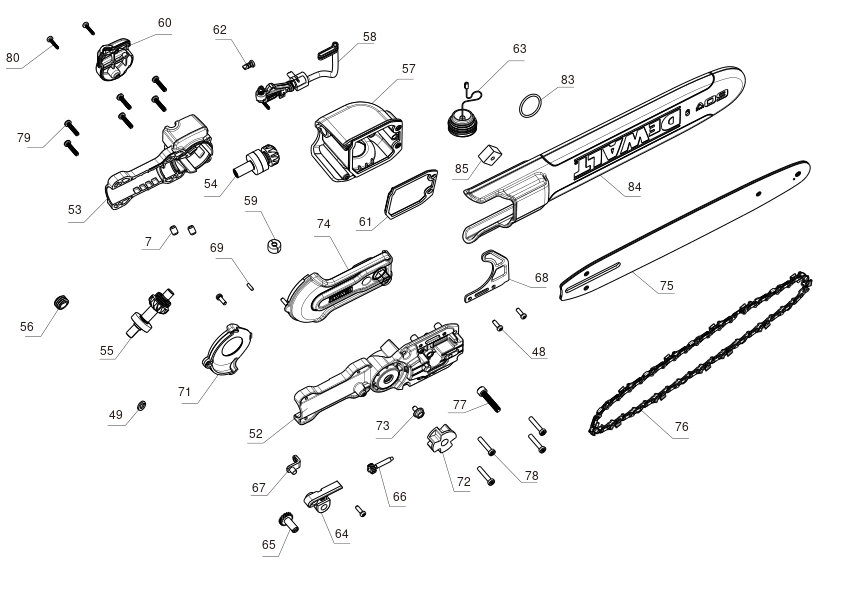

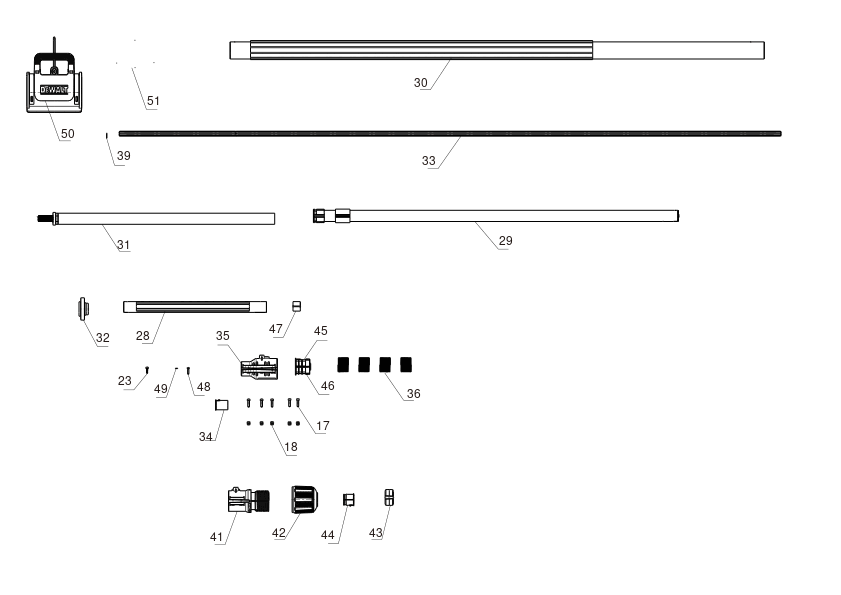

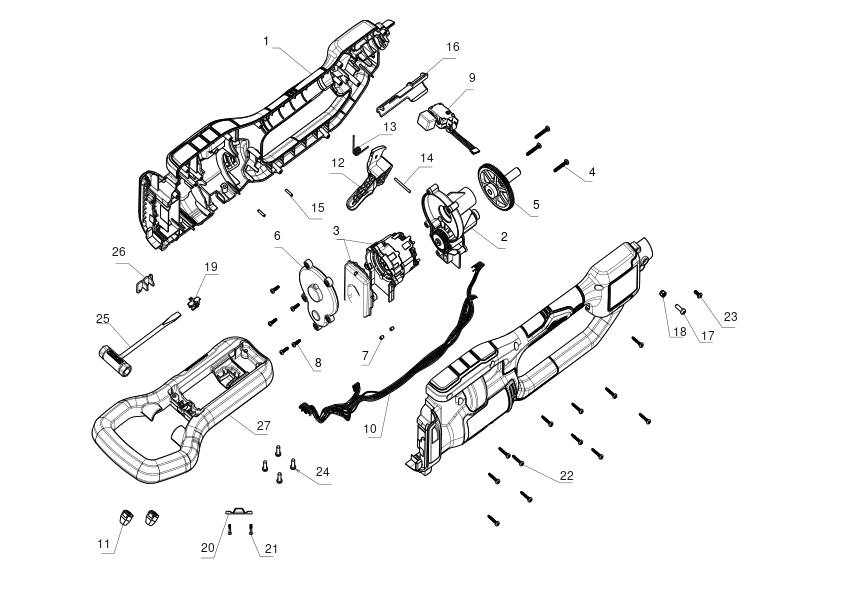

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (NA688138) 39318 RON
2 1 1 ROTOR SA (NA708380) 35435 RON
2 1 1 NB282228 - Indisponibil
3 1 1 MOTOR SA (NA837768) 67932 RON
4 1 3 SCREW METAL THD FRM M4X25 T20 (330045-08) 558 RON
5 1 1 OUTPUT SHAFT SA (NA708382) 12361 RON
6 1 1 COVER (NA350517) 6688 RON
7 1 4 PLUG (90621610) 588 RON
8 1 5 SCREW-METAL FORM THD M3.5 X 12 T15 (NA130331) 588 RON
9 1 1 BLOCK (NA741912) 20216 RON
10 1 1 WIRE HARNESS (NA511136) 4355 RON
11 1 2 CONNECTOR (650974-00) 668 RON
12 1 1 TRIGGER (NA555759) 3268 RON
13 1 1 SPRING (NA415713) 588 RON
14 1 1 PIN (NA415973) 588 RON
15 1 2 PIN (NA553947) 588 RON
16 1 1 SLEEVE (NA413464) 944 RON
17 1 6 SCREW M5 X 16.5 TORX/SLOTTED (571056-02) 781 RON
18 1 6 STOP NUT (330021-06) 558 RON
19 1 1 SPRING (NA542896) 588 RON
20 1 1 BLANK COVER AUDIT CHIP (N787996) 588 RON
21 1 2 SCREW (N831593) 588 RON
22 1 13 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
23 1 1 SCEW PLSTC THD FORM M4X10 T20 (330065-05) 558 RON
24 1 4 screw dw744 (330019-12) 558 RON
25 1 1 WRENCH (NA209088) 3268 RON
26 1 1 COVER (NA610929) 82 RON
27 1 1 CAGE (NA570858) 741 RON
28 1 1 SLEEVE SA (NA569799) 5370 RON
29 1 1 POLE PIECE SA (NA427072) 46247 RON
30 1 1 POLE PIECE (NA569802) 21676 RON
31 1 1 OUTPUT SHAFT SA (NA706373) 10241 RON
32 1 1 BEARING SA (NA706384) 4827 RON
33 1 1 SHAFT (NA454114) 9012 RON
34 1 1 BUSHING (NA352715) 944 RON
35 1 1 ADAPTOR (NA639264) 12361 RON
36 1 4 SPRING (NA350324) 114 RON
39 1 1 CLIP (NA421322) 588 RON
41 1 1 COLLAR (NA335721) 3954 RON
42 1 1 COLLAR (NA335720) 3268 RON
43 1 1 CLAMP (NA351511) 944 RON
44 1 1 BUSHING (NA511273) 944 RON
45 1 1 BEARING HOLDER (NA613676) 944 RON
46 1 1 BEARING HOLDER (NA613677) 944 RON
47 1 1 SPACER (NA645571) 668 RON
48 1 6 SCREW (NA659315) 588 RON
49 1 4 WASHER SPRING (569639-00) 588 RON
50 1 1 CLAMP SA (NA494784) 5370 RON
51 1 1 STRAP (N502343) 4355 RON
52 1 1 GEARCASE COVER (NA389701) 15469 RON
53 1 1 GEARCASE COVER (NA389703) 12361 RON
54 1 1 GEAR & SHAFT (NA708372) 10241 RON
55 1 1 OUTPUT SHAFT SA (NA708377) 10241 RON
56 1 1 Gear (NA676203) 2182 RON
57 1 1 TANK (NA401115) 2796 RON
58 1 1 PUMP SA (NA347674) 15469 RON
59 1 1 SEAL (NA531308) 588 RON
60 1 1 COVER (NA415691) 114 RON
61 1 1 GASKET (NA357240) 668 RON
62 1 1 VALVE (90618295) 588 RON
63 1 1 CAP SA (NA500688) 3954 RON
64 1 1 CARRIER SA (NA389867) 944 RON
65 1 1 KNOB (NA389861) 3268 RON
66 1 1 SCREW (NA389863) 2796 RON
67 1 1 LINK (NA389864) 2182 RON
68 1 1 HOOK (NA413462) 3268 RON
69 1 1 PIN (NA639436) 588 RON
71 1 1 GUARD (NA512295) 944 RON
72 1 1 SPROCKET (90585879) 1933 RON
73 1 1 SCREW (NA642144) 588 RON
74 1 1 COVER SA (NA708378) 10241 RON
75 1 1 BAR (NA734388) 13697 RON
76 1 1 CHAIN (NA565542) 13697 RON
77 1 1 SCREW (N629425) 588 RON
78 1 4 SCREW (330019-14) 558 RON
79 1 6 SCREW-STAINLESS SCREW PANHEAD M4X20 (NA265307) 588 RON
80 1 3 SCREW METAL THD FORM (330045-53) 558 RON
83 1 1 O RING (N439121) 588 RON
84 1 1 SHEATH (NA708099) 3268 RON
85 1 1 FOAM (NA648848) 588 RON
