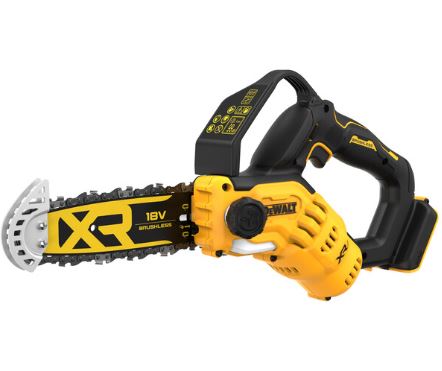

FOARFECA DE GRADINA DEWALT DCMPS520N Type 1
[DCMPS520N Type 1]
FOARFECA DE GRADINA DEWALT DCMPS520N Type 1
Click pentru a mari
Imagini suplimentare
FOARFECA DE GRADINA DEWALT DCMPS520N Type 1
Click pentru a mari
FOARFECA DE GRADINA DEWALT DCMPS520N Type 1
Click pentru a mari

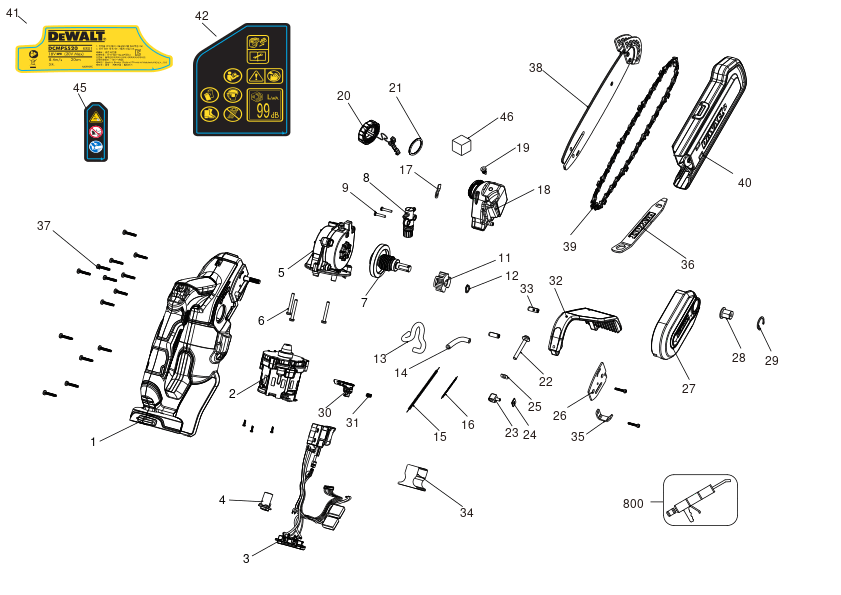

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (NA034334) 21676 RON
2 1 1 MOTOR SA (NA228364) 67932 RON
3 1 1 NA119741 - Indisponibil
3 1 1 WIRE HARNESS (NA689004) 12361 RON
4 1 1 000000-01 - Indisponibil
4 1 1 NA148823 - Indisponibil
5 1 1 GEARCASE SA (NA228360) 3954 RON
6 1 3 SCREW PLSTC THD FORM M3.5x32 T15 (330019-06) 558 RON
7 1 1 OUTPUT SHAFT SA (NA073703) 15469 RON
8 1 1 PUMP SA (NA255342) 3954 RON
9 1 2 SCREW M3.12X16 T10 (N377990) 558 RON
11 1 1 SPROCKET (90585879) 1933 RON
12 1 1 LOCKING RING (624521-00) 558 RON
13 1 1 TUBE OIL (NA116995) 944 RON
14 1 1 TUBE OIL (NA116993) 588 RON
15 1 1 SPRING (NA152569) 588 RON
16 1 1 SPRING (NA152570) 588 RON
17 1 1 SUPPORT (90157834) 558 RON
18 1 1 TANK (NA089169) 2556 RON
19 1 1 VALVE (90618295) 588 RON
20 1 1 CAP SA (N615366) 2556 RON
21 1 1 O RING (N654901) 588 RON
22 1 1 SCREW (N601071) 588 RON
23 1 1 CLAMP (N597160) 944 RON
24 1 1 CLAMP (N625741) 588 RON
25 1 1 WASHER (90519433) 558 RON
26 1 1 MOUNT (NA086154) 944 RON
27 1 1 COVER (NA123772) 6688 RON
28 1 1 NUT (NA086160) 114 RON
29 1 1 RING (NA128407) 588 RON
30 1 1 BUTTON LOCK-OFF (NA035025) 588 RON
31 1 1 SPRING (NA157791) 588 RON
32 1 1 GUARD (NA133203) 1933 RON
33 1 2 PIN (NA134030) 668 RON
34 1 1 COUNTERWEIGHT (NA120734) 3954 RON
35 1 1 BRACKET (NA123777) 588 RON
36 1 1 WRENCH (N856669) 1772 RON
37 1 14 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
38 1 1 BAR SA (NA411858) 15469 RON
39 1 1 CHAIN (N603750) 6688 RON
39 1 1 CHAIN (N911620) 10241 RON
40 1 1 SHEATH (NA135027) 2796 RON
42 1 1 WARNING LABEL (NA337839) 668 RON
42 1 1 NA687208 - Indisponibil
45 1 1 WARNING LABEL (NA130375) 588 RON
48 1 1 BOLT (NA327823) 668 RON
49 1 1 HANDLE SA (NA394533) 9012 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
