Top » Piese de schimb » PIESE DEWALT » DCMPP569P1 Type 1

FOARFECA DE GRADINA DEWALT DCMPP569P1 Type 1
[DCMPP569P1 Type 1]
FOARFECA DE GRADINA DEWALT DCMPP569P1 Type 1
Click pentru a mari
Imagini suplimentare
FOARFECA DE GRADINA DEWALT DCMPP569P1 Type 1
Click pentru a mari
FOARFECA DE GRADINA DEWALT DCMPP569P1 Type 1
Click pentru a mari
FOARFECA DE GRADINA DEWALT DCMPP569P1 Type 1
Click pentru a mari
FOARFECA DE GRADINA DEWALT DCMPP569P1 Type 1
Click pentru a mari
FOARFECA DE GRADINA DEWALT DCMPP569P1 Type 1
Click pentru a mari
FOARFECA DE GRADINA DEWALT DCMPP569P1 Type 1
Click pentru a mari

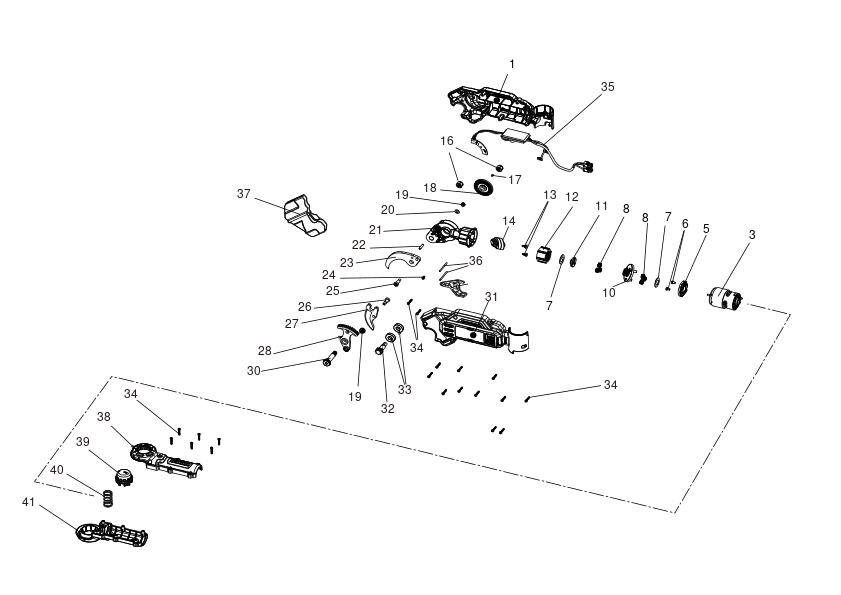

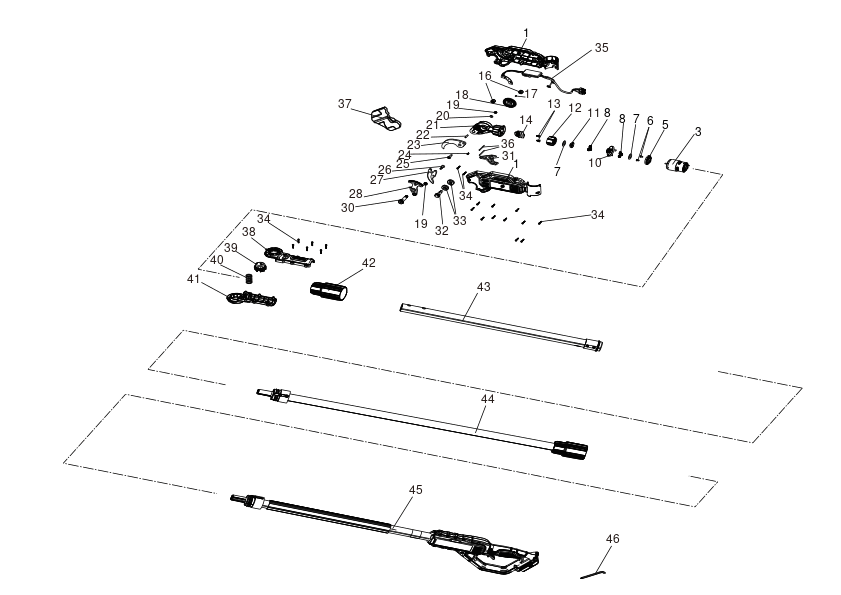

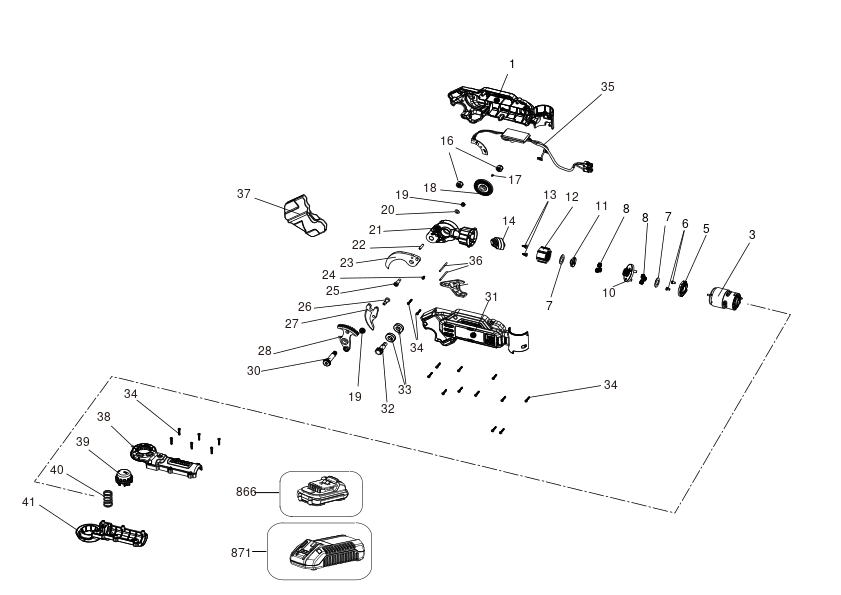

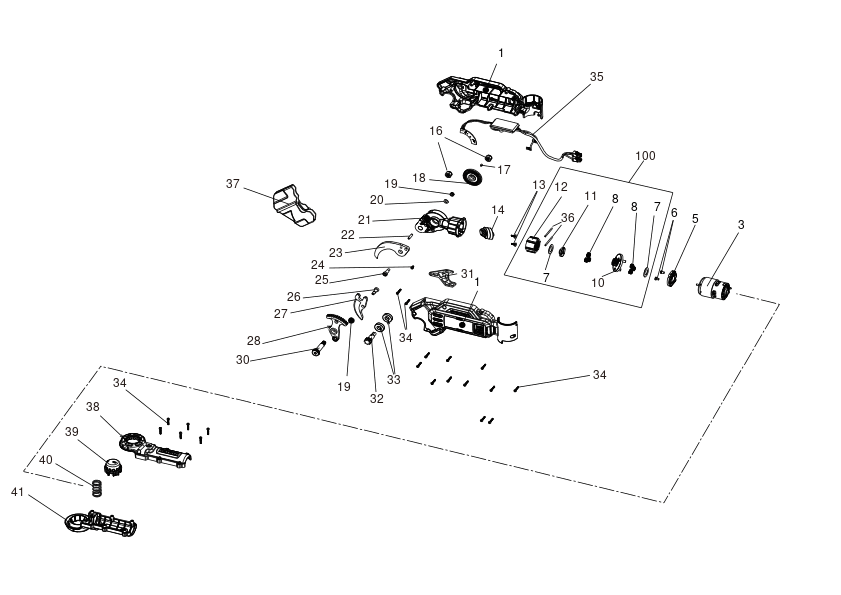

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (NA503460) 5370 RON
3 1 1 MOTOR & PINION (NA695436) 15469 RON
5 1 1 ADAPTOR (NA556111) 588 RON
6 1 2 SCREW (90577146) 588 RON
7 1 2 PLATE (N930006) 588 RON
8 1 6 Gear (N928176) 588 RON
10 1 1 CARRIER SA (N928161) 944 RON
11 1 1 CARRIER SA (N936784) 944 RON
12 1 6 Gear (N928174) 1772 RON
13 1 1 SCREW (N118088) 558 RON
14 1 1 BEARING SA (NA152853) 741 RON
16 1 2 Stop Nut M8 (330021-02) 558 RON
17 1 2 KEY (NA018769) 588 RON
18 1 1 BEVEL GEAR (N927501) 4827 RON
19 1 2 NUT (330021-12) 944 RON
20 1 1 WASHER (NA097267) 588 RON
21 1 1 GEARCASE (N922837) 9012 RON
22 1 1 PIN (NA070509) 588 RON
23 1 1 BLADE (NA647294) 12361 RON
24 1 1 SCREW (N756541) 588 RON
25 1 1 BOLT-M5x0.8 (NA045114) 944 RON
26 1 1 BOLT-M5x0.8 (NA021542) 1318 RON
27 1 1 BLADE (N920015) 13697 RON
28 1 1 Gear (NA044109) 15469 RON
30 1 1 BOLT (NA010647) 1933 RON
31 1 1 HOOK (NA555609) 1772 RON
32 1 1 PINION (N927926) 3954 RON
33 1 2 BEARING (330003-38) 6688 RON
34 1 17 SCREW PLASTIC THD FORM (330019-00) 558 RON
35 1 1 MODULE (NA531029) 32327 RON
36 1 2 PIN (N030622) 558 RON
37 1 1 SHEATH (NA035507) 944 RON
37 1 1 SHEATH (NA564900) 114 RON
38 1 1 HOUSING LOWER (NA503486) 1933 RON
39 1 1 BUTTON (NA503487) 944 RON
40 1 1 SPRING (NA543599) 588 RON
41 1 1 HOUSING LOWER (NA503484) 1933 RON
42 1 1 CONNECTOR (NA551694) 2182 RON
43 1 1 POLE PIECE SA (NA617848) 24962 RON
44 1 1 POLE PIECE SA (NA621147) 27287 RON
45 1 1 HANDLE SA (NA595159) 44688 RON
46 1 1 HEX KEY-5MM, INCL #2 PHILLIPS HEAD (N738756) 1772 RON
100 1 1 GEAR SA (NA325313) 6688 RON
866 1 1 BATTERY 18V -5.0AH -90WH (N394624) 104961 RON
871 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
