FOARFECA DE GRADINA DEWALT DCMPP569N Type 1
[DCMPP569N Type 1]

Click pentru a mari

Imagini suplimentare

Click pentru a mari

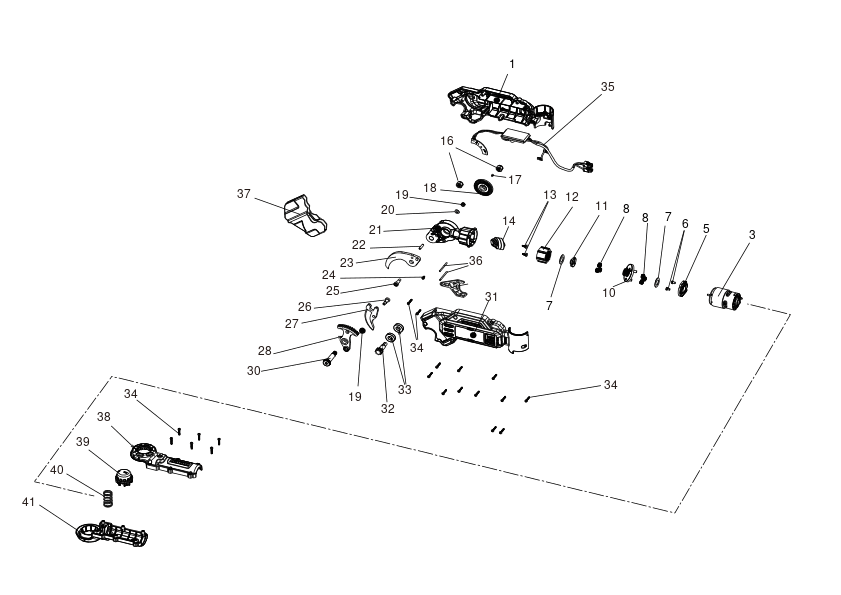

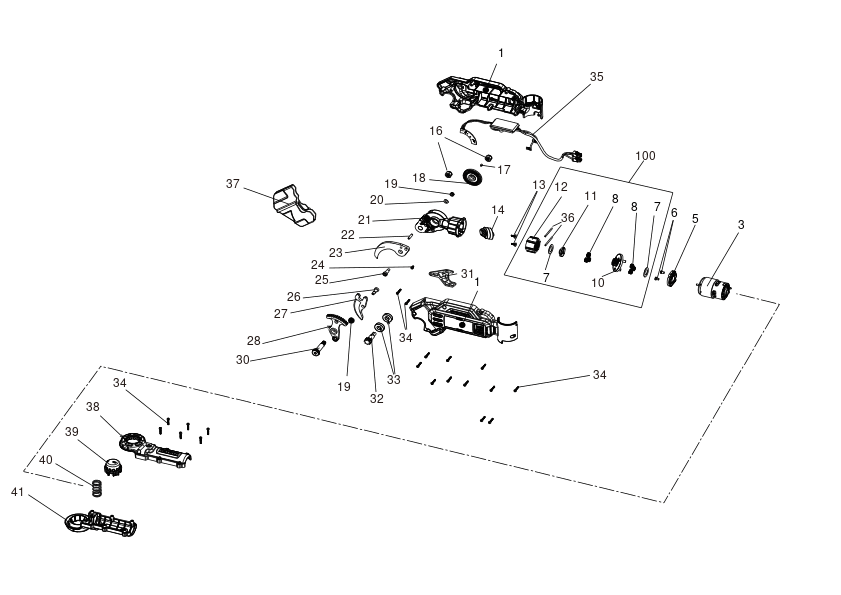

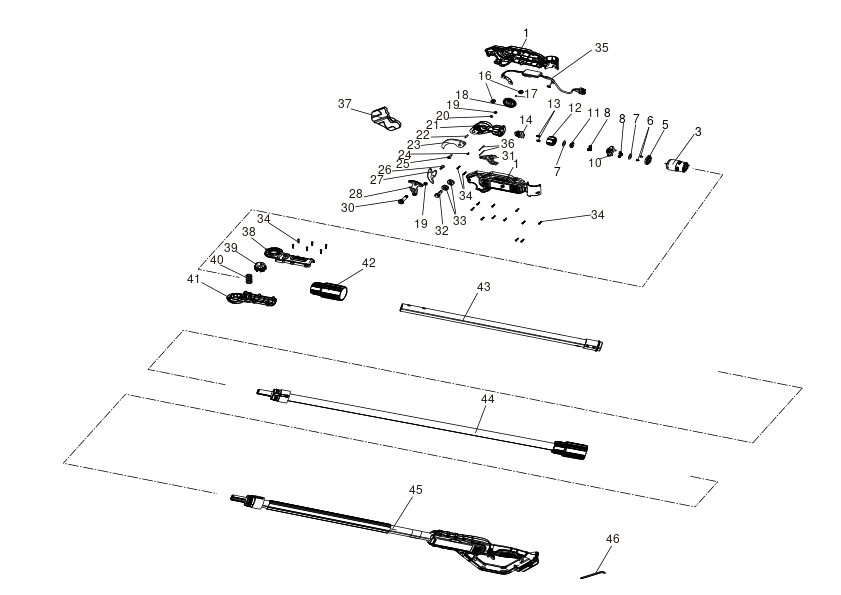

LISTA DE COMPONENTE:

Numar	Versiune	Buc. in schema	Denumire	Pret/buc (Tva inclus)
1	1	1	HOUSING SA (NA503460)	53⁷⁰ RON
3	1	1	MOTOR & PINION (NA695436)	154⁶⁹ RON
5	1	1	ADAPTOR (NA556111)	5⁸⁸ RON
6	1	2	SCREW (90577146)	5⁸⁸ RON
7	1	2	PLATE (N930006)	5⁸⁸ RON
8	1	6	Gear (N928176)	5⁸⁸ RON
10	1	1	CARRIER SA (N928161)	9⁴⁴ RON
11	1	1	CARRIER SA (N936784)	9⁴⁴ RON
12	1	6	Gear (N928174)	17⁷² RON
13	1	1	SCREW (N118088)	5⁵⁸ RON
14	1	1	BEARING SA (NA152853)	74¹ RON
16	1	2	Stop Nut M8 (330021-02)	5⁵⁸ RON
17	1	2	KEY (NA018769)	5⁸⁸ RON
18	1	1	BEVEL GEAR (N927501)	48²⁷ RON
19	1	2	NUT (330021-12)	9⁴⁴ RON
20	1	1	WASHER (NA097267)	5⁸⁸ RON
21	1	1	GEARCASE (N922837)	90¹² RON
22	1	1	PIN (NA070509)	5⁸⁸ RON
23	1	1	BLADE (NA647294)	123⁶¹ RON
24	1	1	SCREW (N756541)	5⁸⁸ RON
25	1	1	BOLT-M5x0.8 (NA045114)	9⁴⁴ RON
26	1	1	BOLT-M5x0.8 (NA021542)	13¹⁸ RON
27	1	1	BLADE (N920015)	136⁹⁷ RON
28	1	1	Gear (NA044109)	154⁶⁹ RON
30	1	1	BOLT (NA010647)	19³³ RON
31	1	1	HOOK (NA555609)	17⁷² RON
32	1	1	PINION (N927926)	39⁵⁴ RON
33	1	2	BEARING (330003-38)	66⁸⁸ RON
34	1	17	SCREW PLASTIC THD FORM (330019-00)	5⁵⁸ RON
35	1	1	MODULE (NA531029)	323²⁷ RON
36	1	2	PIN (N030622)	5⁵⁸ RON
37	1	1	SHEATH (NA035507)	9⁴⁴ RON
37	1	1	SHEATH (NA564900)	11⁴ RON
38	1	1	HOUSING LOWER (NA503486)	19³³ RON
39	1	1	BUTTON (NA503487)	9⁴⁴ RON
40	1	1	SPRING (NA543599)	5⁸⁸ RON
41	1	1	HOUSING LOWER (NA503484)	19³³ RON
42	1	1	CONNECTOR (NA551694)	21⁸² RON
43	1	1	POLE PIECE SA (NA617848)	249⁶² RON
44	1	1	POLE PIECE SA (NA621147)	272⁸⁷ RON
45	1	1	HANDLE SA (NA595159)	446⁸⁸ RON
46	1	1	HEX KEY-5MM, INCL #2 PHILLIPS HEAD (N738756)	17⁷² RON
100	1	1	GEAR SA (NA325313)	66⁸⁸ RON
