FOARFECA DE GRADINA DEWALT DCMPP568N Type 1
[DCMPP568N Type 1]

Imagini suplimentare

Click pentru a mari

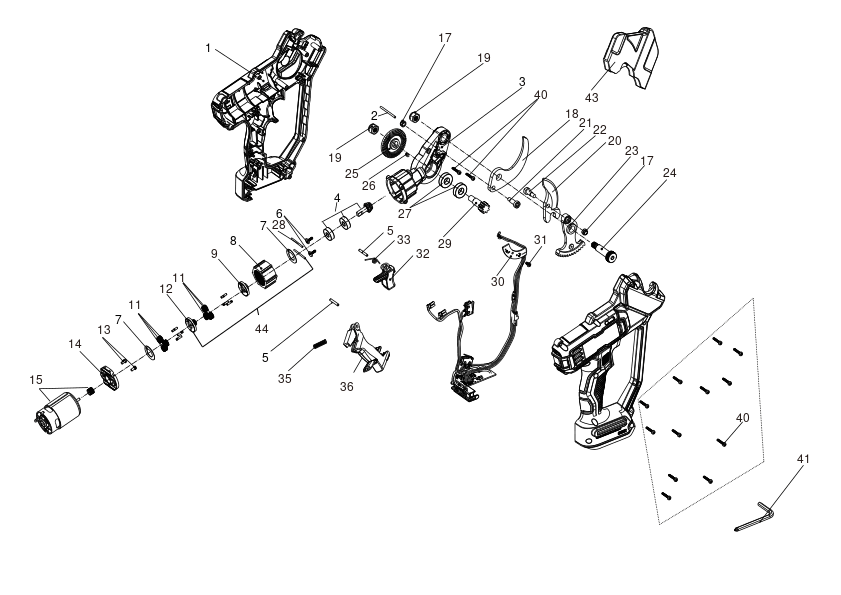

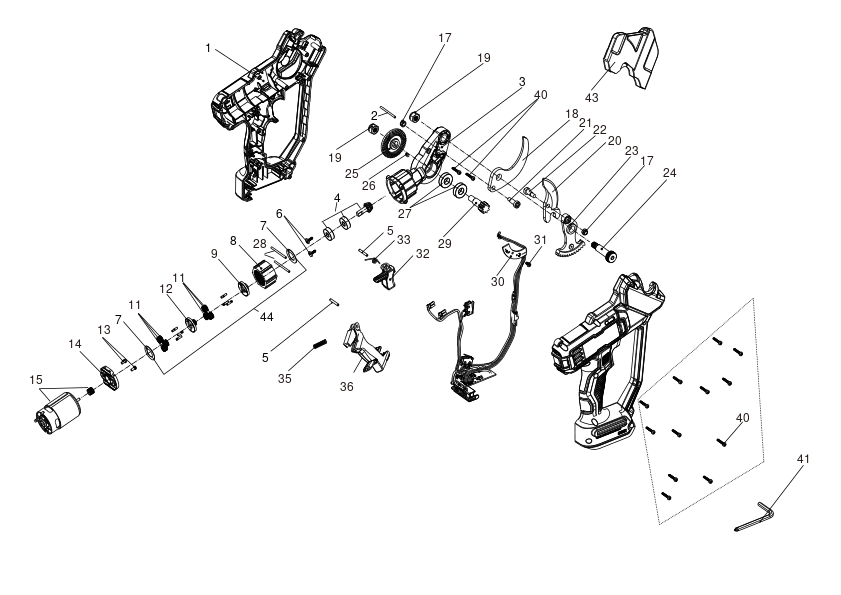

LISTA DE COMPONENTE:

Numar	Versiune	Buc. in schema	Denumire	Pret/buc (Tva inclus)	Cumpara
1	1	1	HOUSING SA (NA029204)	102⁴¹ RON
2	1	1	PIN (NA070509)	5⁸⁸ RON
3	1	1	GEARCASE (N922837)	90¹² RON
4	1	1	BEARING SA (NA152853)	74¹ RON
5	1	2	PIVOT SHAFT (NA023381)	5⁸⁸ RON
6	1	2	SCREW (N118088)	5⁵⁸ RON
7	1	2	PLATE (N930006)	5⁸⁸ RON
8	1	1	Gear (N928174)	17⁷² RON
9	1	1	CARRIER SA (N936784)	9⁴⁴ RON
11	1	6	Gear (N928176)	5⁸⁸ RON
12	1	1	CARRIER SA (N928161)	9⁴⁴ RON
13	1	2	SCREW (90566914)	5⁸⁸ RON
14	1	1	ADAPTOR (N928971)	5⁸⁸ RON
15	1	1	MOTOR & PINION (NA147845)	166⁸⁹ RON
17	1	2	NUT (330021-12)	9⁴⁴ RON
18	1	1	BLADE (NA044629)	154⁶⁹ RON
19	1	2	Stop Nut M8 (330021-02)	5⁵⁸ RON
20	1	1	BLADE (N920015)	136⁹⁷ RON
21	1	1	BOLT-M5x0.8 (NA045114)	9⁴⁴ RON
22	1	1	BOLT-M5x0.8 (NA021542)	13¹⁸ RON
23	1	1	Gear (NA044109)	154⁶⁹ RON
23	1	1	NA784959	-	Indisponibil
24	1	1	BOLT (NA010647)	19³³ RON
25	1	1	BEVEL GEAR (N927501)	48²⁷ RON
26	1	1	KEY (NA018769)	5⁸⁸ RON
27	1	2	BEARING (330003-38)	66⁸⁸ RON
28	1	2	PIN (N030622)	5⁵⁸ RON
29	1	1	PINION (N927926)	39⁵⁴ RON
30	1	1	MODULE (NA003631)	369⁹⁴ RON
31	1	1	SCREW (N756541)	5⁸⁸ RON
32	1	1	TRIGGER (N920024)	5⁸⁸ RON
33	1	1	SPRING (NA026311)	5⁸⁸ RON
35	1	1	SPRING COMPRESSION (N829448)	5⁸⁸ RON
36	1	1	TRIGGER LOCK-ON (NA025659)	13¹⁸ RON
40	1	14	SCREW PLASTIC THD FORM (330019-00)	5⁵⁸ RON
41	1	1	HEX KEY-5MM, INCL #2 PHILLIPS HEAD (N738756)	17⁷² RON
43	1	1	SHEATH (NA035507)	9⁴⁴ RON
44	1	1	GEAR SA (NA325313)	66⁸⁸ RON
