FOARFECA DE GRADINA DEWALT DCMPP568D1 Type 1
[DCMPP568D1 Type 1]
FOARFECA DE GRADINA DEWALT DCMPP568D1 Type 1
Click pentru a mari
Imagini suplimentare
FOARFECA DE GRADINA DEWALT DCMPP568D1 Type 1
Click pentru a mari
FOARFECA DE GRADINA DEWALT DCMPP568D1 Type 1
Click pentru a mari

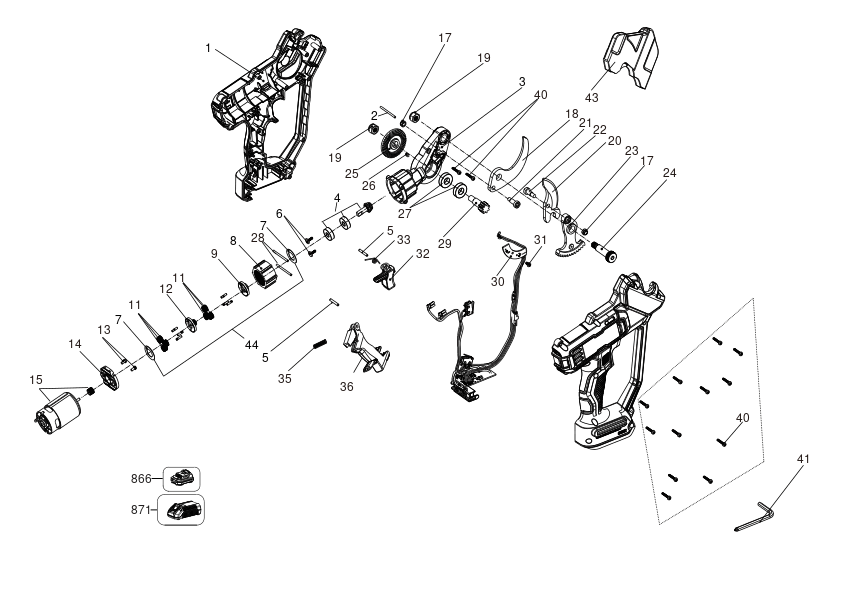

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (NA029204) 10241 RON
2 1 1 PIN (NA070509) 588 RON
3 1 1 GEARCASE (N922837) 9012 RON
4 1 1 BEARING SA (NA152853) 741 RON
5 1 2 PIVOT SHAFT (NA023381) 588 RON
6 1 2 SCREW (N118088) 558 RON
7 1 2 PLATE (N930006) 588 RON
8 1 1 Gear (N928174) 1772 RON
9 1 1 CARRIER SA (N936784) 944 RON
11 1 6 Gear (N928176) 588 RON
12 1 1 CARRIER SA (N928161) 944 RON
13 1 2 SCREW (90566914) 588 RON
14 1 1 ADAPTOR (N928971) 588 RON
15 1 1 MOTOR & PINION (NA147845) 16689 RON
17 1 2 NUT (330021-12) 944 RON
18 1 1 BLADE (NA044629) 15469 RON
19 1 2 Stop Nut M8 (330021-02) 558 RON
20 1 1 BLADE (N920015) 13697 RON
21 1 1 BOLT-M5x0.8 (NA045114) 944 RON
22 1 1 BOLT-M5x0.8 (NA021542) 1318 RON
23 1 1 Gear (NA044109) 15469 RON
23 1 1 NA784959 - Indisponibil
24 1 1 BOLT (NA010647) 1933 RON
25 1 1 BEVEL GEAR (N927501) 4827 RON
26 1 1 KEY (NA018769) 588 RON
27 1 2 BEARING (330003-38) 6688 RON
28 1 2 PIN (N030622) 558 RON
29 1 1 PINION (N927926) 3954 RON
30 1 1 MODULE (NA003631) 36994 RON
31 1 1 SCREW (N756541) 588 RON
32 1 1 TRIGGER (N920024) 588 RON
33 1 1 SPRING (NA026311) 588 RON
35 1 1 SPRING COMPRESSION (N829448) 588 RON
36 1 1 TRIGGER LOCK-ON (NA025659) 1318 RON
40 1 14 SCREW PLASTIC THD FORM (330019-00) 558 RON
41 1 1 HEX KEY-5MM, INCL #2 PHILLIPS HEAD (N738756) 1772 RON
43 1 1 SHEATH (NA035507) 944 RON
44 1 1 GEAR SA (NA325313) 6688 RON
866 1 1 BATTERY 18V - 2.0AH - 36WH-DCB183-XJ (N546910) 40734 RON
871 1 1 CHARGER (NA373501) 38463 RON
