Flex Recip Saw- DEWALT 331678 Type 1
[331678 Type 1]
Flex Recip Saw- DEWALT 331678 Type 1
Click pentru a mari
Imagini suplimentare
Flex Recip Saw- DEWALT 331678 Type 1
Click pentru a mari

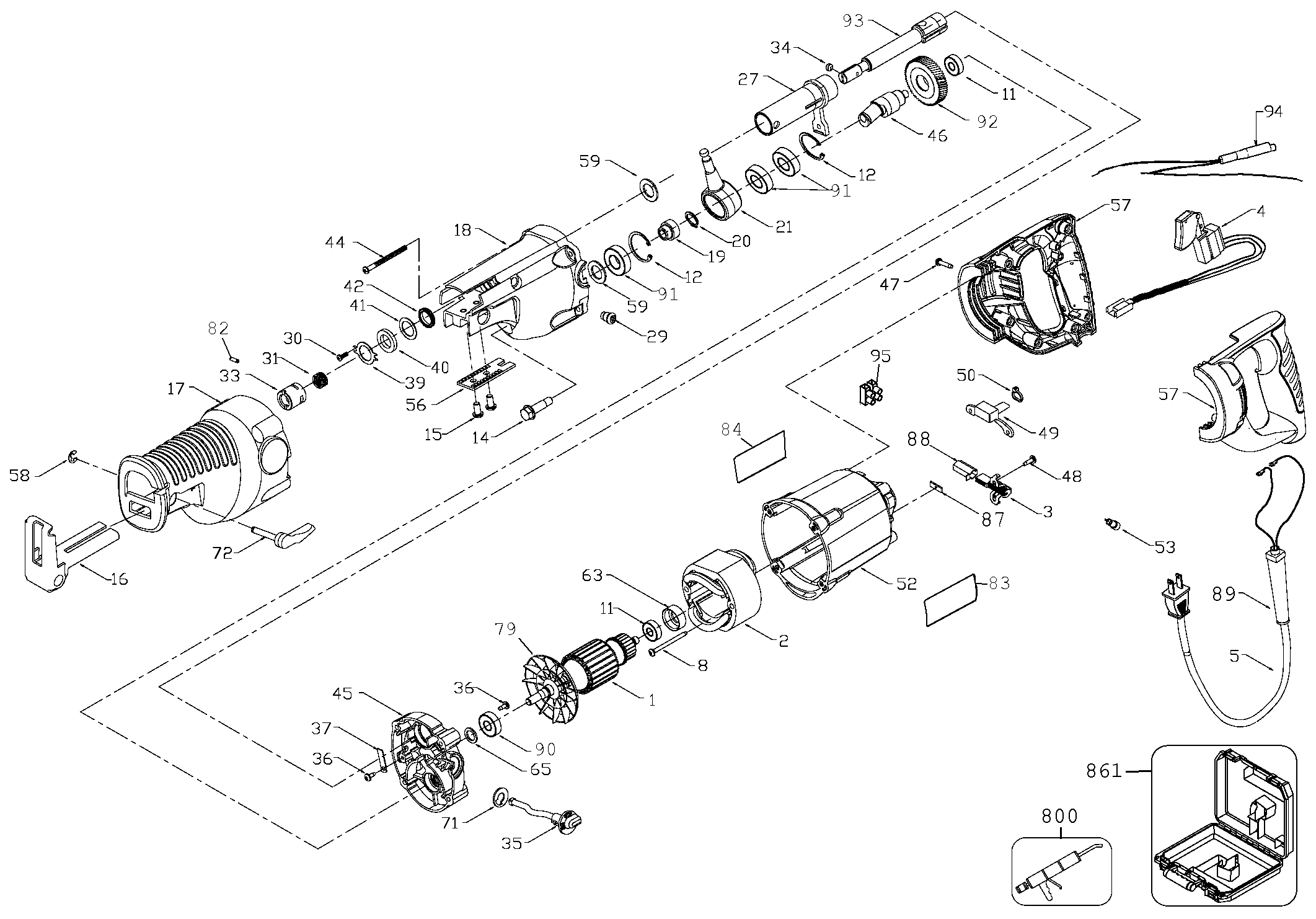

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE 230V (A05447) 43731 RON
2 1 1 000000-00 - Indisponibil
3 1 2 BRUSH SA (1pc) (874289) 2347 RON
4 1 1 000000-00 - Indisponibil
5 1 1 000000-00 - Indisponibil
8 1 2 SCREW (882704) 558 RON
11 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
11 1 2 BEARING (330003-05) 3466 RON
12 1 2 RING (802302) 781 RON
14 1 1 SCREW (879421) 105 RON
15 1 2 SCREW (906952) 558 RON
16 1 1 SHOE SA (911450SV) 15993 RON
17 1 1 COVER (906725) 7940 RON
18 1 1 HOUSING FRONT (906701) 15993 RON
19 1 1 SPACER (879429) 781 RON
20 1 1 RING (853246) 558 RON
21 1 1 PLATE (890819) 10512 RON
27 1 1 CARRIER FEED PISTON COVER (883098) 20467 RON
29 1 2 SCREW (879408) 1452 RON
30 1 2 SCREW (882255) 558 RON
31 1 1 000000-00 - Indisponibil
33 1 1 000000-00 - Indisponibil
34 1 1 CLAMPING BAR (648594-00) 2124 RON
35 1 1 000000-00 - Indisponibil
36 1 3 SCREW (882187) 558 RON
37 1 1 SPRING (847418) 558 RON
39 1 1 PLATE (879458) 781 RON
40 1 1 FELT SEAL (879457) 781 RON
41 1 1 WASHER (684931) 558 RON
42 1 1 SEAL (902998) 2347 RON
44 1 4 SCREW PLASTITE (330019-19) 781 RON
45 1 1 PLATE (906705) 7940 RON
46 1 1 883097SV - Indisponibil
47 1 10 SCREW (900826) 558 RON
48 1 4 SCREW (882703) 558 RON
49 1 1 000000-00 - Indisponibil
50 1 1 TIE (690673) 558 RON
52 1 1 000000-00 - Indisponibil
53 1 1 682063 - Indisponibil
56 1 1 PLATE (906043) 1452 RON
57 1 1 000000-00 - Indisponibil
58 1 1 RETAINER (697965) 558 RON
59 1 1 FELT SEAL (882348) 558 RON
63 1 1 HOLDER BEARING (694432) 558 RON
65 1 1 SEAL (801852) 558 RON
71 1 1 BELT SEAL (908873) 558 RON
72 1 1 LEVER (651021-00) 2795 RON
79 1 1 878904SV - Indisponibil
82 1 1 SPIROL PIN (638557-00) 558 RON
83 1 1 000000-00 - Indisponibil
84 1 1 000000-00 - Indisponibil
87 1 2 INSULATOR (865321) 558 RON
88 1 2 BRUSH HOLDER (865323) 781 RON
89 1 1 STRAIN REL (901266) 781 RON
90 1 1 BEARING BALL (CE) (330003-17) 2795 RON
90 1 1 BEARING BALL (605040-15) 2347 RON
91 1 3 BEARING (879431) 2347 RON
92 1 1 GEAR (879401) 9282 RON
93 1 1 DRIVE SHAFT (N074353) 3592 RON
94 1 1 000000-00 - Indisponibil
95 1 1 000000-00 - Indisponibil
800 1 1 GREASE (5140061-28) 34336 RON
861 1 1 000000-00 - Indisponibil
