Top » Piese de schimb » PIESE DEWALT » D36000 Type 1

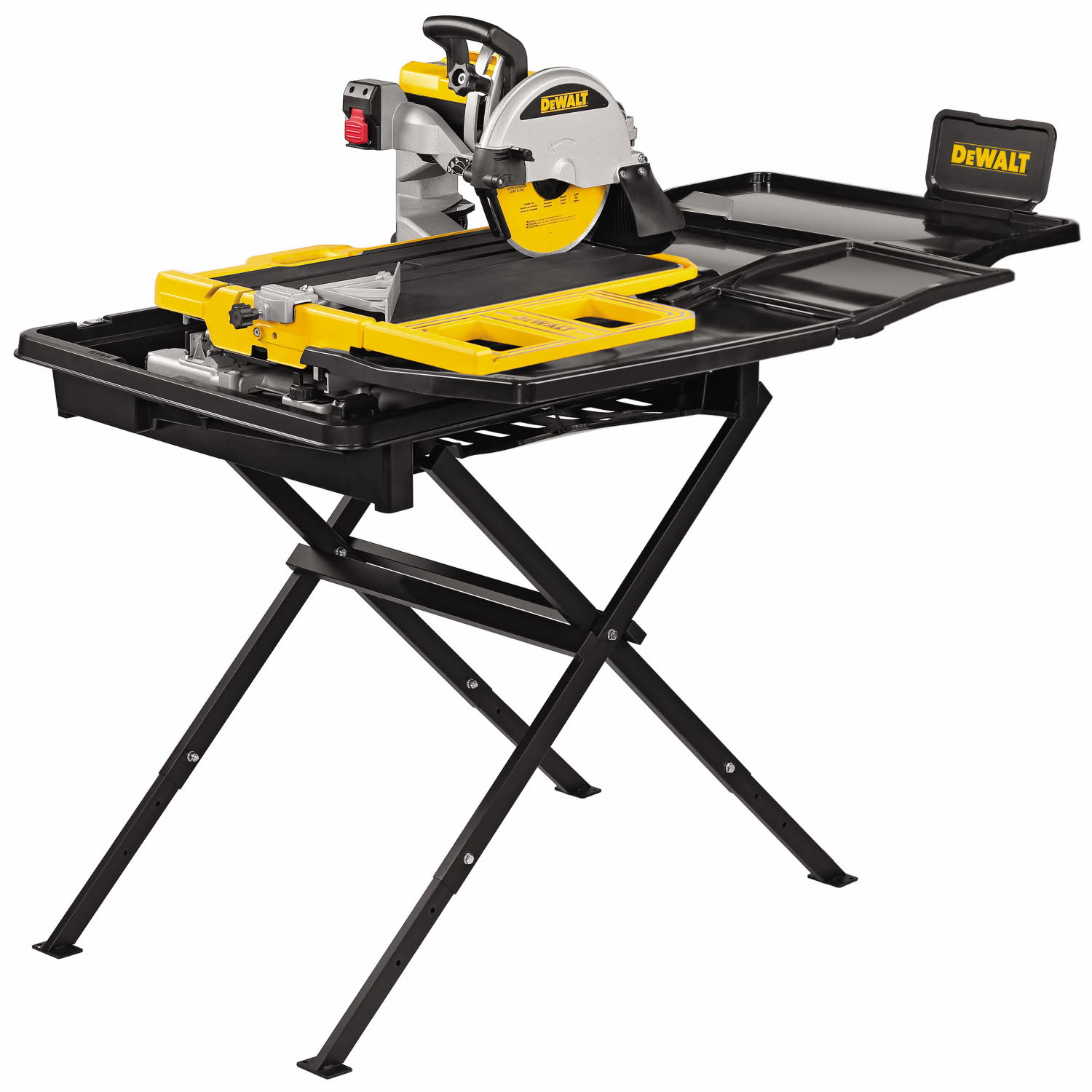

FIERSTRAU DE GRESIE/FAIANTA DEWALT D36000 Type 1
[D36000 Type 1]
FIERSTRAU DE GRESIE/FAIANTA DEWALT D36000 Type 1
Click pentru a mari
Imagini suplimentare
FIERSTRAU DE GRESIE/FAIANTA DEWALT D36000 Type 1
Click pentru a mari
FIERSTRAU DE GRESIE/FAIANTA DEWALT D36000 Type 1
Click pentru a mari
FIERSTRAU DE GRESIE/FAIANTA DEWALT D36000 Type 1
Click pentru a mari
FIERSTRAU DE GRESIE/FAIANTA DEWALT D36000 Type 1
Click pentru a mari
FIERSTRAU DE GRESIE/FAIANTA DEWALT D36000 Type 1
Click pentru a mari
FIERSTRAU DE GRESIE/FAIANTA DEWALT D36000 Type 1
Click pentru a mari

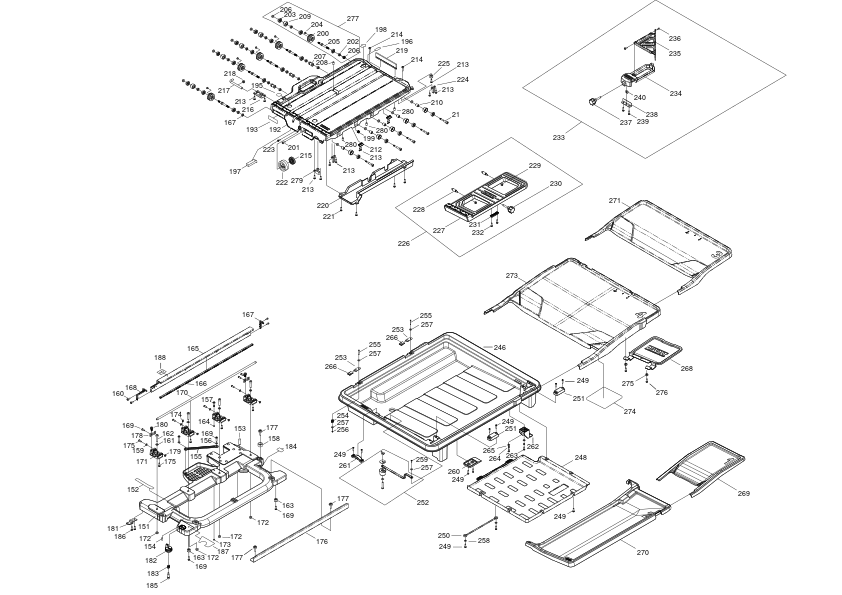

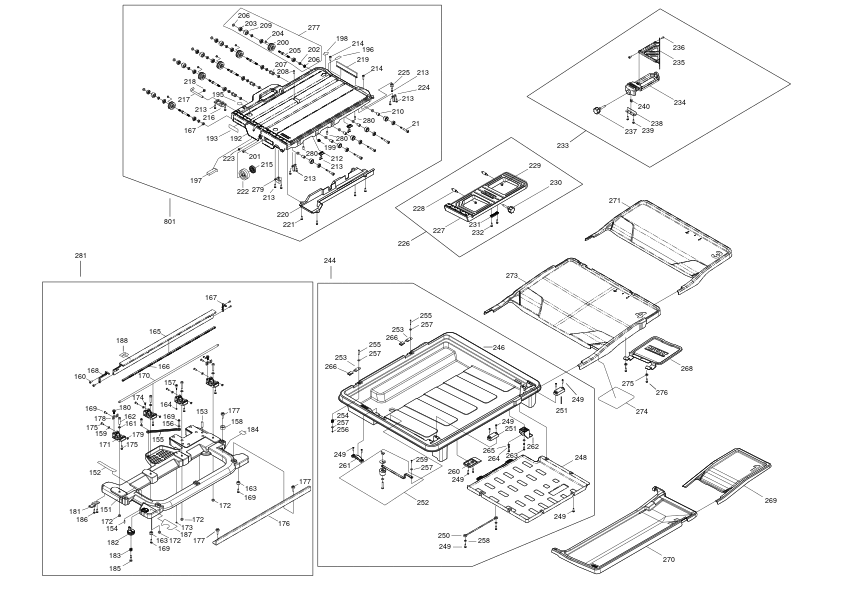

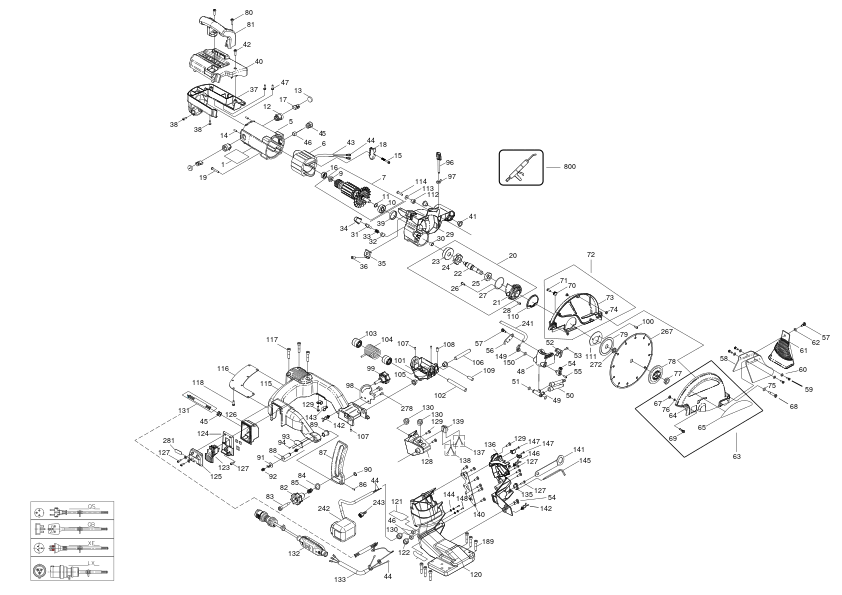

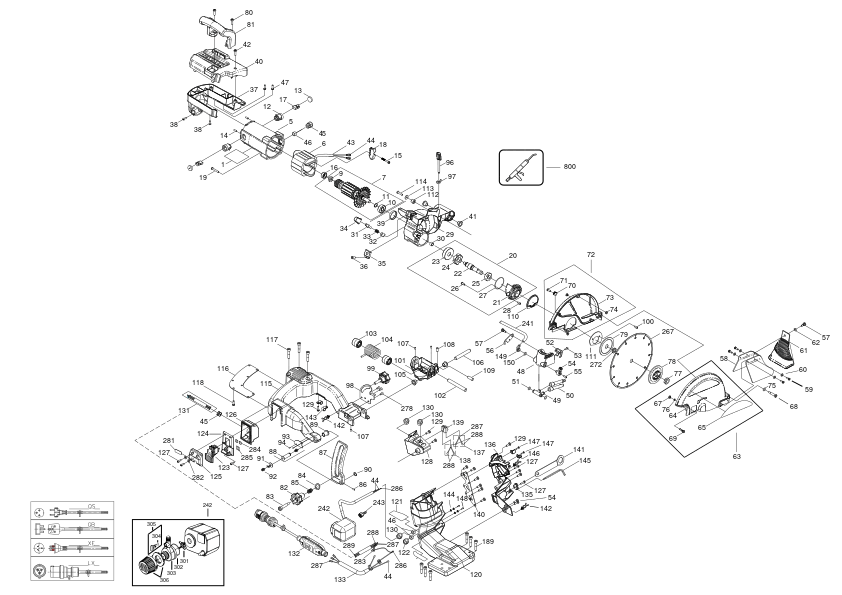

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 N905832 - Indisponibil
1 1 1 NA050085 - Indisponibil
5 1 1 FIELD CASE (N595860) 15469 RON
6 1 1 FIELD SA (N804306) 57833 RON
7 1 1 ARMATURE (N854649) 91363 RON
9 1 1 BEARING (N043347) 2124 RON
10 1 1 BALL BEARING (605040-27) 190 RON
11 1 1 Ring Retaining (398605-00) 558 RON
12 1 2 BRUSH BOX LEAD (N595864) 3268 RON
13 1 2 BRUSH COVER (N595941) 588 RON
14 1 2 SCREW (618305-07) 588 RON
15 1 2 SCREW (618303-03) 944 RON
16 1 1 CUP RUBBER (609970-00) 558 RON
17 1 2 BRUSH (N854657) 2182 RON
18 1 1 CORD PROTECTOR (N600270) 668 RON
19 1 4 SCREW (N661222) 588 RON
20 1 1 GEARCASE COVER SA (612692-00) 40599 RON
21 1 1 COVER GEARCASE (612661-00) 3268 RON
22 1 1 SPINDLE (612695-00) 12361 RON
23 1 1 Gear (612696-00) 16689 RON
24 1 1 HUB (612697-00) 4355 RON
25 1 1 BEARING (605040-41) 3268 RON
26 1 16 SCREW (618302-02) 781 RON
27 1 1 O RING (056122-00) 1229 RON
28 1 18 SCREW (618302-03) 781 RON
29 1 1 ARM (627524-00) 45297 RON
29 1 1 ARM (612663-00) 15993 RON
30 1 1 BEARING NEEDLE (330004-06) 1452 RON
31 1 1 SPINDLE LOCK (612698-00) 1452 RON
32 1 1 FELT SEAL (618568-00) 781 RON
33 1 2 SPRING (398736-00) 781 RON
34 1 1 LOCK BUTTON (616758-00) 781 RON
35 1 1 LINER (612701-00) 781 RON
36 1 14 SCREW (618302-00) 781 RON
37 1 1 END CAP (N607327) 3954 RON
38 1 33 SCREW (618303-01) 781 RON
39 1 1 SLEEVE (609971-00) 781 RON
40 1 1 COVER (612722-00) 9282 RON
41 1 4 BUSHING (612709-00) 5591 RON
42 1 1 SCREW (618302-11) 82 RON
44 1 2 TERMINAL (450213-00) 781 RON
45 1 1 BUSHING STR.RLF (682149-00) 2347 RON
47 1 5 PLASTIC SCREW (618303-05) 588 RON
48 1 1 NOSE (N613271) 2182 RON
49 1 1 MANIFOLD ASSEMBLY (N597141) 82 RON
50 1 2 NOZZLE (613462-00) 1117 RON
51 1 4 O RING (618353-00) 781 RON
52 1 1 PLATE (612773-00) 893 RON
53 1 3 SCREW (618303-00) 781 RON
54 1 1 LEVER (N613269) 588 RON
55 1 1 SCREW (618303-02) 781 RON
56 1 1 RETAINER (612728-00) 2124 RON
57 1 5 SCREW (618369-00) 1117 RON
58 1 1 FLAP (612776-00) 4472 RON
59 1 8 SCREW (618369-01) 781 RON
60 1 8 WASHER (618540-00) 781 RON
61 1 1 REAR FLAP (612778-00) 4137 RON
62 1 1 WASHER (618540-01) 781 RON
63 1 1 COVER (618314-00) 5484 RON
65 1 1 LABEL (395021-00) 190 RON
67 1 2 INSERT (148608-02) 105 RON
68 1 1 SCREW (618369-02) 1452 RON
69 1 1 SCREW (N894610) 114 RON
70 1 1 CLAMP (619683-00) 781 RON
72 1 1 COVER (624451-00) 62298 RON
76 1 1 CLIP (1007796-00) 588 RON
77 1 1 NUT (616755-00) 105 RON
78 1 1 WASHER (N596516) 741 RON
79 1 1 WASHER INNER CLAMP (1005935-00) 22144 RON
80 1 2 SCREW (618302-08) 1229 RON
81 1 1 HANDLE (612702-00) 7940 RON
82 1 1 KNOB (618069-00) 5031 RON
83 1 1 BOLT (623621-00) 3466 RON
84 1 1 WASHER (N596848) 944 RON
86 1 1 SCREW (618305-01) 781 RON
87 1 1 BRACKET (612671-00) 7940 RON
88 1 1 PIN (612717-00) 9282 RON
89 1 1 BUSHING (612709-01) 9282 RON
90 1 1 RETAINER (618542-00) 893 RON
91 1 1 POINTER (623509-00) 2124 RON
92 1 1 SCREW (153460-06) 781 RON
93 1 1 LABEL (618133-00) 1452 RON
94 1 2 SCREW (013486-00) 558 RON
96 1 1 KNOB (616763-00) 4137 RON
97 1 1 NUT FIN (613365-00) 781 RON
98 1 1 PLATE (N596532) 10241 RON
99 1 1 KNOB (612712-00) 2347 RON
101 1 1 TRUNNION (612669-00) 28296 RON
102 1 1 PIVOT SHAFT (612708-00) 12861 RON
103 1 2 SPACER (612710-00) 2124 RON
104 1 1 SPRING (612711-00) 5591 RON
106 1 1 PIVOT SHAFT (614031-00) 14315 RON
107 1 4 GRUB SCREW (618305-00) 893 RON
108 1 1 SCREW (618305-06) 781 RON
109 1 1 SCREW (618305-02) 1117 RON
110 1 1 SLEEVE (612704-00) 105 RON
111 1 1 RETAINER (612705-00) 2795 RON
112 1 1 SPACER (612707-00) 558 RON
113 1 2 WASHER (618540-04) 781 RON
114 1 1 SCREW (618304-00) 1117 RON
115 1 1 ARM (N596892) 85494 RON
116 1 1 PLATE (616771-00) 3018 RON
117 1 3 SCREW (616770-01) 2795 RON
118 1 25 SCREW (618302-06) 1117 RON
120 1 1 COLUMN (N594385) 161583 RON
121 1 1 WARNING LABEL (N765290) 4355 RON
122 1 1 WARNING LABEL (N765289) 3954 RON
123 1 1 SWITCH (N608508) 24962 RON
124 1 1 PLATE (612784-01) 190 RON
125 1 1 BEZEL (612726-01) 1452 RON
126 1 1 ENCLOSURE (612727-00) 2347 RON
128 1 1 TERMINAL BOX (N594389) 3954 RON
130 1 5 RELIEF STRAIN HEYCO SR7P-2 (605155-00) 781 RON
131 1 1 CABLE SA (N887769) 12361 RON
132 1 1 CORDSET (N887580) 73079 RON
133 1 1 WIRE (N914786) 40734 RON
135 1 1 PLATE (N689626) 1630 RON
136 1 1 COVER (N638174) 3268 RON
137 1 1 LEAD (N887990) 2796 RON
138 1 1 LEAD SA (N887991) 2796 RON
139 1 1 BLOCK TERMINAL (393520-00) 2795 RON
140 1 1 SUPPORT PLATE (N594390) 5370 RON
141 1 1 SPANNER (616769-00) 2347 RON
142 1 3 CLIP (388301-00) 781 RON
144 1 4 802214 - Indisponibil
145 1 1 WRENCH (N813578) 1318 RON
146 1 2 CLAMP (N663160) 1318 RON
149 1 1 CONNECTOR (612775-00) 781 RON
152 1 1 LABEL (N765291) 3268 RON
153 1 2 PIN (1006319-00) 4137 RON
154 1 1 PIN (N594406) 588 RON
155 1 1 PUMP (N612023) 2182 RON
157 1 1 SCREW (N596569) 668 RON
158 1 1 DAMPER (146753-00) 558 RON
160 1 4 SCREW (618302-09) 781 RON
161 1 4 WASHER (N688991) 588 RON
162 1 4 SCREW (N689356) 1772 RON
163 1 4 FOOT (616767-00) 781 RON
164 1 1 WASHER (N682850) 1772 RON
165 1 1 TRACK (612732-00) 28296 RON
166 1 1 LINER (617352-00) 2124 RON
167 1 1 CAP (612777-00) 893 RON
168 1 1 CAP (612854-00) 105 RON
170 1 1 GUIDE ROD (612733-00) 20467 RON
171 1 4 BLOCK (N597111) 741 RON
172 1 4 STOP NUT (618539-00) 893 RON
173 1 1 NUT (861340-00) 558 RON
174 1 1 PLUG (627036-00) 105 RON
175 1 8 SCREW (618304-01) 781 RON
176 1 1 RAIL (N644604) 32327 RON
177 1 3 SCREW (618302-07) 1452 RON
178 1 2 BRACKET (612738-00) 2795 RON
179 1 4 INSERT (148608-01) 1452 RON
180 1 2 SCREW (612758-00) 3466 RON
181 1 1 RETAINING PLATE (N615835) 1772 RON
182 1 1 STOP (N594409) 1630 RON
183 1 1 SPRING (N594405) 588 RON
185 1 1 SCREW (N650348) 2182 RON
187 1 1 LABEL (N770152) 944 RON
188 1 1 LABEL (N770149) 82 RON
189 1 6 SCREW (616770-00) 2347 RON
192 1 1 CARRIAGE (N594407) 263063 RON
193 1 1 WARNING LABEL (N765288) 944 RON
195 1 2 WARNING LABEL (610707-00) 781 RON
196 1 1 STRIP (627635-00) 588 RON
197 1 1 FOAM (N811990) 944 RON
198 1 1 LABEL (N780068) 944 RON
199 1 1 INSERT (623086-00) 2795 RON
200 1 5 GUIDE (612741-00) 12861 RON
201 1 1 SCREW (618302-10) 558 RON
202 1 10 SPACER (612743-00) 2795 RON
203 1 15 BEARING (330003-82) 3018 RON
204 1 5 SCREW (618304-07) 781 RON
205 1 5 SHAFT (N596540) 15469 RON
207 1 3 CYLINDER (612746-00) 7940 RON
208 1 1 SCREW (N660522) 82 RON
209 1 10 ROLLER (612742-00) 5591 RON
210 1 5 SPACER (612748-00) 3018 RON
211 1 5 SCREW (618304-05) 1788 RON
211 1 5 SCREW (5170080-20) 1772 RON
212 1 2 PLATE (612749-00) 781 RON
213 1 13 SCREW (618302-03) 781 RON
214 1 2 SCREW (618302-00) 781 RON
215 1 1 DISC (623383-00) 893 RON
216 1 1 BRACKET (N684569) 1772 RON
217 1 1 ROD (617230-00) 5591 RON
218 1 1 SCREW (616785-00) 3466 RON
219 1 1 BRUSH (612755-00) 4472 RON
220 1 1 CHUTE (N632889) 5370 RON
221 1 4 SCREW (618369-01) 781 RON
222 1 1 DISC (612757-00) 4472 RON
223 1 1 SCREW (618369-00) 1117 RON
224 1 2 PLATE (N661138) 1630 RON
225 1 1 BUMPER (N811964) 668 RON
226 1 1 TABLE (N599255) 48037 RON
228 1 1 PIN (1006975-00) 5031 RON
230 1 2 KNOB (612716-00) 2795 RON
231 1 1 COVER (622977-00) 781 RON
232 1 2 SCREW (618302-01) 781 RON
233 1 1 GUIDE (N596595) 20216 RON
235 1 1 GUIDE (612761-00) 14315 RON
238 1 1 PLATE (N596554) 1630 RON
240 1 1 SQUARE (N602517) 588 RON
241 1 1 TUBE (N764636) 4827 RON
242 1 1 PUMP SA (N775113) 148269 RON
243 1 1 ADAPTOR (616779-00) 2795 RON
244 1 1 TRAY (N644191) 228616 RON
246 1 1 TRAY (N644173) 139195 RON
248 1 1 TRAY (N603175) 18568 RON
250 1 1 CORD (N825533) 1933 RON
251 1 2 PLATE (N689213) 668 RON
252 1 1 STOP (N596581) 16689 RON
253 1 2 LATCH (622976-00) 190 RON
254 1 2 SPRING (625913-00) 558 RON
255 1 2 PIN (624727-00) 558 RON
256 1 2 RETAINER (605365-00) 105 RON
257 1 4 WASHER (618540-03) 781 RON
260 1 2 RETAINER (N613577) 2182 RON
261 1 1 PLATE (N607584) 82 RON
262 1 1 HOOK (N811963) 1630 RON
263 1 2 SCREW (N840439) 82 RON
264 1 2 WASHER (N843016) 588 RON
265 1 2 WASHER (N843015) 588 RON
268 1 1 GUARD (N811962) 4827 RON
269 1 1 TABLE (N644849) 24962 RON
270 1 1 TABLE (N644848) 33797 RON
271 1 1 TABLE (N644189) 33797 RON
272 1 1 ADAPTOR (152636-01) 1772 RON
273 1 1 TABLE (N644188) 46247 RON
274 1 1 LABEL (N717693) 9012 RON
275 1 2 BUSHING (N840489) 588 RON
277 1 5 ROLLER SA (627857-00) 32770 RON
278 1 3 SCREW (N877235) 1933 RON
279 1 1 STOP (612739-00) 2347 RON
280 1 3 SCREW M8 x 1 25 x 8 (330022-08) 558 RON
281 1 1 FRAME SA (N594402) 385497 RON
301 1 1 IMPELLOR (1004784-58) 2796 RON
302 1 1 O RING (1004784-59) 2556 RON
303 1 1 REGULATOR (1004784-60) 3954 RON
304 1 1 O RING (1004784-61) 2182 RON
305 1 1 KNOB SA (1004784-62) 3954 RON
306 1 1 SCREEN (1004784-63) 741 RON
800 1 1 GREASE (5140061-28) 34336 RON
801 1 1 CARRIER SA (N594408) 425786 RON
