Top » Piese de schimb » PIESE DEWALT » DWS774 Type 1

FIERASTRAU VERTICAL CU MASA DEWALT DWS774 Type 1
[DWS774 Type 1]
FIERASTRAU VERTICAL CU MASA DEWALT DWS774 Type 1
Click pentru a mari
Imagini suplimentare
FIERASTRAU VERTICAL CU MASA DEWALT DWS774 Type 1
Click pentru a mari
FIERASTRAU VERTICAL CU MASA DEWALT DWS774 Type 1
Click pentru a mari
FIERASTRAU VERTICAL CU MASA DEWALT DWS774 Type 1
Click pentru a mari
FIERASTRAU VERTICAL CU MASA DEWALT DWS774 Type 1
Click pentru a mari

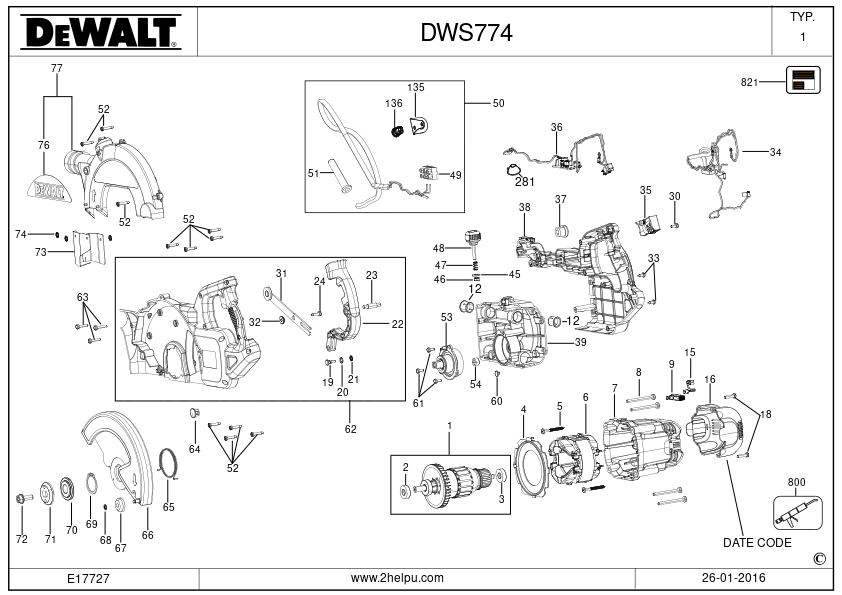

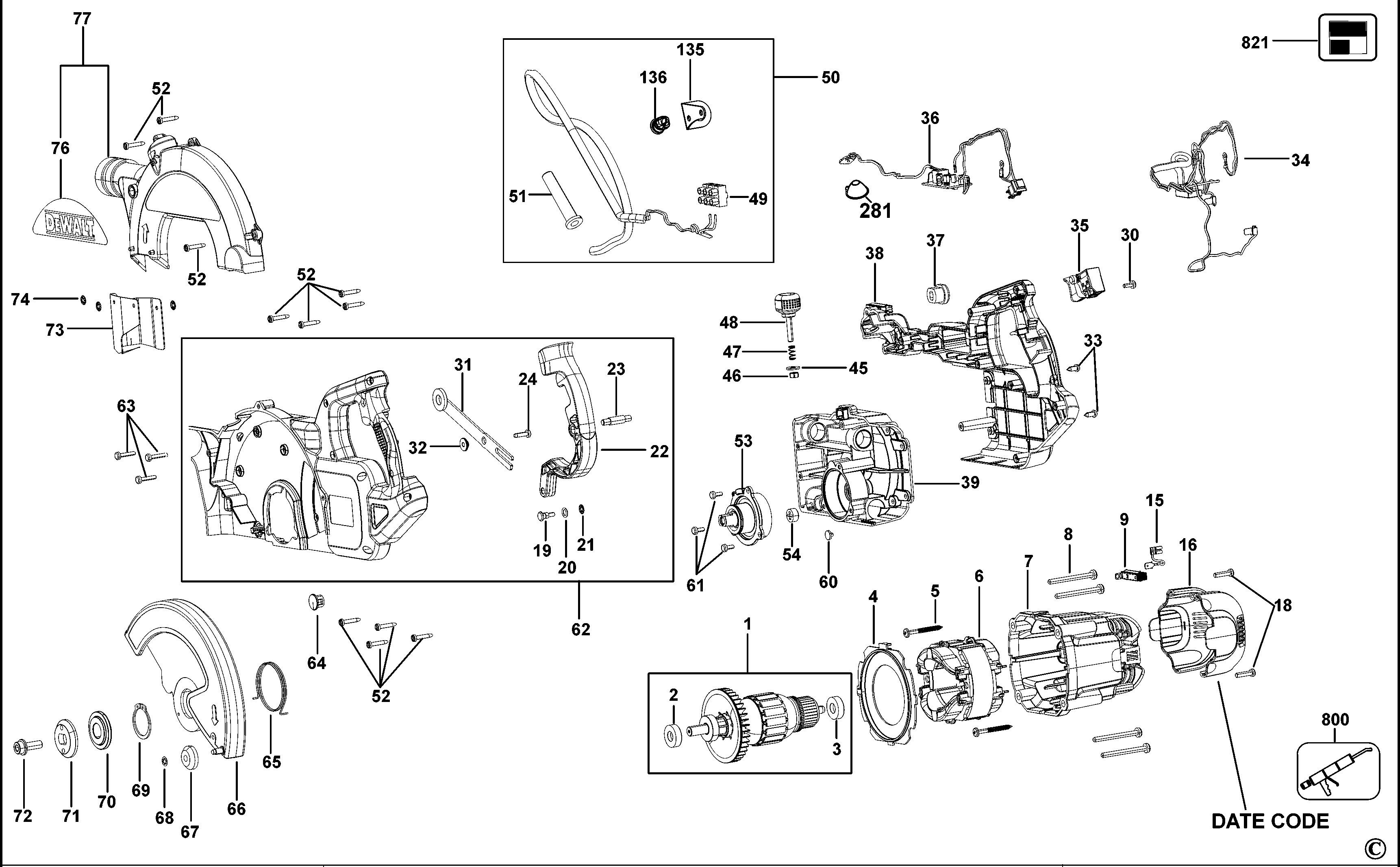

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA ARMATURE+BEARIN 230V. DWS774, SERVIC (N443398) 49827 RON
2 1 1 Ball Brg 6001 ZZ C3 LHT23 (N447750) 1772 RON
3 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
4 1 1 FAN BAFFLE DWS774 (N415295) 668 RON
5 1 2 SCREW THREADFORM D4,8x45 (N432834) 588 RON
6 1 1 FIELD 230V. DWS774, SERVICE (N443396) 25728 RON
7 1 1 N413672 - Indisponibil
7 1 1 HOUSING MOTOR (N785405) 6688 RON
8 1 4 SCREW (98094-55) 588 RON
9 1 1 KIT BRUSHES DWS774, SERVICE (N443400) 741 RON
12 1 2 BUSH (N543353) 82 RON
15 1 2 BRUSHES LEAD WIRE (N442752) 944 RON
16 1 1 END CAP DWS774 (N413668) 114 RON
18 1 2 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
19 1 1 PIN DW777 (869156-00) 893 RON
20 1 1 BUSHING X LEVER D.6 DW777 (869295-00) 558 RON
21 1 1 RING SPRING S.LOCK D.4 (860077-01) 558 RON
22 1 1 LEVER, MOVEABLE GUARD DWS774 (N417784) 2182 RON
23 1 1 PIVOT (760296-01) 781 RON
24 1 1 VITE TCB 4 2X16 B 6954 (930076-01) 558 RON
30 1 2 SCREW MACHINE PAN HD (384127-01) 558 RON
31 1 1 SA LEVER DWS774 (N394413) 114 RON
32 1 1 BUSHING DW777 (869192-00) 781 RON
33 1 2 SCREW (949743-02) 781 RON
34 1 1 SA MOTOR CABLE+CAPACITOR DWS774 (N422245) 6688 RON
35 1 1 SWITCH (N092201V) 5370 RON
36 1 1 SA XPS+WIRING DWS774, SERVICE (N443395) 28836 RON
37 1 1 RELIEF, STRAIN HEYCO SR 7K-2 (N433608) 668 RON
38 1 1 HANDLE COVER RH DWS774 (N416554) 9012 RON
39 1 1 SA CARRIER DWS774, SERVICE (N543840) 30769 RON
39 1 1 N443392 - Indisponibil
45 1 1 WASHER FLAT SPEC. 6.4X16X1.5 (860075-00) 558 RON
46 1 1 NUT M6 (860083-12) 558 RON
47 1 1 SPRING (868082-00) 558 RON
48 1 1 LOCKING KNOB (869140-00) 1117 RON
49 1 1 CONNECTOR BOX 3 POLES 4 SQMM (860468-00) 190 RON
50 1 1 SA POWER CORD AND ACCESSORIES DWS774 QS (N433044) 11337 RON
51 1 1 CORD PROTECTOR (868520-00) 781 RON
52 1 12 SCREW PLASTIC 3.9X22 T20 (N456928) 1318 RON
52 1 12 SCREW (761304-01) 558 RON
53 1 1 SA SPINDLE DWS774 SERVICE (N443393) 28836 RON
54 1 1 ADJUSTER (946874-00) 558 RON
60 1 1 PLUG (947067-00) 781 RON
60 1 1 SLIDE ROLLER (760298-01) 558 RON
61 1 3 SCREW.TEMP (330045-05) 558 RON
62 1 1 N453125 - Indisponibil
62 1 1 SA HANDLE COVER SX AND LEVER (N566679) 11337 RON
63 1 3 SCREW (330045-07) 558 RON
64 1 1 PLUG (947067-00) 781 RON
65 1 1 SPRING (N402337) 588 RON
66 1 1 SA KIT GUARDS DWS774, SERVICE (N546962) 15469 RON
66 1 1 N376459 - Indisponibil
67 1 1 ROLLER (146774-00) 1117 RON
68 1 1 SEAL RING (604728-00) 558 RON
69 1 1 RETAINING RING D.32 (N437811) 668 RON
70 1 1 N377019 - Indisponibil
70 1 1 BLADE WASHER INNER DWS774 (N482904) 2796 RON
71 1 1 BLADE WASHER OUTER (N380081) 1772 RON
72 1 1 SCREW (869245-00) 4137 RON
73 1 1 DEFLECTOR,DUST DWS774 (N437182) 2182 RON
74 1 3 RING SPRING S.LOCK D.4 (860077-01) 558 RON
76 1 1 LABEL DEWALT DWS774 (N437704) 668 RON
77 1 1 SA KIT GUARDS DWS774, SERVICE (N546962) 15469 RON
77 1 1 N437705 - Indisponibil
101 1 1 BASE DWS774, SERVICE (N443388) 51127 RON
102 1 1 N386332 - Indisponibil
102 1 1 MITER SCALE DWS774 (N493151) 3954 RON
103 1 3 SCREW (330045-49) 558 RON
104 1 1 SLIDE ROLLER (760298-01) 558 RON
105 1 4 RUBBER FEET (868777-00) 558 RON
106 1 1 NUT LOCKING M12X1 25 (860092-07) 558 RON
107 1 1 WASHER (949705-01) 558 RON
109 1 1 N443389 - Indisponibil
109 1 1 TABLE DWS774, SERVICE (N493430) 49114 RON
110 1 1 TABLE PIN DWS774 (N312779) 3268 RON
111 1 1 TOP TABLE EXTENSION DWS774 (N381932) 3954 RON
112 1 1 TOP TABLE EXTENSION RH DWS774 (N412530) 3954 RON
113 1 1 CLAMP DW777 (N294299) 10512 RON
115 1 2 SCREW.TEMP (330045-05) 558 RON
116 1 2 WASHER SPRING CON.D5.2X12X0.8 (860074-01) 558 RON
116 1 2 WASHER SPRING CON.D4.2X10X0.6 (860074-00) 558 RON
117 1 1 SPACER FOR LOCKING SYSTEM DW777 (868707-01) 558 RON
118 1 1 BALL 6 3 mm (868708-00) 558 RON
119 1 1 SPRING (868778-00) 558 RON
120 1 2 BUSHING (N299799) 781 RON
121 1 1 SA TABLE LOCKING DW777 (N315680) 6688 RON
122 1 1 KERF PLATE DWS774 (N380813) 114 RON
123 1 2 SCREW (098105-03) 558 RON
123 1 2 98105-03 - Indisponibil
124 1 1 FIX FENCE MACH SC (N368581) 12361 RON
126 1 1 WRENCH (868682-00) 893 RON
127 1 1 WRENCH (N427024) 1318 RON
128 1 4 SCREW SOCKET M.5X25 UNI 5931 (860093-08) 558 RON
129 1 4 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
130 1 1 SA RAILS DWS774, SERVICE (N443391) 35435 RON
131 1 1 SEEGER SHAFT D.14 (N430464) 588 RON
132 1 1 O-RING (N430472) 588 RON
133 1 1 Washer D14 d22 s.3 (N430463) 588 RON
134 1 2 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
135 1 1 BRACKET (N137455) 1117 RON
136 1 1 INSULATED BUSHING DWS778 (N137454) 893 RON
138 1 1 SUPPORT RAILS DWS774, SERVICE (N443390) 21676 RON
139 1 1 RING SPRING SHAFT D10 UNI7435 (860079-02) 558 RON
140 1 1 GASKET DW250-DW252 (949746-02) 558 RON
140 1 1 O RING (943030-00) 558 RON
145 1 3 SCREW (153666-00) 558 RON
146 1 1 SHAFT (N401760) 2556 RON
147 1 1 SCREW (618198-00) 781 RON
148 1 1 PIVOT BUSH DWS774 (N422257) 1318 RON
149 1 1 NUT SELF LOCKING M.8 (860092-05) 558 RON
150 1 1 BEARING (861475-00) 2347 RON
153 1 1 TORSION HEAD SPRING DWS774 (N402913) 4355 RON
154 1 2 SCREW (949894-12) 558 RON
160 1 1 BEVEL SCALE AND LABEL DWS774 (N437177) 944 RON
161 1 1 SHAFT, BEVEL (N395328) 2796 RON
163 1 2 SCREW (153666-00) 558 RON
164 1 1 SEGMENT MACH DWS774 (N368598) 15469 RON
165 1 1 SCREW,CUP SQUARE M8X110 (N447409) 944 RON
166 1 1 LEVER (861840-03) 2795 RON
167 1 1 BEVEL CLAMP DW777 (868680-00) 1788 RON
169 1 1 WASHER (933168-00) 781 RON
170 1 1 SCREW (612008-00) 781 RON
217 1 2 WARNING LABEL (610707-00) 781 RON
281 1 1 LENS DWS774 (N098063) 668 RON
800 1 1 GREASE DW704 TYPE 3 (93488-00) 7940 RON
821 1 1 N424556 - Indisponibil
821 1 1 RATING PLATE (N513364) 588 RON
