Top » Piese de schimb » PIESE DEWALT » DWS715 Type 20

FIERASTRAU VERTICAL CU MASA DEWALT DWS715 Type 20
[DWS715 Type 20]
FIERASTRAU VERTICAL CU MASA DEWALT DWS715 Type 20
Click pentru a mari
Imagini suplimentare
FIERASTRAU VERTICAL CU MASA DEWALT DWS715 Type 20
Click pentru a mari
FIERASTRAU VERTICAL CU MASA DEWALT DWS715 Type 20
Click pentru a mari
FIERASTRAU VERTICAL CU MASA DEWALT DWS715 Type 20
Click pentru a mari

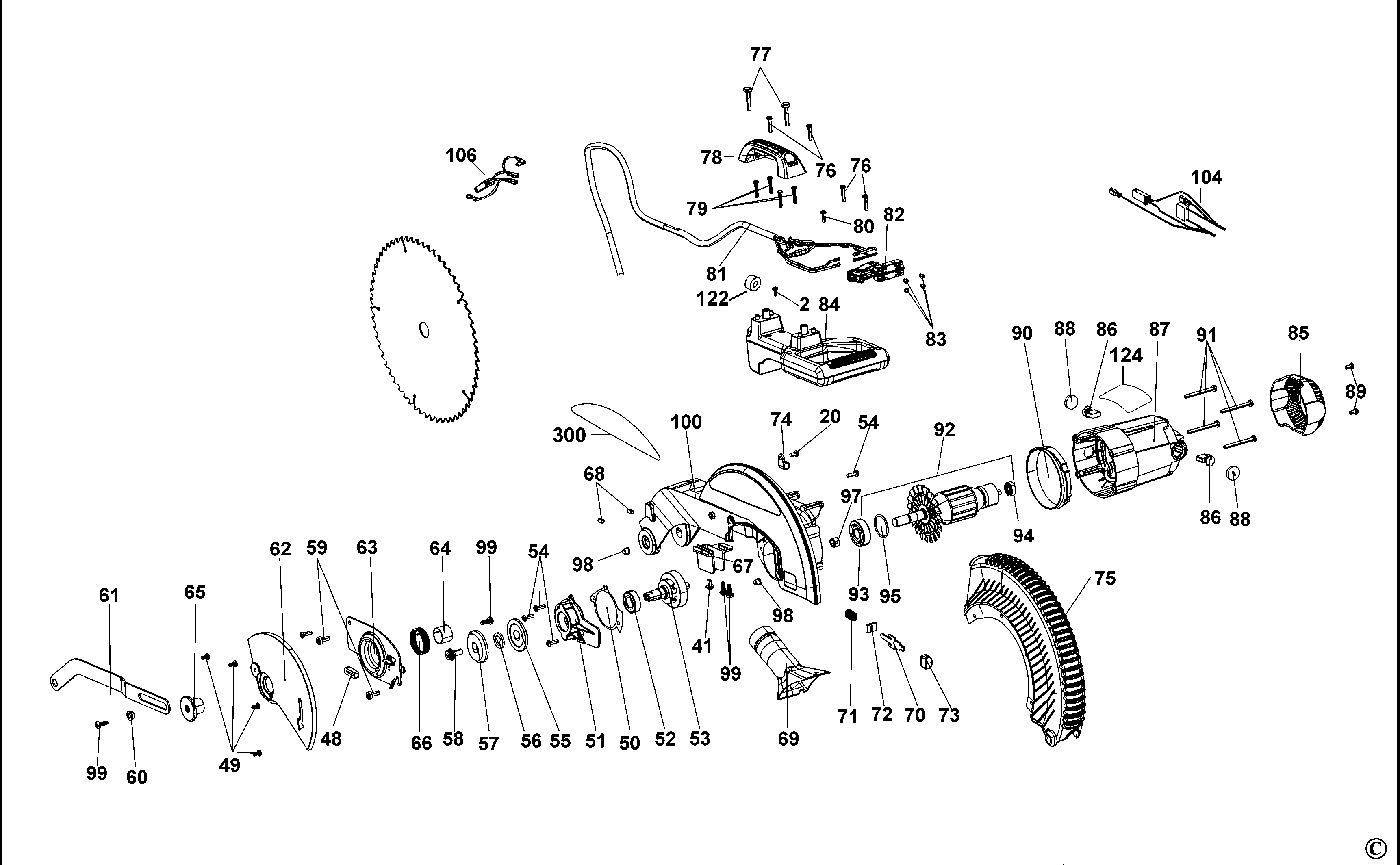

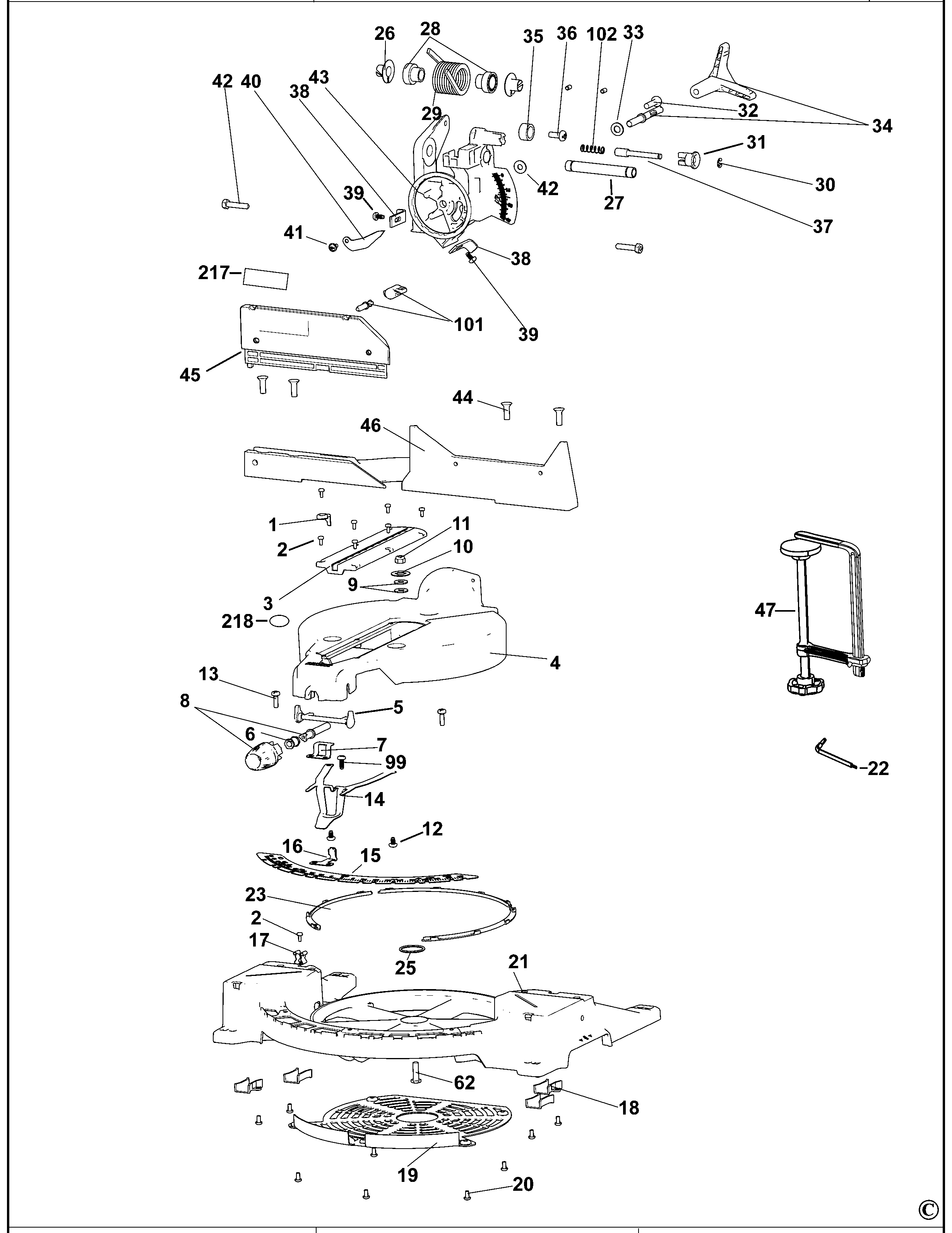

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 POINTER (N542738) 82 RON
2 1 8 SCREW.TEMP (330045-05) 558 RON
3 1 1 COVERPLATE (N542862) 4355 RON
4 1 1 TABLE (N555147) 85494 RON
5 1 1 CAM (N542735) 1933 RON
6 1 1 BUSHING (398256-00) 190 RON
7 1 1 PLATE (N582377) 1630 RON
8 1 1 KNOB SA (N542431) 4827 RON
9 1 2 LAP WASHER (153792-00) 558 RON
10 1 1 CAP (N556926) 588 RON
11 1 1 Stop Nut M8 (330021-02) 558 RON
12 1 4 SCREW (330045-22) 781 RON
13 1 2 SCREW (604410-00) 558 RON
14 1 1 DETENT (N542736) 4827 RON
15 1 1 DETENT (N555150) 16689 RON
16 1 1 PLATE (N543960) 1772 RON
17 1 1 HOLDER (391358-01) 1117 RON
18 1 4 CLAMP, HOLDER DWS727 (N542847) 588 RON
19 1 1 GUARD (N555148) 3268 RON
20 1 14 SCREW (330045-13) 558 RON
21 1 1 BASE (N555155) 10889 RON
22 1 1 SPANNER (N600007) 2182 RON
23 1 3 PLATE (N571680) 944 RON
24 1 1 SCREW M8X1 25 L.27 5 DWS780 (N058318) 781 RON
25 1 1 RING (49787-00) 588 RON
26 1 2 BUSHING (N377514) 1772 RON
27 1 1 PIVOT SHAFT (N126153) 3268 RON
28 1 2 SPACER (146732-00) 781 RON
29 1 1 SPRING (N639013) 27287 RON
31 1 1 KNOB (N562268) 1933 RON
32 1 1 SCREW (612008-00) 781 RON
33 1 1 WASHER PLAIN STEEL 10 * 20 * 2.0 THICK (330016-04) 558 RON
34 1 1 KNOB SA (N542863) 6688 RON
35 1 1 BUSHING (399042-00) 2347 RON
36 1 1 SCREW (330045-32) 781 RON
37 1 1 PIN (N562266) 3268 RON
38 1 2 STOP PLATE (391350-00) 1229 RON
39 1 2 SCREW (330045-55) 558 RON
40 1 1 POINTER (391631-00) 1117 RON
41 1 2 screw dw744 (153460-00) 558 RON
42 1 2 BOLT (N600059) 944 RON
43 1 1 TRUNION (N555141) 49827 RON
44 1 4 98105-03 - Indisponibil
45 1 1 FENCE (N555151) 20216 RON
46 1 1 FENCE (N555159) 46247 RON
47 1 1 CLAMP SA (N543041) 32327 RON
48 1 1 BUMPER (146768-00) 781 RON
49 1 4 N298367 - Indisponibil
49 1 4 SCREW (NA361874) 588 RON
50 1 1 N142856 - Indisponibil
51 1 1 COVER (N142661) 5370 RON
52 1 1 BEARING BALL (330003-29) 3466 RON
53 1 1 SPINDLE AND GEAR SA (N142663) 49827 RON
54 1 5 SCREW (330045-14) 558 RON
55 1 1 WASHER (N595259) 6688 RON
56 1 1 ADAPTOR (393868-00) 3018 RON
57 1 1 CLAMP OUTER (N538823) 2556 RON
58 1 1 BLADE BOLT (N600011) 114 RON
59 1 2 SCREW (394589-01) 781 RON
60 1 1 BUSH (146740-01) 558 RON
61 1 1 GUARD (N559837) 741 RON
62 1 1 N142192 - Indisponibil
63 1 1 PIVOT (399139-00) 5591 RON
64 1 1 SLEEVE (148295-00) 105 RON
65 1 1 RETAINING PLATE (146750-01) 4137 RON
66 1 1 SPRING (N034013) 82 RON
67 1 1 GUARD (N559496) 2556 RON
68 1 2 SCREW (150075-00) 781 RON
69 1 1 DUST PORT (N142065) 2556 RON
70 1 1 N161335 - Indisponibil
71 1 1 SPRING (398736-00) 781 RON
72 1 1 WIPER (146710-00) 781 RON
73 1 1 BUTTON (145350-03) 893 RON
74 1 1 BUSH (153669-00) 558 RON
75 1 1 GUARD (N696696) 18568 RON
76 1 4 SCREW PLASTITE (330019-32) 558 RON
77 1 2 SCREW (CARRY HANDLE) (330019-22) 558 RON
78 1 1 HANDLE (396375-01) 190 RON
79 1 4 SCREW (CARRY HANDLE) (330019-22) 558 RON
80 1 1 screw dw744 (330019-12) 558 RON
82 1 1 SWITCH SA (N763827) 23244 RON
82 1 1 N548978 - Indisponibil
83 1 4 SCREW (N458834) 588 RON
84 1 1 HANDLE SA (N555136) 18568 RON
85 1 1 END CAP (614373-00) 2124 RON
86 1 1 BRUSH PAIR (5140186-31) 741 RON
88 1 2 BRUSH CAP (614368-00) 781 RON
89 1 2 Screw M3.5X16 T15 (330019-03) 558 RON
90 1 1 BAFFLE FAN (614366-00) 2347 RON
91 1 4 SCREW (614375-00) 1117 RON
93 1 1 BALL BEARING (605040-27) 190 RON
94 1 1 BEARING (N043347) 2124 RON
95 1 1 SEAL (701297-00) 558 RON
97 1 1 BEARING NEEDLE (330004-06) 1452 RON
98 1 2 INSERT (148608-00) 558 RON
99 1 4 SCREW (330045-23) 781 RON
100 1 1 ARM (N555138) 78485 RON
101 1 2 KNOB SA (N480602) 2796 RON
102 1 1 SPRING (N562267) 82 RON
103 1 1 DUST BAG (N126162) 5370 RON
104 1 1 CAPACITOR (N152791) 5370 RON
105 1 1 WASHER (330016-13) 558 RON
122 1 1 FERRITE BEAD (388414-01) 1452 RON
217 1 1 WARNING LABEL (N497365) 944 RON
218 1 1 LABEL (394976-00) 1229 RON
300 1 1 BRAND LABEL (N457634) 1772 RON
