Top » Piese de schimb » PIESE DEWALT » DWS713 Type 20

FIERASTRAU VERTICAL CU MASA DEWALT DWS713 Type 20
[DWS713 Type 20]
FIERASTRAU VERTICAL CU MASA DEWALT DWS713 Type 20
Click pentru a mari
Imagini suplimentare
FIERASTRAU VERTICAL CU MASA DEWALT DWS713 Type 20
Click pentru a mari
FIERASTRAU VERTICAL CU MASA DEWALT DWS713 Type 20
Click pentru a mari
FIERASTRAU VERTICAL CU MASA DEWALT DWS713 Type 20
Click pentru a mari
FIERASTRAU VERTICAL CU MASA DEWALT DWS713 Type 20
Click pentru a mari
FIERASTRAU VERTICAL CU MASA DEWALT DWS713 Type 20
Click pentru a mari

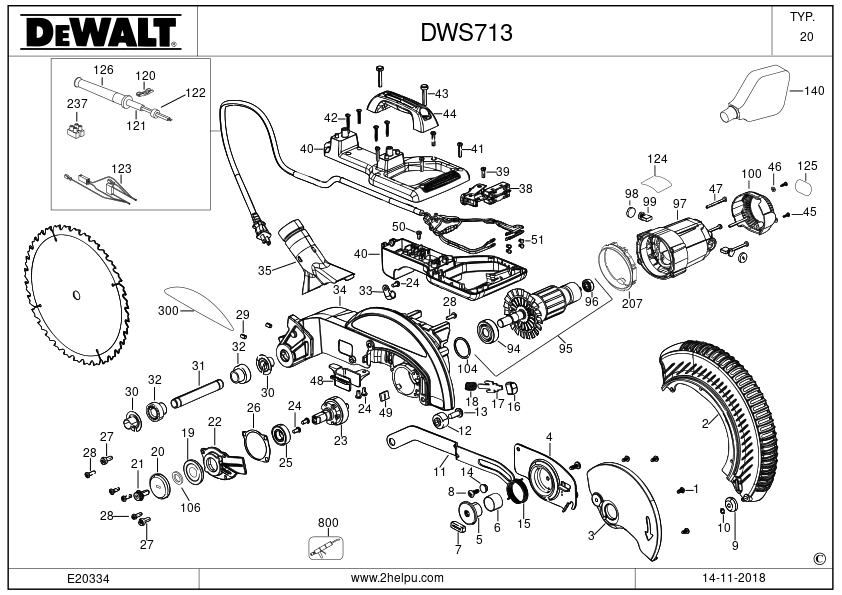

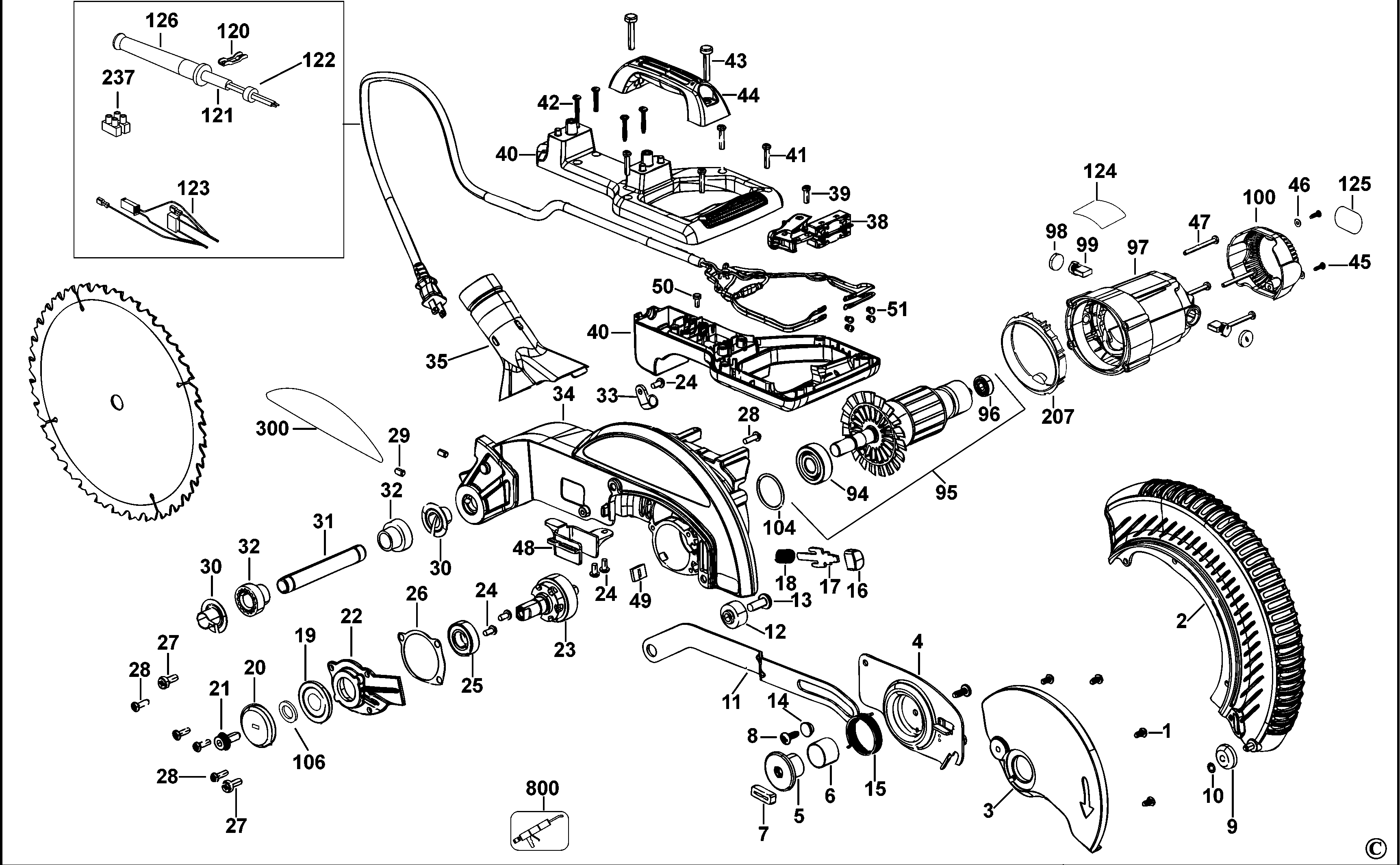

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 N298367 - Indisponibil
1 1 4 SCREW (NA361874) 588 RON
2 1 1 GUARD LOWER (N643684) 15469 RON
3 1 1 GUARD PLATE (N126157) 15469 RON
4 1 1 PLATE (N041989) 10241 RON
5 1 1 RETAINING PLATE (146750-01) 4137 RON
6 1 1 SLEEVE (148295-00) 105 RON
7 1 1 BUMPER (146768-00) 781 RON
8 1 3 SCREW (330045-23) 781 RON
9 1 1 ROLLER (146774-00) 1117 RON
10 1 1 CIRCLIP (603232-00) 558 RON
11 1 1 LINK (391630-00) 6821 RON
12 1 1 BUSHING (399042-00) 2347 RON
13 1 1 SCREW (330045-32) 781 RON
14 1 1 BUSH (146740-01) 558 RON
15 1 1 SPRING (398735-00) 1229 RON
16 1 1 BUTTON (145350-03) 893 RON
17 1 1 LOCK (146714-00) 1229 RON
18 1 1 SPRING (398736-00) 781 RON
19 1 1 BUSHING,ARBOR (N542996) 5370 RON
20 1 1 CLAMP,OUTER (N542995) 5370 RON
21 1 1 BLADE BOLT (N600011) 114 RON
22 1 1 GEARCASE COVER (391573-00) 4472 RON
23 1 1 SPINDLE & GEAR (392628-00) 14315 RON
24 1 12 SCREW (330045-13) 558 RON
25 1 1 BEARING BALL (330003-29) 3466 RON
26 1 1 GASKET (391632-00) 781 RON
27 1 2 SCREW (394589-01) 781 RON
28 1 5 SCREW (330045-14) 558 RON
29 1 2 SCREW (150075-00) 781 RON
30 1 2 BUSHING (N377514) 1772 RON
31 1 1 PIVOT SHAFT (N126153) 3268 RON
32 1 2 SPACER (146732-00) 781 RON
33 1 1 BUSH (153669-00) 558 RON
35 1 1 CHUTE (N126158) 1318 RON
39 1 1 screw dw744 (330019-12) 558 RON
40 1 1 HANDLE SA (N555136) 18568 RON
41 1 4 SCREW PLASTITE (330019-32) 558 RON
42 1 4 SCREW METAL THD FRM M4X25 T20 (330045-08) 558 RON
43 1 2 SCREW (CARRY HANDLE) (330019-22) 558 RON
44 1 1 HANDLE (396375-01) 190 RON
45 1 2 SCREW PLSTC THD FORM M4.55X13 T20 (330019-11) 558 RON
46 1 2 WASHER (N448947) 588 RON
47 1 4 SCREW (614375-00) 1117 RON
48 1 1 GUARD REAR (N543000) 2182 RON
49 1 1 WIPER (146710-00) 781 RON
50 1 9 SCREW.TEMP (330045-05) 558 RON
51 1 4 SCREW (N458834) 588 RON
52 1 4 CLAMP, HOLDER DWS727 (N542847) 588 RON
53 1 1 GUARD (N542842) 2556 RON
54 1 1 SCREW M8X1 25 L.27 5 DWS780 (N058318) 781 RON
55 1 1 BASE (N540816) 10889 RON
56 1 1 BEVEL SCALE (N542798) 18568 RON
57 1 1 SCREW (604410-00) 558 RON
58 1 1 HOLDER (391358-01) 1117 RON
59 1 1 PLATE (N571400) 82 RON
60 1 1 RING (49787-00) 588 RON
61 1 4 SCREW (330045-22) 781 RON
62 1 1 CAM (N542735) 1933 RON
63 1 1 BUSHING (N366384) 2796 RON
64 1 1 PLATE (N543960) 1772 RON
65 1 1 KNOB SA (N542431) 4827 RON
66 1 1 PLATE (N582377) 1630 RON
67 1 1 DETENT (N542736) 4827 RON
68 1 1 POINTER (391631-00) 1117 RON
69 1 1 screw dw744 (153460-00) 558 RON
71 1 2 SCREW (N606924) 114 RON
72 1 2 LAP WASHER (153792-00) 558 RON
73 1 1 Stop Nut M8 (330021-02) 558 RON
74 1 1 CAP (N556926) 588 RON
75 1 1 COVERPLATE (N542862) 4355 RON
76 1 1 POINTER (N542738) 82 RON
77 1 1 CLAMP SA (N543041) 32327 RON
78 1 4 SCREW (098105-03) 558 RON
78 1 4 98105-03 - Indisponibil
79 1 1 KNOB SA (N480602) 2796 RON
80 1 1 FENCE SA (N646419) 21676 RON
81 1 1 FENCE (N542430) 38463 RON
83 1 1 TRUNNION (N542888) 38463 RON
84 1 1 PIN (N562266) 3268 RON
85 1 1 KNOB (N562268) 1933 RON
86 1 1 SPRING (N562267) 82 RON
87 1 1 RETAINER (624038-00) 558 RON
88 1 1 WASHER (330016-13) 558 RON
89 1 1 SCREW (612008-00) 781 RON
90 1 1 WASHER PLAIN STEEL 10 * 20 * 2.0 THICK (330016-04) 558 RON
91 1 1 SPRING (N639012) 13697 RON
92 1 1 SPANNER (N600007) 2182 RON
94 1 1 BEARING BALL (330003-13) 4137 RON
96 1 1 330003-04 - Indisponibil
96 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
98 1 2 BRUSH CAP (614368-00) 781 RON
100 1 1 END CAP (N171521) 2796 RON
102 1 1 KNOB SA (N542863) 6688 RON
104 1 1 SEAL (701297-00) 558 RON
106 1 1 ADAPTOR (393868-00) 3018 RON
120 1 1 CORD CLAMP (003618-00) 558 RON
122 1 1 FERRITE BEAD (388414-01) 1452 RON
125 1 1 BRAND LABEL DW (N625165) 668 RON
126 1 1 CORD PROTECTOR (330005-02) 1117 RON
140 1 1 DUST BAG (N126162) 5370 RON
207 1 1 BAFFLE FAN (614366-00) 2347 RON
217 1 1 WARNING LABEL (N497365) 944 RON
218 1 4 LABEL (394976-00) 1229 RON
237 1 1 BLOCK TERMINAL (393520-00) 2795 RON
300 1 1 BRAND LABEL (N627027) 1630 RON
800 1 1 GREASE (5140061-28) 34336 RON
800 1 1 GREASE DW704 TYPE 3 (93488-00) 7940 RON
