FIERASTRAU VERTICAL CU MASA DEWALT DW715 Type 1
[DW715 Type 1]
FIERASTRAU VERTICAL CU MASA DEWALT DW715 Type 1
Click pentru a mari
Imagini suplimentare
FIERASTRAU VERTICAL CU MASA DEWALT DW715 Type 1
Click pentru a mari
FIERASTRAU VERTICAL CU MASA DEWALT DW715 Type 1
Click pentru a mari

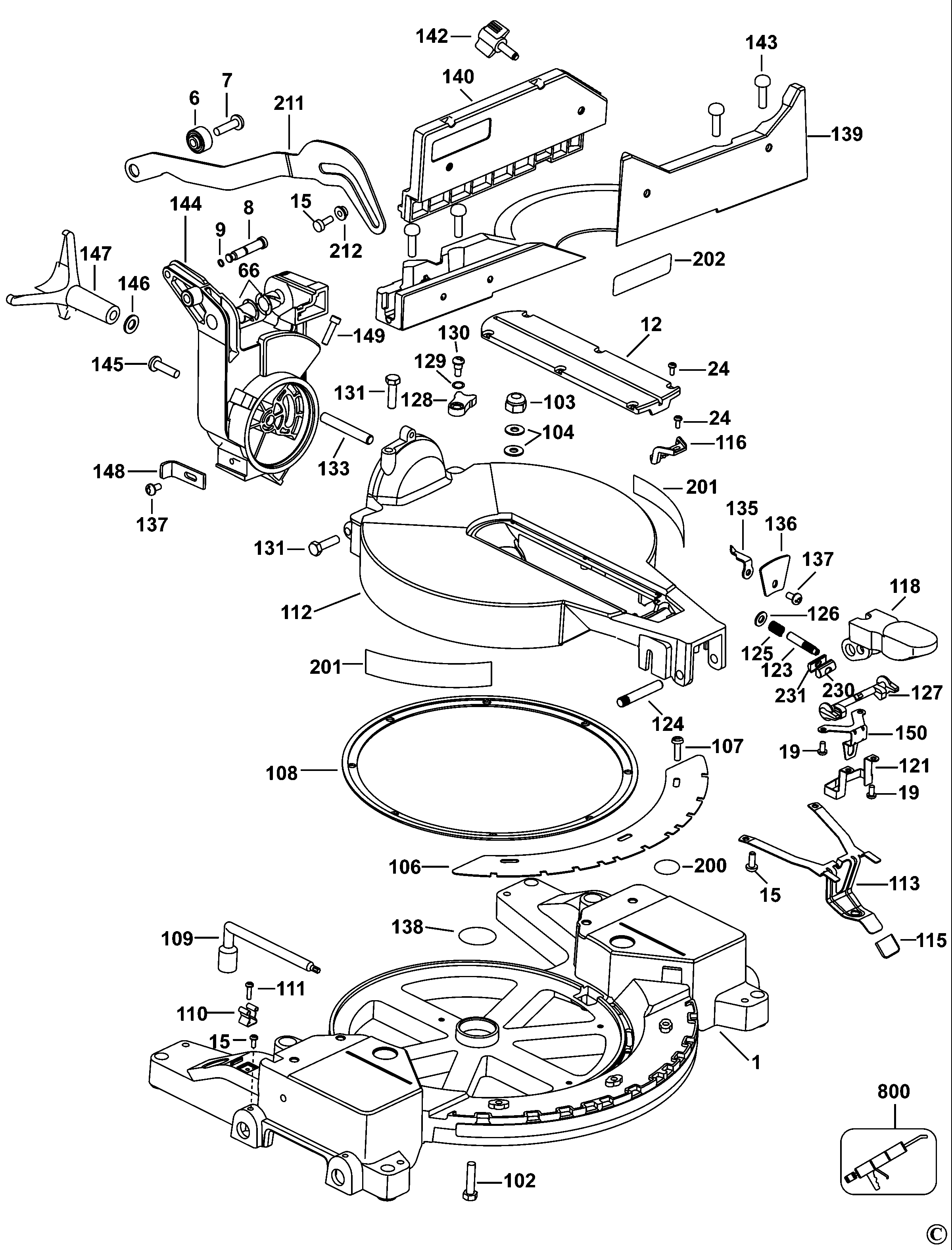

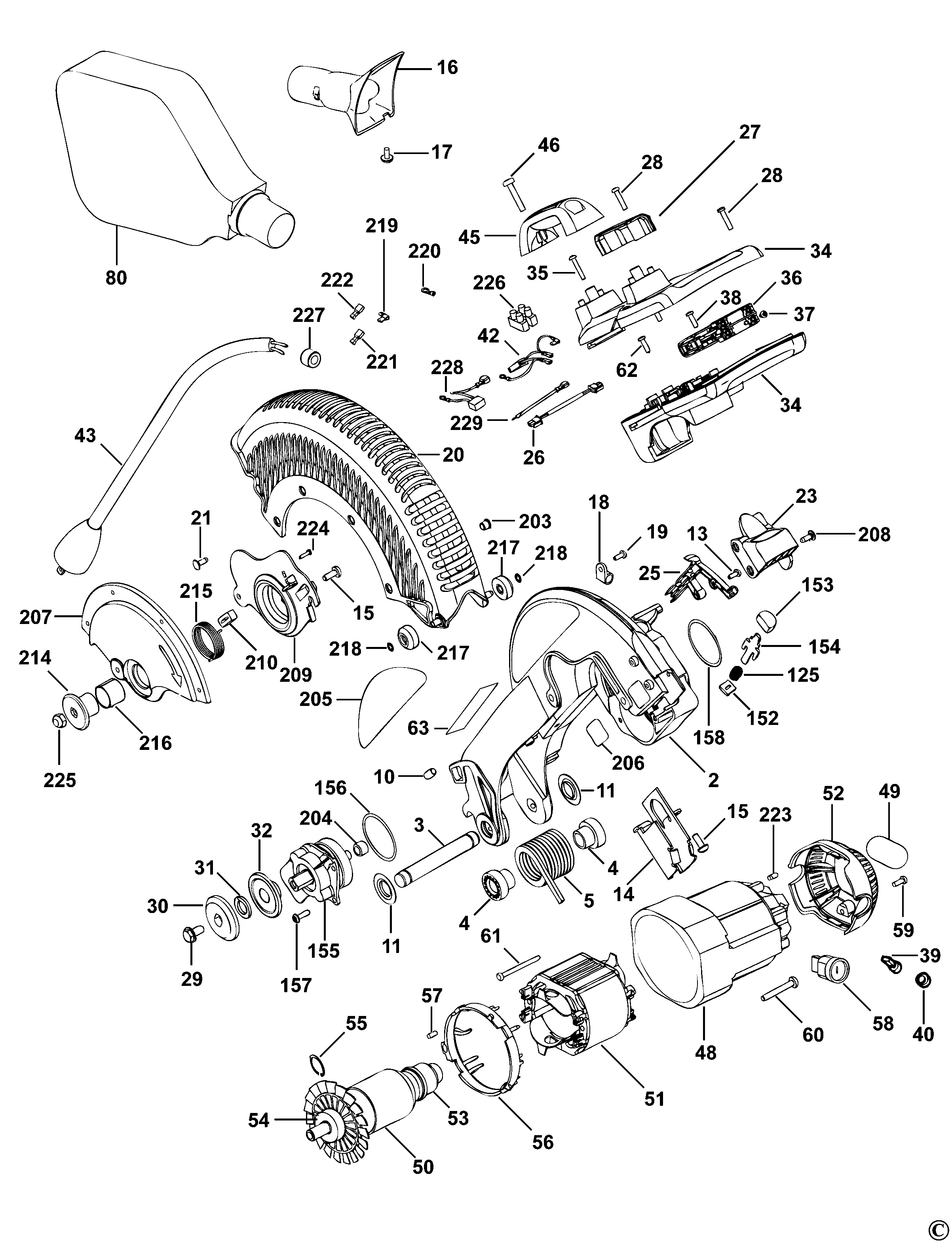

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 626389-00 - Indisponibil
2 1 1 626403-00 - Indisponibil
2 1 1 626403-00SV - Indisponibil
3 1 1 SHAFT (146751-00) 2124 RON
4 1 2 SPACER (146732-00) 781 RON
5 1 1 N034943 - Indisponibil
5 1 1 633290-02 - Indisponibil
6 1 1 BUSH (385756-01) 1229 RON
7 1 1 SCREW (330045-32) 781 RON
8 1 1 PIN LOCKING (387130-00) 2347 RON
9 1 1 GASKET (34158-00) 588 RON
10 1 2 SCREW (150075-00) 781 RON
11 1 2 PLASTIC WASHER (148296-00) 781 RON
12 1 1 PLATE (146726-02) 3018 RON
13 1 9 SCREW.TEMP (330045-05) 558 RON
14 1 1 618189-00 - Indisponibil
15 1 8 SCREW (330045-23) 781 RON
16 1 1 DUST DEFLECTOR (391336-00) 2347 RON
17 1 1 screw dw744 (153460-00) 558 RON
18 1 1 BUSH (153669-00) 558 RON
19 1 5 SCREW (330045-13) 558 RON
20 1 1 618230-00 - Indisponibil
21 1 2 SCREW (394589-01) 781 RON
23 1 1 COVER (N026930) 190 RON
23 1 1 COVER (618280-00) 2124 RON
24 1 4 SCREW (385915-02) 558 RON
25 1 1 624900-00 - Indisponibil
26 1 1 CABLE SA (618213-00) 2795 RON
26 1 1 N467585 - Indisponibil
27 1 1 COVER (618270-00) 190 RON
28 1 6 SCREW PLASTITE (330019-32) 558 RON
29 1 1 LOCKING SCREW BLADE (145344-01) 781 RON
29 1 1 SCREW (869245-00) 4137 RON
30 1 1 CLAMP OUTER (151962-01) 1452 RON
31 1 1 BLADE HOLDER 2.3 (152636-00) 1788 RON
32 1 1 WASHER INNER CLAMP (141987-04) 2795 RON
34 1 1 623017-00 - Indisponibil
35 1 4 SCREW METAL THD FRM M4X25 T20 (330045-08) 558 RON
36 1 1 606056-00 - Indisponibil
36 1 1 SWITCH 1269.1402-02 1269R164 R.22A cod vechi 606056-00 (N548978V) 7940 RON
36 1 1 SWITCH-JIABEN (N845995) 741 RON
37 1 4 SCREW MACHINE PAN HD (384127-01) 558 RON
38 1 1 screw dw744 (330019-12) 558 RON
39 1 2 BRUSH SA (145323-06) 2795 RON
40 1 2 BRUSH CAP (448084-01) 781 RON
42 1 1 618214-00 - Indisponibil
45 1 1 HANDLE (396375-00) 190 RON
46 1 2 SCREW (CARRY HANDLE) (330019-22) 558 RON
49 1 1 NAMEPLATE (605189-00) 558 RON
50 1 1 ARMATURE SA (397200-04SV) 86681 RON
52 1 1 END CAP DW705 TYPE 2.3 (387678-00) 1891 RON
53 1 1 BEARING BALL (330003-60) 190 RON
54 1 1 BEARING BALL (330003-13) 4137 RON
55 1 1 SEAL RING (144803-00) 781 RON
56 1 1 BAFFLE (146723-01) 1788 RON
57 1 1 RUBBER PLUG (145312-00) 558 RON
58 1 2 BRUSH HOLDER SA (147097-09) 10512 RON
58 1 2 BRUSH 230V CUT OFF SA (147097-06) 6821 RON
60 1 4 SCREW (98094-55) 588 RON
61 1 2 SCREW PLASTITE (330019-19) 781 RON
62 1 1 SCREW TAPTITE M4x12 SLT/T20 (330045-45) 558 RON
66 1 2 BUSHING NYLINER 10L7-5/8 D27111 (645746-00) 1229 RON
79 1 1 639097-00 - Indisponibil
80 1 1 DUST BAG DW708 (147734-06) 3466 RON
102 1 1 98025-35 - Indisponibil
102 1 1 SCREW TE M8X35 (098025-35) 781 RON
104 1 2 LAP WASHER (153792-00) 558 RON
106 1 1 DETENT (391292-01) 9282 RON
107 1 3 SCREW (604410-00) 558 RON
108 1 1 PLATE (391353-00) 3018 RON
108 1 1 PLATE (N714621) 5370 RON
109 1 1 WRENCH (608563-01) 3018 RON
110 1 1 HOLDER (391358-01) 1117 RON
111 1 1 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
113 1 1 637810-00 - Indisponibil
115 1 1 COVER (148611-00) 558 RON
116 1 1 POINTER (398693-00) 105 RON
118 1 1 LEVER LOCK (649430-00) 3466 RON
118 1 1 LEVER (626629-00) 3466 RON
121 1 1 PLATE (630693-00) 2347 RON
123 1 1 ROD (626610-00) 1117 RON
124 1 1 PIN (626611-00) 1117 RON
125 1 2 58698-00 - Indisponibil
126 1 1 WASHER PLAIN. STEEL 8*16*1.6 THICK (330016-03) 558 RON
128 1 1 PAWL (391347-00) 105 RON
129 1 1 WAVY WASHER (153655-00) 558 RON
130 1 1 SHOULDER SCREW (153639-00) 781 RON
131 1 3 SCREW (153797-01) 781 RON
133 1 1 STUD (146760-02) 1117 RON
135 1 1 POINTER (391345-00) 1229 RON
136 1 1 DUST DEFLECTOR (393570-00) 781 RON
137 1 3 SCREW (330045-55) 558 RON
138 1 1 RING (49787-00) 588 RON
139 1 1 626409-00 - Indisponibil
142 1 1 KNOB LOWER (147107-02) 1117 RON
143 1 4 SCREW (098105-03) 558 RON
143 1 4 98105-03 - Indisponibil
144 1 1 5140071-60 - Indisponibil
144 1 1 626411-00 - Indisponibil
145 1 1 330045-65 - Indisponibil
146 1 1 WASHER PLAIN STEEL 10 * 20 * 2.0 THICK (330016-04) 558 RON
147 1 1 HANDLE (391344-00) 4137 RON
148 1 2 STOP PLATE (391350-00) 1229 RON
149 1 1 SCREW (391346-00) 781 RON
150 1 1 PLATE (629175-00) 1788 RON
152 1 1 FELT (387732-00) 781 RON
153 1 1 BUTTON (145350-00) 558 RON
154 1 1 LOCK (146714-00) 1229 RON
156 1 1 O RING (616961-00) 781 RON
157 1 3 SCREW (330045-14) 558 RON
158 1 1 SEAL (701297-00) 558 RON
200 1 2 LABEL (394976-00) 1229 RON
203 1 2 INSERT (148608-00) 558 RON
204 1 1 BEARING DW704 TYPE 3 (386780-00) 190 RON
205 1 1 LABEL (393706-00) 781 RON
208 1 4 SCREW (385915-01) 558 RON
210 1 1 BUMPER (146768-00) 781 RON
211 1 1 LINK (391314-00) 3466 RON
212 1 1 BUSH (146740-01) 558 RON
214 1 1 KIT GUARD HUB+SCREW SERVICE (N390418) 4472 RON
214 1 1 RETAINER (614843-00) 781 RON
215 1 1 SPRING (146748-00) 781 RON
215 1 1 SPRING (661454-00) 1117 RON
216 1 1 SLEEVE (148295-00) 105 RON
217 1 2 ROLLER (625825-00) 781 RON
218 1 2 RING (142273-00) 558 RON
219 1 3 CONTACT (145332-00) 558 RON
223 1 2 PIN (87205-00) 558 RON
224 1 1 SCREW.TEMP (330045-25) 558 RON
225 1 1 KIT GUARD HUB+SCREW SERVICE (N390418) 4472 RON
225 1 1 NUT LOCK M6 (385137-00) 558 RON
228 1 1 631950-00 - Indisponibil
229 1 1 631948-00 - Indisponibil
230 1 1 NUT MITER LOCK (621322-00) 1229 RON
231 1 1 NUT MITER LOCK (621321-00) 893 RON
800 1 1 GREASE (429698-00) 62298 RON
