Top » Piese de schimb » PIESE DEWALT » DW714 Type 1

FIERASTRAU VERTICAL CU MASA DEWALT DW714 Type 1
[DW714 Type 1]
FIERASTRAU VERTICAL CU MASA DEWALT DW714 Type 1
Click pentru a mari
Imagini suplimentare
FIERASTRAU VERTICAL CU MASA DEWALT DW714 Type 1
Click pentru a mari
FIERASTRAU VERTICAL CU MASA DEWALT DW714 Type 1
Click pentru a mari
FIERASTRAU VERTICAL CU MASA DEWALT DW714 Type 1
Click pentru a mari

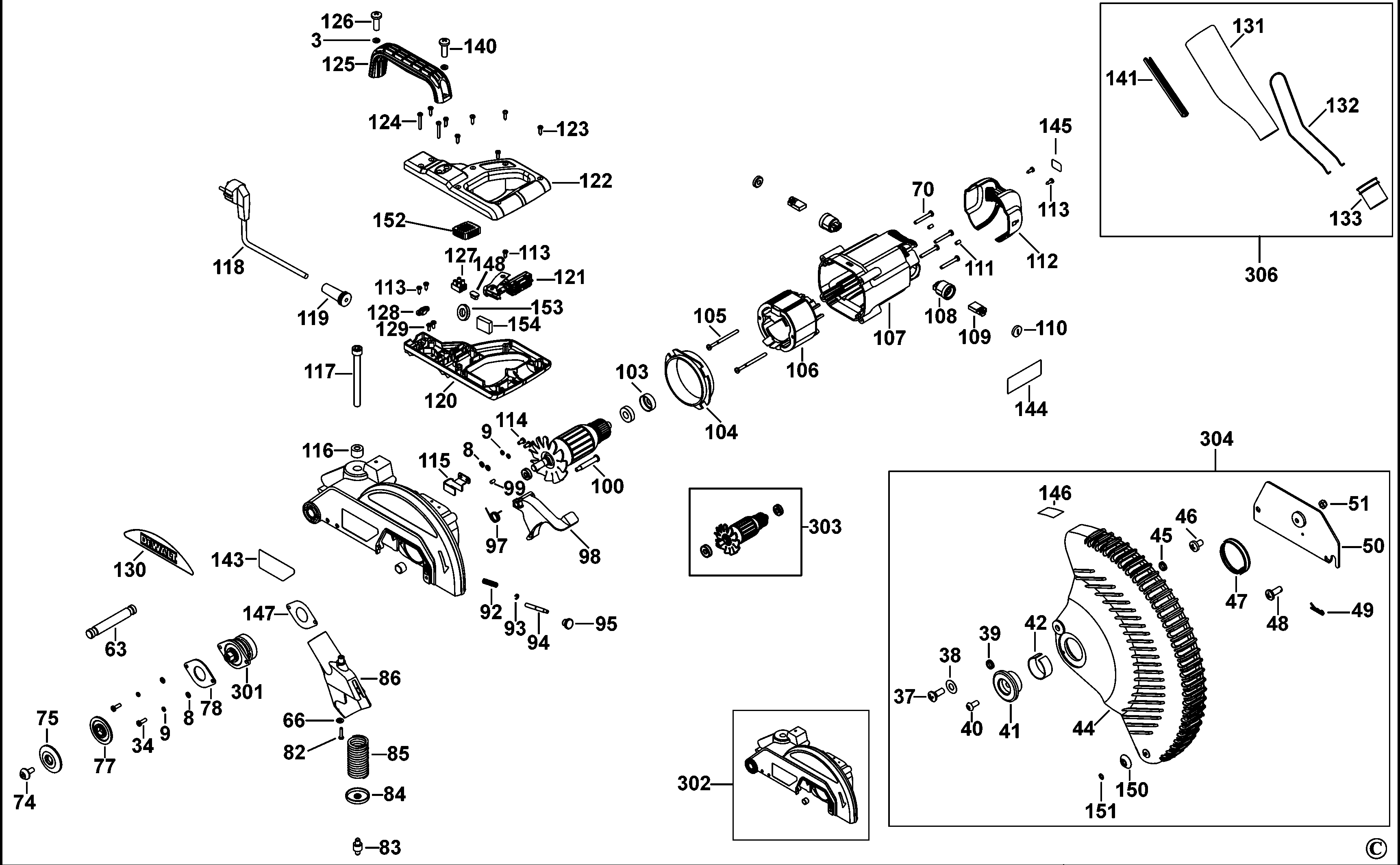

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 3 SCREW (N478550) 588 RON
2 1 3 WASHER SPRING (N478551) 588 RON
3 1 6 WASHER (N478552) 588 RON
4 1 1 CATCHPLATE (N478553) 2182 RON
5 1 3 SCREW (N478662) 588 RON
6 1 2 SUPPORT (N478480) 12361 RON
7 1 1 BASE (N478554) 73079 RON
8 1 6 WASHER (N478583) 588 RON
9 1 6 WASHER SPRING (N478584) 588 RON
10 1 2 SCREW (N478557) 588 RON
11 1 3 SCREW (N478558) 588 RON
12 1 1 SUPPORT. REAR (N478559) 5370 RON
15 1 1 HEX KEY (N478560) 114 RON
16 1 1 HOLDER (N478561) 588 RON
17 1 1 SCALE (N478562) 2796 RON
18 1 2 WARNING LABEL (N486410) 588 RON
19 1 1 PAD (N478564) 1630 RON
20 1 2 KNOB (N478684) 944 RON
21 1 1 SCREW (N478685) 588 RON
22 1 4 WASHER (N478544) 588 RON
23 1 4 WASHER SPRING (N478543) 588 RON
24 1 4 SCREW (N478513) 588 RON
25 1 1 FENCE (N478686) 27287 RON
26 1 1 LOCK HANDLE (N504612) 2556 RON
27 1 1 SPRING (N478548) 588 RON
28 1 1 PIN (N478541) 944 RON
29 1 1 LOCKING PIN (N478542) 2556 RON
30 1 1 BRACKET (N478470) 2556 RON
31 1 1 TABLE (N478659) 49827 RON
32 1 1 WASHER LOCK (N478540) 944 RON
33 1 1 LEVER LOCK (N478469) 1772 RON
34 1 2 SCREW (N478592) 588 RON
35 1 1 SCREW (N478670) 588 RON
36 1 1 SCREW (N478482) 82 RON
37 1 1 SCREW (N478502) 82 RON
38 1 2 WASHER (N478499) 588 RON
39 1 2 SLEEVE (N478500) 944 RON
40 1 1 SCREW (N478565) 588 RON
41 1 1 BUSHING (N478566) 588 RON
42 1 1 SLEEVE (N478567) 588 RON
43 1 1 CON ROD (N478501) 741 RON
44 1 1 GUARD (N478568) 11337 RON
45 1 2 NUT M6 (N478572) 588 RON
46 1 1 SCREW (N478507) 588 RON
47 1 1 SPRING (N478569) 668 RON
48 1 1 SCREW (N478587) 588 RON
49 1 1 LOCK PIN (N478588) 82 RON
50 1 1 PLATE (N478570) 2556 RON
51 1 1 NUT M5 (N478571) 588 RON
52 1 1 SHAFT (N478669) 114 RON
53 1 1 SCREW (N478668) 588 RON
54 1 1 NUT M10 (N478667) 588 RON
55 1 1 TRUNION (N478673) 24962 RON
56 1 2 WASHER M10 (N478538) 588 RON
57 1 1 NUT M10 (N478539) 588 RON
58 1 1 KNOB (N478680) 1772 RON
59 1 2 SCREW (N478674) 588 RON
60 1 1 SCREW (N478675) 588 RON
61 1 1 LOCKING PIN (N478677) 1318 RON
62 1 1 O RING (N478678) 1630 RON
63 1 1 SHAFT (N478533) 2556 RON
64 1 1 LABEL (N478679) 588 RON
65 1 2 WASHER SPRING (N478696) 588 RON
66 1 3 WASHER (N478574) 588 RON
67 1 2 NUT M8 (N478661) 588 RON
68 1 1 POINTER (N478663) 588 RON
69 1 2 WASHER SPECIAL (N478536) 588 RON
70 1 4 SCREW (N501769) 668 RON
71 1 1 NUT M8 (N478537) 588 RON
72 1 1 COVERPLATE (N478546) 2182 RON
73 1 4 SCREW (N478547) 588 RON
74 1 1 BLADE BOLT (N478509) 1933 RON
75 1 1 WASHER OUTER CLAMP (N478510) 3268 RON
77 1 1 WASHER INNER CLAMP (N514570) 3268 RON
78 1 1 BEARING PLATE (N478595) 82 RON
79 1 1 N478597 - Indisponibil
82 1 1 SCREW (N478573) 588 RON
83 1 1 STOP (N478506) 588 RON
84 1 1 HOLDER (N478589) 668 RON
85 1 1 SPRING (N478590) 12361 RON
86 1 1 DUST PORT (N478575) 2182 RON
91 1 1 N478613 - Indisponibil
92 1 1 SPRING (N478614) 588 RON
93 1 1 SPRING CLIP (N478616) 588 RON
94 1 1 SPINDLE LOCK (N478617) 114 RON
95 1 1 CAP (N478618) 588 RON
98 1 1 ACTUATOR (N478473) 114 RON
99 1 1 PIN (N478620) 588 RON
100 1 1 SCREW (N478474) 944 RON
103 1 1 BEARING HOLDER (N478623) 1772 RON
104 1 1 BAFFLE (N478624) 944 RON
105 1 2 SCREW (N478625) 668 RON
106 1 1 FIELD 230V (N478626) 48037 RON
107 1 1 FIELDCASE (N478627) 13697 RON
108 1 2 BRUSH HOLDER (N504537) 5370 RON
109 1 2 BRUSH 230V (N504538) 6688 RON
110 1 2 BRUSH CAP (N478630) 588 RON
111 1 2 SCREW (N478632) 588 RON
112 1 1 END CAP (N478633) 1772 RON
113 1 5 SCREW (N478634) 588 RON
114 1 1 SCREW (N478586) 588 RON
115 1 1 GUARD PLATE (N478582) 1630 RON
116 1 1 BUSH (N478576) 588 RON
117 1 1 SCREW (N478577) 82 RON
120 1 1 LOWER HANDLE (N478636) 5370 RON
121 1 1 SWITCH (N478637) 13697 RON
122 1 1 HANDLE UPPER (N478638) 5370 RON
123 1 7 SCREW (N478635) 668 RON
124 1 2 SCREW (N478657) 588 RON
125 1 1 HANDLE (N478580) 2796 RON
126 1 1 SCREW (N478578) 588 RON
128 1 1 CORD CLAMP (N478655) 588 RON
129 1 2 SCREW (N478641) 588 RON
130 1 1 BRAND LABEL (N484361) 944 RON
131 1 1 BAG DUST (N478683) 3268 RON
132 1 1 SUPPORT (N478682) 668 RON
133 1 1 VACUUM ADAPTOR (N478681) 1318 RON
134 1 1 SHAFT (N478689) 4827 RON
135 1 1 BRACKET (N478690) 4827 RON
136 1 1 RING (N478691) 588 RON
137 1 1 SCREW (N478692) 2556 RON
138 1 1 FOOT (N478694) 668 RON
139 1 1 PAD (N478698) 588 RON
140 1 1 SCREW (N478581) 944 RON
141 1 1 INSERT (N501773) 588 RON
145 1 1 BRAND LABEL (N484362) 588 RON
147 1 1 N501770 - Indisponibil
148 1 1 PLUG (N501771) 588 RON
149 1 2 RIVET (N501732) 588 RON
150 1 1 WHEEL (N501738) 588 RON
151 1 1 RETAINER (N501739) 588 RON
152 1 1 PCB CONTROLLER (N542203) 20216 RON
301 1 1 OUTPUT SHAFT SA (N478596) 13697 RON
302 1 1 GUARD UPPER (N542206) 78485 RON
303 1 1 ARMATURE 230V (N478621) 57833 RON
304 1 1 GUARD SA (N478472) 13697 RON
305 1 1 CLAMP SA (N478508) 12361 RON
306 1 1 DUST BAG SA (N478478) 741 RON
