Top » Piese de schimb » PIESE DEWALT » DW713 Type 3

FIERASTRAU VERTICAL CU MASA DEWALT DW713 Type 3
[DW713 Type 3]
FIERASTRAU VERTICAL CU MASA DEWALT DW713 Type 3
Click pentru a mari
Imagini suplimentare
FIERASTRAU VERTICAL CU MASA DEWALT DW713 Type 3
Click pentru a mari
FIERASTRAU VERTICAL CU MASA DEWALT DW713 Type 3
Click pentru a mari
FIERASTRAU VERTICAL CU MASA DEWALT DW713 Type 3
Click pentru a mari

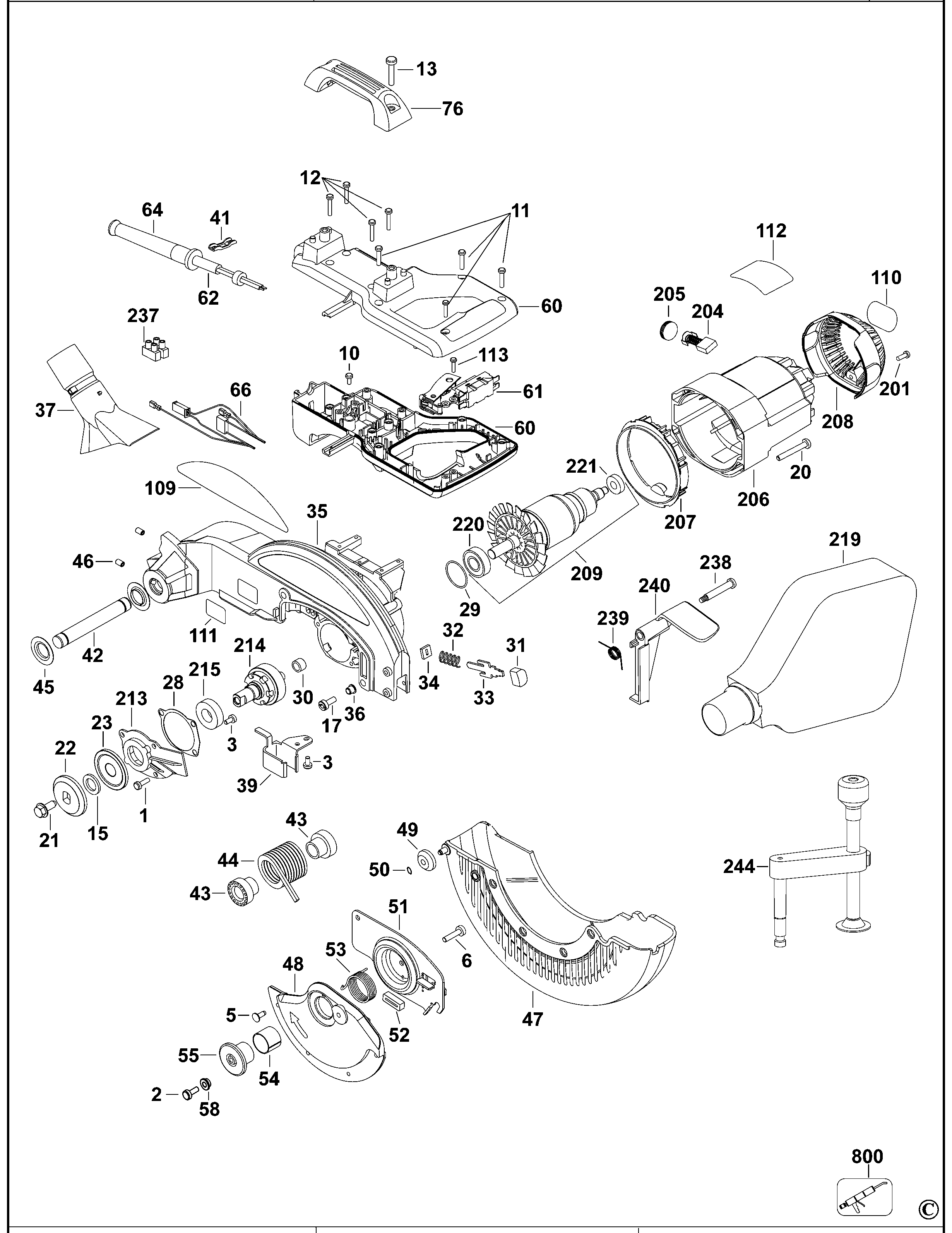

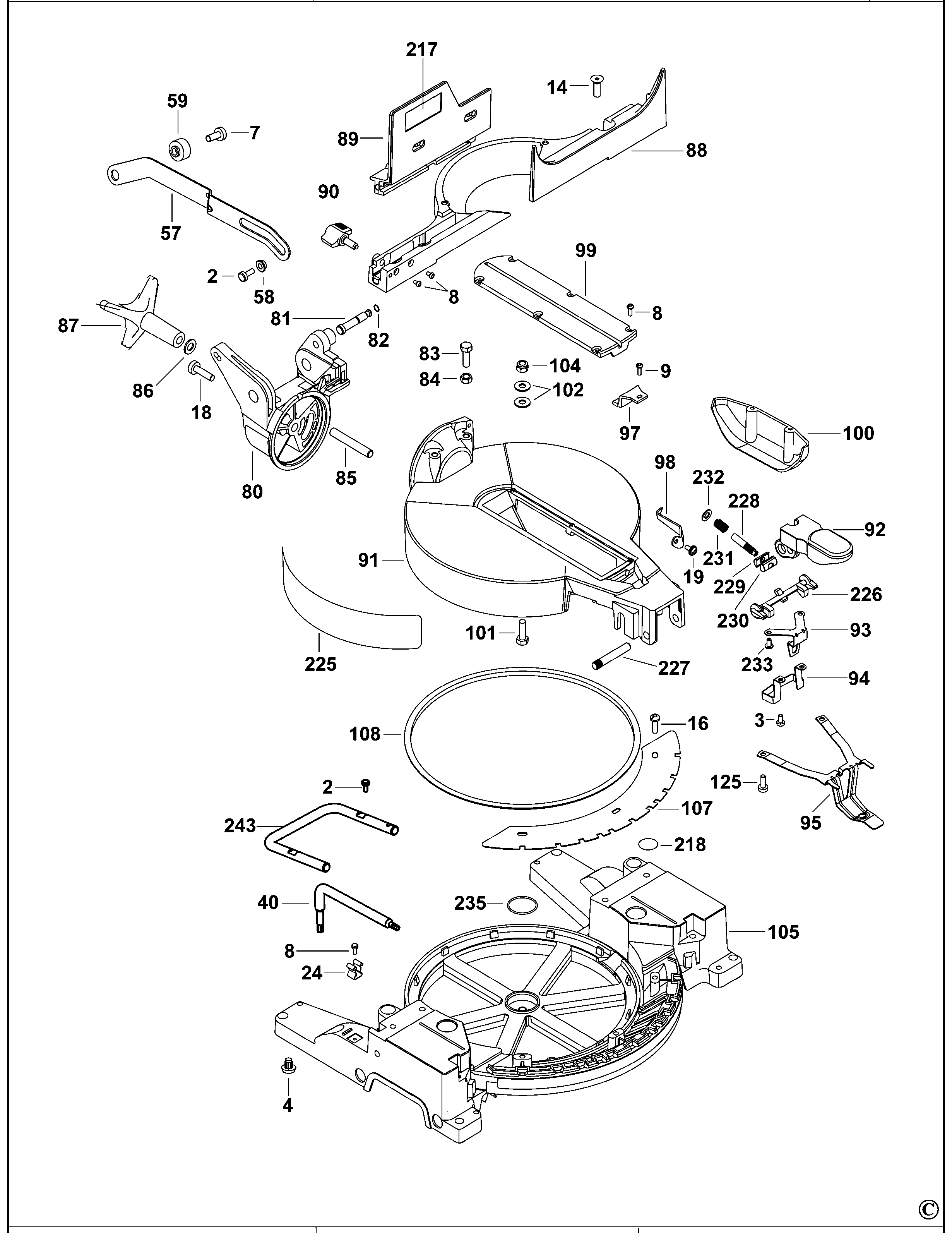

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 3 SCREW (330045-14) 558 RON
2 1 4 SCREW (330045-23) 781 RON
3 1 6 SCREW (330045-13) 558 RON
4 1 4 RUBBER FEET (153612-00) 781 RON
5 1 4 N298367 - Indisponibil
5 1 4 SCREW (NA361874) 588 RON
6 1 1 SCREW (151891-00) 558 RON
7 1 1 SCREW (330045-32) 781 RON
8 1 12 SCREW.TEMP (330045-05) 558 RON
9 1 1 SCREW (153460-05) 781 RON
10 1 2 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
11 1 5 SCREW PLASTITE (330019-32) 558 RON
12 1 4 SCREW METAL THD FRM M4X25 T20 (330045-08) 558 RON
13 1 2 SCREW (CARRY HANDLE) (330019-22) 558 RON
14 1 5 SCREW (098105-03) 558 RON
14 1 5 98105-03 - Indisponibil
16 1 3 SCREW (604410-00) 558 RON
17 1 2 SCREW (394589-01) 781 RON
18 1 1 SCREW TRIL (330045-33) 781 RON
19 1 1 screw dw744 (153460-00) 558 RON
20 1 4 SCREW (614375-00) 1117 RON
21 1 1 BLADE BOLT (647776-00) 781 RON
22 1 1 WASHER OUTER CLAMP (650680-00) 3466 RON
23 1 1 WASHER INNER CLAMP (141987-06) 4472 RON
24 1 1 HOLDER (391358-01) 1117 RON
28 1 1 GASKET (391632-00) 781 RON
29 1 1 SEAL (701297-00) 558 RON
30 1 1 BEARING NEEDLE (330004-06) 1452 RON
31 1 1 BUTTON (145350-03) 893 RON
32 1 1 SPRING (398736-00) 781 RON
33 1 1 LOCK (146714-00) 1229 RON
34 1 1 WIPER (146710-00) 781 RON
35 1 1 N199295 - Indisponibil
36 1 1 INSERT (148608-00) 558 RON
37 1 1 CHUTE (N126158) 1318 RON
39 1 1 GUARD (393731-00) 190 RON
40 1 1 WRENCH (N040940) 3466 RON
42 1 1 PIVOT SHAFT (N126153) 3268 RON
42 1 1 SHAFT (146751-00) 2124 RON
43 1 1 SPACER (146732-00) 781 RON
44 1 1 SPRING (391606-00) 5591 RON
45 1 2 PLASTIC WASHER (148296-00) 781 RON
46 1 2 SCREW (150075-00) 781 RON
47 1 1 GUARD LOWER (N643684) 15469 RON
47 1 1 N199652 - Indisponibil
48 1 1 GUARD PLATE (N126157) 15469 RON
49 1 1 ROLLER (146774-00) 1117 RON
50 1 1 CIRCLIP (603232-00) 558 RON
51 1 1 PLATE (N041989) 10241 RON
52 1 1 BUMPER (146768-00) 781 RON
53 1 1 SPRING (655325-00) 190 RON
54 1 1 SLEEVE (148295-00) 105 RON
55 1 1 RETAINING PLATE (146750-01) 4137 RON
57 1 1 LINK (391630-00) 6821 RON
58 1 1 BUSH (146740-01) 558 RON
59 1 1 BUSHING (399042-00) 2347 RON
60 1 1 N126140 - Indisponibil
61 1 1 N169598 - Indisponibil
64 1 1 CORD PROTECTOR (330005-02) 1117 RON
80 1 1 TRUNNION (391578-01) 29862 RON
81 1 1 PIN LOCKING (387130-00) 2347 RON
82 1 1 GASKET (34158-00) 588 RON
83 1 2 SCREW (149368-00) 558 RON
84 1 2 NUT (99368-04) 558 RON
85 1 1 STUD (146760-02) 1117 RON
86 1 1 WASHER PLAIN STEEL 10 * 20 * 2.0 THICK (330016-04) 558 RON
87 1 1 N126150 - Indisponibil
88 1 1 642126-00 - Indisponibil
89 1 1 FENCE LH (648857-01) 23598 RON
90 1 1 N126145 - Indisponibil
92 1 1 LEVER LOCK (649430-00) 3466 RON
93 1 1 PLATE (650051-00) 2795 RON
94 1 1 N240659 - Indisponibil
95 1 1 SPRING (650130-00) 4472 RON
97 1 1 POINTER (391634-00) 1788 RON
98 1 1 POINTER (391631-00) 1117 RON
99 1 1 PLATE (146726-02) 3018 RON
100 1 1 GUARD (391994-00) 1788 RON
101 1 1 SCREW (98025-25) 558 RON
102 1 2 LAP WASHER (153792-00) 558 RON
104 1 1 Stop Nut M8 (330021-02) 558 RON
105 1 1 N152784 - Indisponibil
107 1 1 N126155 - Indisponibil
108 1 1 RING (391635-00) 2347 RON
109 1 1 LABEL (395021-00) 190 RON
110 1 1 N200392 - Indisponibil
113 1 3 Screw M3.5X16 T15 (330019-03) 558 RON
125 1 2 SCREW (330045-22) 781 RON
201 1 1 SCREW PLSTC THD FORM M4.55X13 T20 (330019-11) 558 RON
204 1 2 BRUSH 230V SA (623919-00) 3018 RON
205 1 2 BRUSH CAP (614368-00) 781 RON
206 1 1 FIELDCASE SA (651765-00) 59725 RON
206 1 1 FIELDCASE SA (NA814028) 148269 RON
207 1 1 BAFFLE FAN (614366-00) 2347 RON
208 1 1 END CAP (N171521) 2796 RON
213 1 1 GEARCASE COVER (391573-00) 4472 RON
214 1 1 SPINDLE & GEAR (392628-00) 14315 RON
215 1 1 BEARING BALL (330003-29) 3466 RON
217 1 1 WARNING LABEL (610710-00) 1117 RON
217 1 1 LABEL (395301-00) 781 RON
218 1 2 LABEL (394976-00) 1229 RON
219 1 1 DUST BAG (N126162) 5370 RON
220 1 1 BEARING BALL (330003-13) 4137 RON
221 1 1 330003-04 - Indisponibil
221 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
225 1 1 629369-00 - Indisponibil
226 1 1 650034-00 - Indisponibil
227 1 1 PIN (626611-00) 1117 RON
228 1 1 ROD (626610-00) 1117 RON
229 1 1 NUT MITER LOCK (621321-00) 893 RON
230 1 1 NUT MITER LOCK (621322-00) 1229 RON
231 1 1 58698-00 - Indisponibil
232 1 1 WASHER PLAIN. STEEL 8*16*1.6 THICK (330016-03) 558 RON
233 1 2 SCREW (650142-00) 781 RON
235 1 1 RING (49787-00) 588 RON
237 1 1 BLOCK TERMINAL (393520-00) 2795 RON
238 1 1 UNLOCKING LEVER SCREW (152852-00) 893 RON
239 1 1 SPRING (386196-00) 105 RON
240 1 1 LEVER LOCK (648729-00) 2795 RON
243 1 1 N126163 - Indisponibil
244 1 1 CLAMP (153650-00) 42277 RON
800 1 1 GREASE (5140061-28) 34336 RON
800 1 1 GREASE DW704 TYPE 3 (93488-00) 7940 RON
