Top » Piese de schimb » PIESE DEWALT » DW708 Type 1

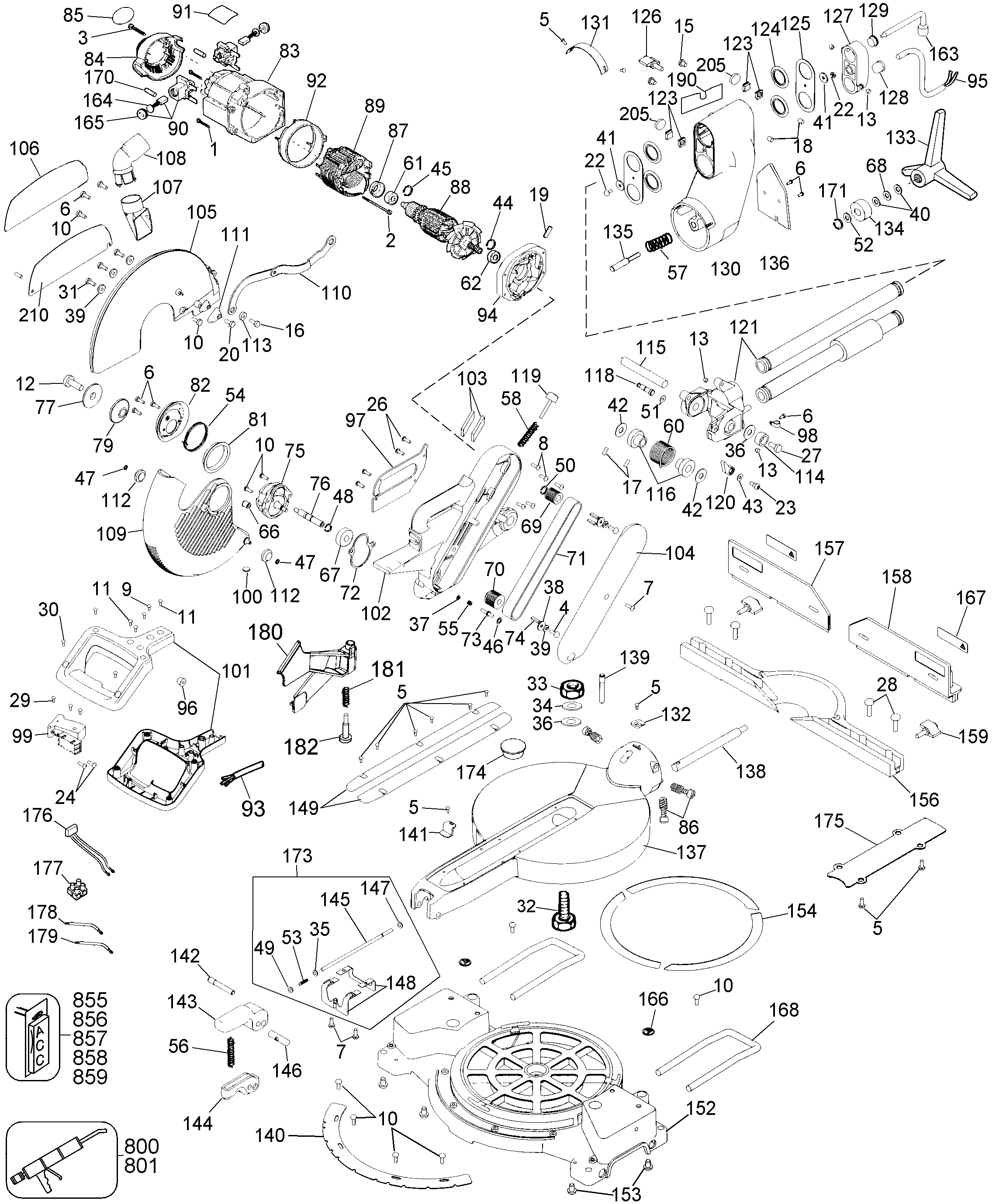

FIERASTRAU VERTICAL CU MASA DEWALT DW708 Type 1
[DW708 Type 1]
FIERASTRAU VERTICAL CU MASA DEWALT DW708 Type 1
Click pentru a mari
Imagini suplimentare
FIERASTRAU VERTICAL CU MASA DEWALT DW708 Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 SCREW (98094-55) 588 RON
2 1 2 SCREW PLASTITE (330019-19) 781 RON
3 1 2 SCREW .TEMP (330019-20) 558 RON
4 1 2 SCREW (153778-00) 558 RON
5 1 10 SCREW.TEMP (330045-05) 558 RON
6 1 8 SCREW (330045-13) 558 RON
7 1 3 SCREW (330045-14) 558 RON
8 1 6 Screw Metal (330045-15) 781 RON
9 1 1 SCREW (330045-18) 558 RON
10 1 10 SCREW (330045-23) 781 RON
11 1 3 SCREW (330045-20) 781 RON
12 1 1 LOCKING SCREW BLADE (145344-01) 781 RON
12 1 1 SCREW (869245-00) 4137 RON
13 1 4 SCREW (153666-00) 558 RON
15 1 2 153637-00 - Indisponibil
15 1 2 SCREW (153637-02) 893 RON
16 1 1 SCREW (153720-00) 558 RON
17 1 2 SCREW (150075-00) 781 RON
18 1 2 SCREW (153576-00) 781 RON
19 1 1 SCREW (153625-00) 893 RON
19 1 1 SCREW (394034-00) 893 RON
20 1 1 SCREW.SPECIAL (144949-00) 558 RON
22 1 2 SCREW (151799-00) 558 RON
23 1 1 SHOULDER SCREW (153639-00) 781 RON
24 1 1 SLEEVE (146740-00) 781 RON
24 1 4 SCREW TERMINAL (791707-00) 558 RON
24 1 4 SCREW MACHINE PAN HD (384127-01) 558 RON
26 1 4 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
27 1 1 SCREW (330045-47) 558 RON
28 1 4 SCREW TRIL (330045-33) 781 RON
29 1 1 Screw M3.5X16 T15 (330019-03) 558 RON
30 1 4 SCREW (330019-14) 558 RON
31 1 1 END CAP (148678-01) 2347 RON
31 1 3 SCREW (330045-24) 558 RON
32 1 1 SCREW (153787-00) 558 RON
32 1 1 5140117-87 - Indisponibil
33 1 1 NUT (153794-00) 558 RON
34 1 1 LAP WASHER (153792-00) 558 RON
35 1 1 WASHER (062487-00) 2124 RON
35 1 1 62487-00 - Indisponibil
36 1 2 LAP WASHER (153781-00) 781 RON
37 1 1 WASHER (153559-00) 558 RON
38 1 2 WASHER (153782-00) 558 RON
39 1 5 WASHER (098198-05) 558 RON
39 1 5 98198-05 - Indisponibil
40 1 2 WASHER (153769-00) 893 RON
40 1 2 WASHER THRUST (153769-01) 893 RON
41 1 2 RUBBER WASHER (153586-00) 781 RON
42 1 2 PLASTIC WASHER (148296-00) 781 RON
43 1 1 WAVY WASHER (153655-00) 558 RON
44 1 1 SEAL RING (144803-00) 781 RON
45 1 1 5140096-03 - Indisponibil
45 1 1 380245-00 - Indisponibil
46 1 1 153753-00 - Indisponibil
47 1 2 RING (142273-00) 558 RON
48 1 1 153752-00 - Indisponibil
49 1 1 DUST EXTRACTOR (153567-00) 5031 RON
49 1 1 153763-00 - Indisponibil
50 1 1 153783-00 - Indisponibil
51 1 1 GASKET (034158-00) 558 RON
51 1 1 GASKET (34158-00) 588 RON
52 1 1 385717-00 - Indisponibil
53 1 1 SPRING (140733-00) 558 RON
54 1 1 SPRING (153604-00) 4137 RON
54 1 1 SPRING (606888-00) 2795 RON
55 1 1 SPRING (448176-00) 558 RON
56 1 1 SPRING (096723-00) 558 RON
56 1 1 96723-00 - Indisponibil
57 1 1 SPRING (88165-00) 558 RON
58 1 1 SPRING (168507-00) 190 RON
60 1 1 SPRING (153596-01) 5591 RON
61 1 1 BEARING BALL (330003-09) 2795 RON
61 1 1 Ball Brg (605040-20) 2182 RON
62 1 1 BEARING cod vechi 605040-32 (N127530) 3466 RON
62 1 1 STOP (153603-00) 105 RON
62 1 1 330003-48 - Indisponibil
66 1 1 BEARING (131790-00) 1117 RON
66 1 1 BEARING NEEDLE (330004-02) 1229 RON
67 1 1 BEARING (605040-45) 5031 RON
67 1 1 BEARING (330003-47) 5591 RON
68 1 1 BEARING (065786-00) 1229 RON
68 1 1 65786-00 - Indisponibil
69 1 1 DRIVE PULLEY (153554-00) 4137 RON
70 1 1 PULLEY REPAIR KIT PS374 (429721-00) 74937 RON
71 1 1 BELT (153555-00) 12861 RON
72 1 1 GASKET (153560-00) 781 RON
73 1 1 LOCKING PIN (153561-00) 105 RON
74 1 3 KEY (153638-00) 781 RON
75 1 1 GEARCASE COVER (153754-00) 80865 RON
75 1 1 GEARCASE SA (5140000-28) 74937 RON
76 1 1 153795-00 - Indisponibil
76 1 1 GEARCASE SA (5140000-28) 74937 RON
77 1 1 BLADE CLAMP PS374 TYPE 2 (152635-02) 4137 RON
77 1 1 BLADE CLAMP (5140005-29) 7940 RON
79 1 1 washer outer clamp ps374 type 2 (153645-02) 4137 RON
79 1 1 BLADE CLAMP (5140005-29) 7940 RON
81 1 1 SLEEVE (153649-00) 1788 RON
82 1 1 ARMATURE (153646-03) 51337 RON
82 1 1 COVER (153563-00) 2347 RON
83 1 1 FIELD CASE (389786-04) 7940 RON
83 1 1 389786-05 - Indisponibil
84 1 1 END CAP DW705 TYPE 2.3 (387678-00) 1891 RON
85 1 1 DEWALT LABEL (149521-01) 558 RON
86 1 3 153788-00 - Indisponibil
87 1 1 SLEEVE (137382-01) 781 RON
88 1 1 397368-03SV - Indisponibil
88 1 1 ARMATURE & FAN (397368-03) 49771 RON
89 1 1 N078041 - Indisponibil
89 1 1 N078041SV - Indisponibil
89 1 1 FIELD (144798-01) 22144 RON
90 1 1 153677-00 - Indisponibil
90 1 2 BRUSH HOLDER SA (147097-09) 10512 RON
90 1 2 BRUSH 230V CUT OFF SA (147097-06) 6821 RON
91 1 1 384838-00 - Indisponibil
92 1 1 BAFFLE (146723-01) 1788 RON
93 1 1 381740-00 - Indisponibil
94 1 1 153564-00 - Indisponibil
95 1 1 330048-10 - Indisponibil
96 1 1 WIRE NUT (32114-06) 558 RON
96 1 1 32114-00 - Indisponibil
97 1 1 COVER (153647-00) 2124 RON
98 1 1 BUSH (153669-00) 558 RON
99 1 1 153749-00 - Indisponibil
99 1 1 153749-01 - Indisponibil
100 1 1 PLUG (153756-00) 558 RON
101 1 1 CLAMSHELL PAIR (153755-01) 10512 RON
102 1 1 5140062-30 - Indisponibil
102 1 1 429932-00 - Indisponibil
103 1 2 FOAM (153721-00) 558 RON
104 1 1 BELT COVER (153562-00) 3466 RON
105 1 1 GUARD UPPER (153648-01) 70239 RON
105 1 1 GUARD UPPER (153648-05) 37579 RON
106 1 1 LABEL (149365-01) 1452 RON
107 1 1 DUST EXTRACTOR (605408-01) 10512 RON
108 1 1 TUBE UPPER (151949-00) 190 RON
108 1 1 DUST EXTRACTOR (605408-01) 10512 RON
109 1 1 LOWER GUARD (153602-02) 15993 RON
109 1 1 GUARD KIT (5140000-89) 20467 RON
110 1 1 LINK (153719-01) 11519 RON
111 1 1 BUMPER (145318-00) 781 RON
112 1 2 ROLLER (146774-00) 1117 RON
113 1 1 SLEEVE (146740-00) 781 RON
113 1 1 BUSH (146740-01) 558 RON
114 1 1 BUSH PS374 TYPE 2 (385756-00) 893 RON
115 1 1 SHAFT (146751-00) 2124 RON
116 1 2 SPACER PS374 (153593-01) 105 RON
117 1 1 PULLEY (153796-00) 4137 RON
118 1 1 LOCKING PIN (387131-00) 893 RON
119 1 1 SCREW.SPECIAL (397000-00) 781 RON
120 1 1 STOP PAWL (153603-01) 1117 RON
121 1 1 TRUNNION (429941-00) 286554 RON
123 1 4 GUIDE (153582-00) 781 RON
124 1 4 WIPER (153590-00) 105 RON
125 1 2 COVER (153583-00) 1229 RON
126 1 1 KNOB (147107-03) 105 RON
127 1 1 END CAP (153584-02) 6821 RON
127 1 1 END CAP (153584-00) 9282 RON
127 1 1 153584-01 - Indisponibil
128 1 1 BUSHING HEYCO 1247-SR-7W-2 (33821-00) 781 RON
129 1 1 BUSHING (153667-00) 893 RON
130 1 1 SUPPORT HOUSING (390399-00) 271790 RON
131 1 1 SCALE (153578-00) 1117 RON
132 1 1 POINTER (153575-00) 1452 RON
133 1 1 HANDLE (392422-00) 2347 RON
134 1 1 385708-01 - Indisponibil
135 1 1 153570-00 - Indisponibil
136 1 1 153793-00 - Indisponibil
137 1 1 429910-00 - Indisponibil
138 1 1 SHAFT (385709-00) 7940 RON
139 1 1 PIN (153640-00) 893 RON
140 1 1 153620-03 - Indisponibil
140 1 1 REPAIR KIT (429921-01) 1891 RON
141 1 1 POINTER (153624-00) 1229 RON
142 1 1 ARM LINK (383331-01) 80865 RON
142 1 1 153632-00 - Indisponibil
143 1 1 383332-01 - Indisponibil
143 1 1 HANDLE (153621-00) 3018 RON
143 1 1 393705-00 - Indisponibil
144 1 1 TRIGGER (153722-01) 5031 RON
145 1 1 LOCKING PIN (153622-00) 5031 RON
146 1 1 LEVER (153626-00) 1117 RON
147 1 1 LOCK SA (385652-00) 3124 RON
147 1 1 LOCK SA (385652-00SV) 34336 RON
148 1 1 SPRING SA (153768-00) 3018 RON
149 1 2 PLATE SA (395672-00) 3466 RON
149 1 2 PLATE (153616-02) 4472 RON
152 1 1 BASE SA (153765-00) 74937 RON
152 1 1 BASE (153765-02) 65989 RON
153 1 4 RUBBER FEET (153612-00) 781 RON
154 1 3 THRUST PLATE (153614-01) 893 RON
154 1 3 PLATE THRUST (153614-00) 105 RON
156 1 1 FENCE SA (153627-00) 3592 RON
157 1 1 FENCE LH (153766-03SV) 32770 RON
157 1 1 FENCE LH (153766-03) 29862 RON
158 1 1 153767-03SV - Indisponibil
158 1 1 153767-03 - Indisponibil
159 1 1 KNOB LOWER (147107-02) 1117 RON
163 1 1 WRENCH (153636-00) 4137 RON
163 1 1 WRENCH (608563-01) 3018 RON
163 1 1 WRENCH (608563-00) 3018 RON
164 1 2 BRUSH SA (145323-06) 2795 RON
164 1 2 BRUSH & SPRING EMS705 TYPE 2 (145323-03) 2347 RON
165 1 2 BRUSH CAP (448084-01) 781 RON
166 1 2 NAME PLATE (143861-00) 1452 RON
166 1 2 LABEL (394976-00) 1229 RON
167 1 2 LABEL (380179-00) 781 RON
168 1 1 SUPPORT BRACKET (391246-00) 23598 RON
170 1 2 PIN (87205-00) 558 RON
171 1 1 WASHER (385750-00) 558 RON
173 1 1 LOCK SA (385652-00) 3124 RON
173 1 1 LOCK SA (385652-00SV) 34336 RON
174 1 1 PLUG (153799-00) 781 RON
175 1 1 INSERT (153608-00) 1229 RON
176 1 1 148679-04 - Indisponibil
177 1 1 733138-00 - Indisponibil
177 1 1 BLOCK TERMINAL (320078-00) 1452 RON
178 1 1 LEAD SA BLACK (151644-00) 1452 RON
179 1 1 LEAD (385235-00) 781 RON
180 1 1 LOCKING DEVICE (384495-00) 9282 RON
181 1 1 SPRING (386196-00) 105 RON
182 1 1 UNLOCKING LEVER SCREW (152852-00) 893 RON
190 1 1 LABEL (387553-00) 781 RON
205 1 2 FRICTION DISC (613497-00) 558 RON
210 1 1 COVER (153601-01) 5031 RON
800 1 1 GREASE (5140061-28) 34336 RON
800 1 1 GREASE (790206-00) 34336 RON
801 1 1 GREASE DW704 TYPE 3 (93488-00) 7940 RON
855 1 1 DW7053 - Indisponibil
856 1 1 DW7084 - Indisponibil
857 1 1 DW7051 - Indisponibil
857 1 1 5140050-83 - Indisponibil
858 1 1 CLAMP (153650-00) 42277 RON
858 1 1 DW7082 - Indisponibil
859 1 1 DW7080 - Indisponibil
