Top » Piese de schimb » PIESE DEWALT » DW705 Type 5

FIERASTRAU VERTICAL CU MASA DEWALT DW705 Type 5
[DW705 Type 5]
FIERASTRAU VERTICAL CU MASA DEWALT DW705 Type 5
Click pentru a mari
Imagini suplimentare
FIERASTRAU VERTICAL CU MASA DEWALT DW705 Type 5
Click pentru a mari

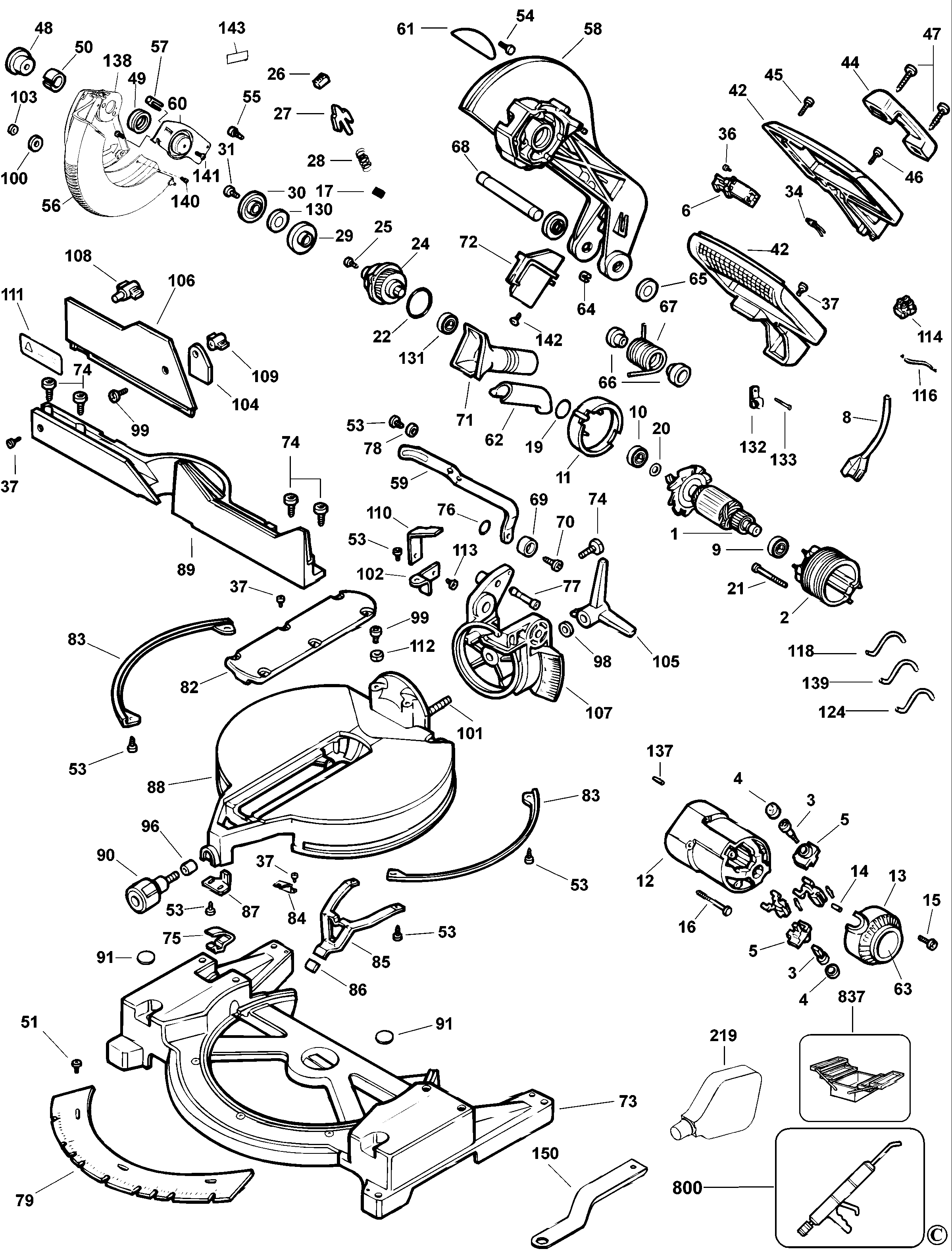

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
4 1 2 BRUSH CAP (448084-01) 781 RON
6 1 1 383965-03 - Indisponibil
10 1 1 BEARING BALL (330003-13) 4137 RON
11 1 1 BAFFLE (146723-01) 1788 RON
13 1 1 END CAP DW705 TYPE 2.3 (387678-00) 1891 RON
14 1 2 PIN (87205-00) 558 RON
15 1 2 SCREW .TEMP (330019-20) 558 RON
16 1 4 SCREW (98094-55) 588 RON
17 1 1 FELT (387732-00) 781 RON
19 1 1 SEAL (701297-00) 558 RON
20 1 1 SEAL RING (144803-00) 781 RON
21 1 2 SCREW PLASTITE (330019-19) 781 RON
22 1 1 GASKET DW705 TYPE 2.3 (383470-00) 6821 RON
24 1 1 SPINDLE & GEAR (386824-01) 70239 RON
24 1 1 SPINDLE & GEAR (386824-02) 65989 RON
25 1 2 SCREW (330045-14) 558 RON
26 1 1 BUTTON (145350-00) 558 RON
27 1 1 LOCK (146714-00) 1229 RON
28 1 1 58698-00 - Indisponibil
29 1 1 WASHER INNER CLAMP (141987-04) 2795 RON
30 1 1 CLAMP OUTER (151962-01) 1452 RON
31 1 1 LOCKING SCREW BLADE (145344-01) 781 RON
31 1 1 SCREW (869245-00) 4137 RON
34 1 1 NUT (32114-01) 558 RON
36 1 1 screw dw744 (330019-12) 558 RON
37 1 8 SCREW.TEMP (330045-05) 558 RON
44 1 1 HANDLE (396375-00) 190 RON
45 1 4 SCREW PLASTITE (330019-32) 558 RON
46 1 4 SCREW METAL THD FRM M4X25 T20 (330045-08) 558 RON
47 1 2 SCREW (CARRY HANDLE) (330019-22) 558 RON
48 1 1 RETAINING PLATE (146750-03) 1788 RON
48 1 1 RETAINING PLATE (146750-02) 190 RON
49 1 1 SPRING (146748-00) 781 RON
49 1 1 SPRING (661454-00) 1117 RON
50 1 1 SLEEVE (148295-00) 105 RON
51 1 3 SCREW (153778-02) 558 RON
53 1 16 SCREW (151891-00) 558 RON
54 1 2 INSERT (148608-00) 558 RON
55 1 1 SCREW (394589-01) 781 RON
56 1 1 GUARD LOWER (391285-00) 7940 RON
56 1 1 GUARD LOWER (391285-02) 7940 RON
57 1 1 BUMPER (146768-00) 781 RON
58 1 1 ARM (387695-02) 40599 RON
59 1 1 LINK DW705 (146752-02) 3018 RON
60 1 1 PLATE (429986-00) 9282 RON
61 1 1 LABEL (149365-01) 1452 RON
62 1 1 DEFLECTOR (148520-00) 105 RON
63 1 1 DEWALT LABEL (149521-01) 558 RON
64 1 2 SCREW (150075-00) 781 RON
65 1 2 PLASTIC WASHER (148296-00) 781 RON
66 1 2 SPACER (146732-00) 781 RON
67 1 1 SPRING (N039404) 9282 RON
67 1 1 SPRING (146743-03) 5591 RON
67 1 1 SPRING TORSION (633290-00) 5591 RON
68 1 1 SHAFT (146751-00) 2124 RON
69 1 1 DAMPER (146753-00) 558 RON
70 1 1 SCREW (330045-32) 781 RON
71 1 1 DUCT (146717-00) 1229 RON
72 1 1 GUARD REAR (146772-03) 2124 RON
73 1 1 BASE (152036-00) 59725 RON
74 1 4 SCREW TRIL (330045-33) 781 RON
75 1 1 SPRING (146758-00) 1452 RON
76 1 1 GASKET (34158-00) 588 RON
77 1 1 PIN LOCKING (387130-00) 2347 RON
78 1 1 BUSH (146740-01) 558 RON
82 1 1 PLATE (146726-02) 3018 RON
83 1 2 PLATE (146773-01) 2124 RON
84 1 1 POINTER (398693-00) 105 RON
85 1 1 SPRING DETENT (146745-00) 3018 RON
86 1 1 COVER (148611-00) 558 RON
87 1 1 CLAMP (148297-00) 781 RON
88 1 1 TABLE KIT (429987-00) 112630 RON
89 1 1 FENCE (146735-00) 32770 RON
89 1 1 FENCE SA (5140019-65) 49771 RON
89 1 1 FENCE KIT (5140030-20) 40599 RON
90 1 1 KNOB (145439-09) 3466 RON
90 1 1 KNOB (145439-05) 5591 RON
91 1 2 NAME PLATE (143861-00) 1452 RON
91 1 2 LABEL (394976-00) 1229 RON
96 1 1 BUSHING CLAMP (146733-00) 1229 RON
98 1 1 WASHER PLAIN STEEL 10 * 20 * 2.0 THICK (330016-04) 558 RON
99 1 3 SCREW (149368-00) 558 RON
100 1 2 ROLLER (146774-00) 1117 RON
101 1 1 STUD (146760-01) 105 RON
102 1 1 BRACKET (148292-00) 105 RON
103 1 2 RING (142273-00) 558 RON
104 1 1 CLAMP (146737-00) 1452 RON
105 1 1 HANDLE (392422-00) 2347 RON
106 1 1 FENCE (146739-00) 14315 RON
107 1 1 TRUNNION (146731-01) 20467 RON
108 1 1 KNOB LOWER (147107-02) 1117 RON
109 1 1 KNOB UPPER (147107-01) 1229 RON
110 1 1 POINTER (148299-00) 1229 RON
111 1 1 LABEL (380179-00) 781 RON
112 1 2 NUT (99368-04) 558 RON
113 1 1 SCREW (151895-00) 781 RON
114 1 1 BLOCK TERMINAL (320078-00) 1452 RON
116 1 1 LEAD BLACK (398563-00) 105 RON
124 1 1 LEAD WHITE (398565-00) 105 RON
130 1 1 BLADE HOLDER 2.3 (152636-00) 1788 RON
131 1 1 BEARING DW704 TYPE 3 (386780-00) 190 RON
132 1 1 BUSH (153669-00) 558 RON
133 1 1 SCREW (330045-13) 558 RON
138 1 1 GUARD PLATE (391286-00) 5031 RON
140 1 1 SCREW (394211-00) 558 RON
141 1 1 SCREW (330045-23) 781 RON
143 1 1 LABEL (151976-00) 558 RON
150 1 1 WRENCH (145378-02) 1229 RON
150 1 1 WRENCH (145378-01) 1452 RON
800 1 1 GREASE (5140061-28) 34336 RON
800 1 1 GREASE DW704 TYPE 3 (93488-00) 7940 RON
800 1 1 GREASE (790206-00) 34336 RON
837 1 1 SERVICE TOOL (559626-99) 84238 RON
