FIERASTRAU VERTICAL CU MASA DEWALT DW705 Type 2
[DW705 Type 2]
FIERASTRAU VERTICAL CU MASA DEWALT DW705 Type 2
Click pentru a mari
Imagini suplimentare
FIERASTRAU VERTICAL CU MASA DEWALT DW705 Type 2
Click pentru a mari

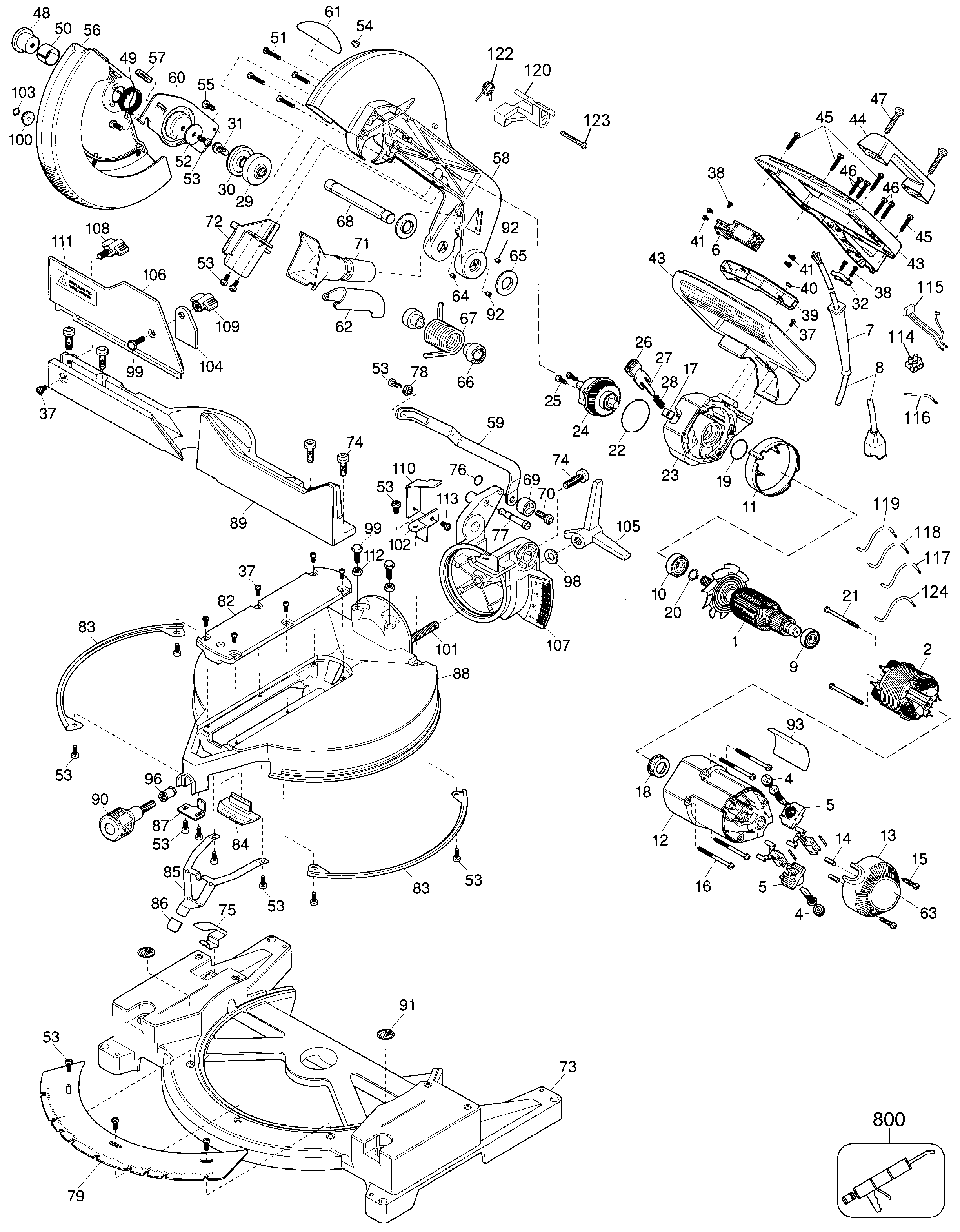

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE & FAN (397100-01) 70239 RON
1 1 1 ARMATURE & FAN (397100-01SV) 62298 RON
2 1 1 FIELD (144798-07) 22144 RON
4 1 2 BRUSH CAP (448084-01) 781 RON
5 1 2 BRUSH HOLDER SA (147097-09) 10512 RON
5 1 2 BRUSH 230V CUT OFF SA (147097-06) 6821 RON
6 1 2 SCREW (98005-12) 558 RON
6 1 1 SWITCH (151606-00) 11519 RON
7 1 1 CORD PROTECTOR (445338-00) 1229 RON
8 1 1 CORDSET (330048-72) 1891 RON
9 1 1 BEARING BALL (330003-09) 2795 RON
9 1 1 Ball Brg (605040-20) 2182 RON
10 1 1 BEARING BALL (330003-13) 4137 RON
10 1 1 BALL BEARING (605040-27) 190 RON
11 1 1 BAFFLE (146723-01) 1788 RON
12 1 1 389786-05 - Indisponibil
13 1 1 END CAP DW705 TYPE 2.3 (387678-00) 1891 RON
14 1 2 PIN (87205-00) 558 RON
15 1 2 SCREW .TEMP (330019-20) 558 RON
16 1 4 SCREW (98094-55) 588 RON
17 1 1 WIPER (146710-00) 781 RON
18 1 1 KNOB (145439-05) 5591 RON
18 1 1 SLEEVE (137382-01) 781 RON
19 1 1 SEAL (701297-00) 558 RON
20 1 1 SEAL RING (144803-00) 781 RON
21 1 2 SCREW PLASTITE (330019-19) 781 RON
22 1 1 149369-00 - Indisponibil
23 1 1 GUARD (146720-02) 20467 RON
23 1 1 146706-00 - Indisponibil
24 1 1 ARMATURE & FAN (146722-05) 65989 RON
24 1 1 SA GEAR DW704 (146736-01) 86681 RON
25 1 2 SCREW (330045-14) 558 RON
26 1 1 TABLE (146725-00) 46863 RON
26 1 1 BUTTON (145350-00) 558 RON
27 1 1 LOCK (146714-00) 1229 RON
28 1 1 58698-00 - Indisponibil
28 1 1 SPRING (058698-00) 558 RON
29 1 1 BUSHING DW705 TYPE 2.3 (152634-01) 3466 RON
30 1 1 BLADE CLAMP PS374 TYPE 2 (152635-02) 4137 RON
31 1 1 LOCKING SCREW BLADE (145344-01) 781 RON
31 1 1 SCREW (869245-00) 4137 RON
32 1 1 CORD CLAMP (003618-00) 558 RON
32 1 1 FENCE (146735-00) 32770 RON
32 1 1 3618-00 - Indisponibil
36 1 1 SLEEVE (146740-00) 781 RON
37 1 8 SCREW.TEMP (330045-05) 558 RON
38 1 1 SPRING (146743-01) 6821 RON
38 1 3 Screw M3.5X16 T15 (330019-03) 558 RON
38 1 1 SPRING (146743-03) 5591 RON
39 1 1 TRIGGER (146741-00) 105 RON
40 1 1 RING (701901-00) 558 RON
41 1 4 SCREW TERMINAL (791707-00) 558 RON
41 1 4 SCREW MACHINE PAN HD (384127-01) 558 RON
41 1 1 RETAINING PLATE (146750-02) 190 RON
41 1 1 RETAINING PLATE (146750-00) 2347 RON
43 1 1 CLAMSHELL (380452-00) 10512 RON
44 1 1 146729-01 - Indisponibil
45 1 4 SCREW (330019-14) 558 RON
46 1 4 SCREW METAL THD FRM M4X25 T20 (330045-08) 558 RON
47 1 2 SCREW (CARRY HANDLE) (330019-22) 558 RON
48 1 1 RETAINING PLATE (146750-03) 1788 RON
49 1 1 SPRING (N034013) 82 RON
49 1 1 SPRING (146748-00) 781 RON
49 1 1 SPRING (661454-00) 1117 RON
50 1 1 SLEEVE (148295-00) 105 RON
51 1 2 PLATE (146773-00) 2124 RON
51 1 4 SCREW (330045-18) 558 RON
52 1 1 WASHER (148612-00) 781 RON
53 1 16 SCREW (151891-00) 558 RON
54 1 2 INSERT (148608-00) 558 RON
55 1 1 SCREW (394589-01) 781 RON
56 1 1 GUARD SA (146720-08) 34336 RON
56 1 1 146720-00 - Indisponibil
56 1 1 5140159-88 - Indisponibil
57 1 1 BUMPER (146768-00) 781 RON
59 1 1 LINK DW705 (146752-02) 3018 RON
60 1 1 PLATE (429986-01) 3466 RON
61 1 1 LABEL (149365-01) 1452 RON
62 1 1 DEFLECTOR (148520-00) 105 RON
63 1 1 DEWALT LABEL (149521-01) 558 RON
64 1 1 SCREW (150075-00) 781 RON
65 1 2 PLASTIC WASHER (148296-00) 781 RON
66 1 1 END CAP (148678-01) 2347 RON
66 1 2 SPACER (146732-00) 781 RON
67 1 1 SPRING (N039404) 9282 RON
67 1 1 SPRING TORSION (633290-00) 5591 RON
68 1 1 SHAFT (146751-00) 2124 RON
69 1 1 DAMPER (146753-00) 558 RON
70 1 1 SCREW (330045-32) 781 RON
71 1 1 DUCT (146717-00) 1229 RON
72 1 1 GUARD REAR (146772-03) 2124 RON
73 1 1 BASE (152772-01) 53015 RON
74 1 5 SCREW TRIL (330045-33) 781 RON
75 1 1 SPRING (146758-00) 1452 RON
76 1 1 GASKET (034158-00) 558 RON
76 1 1 GASKET (34158-00) 588 RON
77 1 1 PIN LOCKING (387130-00) 2347 RON
78 1 1 BUSH (146740-01) 558 RON
79 1 1 152772-00 - Indisponibil
79 1 1 429903-00 - Indisponibil
80 1 1 152847-01 - Indisponibil
80 1 1 603546-00 - Indisponibil
80 1 1 603546-03 - Indisponibil
82 1 1 PLATE (146726-02) 3018 RON
83 1 2 PLATE (146773-01) 2124 RON
84 1 1 146756-00 - Indisponibil
84 1 1 POINTER (398693-00) 105 RON
85 1 1 SPRING DETENT (146745-00) 3018 RON
85 1 1 146745-01 - Indisponibil
86 1 1 COVER (148611-00) 558 RON
87 1 1 CLAMP (148297-00) 781 RON
88 1 1 TABLE KIT (429987-00) 112630 RON
89 1 1 FENCE SA (5140019-65) 49771 RON
89 1 1 FENCE KIT (5140030-20) 40599 RON
90 1 1 KNOB (145439-09) 3466 RON
91 1 2 NAME PLATE (143861-00) 1452 RON
91 1 2 LABEL (394976-00) 1229 RON
92 1 2 399741-00 - Indisponibil
93 1 1 380108-04 - Indisponibil
96 1 1 BUSHING CLAMP (146733-00) 1229 RON
98 1 1 WASHER PLAIN STEEL 10 * 20 * 2.0 THICK (330016-04) 558 RON
99 1 3 SCREW (149368-00) 558 RON
100 1 1 ROLLER (146774-00) 1117 RON
101 1 1 PLATE (380461-00) 2795 RON
101 1 1 STUD (146760-01) 105 RON
102 1 1 BRACKET (148292-00) 105 RON
103 1 1 RING (142273-00) 558 RON
104 1 1 FIELD CASE (389786-04) 7940 RON
104 1 1 CLAMP (146737-00) 1452 RON
105 1 1 HANDLE (392422-00) 2347 RON
106 1 1 FENCE (146739-00) 14315 RON
107 1 1 TRUNNION (146731-01) 20467 RON
108 1 1 KNOB LOWER (147107-02) 1117 RON
109 1 1 KNOB UPPER (147107-01) 1229 RON
110 1 1 POINTER (148299-00) 1229 RON
111 1 1 LABEL (380179-00) 781 RON
112 1 2 NUT (99368-04) 558 RON
113 1 1 SCREW (151895-00) 781 RON
114 1 1 BLOCK TERMINAL (320078-00) 1452 RON
115 1 1 CAPACITOR (148679-02) 4472 RON
116 1 1 LEAD SA BLACK (148048-00) 893 RON
118 1 1 LEAD SA BLACK (151644-00) 1452 RON
120 1 1 LEVER (146770-00) 2347 RON
122 1 1 SPRING (386196-00) 105 RON
123 1 1 UNLOCKING LEVER SCREW (152852-00) 893 RON
124 1 1 LEAD SA (145374-00) 893 RON
150 1 1 WRENCH (145378-02) 1229 RON
150 1 1 WRENCH (145378-01) 1452 RON
800 1 1 GREASE DW704 TYPE 3 (93488-00) 7940 RON
