Top » Piese de schimb » PIESE DEWALT » DHS780 Type 21

FIERASTRAU VERTICAL CU MASA DEWALT DHS780 Type 21
[DHS780 Type 21]
FIERASTRAU VERTICAL CU MASA DEWALT DHS780 Type 21
Click pentru a mari
Imagini suplimentare
FIERASTRAU VERTICAL CU MASA DEWALT DHS780 Type 21
Click pentru a mari
FIERASTRAU VERTICAL CU MASA DEWALT DHS780 Type 21
Click pentru a mari
FIERASTRAU VERTICAL CU MASA DEWALT DHS780 Type 21
Click pentru a mari
FIERASTRAU VERTICAL CU MASA DEWALT DHS780 Type 21
Click pentru a mari

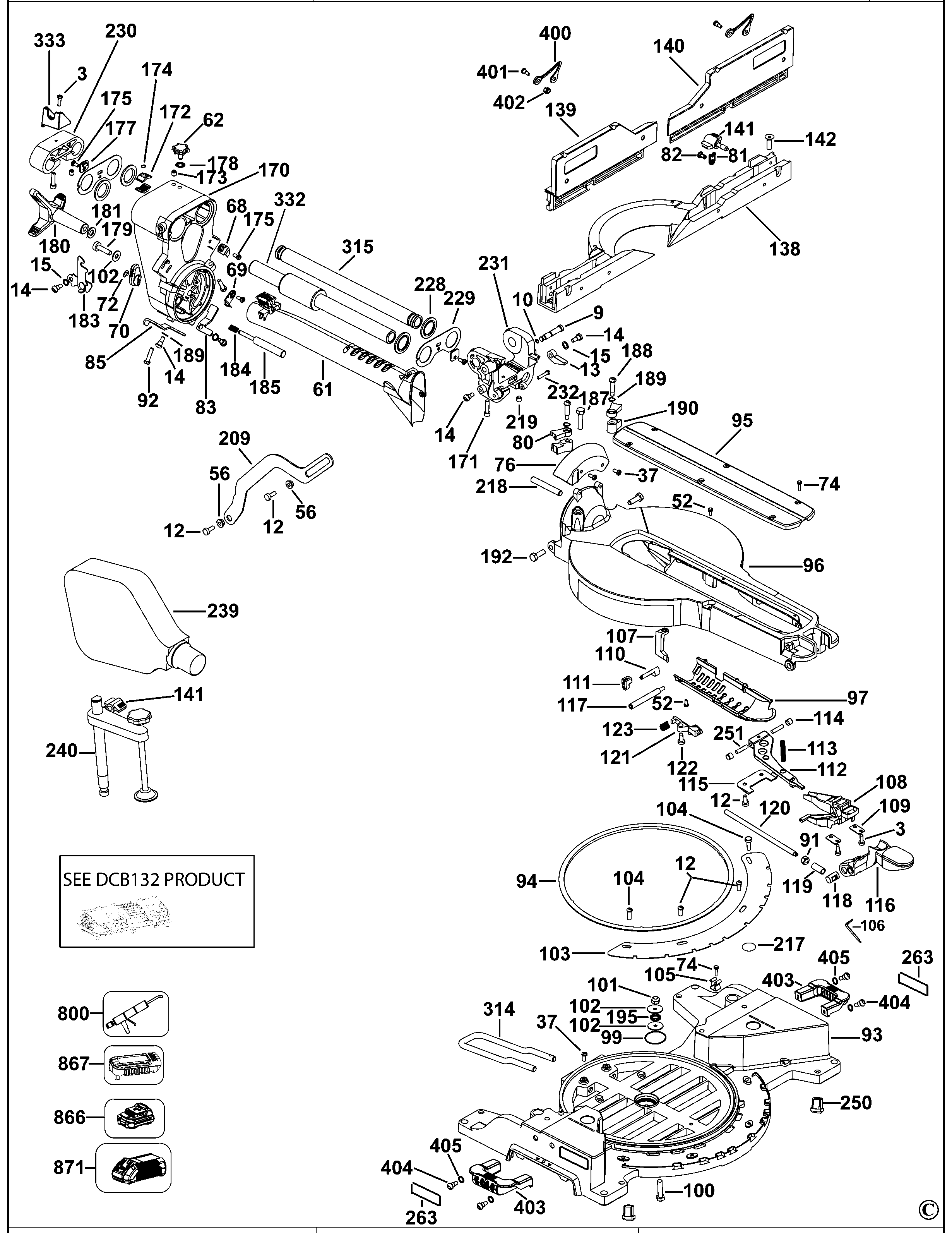

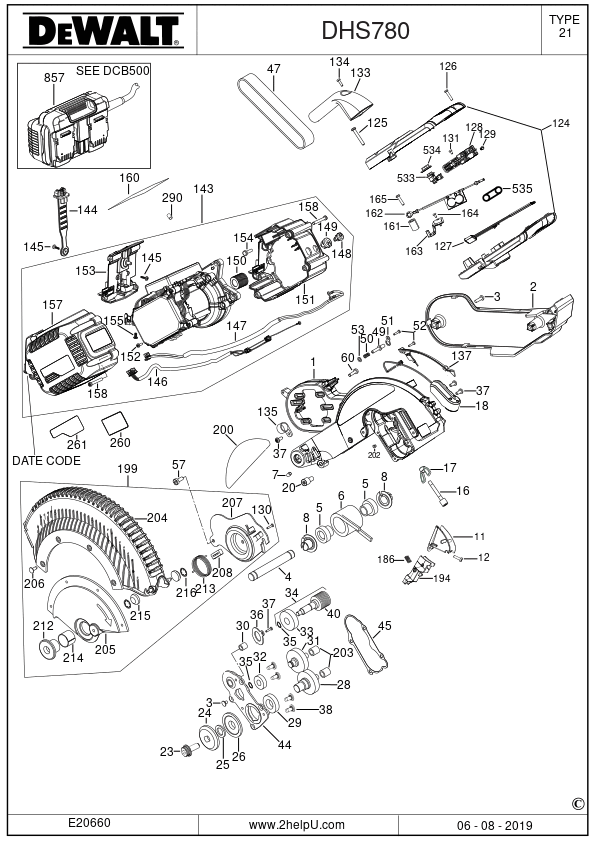

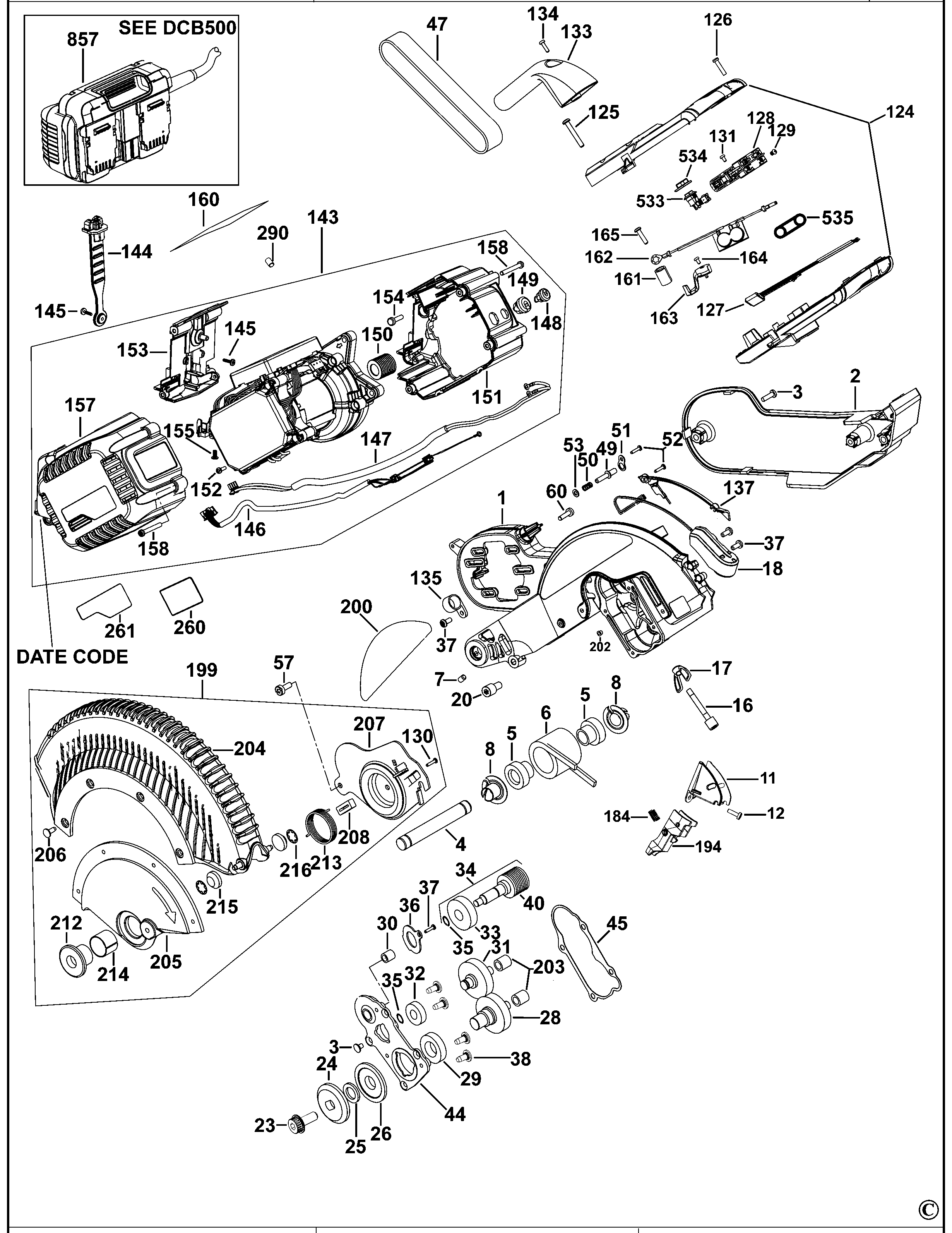

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARM (N618208) 139195 RON
2 1 1 COVER (N459235) 18568 RON
3 1 7 SCREW (330045-14) 558 RON
4 1 1 PIVOT SHAFT (N126153) 3268 RON
5 1 2 SPACER (146732-00) 781 RON
6 1 1 SPRING (N639013) 27287 RON
7 1 2 SCREW (150075-00) 781 RON
8 1 2 BUSHING (N377514) 1772 RON
9 1 1 PIN LOCKING (387130-00) 2347 RON
10 1 1 GASKET (34158-00) 588 RON
11 1 1 GUARD REAR (N600556) 1933 RON
11 1 1 GUARD KIT (NA376574) 15469 RON
12 1 8 SCREW (330045-23) 781 RON
13 1 1 STOP PAWL (153603-01) 1117 RON
14 1 5 SHOULDER SCREW (153639-00) 781 RON
15 1 2 WAVY WASHER (153655-00) 558 RON
16 1 1 SCREW (N185664) 1933 RON
17 1 1 NUT WING (150718-00) 558 RON
18 1 1 LED LIGHT (N439376) 13697 RON
20 1 1 SCREW (N460123) 1318 RON
23 1 1 BLADE BOLT (N600011) 114 RON
24 1 1 CLAMP OUTER (N538823) 2556 RON
25 1 1 ADAPTOR (393868-00) 3018 RON
26 1 1 WASHER INNER CLAMP (N538855) 3268 RON
28 1 1 SPINDLE & GEAR SA (N141275) 38463 RON
29 1 1 BEARING BALL (605040-40) 4827 RON
30 1 1 BEARING NEEDLE (391616-00) 190 RON
31 1 1 GEAR SA (N139533) 35435 RON
31 1 1 GEAR SA (NB440251) 27287 RON
32 1 1 BEARING (605040-21) 3268 RON
33 1 1 BEARING (605040-33) 3018 RON
34 1 1 SHAFT SA (N203541) 40734 RON
35 1 2 153752-00 - Indisponibil
36 1 1 RETAINING PLATE (618244-00) 781 RON
37 1 11 SCREW (330045-49) 558 RON
38 1 4 SCREW (385915-04) 558 RON
40 1 1 DRIVE PULLEY (N004511) 5370 RON
44 1 1 GEAR CASE SA (N268679) 13697 RON
45 1 1 GASKET (N510450) 2556 RON
47 1 1 BELT (N464473) 23244 RON
49 1 1 LOCKING PIN (153561-00) 105 RON
50 1 1 SPRING (448176-00) 558 RON
51 1 1 PLATE (393071-00) 558 RON
52 1 10 SCREW TAPTITE M4x12 SLT/T20 (330045-45) 558 RON
53 1 1 WASHER (153559-00) 558 RON
56 1 2 SLEEVE (146740-00) 781 RON
57 1 2 SCREW (394589-01) 781 RON
60 1 11 Screw Metal (330045-15) 781 RON
61 1 1 SA DUST DUCT HI-CAP cod vechi N106371 (N142121) 10512 RON
62 1 1 KNOB (N080677) 2124 RON
68 1 1 BEVEL POINTER RIGHT (N058308) 893 RON
69 1 1 BEVEL POINTER LEFT (N058309) 893 RON
70 1 1 KNOB (N080199) 1229 RON
72 1 1 RING (060325-01) 558 RON
72 1 1 60325-01 - Indisponibil
74 1 6 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
76 1 1 BEVEL SCALE (N585429) 12361 RON
80 1 2 PAWL (N043045) 1117 RON
81 1 1 PLATE knob keeper (641484-00) 781 RON
82 1 1 SCREW (098103-18) 558 RON
82 1 1 98103-18 - Indisponibil
83 1 1 PLATE STOP RH (N049689) 1229 RON
85 1 1 PLATE STOP LH (N051519) 1229 RON
91 1 1 NUT HEX (330015-03) 558 RON
92 1 2 SCREW (N058312) 893 RON
93 1 1 BASE SA (N597356) 228616 RON
94 1 1 PLATE (N528183) 3268 RON
95 1 1 PLATE (N544383) 4355 RON
96 1 1 TABLE SA (N600623) 161583 RON
99 1 1 RING (49787-00) 588 RON
100 1 1 SCREW M8X1 25 L.27 5 DWS780 (N058318) 781 RON
101 1 1 LOCK NUT (N044739) 558 RON
102 1 4 LAP WASHER (153792-00) 558 RON
103 1 1 PLATE (N583416) 27287 RON
104 1 2 SCREW (604410-00) 558 RON
105 1 1 HOLDER (391358-01) 1117 RON
106 1 1 SPANNER (N600007) 2182 RON
107 1 1 POINTER MITER (N057963) 105 RON
108 1 1 ACTUATOR DETENT SPRING (N050755) 3018 RON
109 1 2 PLATE (N477762) 588 RON
110 1 1 SHAFT (622396-00) 588 RON
111 1 1 LEVER LOCK-OFF (622395-00) 588 RON
113 1 1 SPRING COMPRESSION (N477761) 588 RON
114 1 2 NEEDLE BEARING (093128-00) 1229 RON
115 1 1 RETAINER (618254-00) 1117 RON
116 1 1 LEVER MITER LOCK (N082785) 3466 RON
117 1 1 PIN (N057386) 190 RON
118 1 1 PIN (624460-00) 893 RON
119 1 1 SLEEVE (624461-00) 781 RON
120 1 1 ROD (618186-00) 1452 RON
121 1 1 BLOCK (618185-00) 3466 RON
122 1 1 SCREW (385915-03) 105 RON
123 1 1 SPRING COMPRESSION (618253-00) 558 RON
124 1 1 HANDLE SA (N633984) 21676 RON
125 1 4 SCREW (330045-18) 558 RON
126 1 3 SCREW PLASTITE (330019-32) 558 RON
127 1 1 PCB SA (N494159) 12361 RON
128 1 1 SWITCH (N447769) 16689 RON
129 1 4 SCREW (N458834) 588 RON
130 1 1 SCREW (330045-23) 781 RON
131 1 1 screw dw744 (330019-12) 558 RON
133 1 1 HANDLE (N083060) 3466 RON
134 1 1 SCREW (CARRY HANDLE) (330019-22) 558 RON
135 1 1 CABLE CLAMP (398443-00) 781 RON
137 1 1 COVER (N030322) 781 RON
138 1 1 FENCE (N597906) 49114 RON
139 1 1 FENCE LH (N450336) 25728 RON
140 1 1 FENCE RH (N450343) 28836 RON
141 1 2 KNOB SA (N480604) 4355 RON
142 1 4 SCREW (098105-03) 558 RON
142 1 4 98105-03 - Indisponibil
143 1 1 MOTOR SA (N631879) 29222 RON
144 1 1 COVER (N448791) 2182 RON
145 1 1 SCREW (N427493) 588 RON
146 1 1 LEAD (N493970) 9012 RON
147 1 1 LEAD (N443879) 3268 RON
148 1 1 BUSHING (N449481) 588 RON
149 1 1 48822-00 - Indisponibil
149 1 1 clamp dw744 (048822-00) 558 RON
150 1 1 DRIVE PULLEY (N004510) 3018 RON
151 1 1 HOUSING (N426940) 4827 RON
152 1 4 "SCREW PLASTIC 5*12""" (323924-08) 558 RON
153 1 1 HOUSING (N426941) 2182 RON
154 1 1 SCREW (N449474) 588 RON
155 1 2 TERMINAL BLOCK SPRING (N461735) 588 RON
157 1 1 HOUSING (N426942) 6688 RON
158 1 10 SCREW PLASTIC THD FORM M4*38 T20 (330019-16) 558 RON
160 1 1 RATING PLATE (N675052) 2182 RON
161 1 1 SPACER (N599680) 1630 RON
162 1 1 LEAD SA (N592867) 18568 RON
163 1 1 LIFTER (N594146) 588 RON
164 1 1 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
165 1 1 SCREW (330045-18) 558 RON
165 1 1 Screw Metal (330045-15) 781 RON
170 1 1 HOUSING SA (N688652) 78485 RON
171 1 8 SCREW (603390-00) 558 RON
172 1 2 WEAR GUIDE (397118-00) 1452 RON
173 1 1 SCREW M8X10 (153576-04) 190 RON
174 1 1 FRICTION DISC (613497-00) 558 RON
175 1 4 SCREW SHOULDER M5X12 (N058314) 1229 RON
177 1 2 RUBBER WASHER (N051244) 781 RON
178 1 1 SPRING (659919-00) 893 RON
179 1 1 SCREW (612008-00) 781 RON
180 1 1 LOCK HANDLE (N655935) 10241 RON
181 1 1 WASHER PLAIN STEEL 10 * 20 * 2.0 THICK (330016-04) 558 RON
183 1 1 SA SLIDE STOP LEVER (N095579) 2795 RON
184 1 1 SPRING (167785-00) 558 RON
185 1 1 PIN (N834068) 2182 RON
185 1 1 PIN (N041865) 5591 RON
186 1 1 SPRING (N630003) 588 RON
186 1 1 GUARD KIT (NA376574) 15469 RON
187 1 1 BOLT (N600059) 944 RON
188 1 2 SHOULDER SCREW M6 (N058315) 781 RON
189 1 4 WASHER SPRING MBR100 TYPE 2 (385946-00) 558 RON
190 1 2 PAWL (N043046) 1788 RON
192 1 2 SCREW (N600034) 82 RON
194 1 1 N630004 - Indisponibil
194 1 1 GUARD KIT (NA376574) 15469 RON
195 1 1 BEARING THRUST (153451-00) 781 RON
199 1 1 GUARD LOWER (N600603) 40734 RON
200 1 1 BRAND LABEL (N457634) 1772 RON
203 1 2 BEARING DW704 TYPE 3 (386780-00) 190 RON
204 1 1 GUARD LOWER (N681838) 16689 RON
205 1 1 PLATE (N020822) 4472 RON
206 1 4 SCREW (385915-01) 558 RON
207 1 1 PLATE (N041973) 4137 RON
208 1 1 BUMPER (146768-00) 781 RON
209 1 1 LINK (N142523) 14315 RON
212 1 1 RETAINING PLATE (146750-01) 4137 RON
213 1 1 SPRING (N034013) 82 RON
214 1 1 SLEEVE (148295-00) 105 RON
215 1 2 ROLLER (625825-00) 781 RON
216 1 2 CIRCLIP (603232-00) 558 RON
217 1 2 LABEL (394976-00) 1229 RON
218 1 1 STUD (146760-02) 1117 RON
219 1 2 SCREW (153666-00) 558 RON
228 1 4 WIPER (397117-00) 893 RON
229 1 2 PLATE COVER (N049684) 105 RON
230 1 1 HOUSING (N455343) 20216 RON
231 1 1 TRUNNION (N443949) 32327 RON
232 1 1 SCREW (330019-14) 558 RON
239 1 1 DUST BAG (N126162) 5370 RON
240 1 1 CLAMP SA (N142123) 30769 RON
250 1 4 RUBBER FEET (868777-00) 558 RON
251 1 2 PIN DETENT PIVOT (618170-00) 781 RON
260 1 1 LABEL (N457632) 944 RON
261 1 1 LABEL (N460811) 944 RON
263 1 2 LABEL (N458771) 944 RON
290 1 1 SCREW (394034-00) 893 RON
314 1 1 BAR FENCE (N441566) 6688 RON
315 1 1 RAIL (N058319) 46247 RON
332 1 1 RAIL (N104494) 25728 RON
333 1 1 BRACKET (N450867) 2182 RON
400 1 2 CORD LANYARD DWS780 (N735605) 4355 RON
401 1 2 SCREW (098013-16) 558 RON
402 1 2 STOP NUT (330021-06) 558 RON
403 1 2 TABLE EXTENSION DCS727 (N600658) 23244 RON
404 1 4 SCREW (394589-01) 781 RON
405 1 4 WASHER (N611941) 588 RON
533 1 1 SWITCH (N595757) 15469 RON
533 1 1 SWITCH (N443880) 5370 RON
534 1 1 CAP (N300152) 1318 RON
535 1 1 HEATSHIELD (N631525) 588 RON
800 1 1 GREASE (5140061-28) 34336 RON
800 1 1 GREASE DW704 TYPE 3 (93488-00) 7940 RON
857 1 1 ADAPTOR SA (N500157) 73079 RON
866 1 2 XR FLEXVOLT 9.0Ah Battery (N491552) 176482 RON
867 1 1 SAFETY CAP (N462141) 5370 RON
871 1 1 CHARGER QW (N473860) 73079 RON
900 1 1 GUARD KIT (NA075955) 15469 RON
