Top » Piese de schimb » PIESE DEWALT » DCS782N Type 20

FIERASTRAU VERTICAL CU MASA DEWALT DCS782N Type 20
[DCS782N Type 20]
FIERASTRAU VERTICAL CU MASA DEWALT DCS782N Type 20
Click pentru a mari
Imagini suplimentare
FIERASTRAU VERTICAL CU MASA DEWALT DCS782N Type 20
Click pentru a mari
FIERASTRAU VERTICAL CU MASA DEWALT DCS782N Type 20
Click pentru a mari
FIERASTRAU VERTICAL CU MASA DEWALT DCS782N Type 20
Click pentru a mari

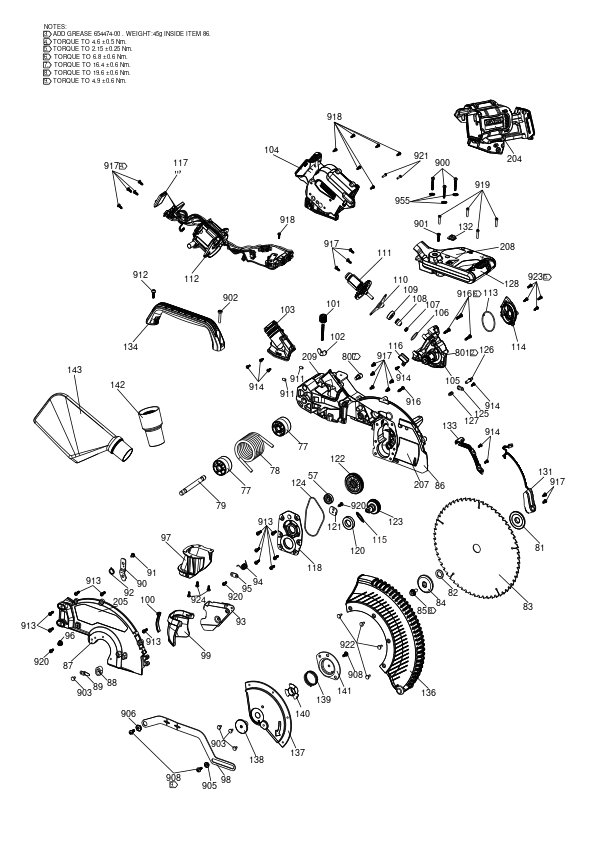

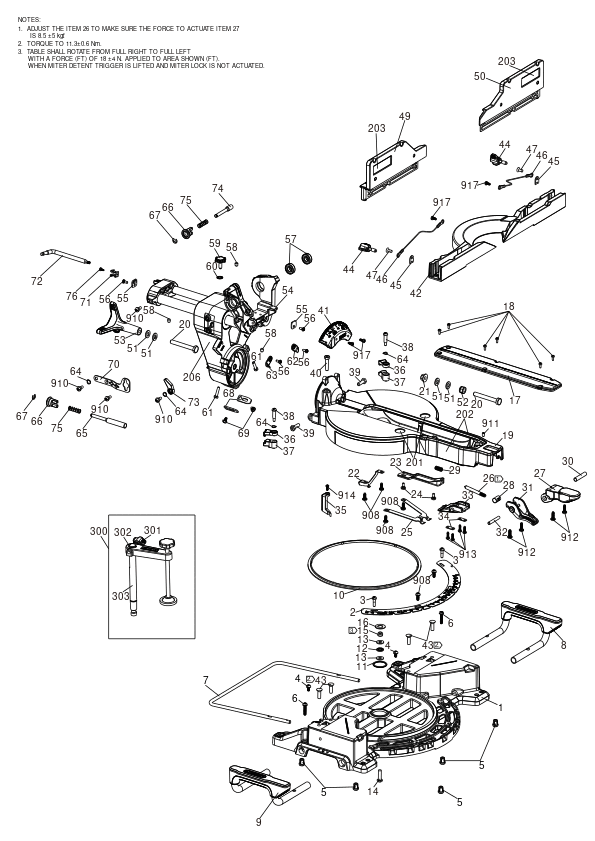

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 BASE SA (NA371898) 228616 RON
2 1 1 PLATE (N821420) 27287 RON
3 1 2 SCREW (NA170532) 82 RON
4 1 2 SCREW (330045-55) 558 RON
5 1 5 RUBBER FEET (868777-00) 558 RON
6 1 2 SCREW (330045-26) 893 RON
7 1 1 BAR (N873188) 16689 RON
8 1 1 EXTENSION (NA521470) 20216 RON
9 1 1 EXTENSION (NA523284) 20216 RON
10 1 1 PLATE (618192-00) 9282 RON
11 1 1 RING (049787-00) 558 RON
12 1 1 BEARING THRUST (153451-00) 781 RON
13 1 2 LAP WASHER (153792-00) 558 RON
14 1 1 SCREW M8X1 25 L.27 5 DWS780 (N058318) 781 RON
15 1 1 LOCK NUT (N044739) 558 RON
16 1 1 CAP (N556926) 588 RON
17 1 1 PLATE (N825905) 3954 RON
18 1 6 SCREW (N926465) 668 RON
19 1 1 TABLE SA (NA596593) 176482 RON
20 1 2 BOLT (N536137) 1318 RON
21 1 1 NUT (N861377) 1772 RON
22 1 1 CLAMP PLATE (NA366233) 2182 RON
23 1 1 PLATE (NA318899) 741 RON
24 1 2 SCREW (N908297) 1772 RON
25 1 1 SPRING (N821325) 4355 RON
26 1 1 ROD (NA524673) 5370 RON
27 1 1 HANDLE (N844439) 741 RON
28 1 1 PIN (624460-00) 893 RON
29 1 1 SPRING (NA327453) 82 RON
30 1 1 PIN (N844438) 1772 RON
31 1 1 TRIGGER (N844471) 2796 RON
32 1 1 PIN (N845268) 1772 RON
33 1 1 ACTUATOR (N844473) 2796 RON
34 1 2 PLATE (N477762) 588 RON
35 1 1 POINTER (N913376) 1772 RON
36 1 2 PAWL (NA233611) 4355 RON
37 1 2 PAWL (NA233609) 741 RON
38 1 2 SHOULDER SCREW M6 (N058315) 781 RON
39 1 2 SCREW (N600034) 82 RON
40 1 1 BOLT (N600059) 944 RON
41 1 1 BEVEL SCALE (N585429) 12361 RON
42 1 1 FENCE (NA523929) 60451 RON
43 1 4 SCREW (098105-03) 558 RON
44 1 2 KNOB SA (N480604) 4355 RON
45 1 2 PLATE knob keeper (641484-00) 781 RON
46 1 2 FENCE (N912965) 12361 RON
47 1 2 SCREW (098103-18) 558 RON
49 1 1 FENCE LH (NA596594) 30769 RON
50 1 1 FENCE RH (NA596595) 32327 RON
51 1 4 WASHER (N825552) 668 RON
52 1 1 NUT (N825535) 944 RON
53 1 1 HANDLE (N531468) 741 RON
54 1 1 HOUSING (NA596596) 356963 RON
55 1 2 RUBBER WASHER (N051244) 781 RON
56 1 4 SCREW SHOULDER M5X12 (N058314) 1229 RON
57 1 2 BEARING (605040-21) 3268 RON
58 1 3 SCREW (153666-00) 558 RON
59 1 1 KNOB (NA024364) 741 RON
60 1 1 SPRING (659919-00) 893 RON
61 1 2 SCREW (N058312) 893 RON
62 1 1 BEVEL POINTER RIGHT (N058308) 893 RON
63 1 1 BEVEL POINTER LEFT (N058309) 893 RON
64 1 4 WASHER SPRING MBR100 TYPE 2 (385946-00) 558 RON
65 1 1 PIN (N861044) 6688 RON
66 1 2 KNOB (N562268) 1933 RON
67 1 2 RETAINER (624038-00) 558 RON
68 1 2 PLATE (N917636) 2556 RON
69 1 2 SCREW (330045-22) 781 RON
70 1 1 HOOK (N828707) 4827 RON
71 1 1 HOLDER (391358-01) 1117 RON
72 1 1 SPANNER (N600007) 2182 RON
73 1 1 PAWL (N911387) 2556 RON
74 1 1 PIN (N562266) 3268 RON
75 1 2 SPRING (N562267) 82 RON
76 1 1 SCREW.TEMP (330045-05) 558 RON
77 1 2 SPRING SPACER (N844475) 3268 RON
78 1 1 SPRING TORSION (N822264) 33797 RON
79 1 1 SHAFT (N832511) 3268 RON
80 1 1 SCREW (N885267) 1933 RON
81 1 1 WASHER INNER CLAMP (N538855) 3268 RON
82 1 1 BLADE HOLDER 2.3 (152636-00) 1788 RON
83 1 1 N127231 - Indisponibil
84 1 1 CLAMP OUTER (N538823) 2556 RON
85 1 1 BLADE BOLT (N600011) 114 RON
86 1 1 ARM (NA596597) 73079 RON
87 1 1 GUARD UPPER (NA375070) 25728 RON
88 1 1 BUMPER (N861062) 588 RON
89 1 1 PLATE (NA615783) 944 RON
90 1 1 PLATE (N826849) 1933 RON
91 1 1 SCREW (N869203) 1933 RON
92 1 1 SPRING (N826848) 1630 RON
93 1 1 DEFLECTOR (N826860) 5370 RON
94 1 1 SPRING (N827877) 1772 RON
95 1 1 RETAINER (N829510) 944 RON
96 1 1 DEFLECTOR (N875407) 1630 RON
97 1 1 GUARD (N826859) 5370 RON
98 1 1 GUARD (NA189003) 741 RON
99 1 1 FLAP (N827944) 12361 RON
100 1 1 SEAL (N935010) 2182 RON
101 1 1 KNOB (N854646) 3268 RON
102 1 1 NUT WING (150718-00) 558 RON
103 1 1 DUCT (NA009493) 2556 RON
104 1 1 MOTOR HOUSING SA (NA325124) 27287 RON
105 1 1 GEAR CASE SA (NA320047) 60451 RON
106 1 1 O RING (NA032364) 668 RON
107 1 1 NUT (N878161) 1318 RON
108 1 1 PINION (N538531) 4827 RON
109 1 1 BEARING,BALL HUAYANG MFG 6000 (N129813-03) 1933 RON
110 1 1 RETAINER (N810722) 2796 RON
111 1 1 ROTOR SA (NA325066) 161583 RON
112 1 1 STATOR SA (NA596612) 356963 RON
113 1 1 SEAL (N823417) 1772 RON
114 1 1 GEAR CASE SA (N811211) 4355 RON
115 1 1 O RING (NA738864) 82 RON
116 1 1 COVER (N921891) 588 RON
117 1 1 MODULE (N637090) 16689 RON
118 1 1 BEARING (N811091) 24962 RON
120 1 1 BEARING BALL (605040-40) 4827 RON
121 1 1 RETAINER (N811575) 944 RON
122 1 1 GEARSHAFT SA (NA025457) 49827 RON
123 1 1 SPINDLE & GEAR (N811088) 36994 RON
124 1 1 COVER (N811096) 4827 RON
125 1 1 PLATE (393071-00) 558 RON
126 1 1 LOCK PIN (NA129419) 2796 RON
127 1 1 SPRING (448176-00) 558 RON
128 1 1 HANDLE SA (NA333840) 18568 RON
131 1 1 LED LIGHT (N687584) 18568 RON
132 1 1 CAP (N300152) 1318 RON
133 1 1 COVER (N865139) 1772 RON
134 1 1 HANDLE (N862009) 9012 RON
136 1 1 GUARD (NA189010) 23244 RON
137 1 1 PLATE (NA189006) 20216 RON
138 1 1 RETAINER (NA189005) 5370 RON
139 1 1 SPRING (NA189008) 1933 RON
140 1 1 PIVOT (NA189007) 944 RON
141 1 1 PLATE (NA189009) 5370 RON
142 1 1 ADAPTOR (NA130835) 2796 RON
143 1 1 DUST BAG (N126162) 5370 RON
201 1 2 LABEL (394976-00) 1229 RON
202 1 1 LABEL (NA721219) 1772 RON
203 1 1 WARNING LABEL (N466081) 668 RON
204 1 1 LABEL (NA564483) 588 RON
205 1 1 IDENTITY LABEL (NA564506) 3268 RON
206 1 1 LABEL (NA173714) 944 RON
207 1 1 RATING LABEL (NA564507) 1933 RON
208 1 1 WARNING LABEL (NA381141) 944 RON
209 1 1 LABEL (NA546579) 944 RON
300 1 1 CLAMP SA (N142123) 30769 RON
301 1 1 KNOB (N142125) 2182 RON
302 1 1 RETAINER (389750-00) 558 RON
303 1 1 CLAMP (N142124) 12361 RON
801 1 1 GREASE TUBE (583534-00) 29862 RON
900 1 3 SCREW (NA187677) 588 RON
901 1 1 SCREW (NA187678) 588 RON
902 1 1 SCREW (NA187682) 668 RON
903 1 4 SCREW (385915-04) 558 RON
905 1 1 SLEEVE (146740-00) 781 RON
906 1 1 SLEEVE (NA189004) 1933 RON
908 1 9 SCREW (330045-23) 781 RON
910 1 4 SCREW (NA103675) 668 RON
911 1 3 SCREW (150075-00) 781 RON
912 1 5 SCREW (NA187687) 668 RON
913 1 16 SCREW (330045-49) 558 RON
914 1 8 SCREW (NA187689) 588 RON
916 1 4 Screw Metal (330045-16) 558 RON
917 1 18 SCREW (NA187680) 588 RON
918 1 7 SCREW (NA187673) 588 RON
919 1 4 SCREW (NA187258) 588 RON
920 1 2 SCREW (330045-49) 558 RON
921 1 2 SCREW PLASTIC THREAD FORM M3.5*16 T15 (330019-66) 558 RON
922 1 4 SCREW (385915-01) 558 RON
923 1 4 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
924 1 3 SCREW (NA150912) 588 RON
955 1 3 WASHER (NA702751) 588 RON
