FIERASTRAU VERTICAL CU MASA DEWALT DCS778 Type 1
[DCS778 Type 1]
FIERASTRAU VERTICAL CU MASA DEWALT DCS778 Type 1
Click pentru a mari
Imagini suplimentare
FIERASTRAU VERTICAL CU MASA DEWALT DCS778 Type 1
Click pentru a mari
FIERASTRAU VERTICAL CU MASA DEWALT DCS778 Type 1
Click pentru a mari
FIERASTRAU VERTICAL CU MASA DEWALT DCS778 Type 1
Click pentru a mari

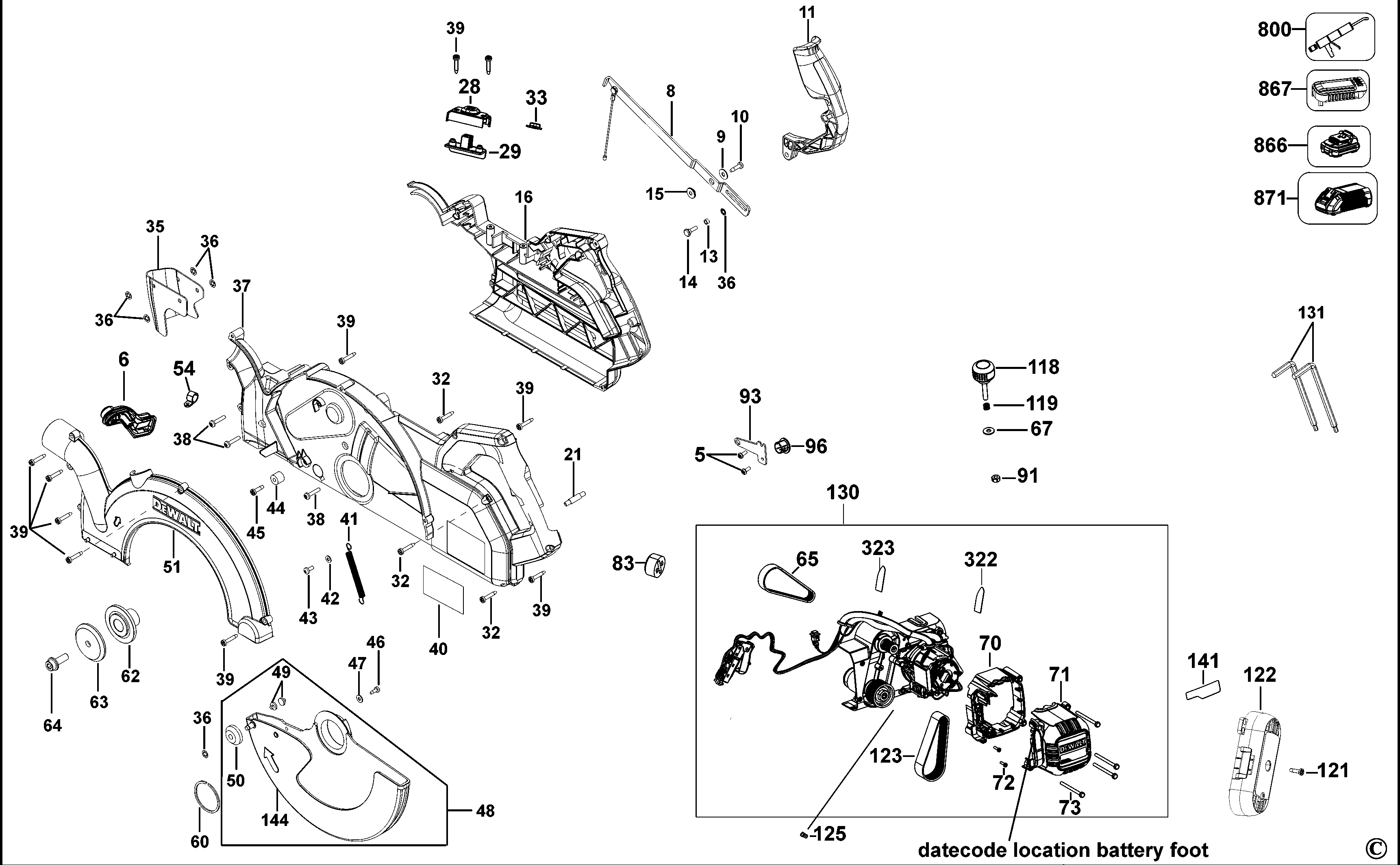

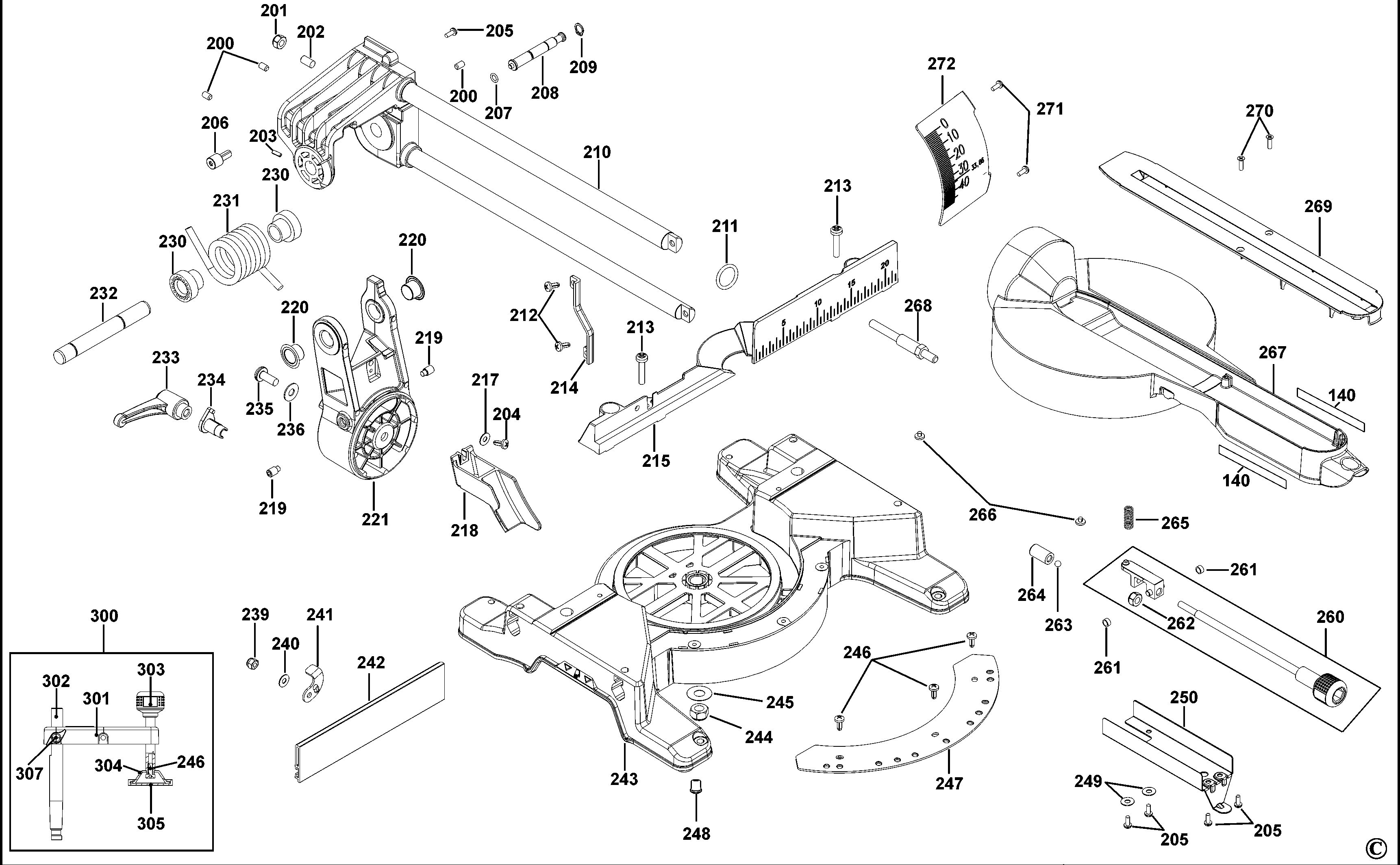

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
5 1 2 SCREW.TEMP (330045-05) 558 RON
6 1 1 N496795 - Indisponibil
8 1 1 SA LEVER DWS778 (N110339) 5031 RON
9 1 1 WASHER (939625-00) 558 RON
10 1 1 VITE TCB 4 2X16 B 6954 (930076-01) 558 RON
11 1 1 LEVER DCS778 (N464700) 2556 RON
13 1 1 BUSHING X LEVER D.6 DW777 (869295-00) 558 RON
14 1 1 PIN DW777 (869156-00) 893 RON
15 1 1 BUSHING DW777 (869192-00) 781 RON
16 1 1 HANDLE SIDE MOTOR DCS778 (N463316) 10241 RON
21 1 1 PIVOT (760296-01) 781 RON
28 1 1 HOUSING, COVER, XPS SWITCH (N440266) 1933 RON
29 1 1 HOUSING, ASSY, XPS SWITCH (N440265) 1933 RON
32 1 2 SCREW (949896-10) 558 RON
33 1 1 CAP (N300152) 1318 RON
35 1 1 DEFLECTOR DUST DWS778 (N130455) 2795 RON
36 1 5 SEAL RING (604728-00) 558 RON
37 1 1 COVER,MOT.HOUSING DCS778 (N463317) 12361 RON
38 1 3 SCREW (330045-07) 558 RON
39 1 14 SCREW PLASTIC 3.9X22 T20 (N456928) 1318 RON
39 1 14 SCREW (761304-01) 558 RON
40 1 1 NAMEPLATE DCS778 (N465018) 1933 RON
41 1 1 SPRING DWS778 (N168410) 781 RON
42 1 2 WASHER FLAT 4.3X9 UNI 6592 (860073-00) 558 RON
43 1 1 SCREW PAN PHAB 3.9X9 5UNI6954 (860084-20) 558 RON
44 1 1 BUMPER (761306-00) 781 RON
45 1 1 SELF TAPPING SCREW (949896-13) 558 RON
46 1 1 SCREW 3 5x10 UNI8112 (943022-01) 558 RON
47 1 1 WASHER (941633-00) 558 RON
48 1 1 SA MOVEABLE GUARD DWS778 (N110318) 17335 RON
49 1 6 SLIDE ROLLER (760298-01) 558 RON
50 1 1 ROLLER (146774-00) 1117 RON
51 1 1 UPPER GUARD DCS778 MCHD (N486097) 16689 RON
54 1 1 CABLE CLAMP (398443-00) 781 RON
60 1 1 RING SPRING SHAFT D40 (N142857) 781 RON
62 1 1 BLADE WASHER INNER DWS778 (N106551) 7940 RON
63 1 1 BLADE WASHER OUTER DWS778 (N106550) 5591 RON
64 1 1 SCREW (869245-00) 4137 RON
65 1 1 BELT 11 RIBS DWS778 (N106424) 5591 RON
67 1 2 WASHER(174930434) (760241-01) 558 RON
70 1 1 HOUSING (N448252) 3954 RON
71 1 1 END CAP (N448928) 4355 RON
72 1 2 Screw M3.5X16 T15 (330019-03) 558 RON
73 1 4 SCREW (330045-51) 558 RON
83 1 1 ADJUSTER (946874-00) 558 RON
91 1 1 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
93 1 1 PLATE DW777 (869166-00) 781 RON
96 1 1 PLUG (947067-00) 781 RON
118 1 1 LOCKING KNOB (869140-00) 1117 RON
119 1 1 SPRING (868082-00) 558 RON
121 1 2 SCREW PAN PH/TT M.4X35 (330045-10) 558 RON
122 1 1 COVER BELT DCS778 (N438436) 3268 RON
123 1 1 BELT 16 RIBS DWS778 (N115190) 9282 RON
125 1 1 SPRING DW743N (869246-00) 781 RON
130 1 1 MOTOR SA (N494885) 356963 RON
131 1 1 WRENCH (868682-00) 893 RON
140 1 2 LABEL FLEXVOLT DCS778 (N470118) 1772 RON
141 1 1 LABEL BRUSHLESS 54V DCS777 (N465013) 1772 RON
144 1 1 MOVEABLE GUARD DWS778 (N106542) 15993 RON
200 1 1 SCREW (150075-00) 781 RON
201 1 1 NUT HEX MEAN M.8 UNI5588 ZINC (860083-14) 558 RON
202 1 1 SCREW (760242-00) 781 RON
203 1 2 THREADED PIN M6X16 DIN916 (941902-00) 588 RON
204 1 1 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
205 1 2 SCREW.TEMP (330045-05) 558 RON
206 1 1 SCREW (618198-00) 781 RON
207 1 1 GASKET DW250-DW252 (949746-02) 558 RON
207 1 1 O RING (943030-00) 558 RON
208 1 1 PIN DWS778 (N129820) 5591 RON
209 1 1 RING SPRING SHAFT D10 UNI7435 (860079-02) 558 RON
210 1 1 SA RAILS DWS778 SERVICE (N231740) 91714 RON
211 1 1 OR 4075 D.18 64 d.3 53 (869141-00) 558 RON
212 1 2 SCREW (949609-03) 558 RON
213 1 2 SCREW (330045-26) 893 RON
214 1 1 CROSS (947613-00) 2795 RON
215 1 1 N458682 - Indisponibil
215 1 1 FENCE DCS778 (N783373) 20216 RON
217 1 2 WASHER (941633-00) 558 RON
218 1 1 DUST CONVEYOR DWS778 (N150087) 105 RON
219 1 2 SCREW (949743-02) 781 RON
220 1 2 BUSHING NYLINER (N083191) 781 RON
221 1 1 SEGMENT DCS778 MCHD (N463318) 28836 RON
230 1 2 SPACER (146732-00) 781 RON
231 1 1 SPRING (N136651) 5591 RON
232 1 1 PIN DWS778 SERVICE (N231736) 7940 RON
233 1 1 LEVER (861840-03) 2795 RON
234 1 1 BEVEL CLAMP DW777 (868680-00) 1788 RON
235 1 1 SCREW (612008-00) 781 RON
236 1 1 WASHER (933168-00) 781 RON
239 1 1 NUT ELAST.STOP M.6 UNI 7473 (860092-02) 558 RON
240 1 1 WASHER(174930434) (760241-01) 558 RON
241 1 1 LEVER LOCK DWS778 (N128350) 893 RON
242 1 1 SA SLIDING FENCE DWS778 SERVICE (N231741) 17335 RON
242 1 1 SA SLIDING FENCE DWS778, SERVICE (N497434) 18568 RON
243 1 1 BASE DCS777, SERVICE (N476310) 78485 RON
244 1 1 NUT LOCKING M12X1 25 (860092-07) 558 RON
245 1 1 WASHER (949705-01) 558 RON
246 1 4 SCREW (330045-49) 558 RON
247 1 1 SCALE (868677-00) 6821 RON
248 1 4 RUBBER FEET (868777-00) 558 RON
249 1 2 WASHER SPRING CON.D4.2X10X0.6 (860074-00) 558 RON
250 1 1 COVER (N109533) 3466 RON
250 1 1 COVER (N483511) 3268 RON
260 1 1 SA TABLE LOCKING DWS778 (N109532) 7940 RON
261 1 2 BUSHING (N299799) 781 RON
262 1 1 NUT SELF LOCKING M.8 (860092-05) 558 RON
263 1 1 BALL 6 3 mm (868708-00) 558 RON
264 1 1 SPACER FOR LOCKING SYSTEM DW777 (868707-01) 558 RON
265 1 1 SPRING (N276679) 588 RON
266 1 3 SLIDE ROLLER (760298-01) 558 RON
267 1 1 TABLE DCS778, SERVICE (N484587) 67932 RON
268 1 1 SHAFT BEVEL DWS778 (N115187) 3466 RON
269 1 1 TABLE INSERT (N106478) 3466 RON
270 1 2 SCREW PAN PH/TT M.4X14 UNI8112 (860205-08) 558 RON
271 1 2 SCREW (949894-12) 558 RON
272 1 1 SCALE BEVEL DWS778 (N131182) 2347 RON
300 1 1 CLAMP SA PACKED (N171682) 12861 RON
301 1 1 CLAMP MACHINED DW777 (869306-00) 3018 RON
302 1 1 CLAMP BAR DWS778 (N168123) 4137 RON
303 1 1 SCREW+KNOB CLAMP DW777 (869308-00) 1788 RON
304 1 1 PAD CLAMP DW777 (630068-00) 781 RON
305 1 1 CLAMP CAP DW777 (630085-00) 781 RON
307 1 1 SCREW WING M6*17 BLACK (326573-01) 781 RON
322 1 1 LEFT XR FLEXVOLT LABEL DCS575/DCS576 EAN (N459248) 1318 RON
323 1 1 RIGHT XR FLEXVOLT LABEL DCS575/DCS576 EA (N459249) 1318 RON
800 1 1 GREASE DW704 TYPE 3 (93488-00) 7940 RON
866 1 1 BATTERY 3 X18V-6.0AH-108WH (N473851) 148269 RON
867 1 1 SAFETY CAP (N462141) 5370 RON
871 1 1 CHARGER QW (N473860) 73079 RON
