Top » Piese de schimb » PIESE DEWALT » DCS777 Type 1

FIERASTRAU VERTICAL CU MASA DEWALT DCS777 Type 1
[DCS777 Type 1]
FIERASTRAU VERTICAL CU MASA DEWALT DCS777 Type 1
Click pentru a mari
Imagini suplimentare
FIERASTRAU VERTICAL CU MASA DEWALT DCS777 Type 1
Click pentru a mari
FIERASTRAU VERTICAL CU MASA DEWALT DCS777 Type 1
Click pentru a mari
FIERASTRAU VERTICAL CU MASA DEWALT DCS777 Type 1
Click pentru a mari
FIERASTRAU VERTICAL CU MASA DEWALT DCS777 Type 1
Click pentru a mari

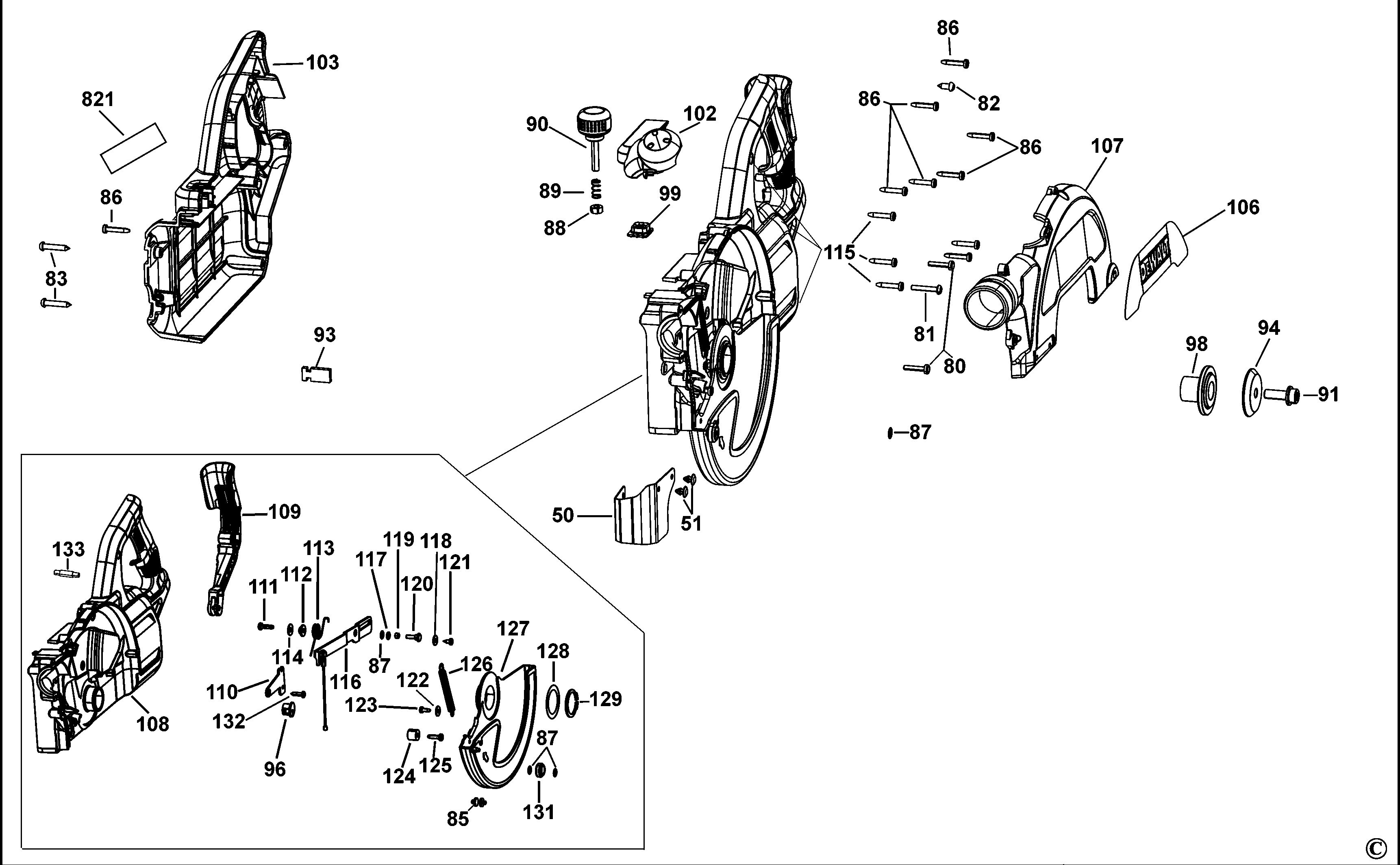

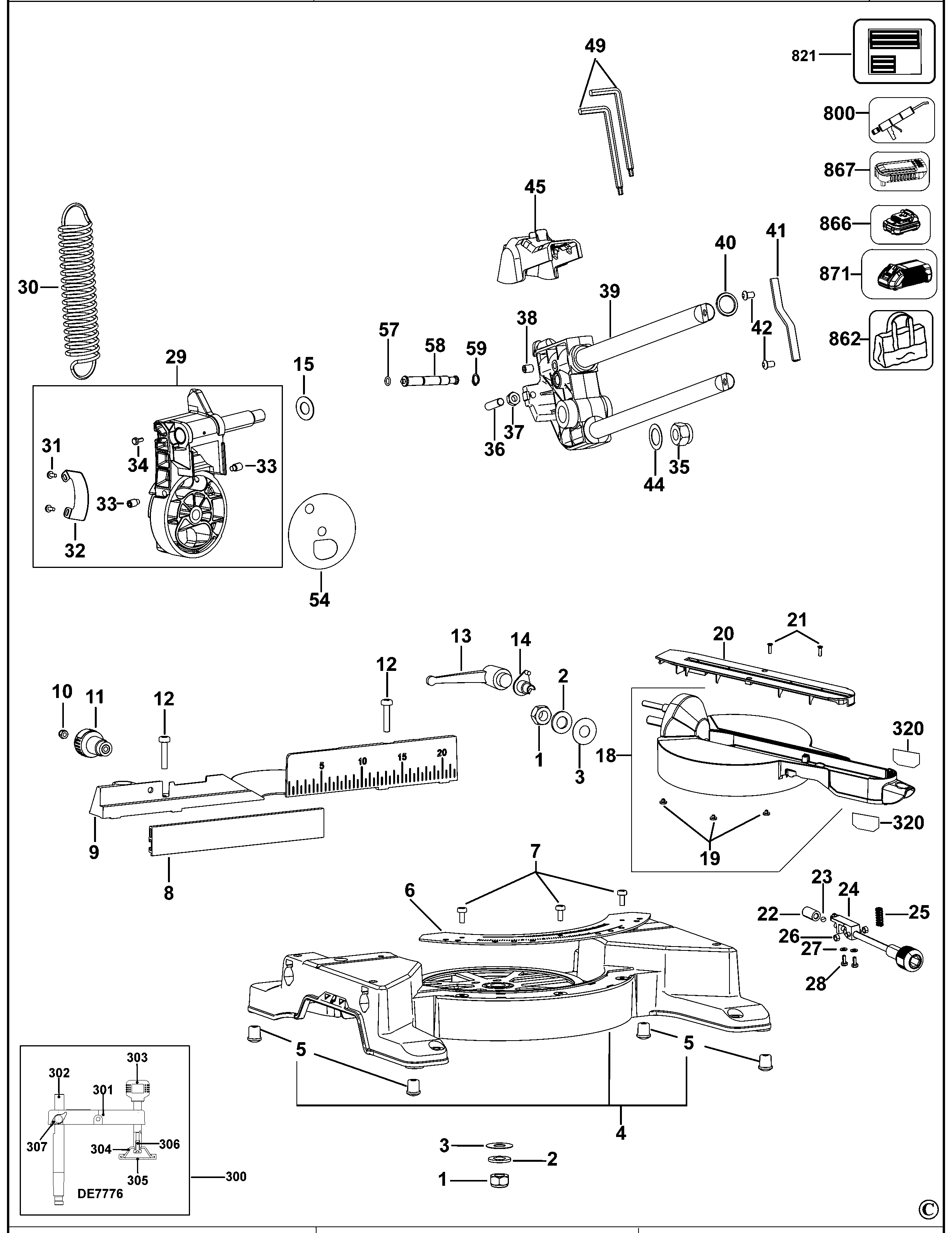

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 NUT LOCKING M12X1 25 (860092-07) 558 RON
2 1 2 WASHER FLAT 13X24 UNI 6592 (860073-05) 558 RON
3 1 2 WASHER (949705-01) 558 RON
4 1 1 BASE DCS777, SERVICE (N476310) 78485 RON
5 1 4 RUBBER FEET (868777-00) 558 RON
6 1 1 SCALE (868677-00) 6821 RON
7 1 3 SCREW (330045-49) 558 RON
8 1 1 FENCE (868743-02) 6821 RON
9 1 1 N458682 - Indisponibil
9 1 1 FENCE DCS778 (N783373) 20216 RON
10 1 1 NUT M5 (860092-03) 558 RON
11 1 1 KNOB (869195-00) 1452 RON
12 1 2 SCREW (330045-26) 893 RON
13 1 1 LEVER (861840-03) 2795 RON
14 1 1 BEVEL CLAMP DW777 (868680-00) 1788 RON
15 1 1 WASHER (869163-01) 558 RON
18 1 1 N476311 - Indisponibil
18 1 1 TABLE DCS777, SERVICE (N717623) 73079 RON
19 1 3 SLIDE ROLLER (760298-01) 558 RON
20 1 1 TABLE BASE INSERT DCS777 (N448898) 2796 RON
21 1 2 SCREW PAN PH/TT M.4X14 UNI8112 (860205-08) 558 RON
22 1 1 SPACER FOR LOCKING SYSTEM DW777 (868707-01) 558 RON
23 1 1 BALL 6 3 mm (868708-00) 558 RON
24 1 1 SA TABLE LOCKING DW777 (N315680) 6688 RON
25 1 1 SPRING (868778-00) 558 RON
26 1 2 BUSHING (N299799) 781 RON
27 1 2 WASHER FLAT 4.3X9 UNI 6592 (860073-00) 558 RON
28 1 2 SCREW.TEMP (330045-05) 558 RON
29 1 1 N476314 - Indisponibil
30 1 1 SPRING DW777 (869142-00) 190 RON
31 1 2 SCREW (949894-12) 558 RON
32 1 1 SCALE DW777 (869091-00) 190 RON
33 1 2 SCREW (949743-02) 781 RON
34 1 1 SCREW.TEMP (330045-05) 558 RON
35 1 1 NUT M14 X 1 5 (860092-09) 781 RON
36 1 1 SCREW (760242-00) 781 RON
37 1 1 NUT HEX MEAN M.8 UNI5588 ZINC (860083-14) 558 RON
38 1 1 SCREW ST M8X10 (330022-17) 558 RON
39 1 1 SA RAILS+SUPPORT DW777 SERVICE (869318-00) 4825 RON
40 1 1 OR 4075 D.18 64 d.3 53 (869141-00) 558 RON
41 1 1 CROSS (947613-00) 2795 RON
42 1 2 SCREW (949609-03) 558 RON
44 1 1 WASHER (869163-00) 558 RON
45 1 1 PROTECTION DW777 (N295979) 1788 RON
49 1 2 WRENCH (868682-00) 893 RON
50 1 1 DUST FLAPPER DCS777 (N446603) 1933 RON
51 1 4 PUSH RIVET (607491-00) 558 RON
54 1 1 RING D.100 (947614-00) 1788 RON
57 1 1 GASKET DW250-DW252 (949746-02) 558 RON
57 1 1 O RING (943030-00) 558 RON
58 1 1 PIVOT DW777 (N325259) 5031 RON
59 1 1 RING SPRING SHAFT D10 UNI7435 (860079-02) 558 RON
80 1 2 SCREW (330045-07) 558 RON
81 1 1 SCREW METAL THD FRM M4X25 T20 (330045-08) 558 RON
82 1 1 SCEW PLSTC THD FORM M4X10 T20 (330065-05) 558 RON
83 1 2 SCREW PLSTC THD FORM M4X25 T20 (330065-09) 558 RON
85 1 2 SLIDE ROLLER (760298-01) 558 RON
86 1 9 SCREW PLASTIC 3.9X22 T20 (N456928) 1318 RON
87 1 1 RING SPRING S.LOCK D.4 (860077-01) 558 RON
88 1 1 NUT M6 (860083-12) 558 RON
89 1 1 SPRING (868082-00) 558 RON
90 1 1 LOCKING KNOB (869140-00) 1117 RON
91 1 1 SCREW (869245-00) 4137 RON
93 1 1 SHOCK ABSORBER DW777 (869275-01) 558 RON
94 1 1 869292-00 (869292-00) 4472 RON
96 1 1 PLUG (947067-00) 781 RON
98 1 1 INNER WASHER DW777 (N292720) 2556 RON
99 1 1 CAP (N300152) 1318 RON

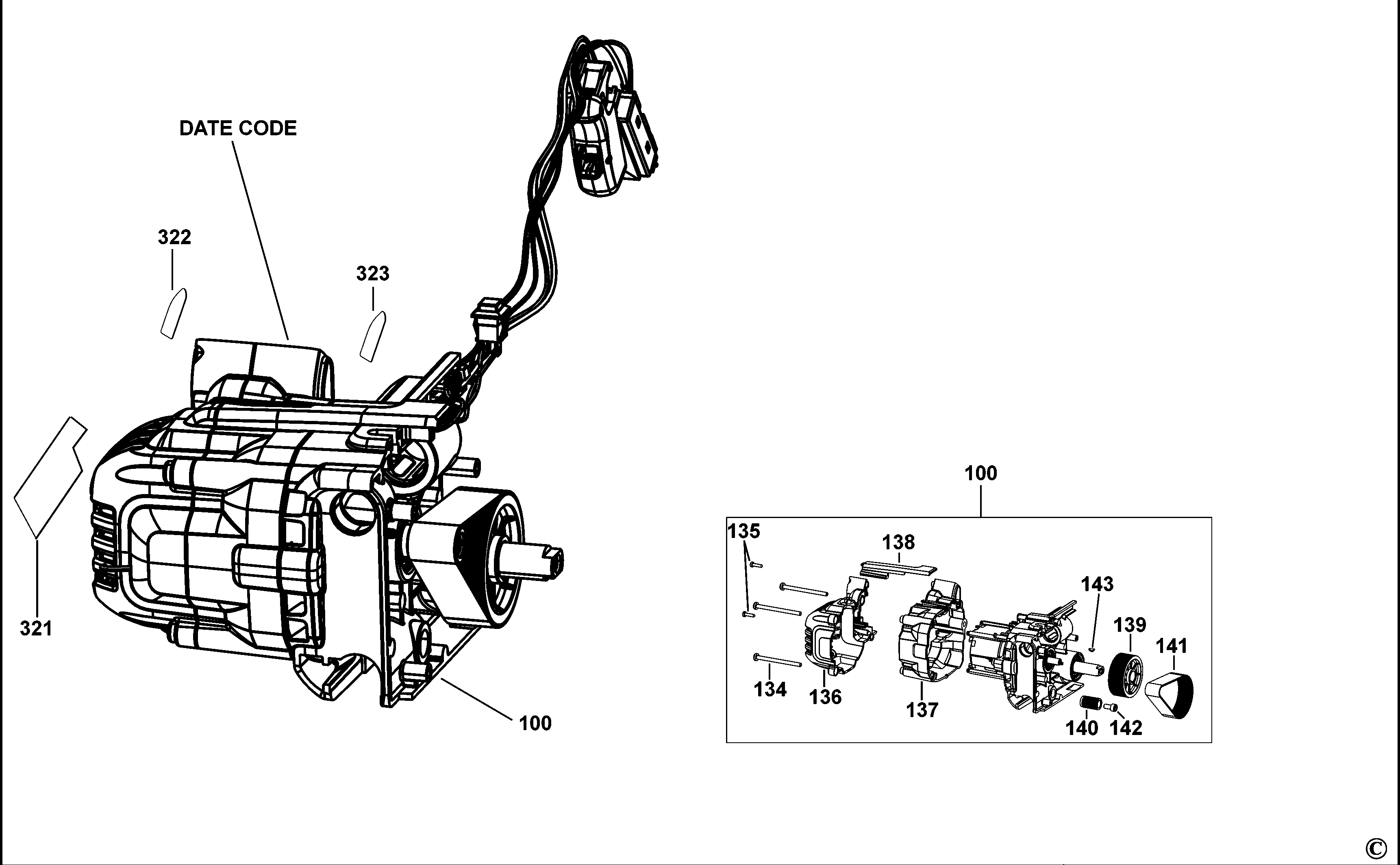

100 1 1 MOTOR SA (N481452) 161583 RON
102 1 1 N439978 - Indisponibil
102 1 1 LED LIGHT DWS777, SERVICE (N496794) 15469 RON
103 1 1 HANDLE, ASSY. SIDE DCS777 (N442446) 10241 RON
106 1 1 LABEL FIX GUARD DWS777 (N459407) 1630 RON
107 1 1 FIX GUARD DCS777 (N460315) 11337 RON
108 1 1 HANDLESET COVER DCS777 (N445767) 16689 RON
109 1 1 GUARD LEVER DCS777 (N445206) 3954 RON
110 1 1 PLATE DW777 (869166-00) 781 RON
111 1 1 SELF TAPPING SCREW (949896-13) 558 RON
112 1 1 BUSHING DW777 (869192-00) 781 RON
113 1 1 SPRING TORSION DW777 (869161-00) 781 RON
114 1 1 WASHER (939625-00) 558 RON
115 1 3 SCREW (N459994) 588 RON
116 1 1 SA LEVER DWS777 (N467382) 6688 RON
117 1 1 WASHER (939625-00) 558 RON
118 1 1 WASHER FLAT 4.3X9 UNI 6592 (860073-00) 558 RON
119 1 1 BUSHING X LEVER D.6 DW777 (869295-00) 558 RON
120 1 1 PIN DW777 (869156-00) 893 RON
121 1 1 SCREW PAN PHAB 3.9X9 5UNI6954 (860084-20) 558 RON
122 1 1 WASHER (941633-00) 558 RON
123 1 1 SCREW 3 5x10 UNI8112 (943022-01) 558 RON
124 1 1 BUMPER (761306-00) 781 RON
125 1 1 VITE TCB 4 2X16 B 6954 (930076-01) 558 RON
126 1 1 SPRING DW777 (760295-01) 105 RON
127 1 1 GUARD DW777 (869154-00) 10512 RON
128 1 1 ROSETTA D30.3X42X0.1 (760270-01) 781 RON
129 1 1 RETAINING RING D.30 (949727-04) 558 RON
131 1 1 GUARD ROLLER DW777 (861367-02) 558 RON
132 1 1 SCREW PAN.PHAB 3.9X16 UNI6954 (860084-12) 558 RON
133 1 1 PIVOT (760296-01) 781 RON
134 1 3 SCREW (330045-51) 558 RON
135 1 2 Screw M3.5X16 T15 (330019-03) 558 RON
136 1 1 MOTOR COVER (N437093) 3268 RON
137 1 1 MOTOR COVER (N437094) 3268 RON
138 1 1 COVER (N437095) 944 RON
139 1 1 PULLEY (869149-00) 4472 RON
140 1 1 PULLEY DW777 (869147-00) 2347 RON
141 1 1 BELT DW777 (869150-00) 6821 RON
142 1 1 SCREW (949886-26) 781 RON
143 1 1 TAB (940441-00) 781 RON
300 1 1 CLAMP DW777 (869311-00) 9282 RON
301 1 1 CLAMP MACHINED DW777 (869306-00) 3018 RON
302 1 1 BAR DW777 (869307-00) 3466 RON
303 1 1 SCREW+KNOB CLAMP DW777 (869308-00) 1788 RON
304 1 1 PAD CLAMP DW777 (630068-00) 781 RON
305 1 1 CLAMP CAP DW777 (630085-00) 781 RON
306 1 1 SCREW (330045-55) 558 RON
307 1 1 SCREW WING M6*17 BLACK (326573-01) 781 RON
320 1 2 LABEL FILEXVOLT (N468815) 114 RON
321 1 1 LABEL BRUSHLESS 54V DCS777 (N465013) 1772 RON
322 1 1 LEFT XR FLEXVOLT LABEL DCS575/DCS576 EAN (N459248) 1318 RON
323 1 1 RIGHT XR FLEXVOLT LABEL DCS575/DCS576 EA (N459249) 1318 RON
800 1 1 GREASE DW704 TYPE 3 (93488-00) 7940 RON
821 1 1 N465012 - Indisponibil
862 1 1 BAG (N037466) 10512 RON
862 1 1 BAG SA (NA705139) 741 RON
866 1 1 BATTERY 3 X18V-6.0AH-108WH (N473851) 148269 RON
867 1 1 SAFETY CAP (N462141) 5370 RON
871 1 1 CHARGER QW (N473860) 73079 RON
