Top » Piese de schimb » PIESE DEWALT » DCS727 Type 1

FIERASTRAU VERTICAL CU MASA DEWALT DCS727 Type 1
[DCS727 Type 1]
FIERASTRAU VERTICAL CU MASA DEWALT DCS727 Type 1
Click pentru a mari
Imagini suplimentare
FIERASTRAU VERTICAL CU MASA DEWALT DCS727 Type 1
Click pentru a mari
FIERASTRAU VERTICAL CU MASA DEWALT DCS727 Type 1
Click pentru a mari
FIERASTRAU VERTICAL CU MASA DEWALT DCS727 Type 1
Click pentru a mari
FIERASTRAU VERTICAL CU MASA DEWALT DCS727 Type 1
Click pentru a mari

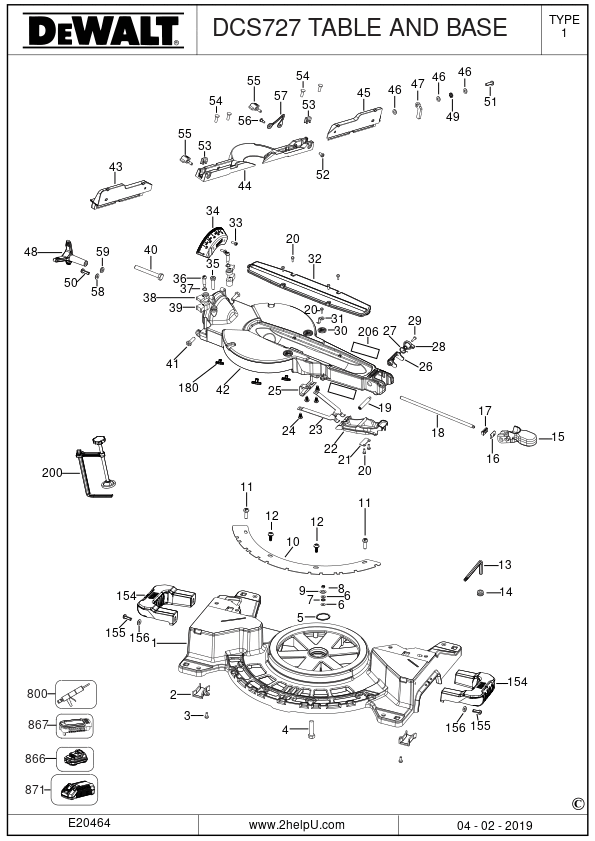

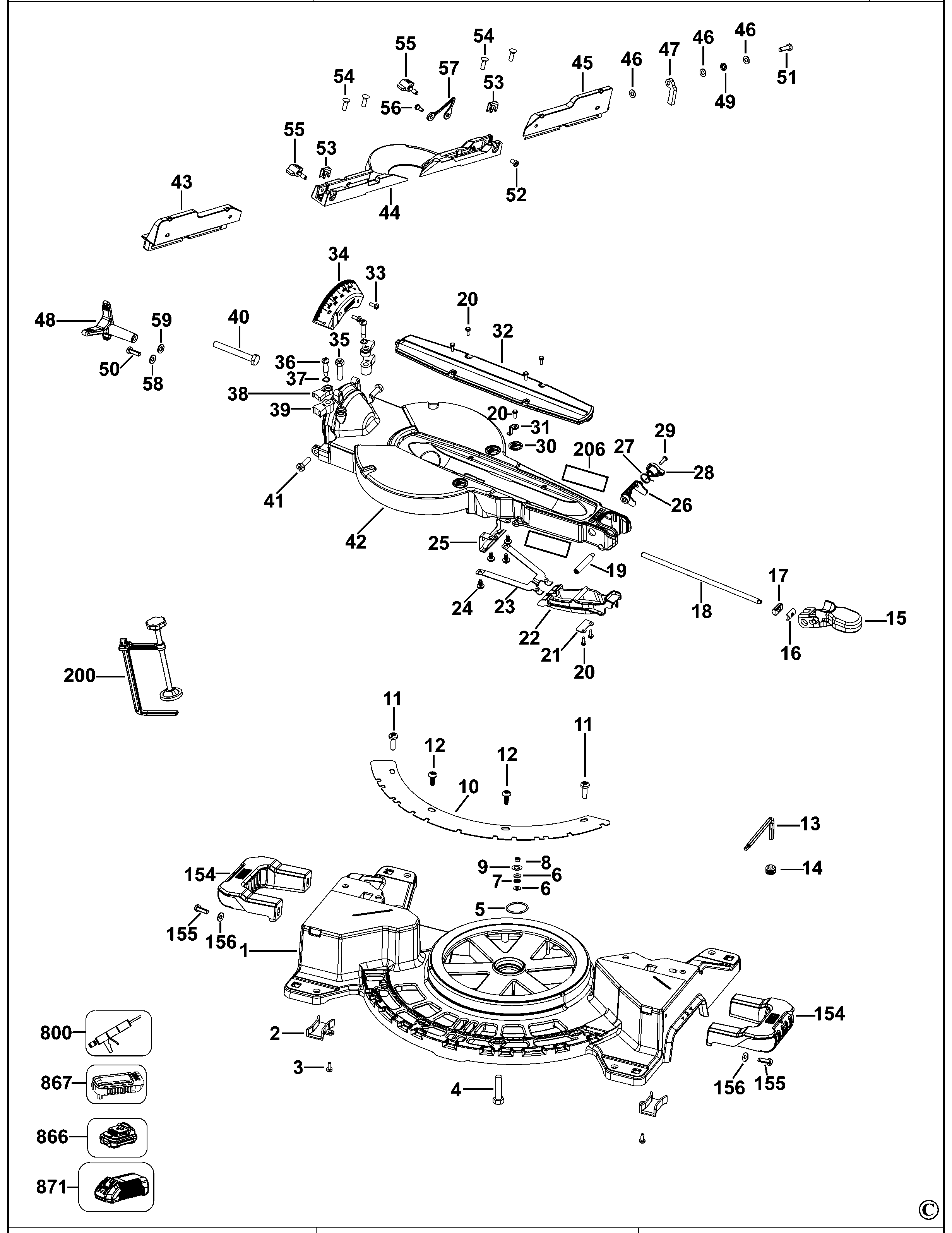

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 BASE (N746705) 113822 RON
2 1 2 CLAMP, HOLDER DWS727 (N542847) 588 RON
3 1 2 SCREW.TEMP (330045-05) 558 RON
4 1 1 98025-35 - Indisponibil
4 1 1 SCREW TE M8X35 (098025-35) 781 RON
5 1 1 RING (49787-00) 588 RON
6 1 2 LAP WASHER (153792-00) 558 RON
7 1 1 BEARING THRUST (153451-00) 781 RON
8 1 1 NUT (N074448) 781 RON
9 1 1 CAP (N556926) 588 RON
10 1 1 SCALE (N690033) 16689 RON
11 1 2 SCREW (604410-00) 558 RON
12 1 2 SCREW (330045-23) 781 RON
13 1 1 HEX KEY (N767631) 1772 RON
13 1 1 N653976 - Indisponibil
14 1 1 RUBBER (N592585) 588 RON
15 1 1 LEVER (N540765) 1933 RON
16 1 1 NUT (N419627) 668 RON
17 1 1 NUT MITER LOCK (621322-00) 1229 RON
18 1 1 BAR LOCKING (N577744) 2556 RON
19 1 1 PIN (N597803) 1772 RON
20 1 5 SCREW TAPTITE M4x12 SLT/T20 (330045-45) 558 RON
21 1 1 RETAINER (641448-00) 558 RON
22 1 1 ACTUATOR (N704030) 1933 RON
23 1 1 BLOCK SPRING (397070-00) 2795 RON
24 1 5 SCREW (330045-55) 558 RON
25 1 1 LOCK PLATE (397062-00) 1452 RON
26 1 1 LOCK (N655907) 668 RON
27 1 1 SPRING (641423-00) 588 RON
28 1 1 KNOB (641422-00) 588 RON
29 1 1 screw dw744 (330019-12) 558 RON
30 1 2 WARNING LABEL (610707-00) 781 RON
31 1 1 MITER POINTER (397048-00) 105 RON
32 1 1 INSERT (N540767) 3268 RON
33 1 6 SCREW (330045-49) 558 RON
34 1 1 BEVEL SCALE DWS780 (N090294) 4472 RON
35 1 1 BOLT (N600059) 944 RON
36 1 1 SHOULDER SCREW M6 (N058315) 781 RON
37 1 2 WASHER SPRING MBR100 TYPE 2 (385946-00) 558 RON
38 1 2 PAWL (N043045) 1117 RON
39 1 2 PAWL (N043046) 1788 RON
40 1 1 BOLT (N536137) 1318 RON
41 1 1 SCREW (N600034) 82 RON
42 1 1 ROTARY TABLE (N746713) 104961 RON
43 1 1 FENCE (N571282) 20216 RON
44 1 1 FENCE (N571280) 32327 RON
45 1 1 FENCE (N571283) 20216 RON
46 1 3 WASHER (613270-00) 781 RON
47 1 1 STOP (N638426) 1772 RON
48 1 1 HANDLE BEVEL TIGHTENING (N056883) 5031 RON
49 1 1 BEARING THRUST (N463949) 1630 RON
50 1 1 SCREW (612008-00) 781 RON
51 1 1 SCREW (612008-00) 781 RON
52 1 2 PLASTIC SCREW (N769115) 588 RON
52 1 2 N651570 - Indisponibil
53 1 2 RETAINER (N583687) 588 RON
54 1 4 SCREW (098105-03) 558 RON
54 1 4 98105-03 - Indisponibil
55 1 2 SA BEVEL KNOB (147107-07) 2347 RON
56 1 1 SHOULDER SCREW (153639-00) 781 RON
57 1 1 CONNECTING WIRE (N587154) 588 RON
58 1 1 LAP WASHER (153792-00) 558 RON
59 1 1 WASHER PLAIN STEEL 10 * 20 * 2.0 THICK (330016-04) 558 RON
60 1 1 TRUNION (N747507) 236862 RON
61 1 1 SCREW M8X10 (153576-04) 190 RON
62 1 1 KNOB (N080677) 2124 RON
63 1 1 SPRING (659919-00) 893 RON
64 1 2 BUSHING NYLINER (N083191) 781 RON
65 1 1 SHOULDER SCREW (153639-00) 781 RON
66 1 2 WAVY WASHER (153655-00) 558 RON
67 1 1 STOP PAWL (153603-01) 1117 RON
68 1 2 SCREW (153666-00) 558 RON
70 1 1 PIN LOCKING (387130-00) 2347 RON
71 1 1 KNOB (N654500) 668 RON
73 1 1 BEVEL POINTER RIGHT (N058308) 893 RON
74 1 2 SCREW SHOULDER M5X12 (N058314) 1229 RON
75 1 2 SCREW (N058312) 893 RON
76 1 1 BEVEL POINTER LEFT (N058309) 893 RON
78 1 1 SPRING (167785-00) 558 RON
79 1 1 PLATE STOP RH (N049689) 1229 RON
81 1 1 PLATE STOP LH (N051519) 1229 RON
82 1 4 WAVY WASHER (153655-00) 558 RON
83 1 5 SHOULDER SCREW (153639-00) 781 RON
86 1 1 PIN (N834068) 2182 RON
86 1 1 PIN (N041865) 5591 RON
87 1 1 KNOB (N080199) 1229 RON
88 1 1 RING (060325-01) 558 RON
88 1 1 60325-01 - Indisponibil
91 1 1 SA SLIDE STOP LEVER (N095579) 2795 RON
92 1 1 DUST PORT (N592588) 741 RON
93 1 3 SCREW (330019-05) 558 RON
95 1 1 CHUTE (N751540) 3954 RON
96 1 1 SHAFT (146751-00) 2124 RON
97 1 2 SPACER (146732-00) 781 RON
98 1 1 SPRING (N039404) 9282 RON
99 1 2 SCREW (150075-00) 781 RON
100 1 1 LINK (641436-00) 2347 RON
101 1 2 SLEEVE (146740-00) 781 RON
102 1 1 ADAPTOR (604770-00) 2347 RON
103 1 1 SCREW (N460123) 1318 RON
104 1 1 BLADE BOLT (N600011) 114 RON
105 1 1 CLAMP,OUTER (N542995) 5370 RON
106 1 1 N600470 - Indisponibil
106 1 1 WASHER INNER CLAMP (N913382) 2182 RON
107 1 1 MOTOR SA (N747526) 277356 RON
108 1 1 SCREW (394034-00) 893 RON
109 1 1 SCREW (330019-76) 588 RON
109 1 1 SCREW (NA187682) 668 RON
110 1 1 HANDLE (N703990) 2182 RON
111 1 1 CORD CLAMP (N592587) 588 RON
112 1 1 CLAMSHELL HALF (N592593) 5370 RON
113 1 1 CLAMSHELL HALF (N592592) 4827 RON
114 1 1 COVER BELT (N592581) 12361 RON
116 1 4 SCREW (330045-18) 558 RON
117 1 5 SCREW PLASTITE (330019-32) 558 RON
118 1 1 CAP (N300152) 1318 RON
119 1 1 SCREW TAPTITE M4x12 SLT/T20 (330045-45) 558 RON
120 1 1 COVER (N589571) 588 RON
121 1 1 LED LIGHT (N747544) 18568 RON
124 1 1 MODULE (N747545) 25728 RON
126 1 1 GASKET (34158-00) 588 RON
127 1 1 screw dw744 (330019-12) 558 RON
130 1 1 GEARCASE COVER SA (641495-00) 51337 RON
130 1 1 641495-00SV - Indisponibil
131 1 1 BEARING NEEDLE (391616-00) 190 RON
132 1 1 GASKET (641459-00) 1788 RON
133 1 1 BEARING BALL (330003-66) 5591 RON
134 1 2 SCREW (385915-04) 558 RON
135 1 1 GEAR & SPINDLE SA (641465-00) 3124 RON
135 1 1 GEAR & SPINDLE SA (641465-00SV) 3124 RON
137 1 8 SCREW (330045-14) 558 RON
138 1 1 BEARING (605040-69) 3018 RON
139 1 1 153752-00 - Indisponibil
140 1 2 SCREW (330019-05) 558 RON
141 1 1 SCREW (N185664) 1933 RON
142 1 1 NUT WING (150718-00) 558 RON
143 1 1 SHAFT SA (N066269) 20467 RON
143 1 1 SHAFT SA (N066269SV) 17335 RON
145 1 1 ARM (N571290) 49114 RON
146 1 1 BEARING DW704 TYPE 3 (386780-00) 190 RON
147 1 1 WASHER (153559-00) 558 RON
148 1 1 SPRING (448176-00) 558 RON
149 1 1 LOCKING PIN (153561-00) 105 RON
150 1 1 PLATE (393071-00) 558 RON
151 1 1 SCREW TAPTITE M4x12 SLT/T20 (330045-45) 558 RON
152 1 6 Screw Metal (330045-15) 781 RON
153 1 1 BELT (N767583) 10241 RON
153 1 1 N540751 - Indisponibil
154 1 2 N703029 - Indisponibil
154 1 1 HANDLE KIT (N779656) 28836 RON
155 1 4 SCREW (330045-23) 781 RON
155 1 4 SCREW (394589-01) 781 RON
156 1 1 WASHER (N611941) 588 RON
157 1 3 SCREW (330045-23) 781 RON
158 1 1 PLATE (N041974) 2796 RON
159 1 1 BUMPER (146768-00) 781 RON
160 1 1 SPRING (661454-00) 1117 RON
161 1 1 SLEEVE (148295-00) 105 RON
162 1 1 GUARD LOWER (N540770) 12361 RON
163 1 1 PLATE (N592582) 6688 RON
165 1 1 RETAINING PLATE (146750-03) 1788 RON
166 1 2 RING (142273-00) 558 RON
167 1 2 ROLLER (625825-00) 781 RON
168 1 3 SCREW (330045-55) 558 RON
180 1 3 SLIDE ROLLER (640146-00) 893 RON
200 1 1 CLAMP SA (N753539) 12361 RON
201 1 1 RATING PLATE (N620535) 1772 RON
201 1 1 RATING PLATE-QW (NA169188) 2182 RON
202 1 1 BRAND LABEL (N627027) 1630 RON
203 1 1 LEFT XR FLEXVOLT LABEL DCS575/DCS576 EAN (N459248) 1318 RON
204 1 1 RIGHT XR FLEXVOLT LABEL DCS575/DCS576 EA (N459249) 1318 RON
205 1 1 LABEL BRUSHLESS 54V (N503697) 588 RON
206 1 2 LABEL (N703970) 1630 RON
866 1 1 BATTERY 3 X18V-6.0AH-108WH (N473851) 148269 RON
866 1 1 N722442 - Indisponibil
867 1 1 SAFETY CAP (N462141) 5370 RON
871 1 1 CHARGER QW (N473860) 73079 RON
