Top » Piese de schimb » PIESE DEWALT » DCS520 Type 1

FIERASTRAU VERTICAL CU ACUMULATOR DEWALT DCS520 Type 1
[DCS520 Type 1]
FIERASTRAU VERTICAL CU ACUMULATOR DEWALT DCS520 Type 1
Click pentru a mari
Imagini suplimentare
FIERASTRAU VERTICAL CU ACUMULATOR DEWALT DCS520 Type 1
Click pentru a mari
FIERASTRAU VERTICAL CU ACUMULATOR DEWALT DCS520 Type 1
Click pentru a mari
FIERASTRAU VERTICAL CU ACUMULATOR DEWALT DCS520 Type 1
Click pentru a mari
FIERASTRAU VERTICAL CU ACUMULATOR DEWALT DCS520 Type 1
Click pentru a mari

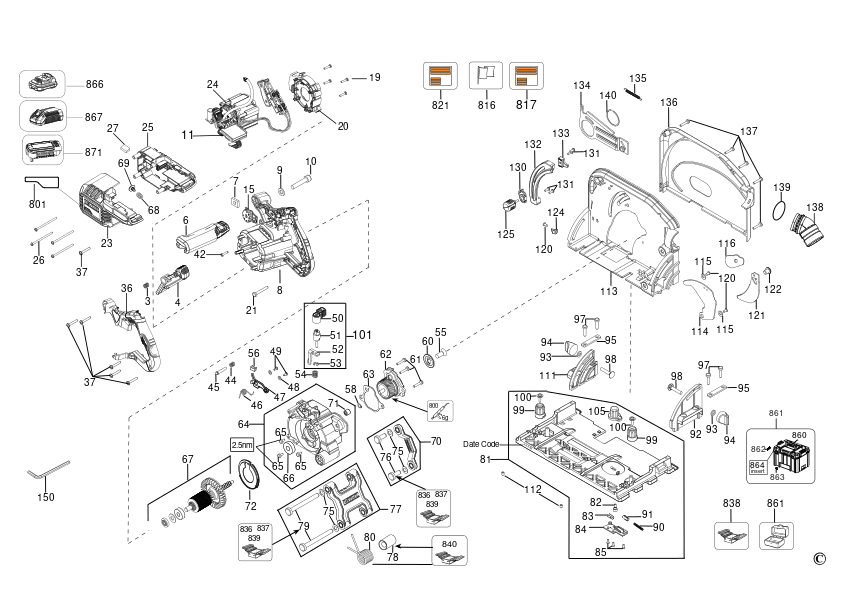

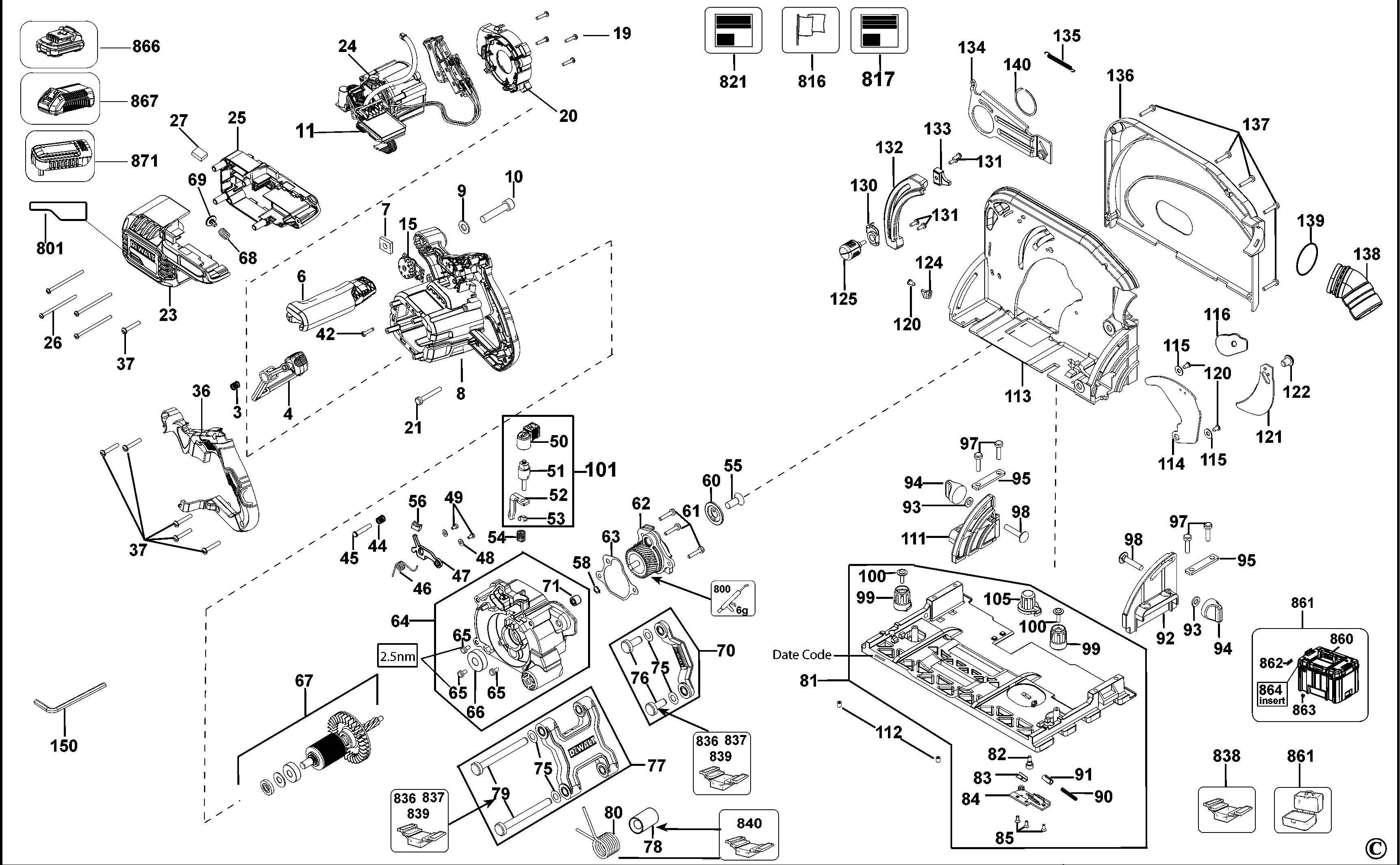

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
3 1 1 SPRING (1007210-00) 558 RON
4 1 1 SA LOCK LEVER AND BUTTON (SERVICE) (N083272) 6821 RON
4 1 1 SA LOCK LEVER AND BUTTON (1009031-00) 9282 RON
6 1 1 BALE HANDLE (492062-00) 10512 RON
7 1 1 M8 BHANDLE PLATE (491035-00) 558 RON
8 1 1 CLAMSHELL WITH HANDLE, MOTOR (N423488) 12361 RON
9 1 1 WASHER M8 X 16.8 X 1.6 (1005703-00) 558 RON
10 1 1 CAP SCREW M8X40 (949886-38) 105 RON
15 1 1 SPEED DIAL CONCRETE 25k (N438611) 6688 RON
19 1 4 SCREW PLASTIC THREAD FORM M3.5*16 T15 (330019-66) 558 RON
20 1 1 ADAPTOR PLATE HPC (N423492) 2556 RON
21 1 4 SCREW (330045-18) 558 RON
23 1 1 RAIL, HPC LH (N423490) 5370 RON
24 1 1 N494138 - Indisponibil
25 1 1 RAIL, HPC RH (N423489) 2796 RON
26 1 4 SCREW (330065-16) 558 RON
27 1 1 FOAM ANTI - VIBRATION (329930-00) 558 RON
36 1 1 N431460 - Indisponibil
37 1 6 SCREW PLSTC THD FORM M4X25 T20 (330065-09) 558 RON
42 1 1 SCEW PLSTC THD FORM M4X10 T20 (330065-05) 558 RON
44 1 1 SPRING PLUNGE PIN (1005371-00) 781 RON
45 1 1 PLUNGE LOCK PIN SERVICE(10pcsX1polybag) (N019976) 2182 RON
46 1 1 SPRING-TORSION-PLUNGE LOCK PLATE (1006028-00) 781 RON
47 1 1 PLUNGE LOCK PLATE (1008323-00) 1117 RON
48 1 2 WASHER PLAIN (330016-01) 558 RON
49 1 2 SCREW M3X8 TAPTITE TORX PAN HEAD (1006719-00) 558 RON
50 1 1 BUTTON SPINDLE LOCK (493499-00) 893 RON
51 1 1 SPINDLE LOCK BULK PACKED (1009606-00) 10512 RON
51 1 1 SPINDLE LOCK PIN (496980-00) 3466 RON
52 1 1 PLATE SPINDLE LOCK (496979-00) 781 RON
53 1 1 CIRCLIP (370170) 558 RON
54 1 1 SPRING (1005444-00) 781 RON
55 1 1 SCREW CSK SOCKET M8 (490549-00) 558 RON
56 1 1 PLUNGE LOCK BUTTON (MOULD) (1008577-00) 105 RON
58 1 1 CIRCLIP (491838-00) 781 RON
60 1 1 OUTER FLANGE BLADE (490551-00) 2347 RON
60 1 1 OUTER FLANGE (NA381369) 2796 RON
61 1 3 SCREW (330045-07) 558 RON
62 1 1 SA GEARCASE COVER A GEAR (SERVICE) (1007370-00) 25164 RON
63 1 1 GEARCASE SEAL (491225-00) 781 RON
64 1 1 SA GEARCASE AND BEARING KIT (SERVICE) (N494141) 30769 RON
65 1 3 SCREW METAL THD FORM M4X8 T20 (330045-44) 558 RON
66 1 1 BEARING BALL FACE SEAL (N053249) 5031 RON
67 1 1 N494142 - Indisponibil
68 1 1 MOUNT TERM BLOCK SPRING (MOULD) (N122099) 558 RON
69 1 1 SPRING (N119679) 558 RON
70 1 1 SA SINGLE LINK KIT (SERVICE) (N494146) 10241 RON
71 1 1 NEEDLE ROLLER (496697-00) 190 RON
72 1 1 BAFFLE GEARCASE (1006767-00) 893 RON
75 1 4 BELVILLE WASHER (493529-00) 781 RON
76 1 2 LINK PIN, SHORT (490690-00) 1933 RON
77 1 1 SA DOUBLE LINK KIT (SERVICE) (N494148) 16689 RON
78 1 1 SPACER PLUNGE SPRING (1007325-00) 781 RON
79 1 2 LINK PIN, LONG (490691-00) 2796 RON
80 1 1 TORSION SPRING LOWER (491573-00) 2124 RON
81 1 1 SA BASE PLATE KIT (SERVICE) (N494143) 36994 RON
82 1 1 ANTI-KICKBACK PIN (490687-00) 893 RON
83 1 1 SPRING CLIP (1005549-00) 1229 RON
84 1 1 ANTI-KICKBACK COVER (490702-00) 781 RON
85 1 3 SCREW CSK M3X8 (492088-00) 558 RON
90 1 1 AKB SPRING (491446-00) 781 RON
91 1 1 SPRING GUIDE (1005053-00) 781 RON
92 1 1 BEVEL HINGE REAR (1007977-00) 3018 RON
93 1 2 WASHER M6 X 16.0 X 1.6 (1005704-00) 558 RON
94 1 2 SA KNOB (395889-00) 781 RON
95 1 2 HINGE PLATE (490877-00) 781 RON
97 1 4 Screw Metal (330045-15) 781 RON
98 1 2 BOLT CARRIAGE M6X30 (098128-40) 558 RON
99 1 2 RAIL KNOB ADJUSTER (496804-00) 781 RON
100 1 2 RAIL SCREW (496806-00) 781 RON
101 1 1 SA KIT BUTTON AND SPINDLE (SERVICE) (N515550) 20216 RON
105 1 1 SA ANTIKICK BACK BUTTON (1005943-01) 2795 RON
105 1 1 490703-01 - Indisponibil
105 1 1 ANTI KICK BACK (SERVICE) (NA596069) 3954 RON
111 1 1 BEVEL HINGE FRONT (1007976-00) 3018 RON
112 1 2 PATCH LOCK SCREW (496698-00) 781 RON
113 1 1 INNER GUARD, MACHINED HPC (N455672) 23244 RON
114 1 1 PLATE COVER (491542-00) 105 RON
115 1 2 WASHER M5X12.3X1.0 (1005219-00) 558 RON
116 1 1 COVER PLATE RETAINER (1007560-00) 558 RON
120 1 3 SCREW FLAT HEAD 7.8MM (389235-04) 781 RON
121 1 1 RIVING KNIFE (N018408) 2347 RON
122 1 1 SCREW BUTTON SOCKET M8X10 (153637-06) 558 RON
124 1 1 POINTER (MOULD) (490829-00) 781 RON
125 1 1 DEPTH ADJUSTOR KNOB (491151-00) 3018 RON
130 1 1 DEPTH ADJUSTOR POINTER (MOULD) (491170-00) 781 RON
131 1 5 SCALE SCREW (496621-00) 558 RON
132 1 1 DEPTH SCALE MEASUREMENT (491149-00) 1788 RON
133 1 1 DEPTH STOP (MOULD) (1008510-00) 2795 RON
134 1 1 RIVING KNIFE CARRIER (N018403) 2124 RON
135 1 1 RIVING KNIFE SPRING (490955-00) 781 RON
136 1 1 OUTER GUARD HPC (N455674) 21676 RON
137 1 5 SCREW (330045-07) 558 RON
138 1 1 DUST ADAPTER (N025979) 2795 RON
139 1 1 O-RING SEAL CLAMSHELL (491536-00) 558 RON
140 1 1 RETAINING RING (629745-00) 893 RON
150 1 1 98000-11 - Indisponibil
150 1 1 HEX KEY 5MM ocd vechi 98000-11 (098000-11) 781 RON
800 1 1 GREASE SACHET 20G RENOLIT PARAGON EP 1 (870889-03) 3018 RON
801 1 1 BRUSHLESS LABEL 54V (N465891) 1630 RON
816 1 1 BRAND LABEL (492112-00) 558 RON
817 1 1 WARNING LABEL (N512036) 1318 RON
821 1 1 N465890 - Indisponibil
836 1 1 SERVICE TOOL (559691-99) 2149 RON
837 1 1 559698-99 - Indisponibil
837 1 1 559695-99 - Indisponibil
838 1 1 559698-99 - Indisponibil
839 1 1 SERVICE TOOL (559696-99) 4043 RON
840 1 1 SERVICE TOOL (596002-99) 635 RON
860 1 1 HANDLE (H1400198008) 2347 RON
860 1 1 H1400196008 - Indisponibil
861 1 1 KITBOX (N445186) 39318 RON
862 1 1 LATCH (N409477) 114 RON
862 1 2 LATCH (H1500082520) 1117 RON
863 1 2 LATCH (P910190) 3466 RON
864 1 1 KITBOX INSERT PLUNGE SAW EPP (N470465) 10241 RON
866 1 1 BATTERY 3 X18V-6.0AH-108WH (N473851) 148269 RON
867 1 1 SAFETY CAP (N462141) 5370 RON
871 1 1 CHARGER QW (N473860) 73079 RON
